Posterior densities

  • Show All Code
  • Hide All Code

  • View Source
Code
import arviz as az
import numpy as np
import glob
import os
import json
import csv
import pandas as pd

import matplotlib.pyplot as plt
import corner
from agnvar import clean_dataframe,prettyname2dirname,dirname2prettyname,find_spectral_str, replot_lsp_ppc,replot_psd_ppc,plot_posterior_density,replot_psd_overplot, get_all_xmm_lightcurves,plot_total_lc,find_simultaneous,get_scales,plot_intercalibrated_lc,plot_flux_distributions,plot_total_lc,plot_full_light_curve,intercalibrate_lc,get_index_label,prettify_names

plt.rcParams.update({'figure.max_open_warning': 0})

sources = pd.read_csv('website_sources_data.csv')

sources_list = sources["Object"].values.tolist()
dir_list = [prettyname2dirname(source) for source in sources_list]
energies = ["0.3-1.5"]
path = "/home/mehdy/github/Paper_II/website/inference/"
band = "0.3-1.5"

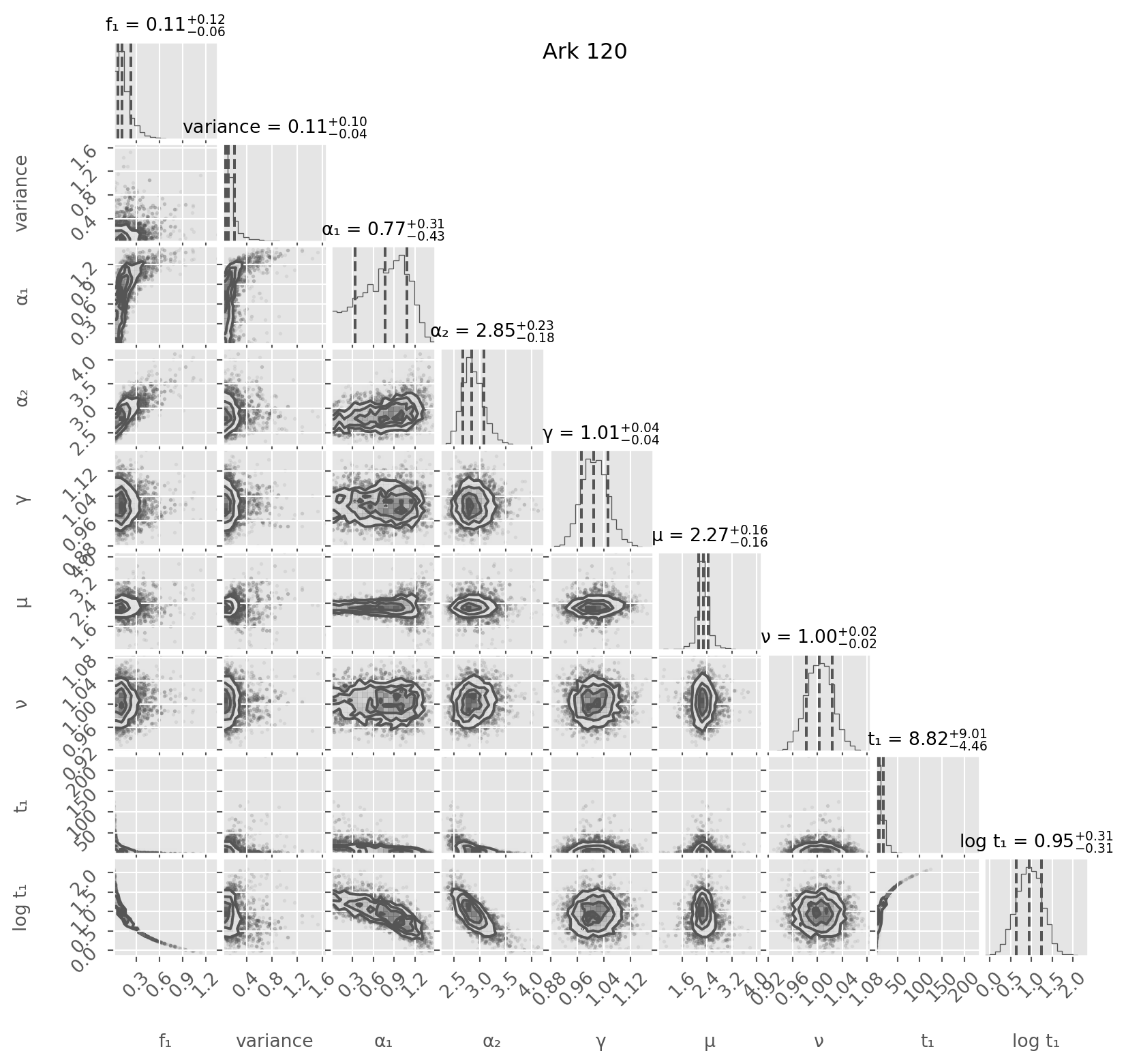

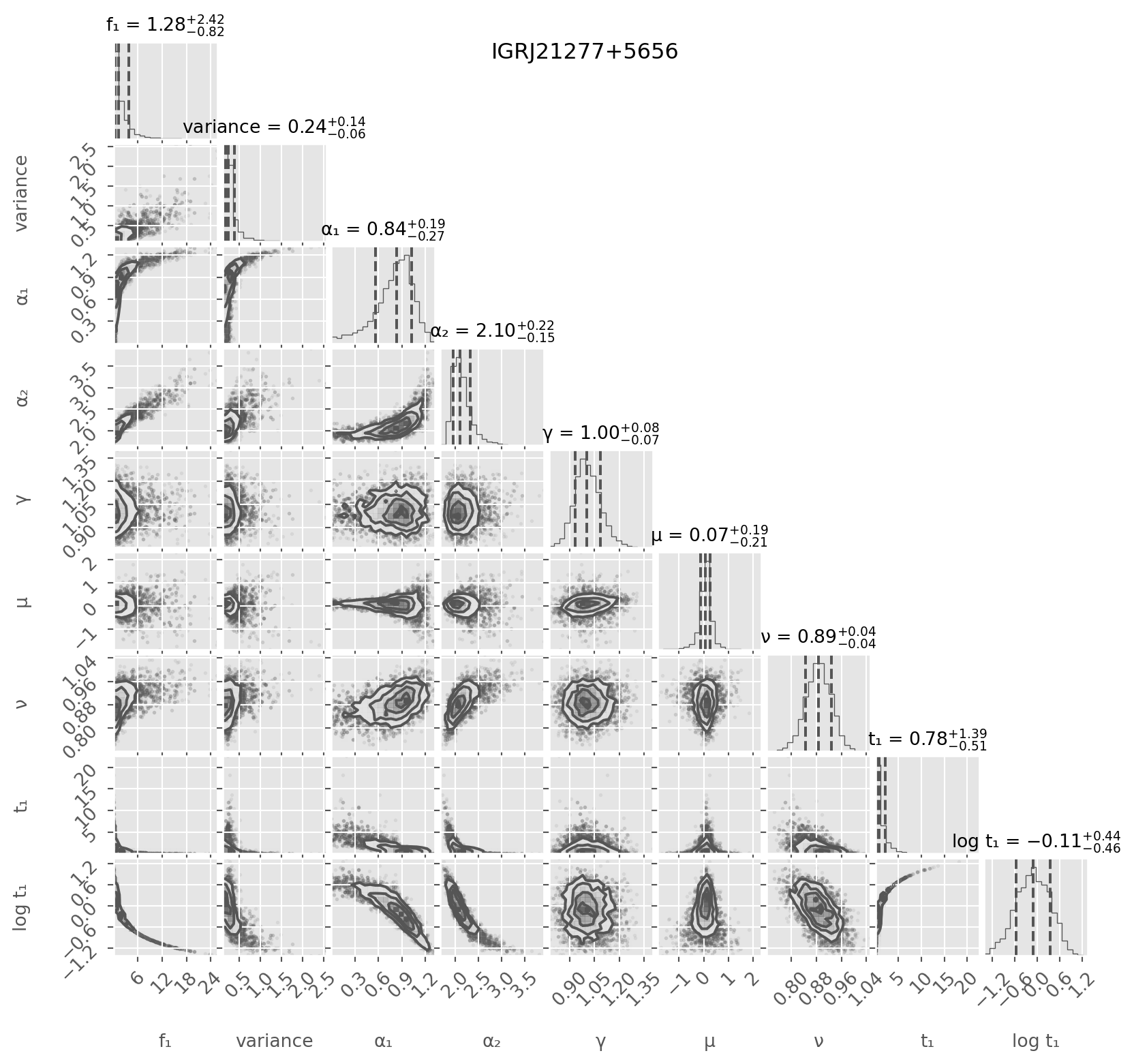

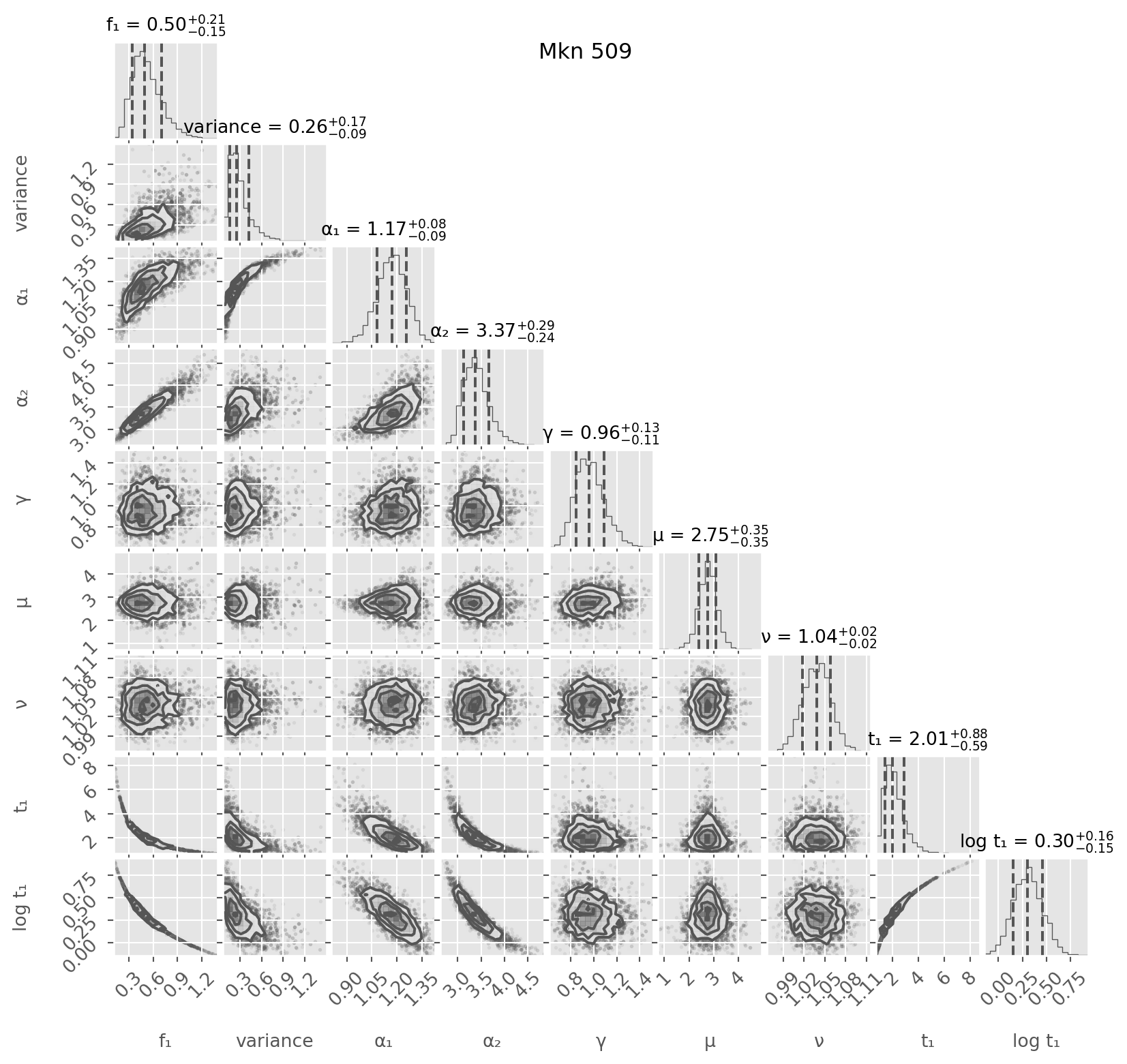

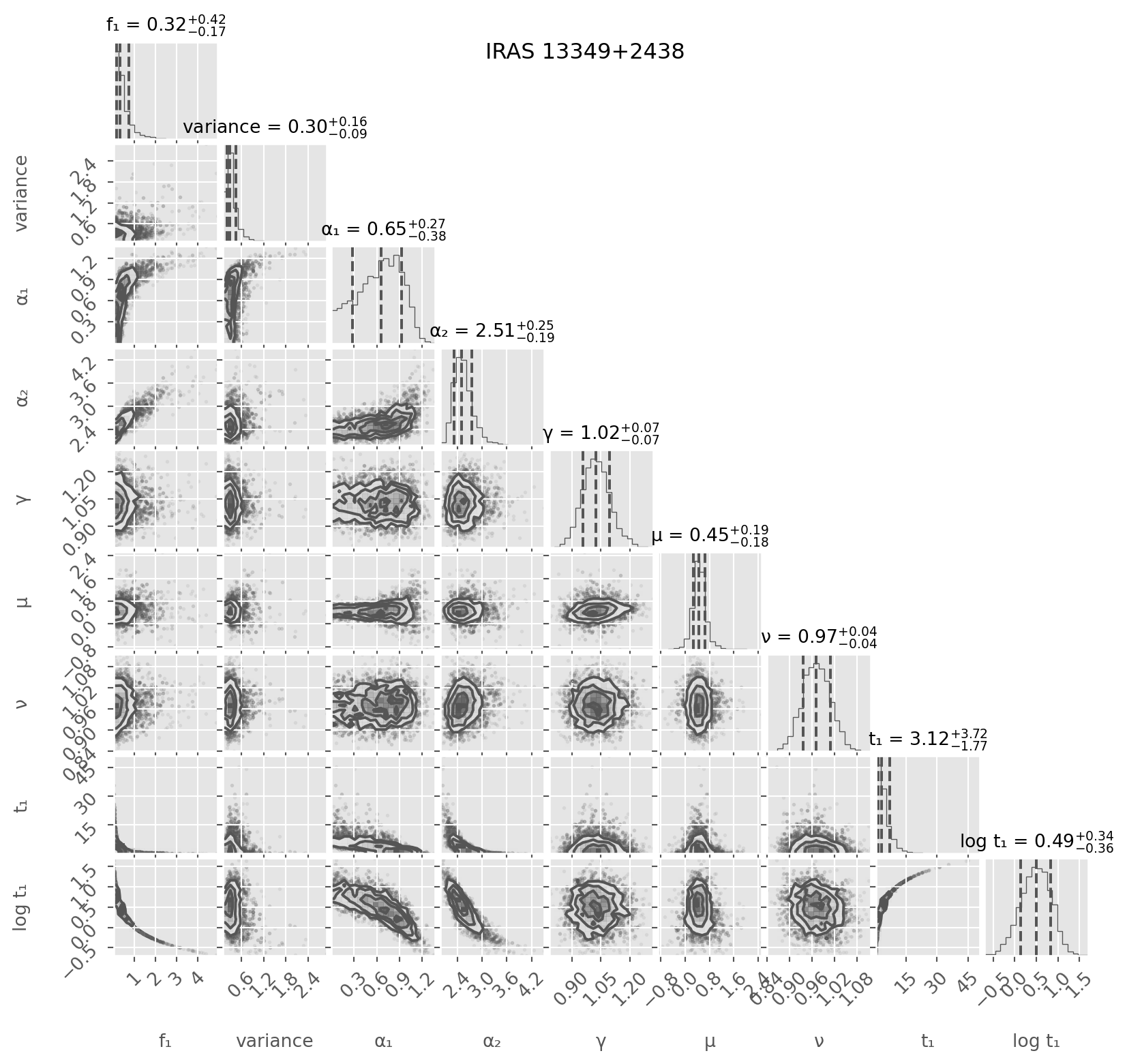

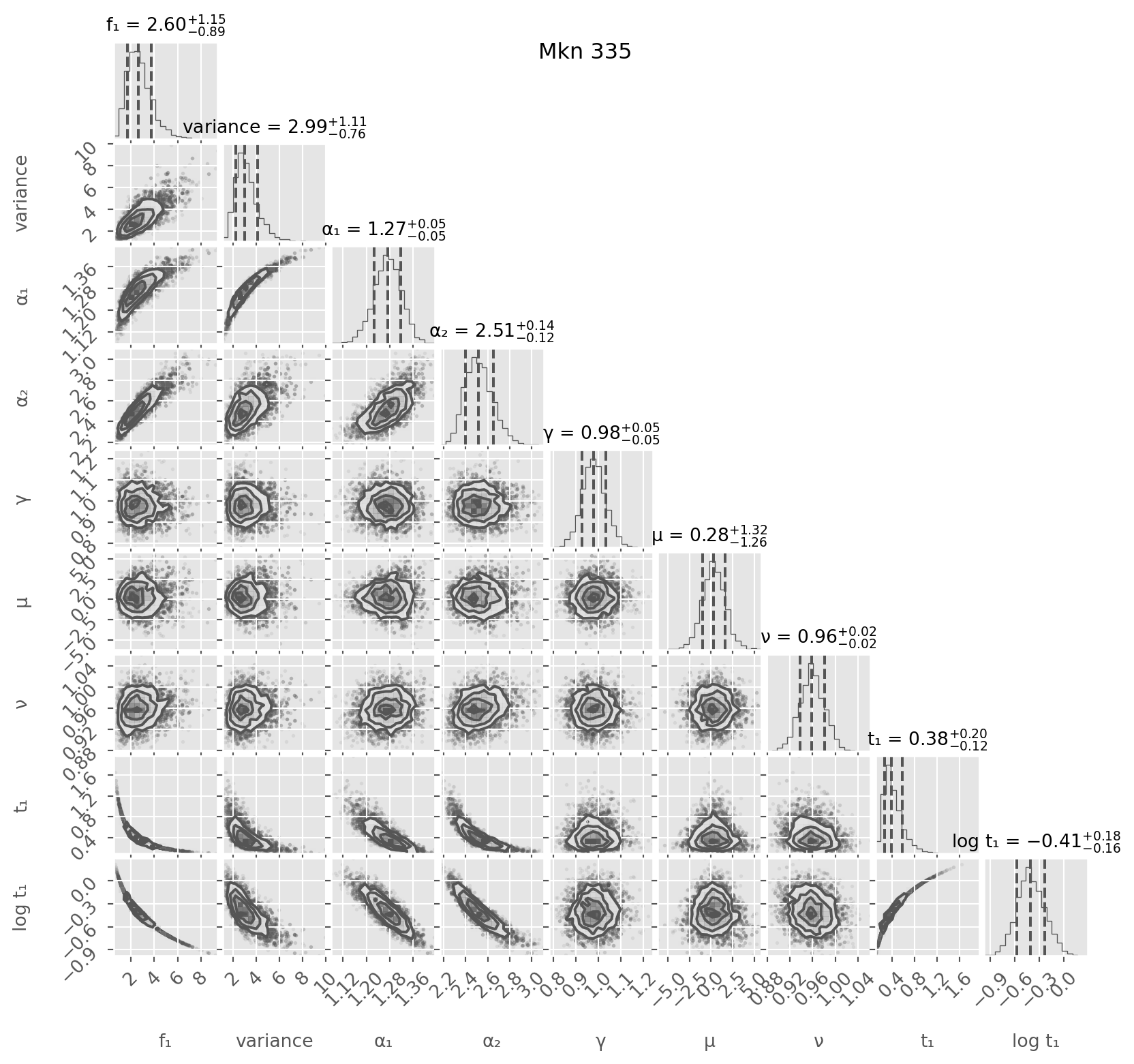

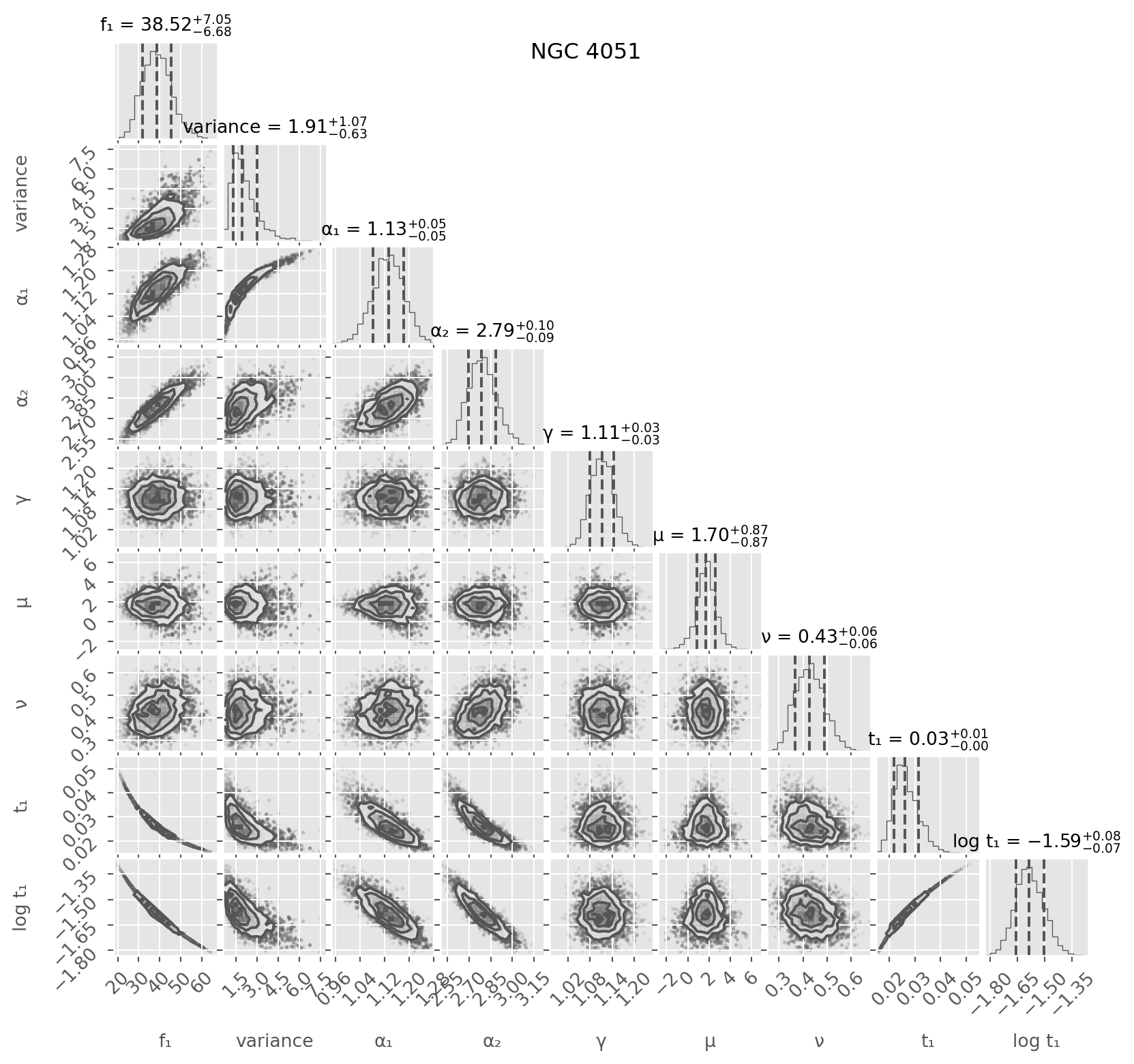

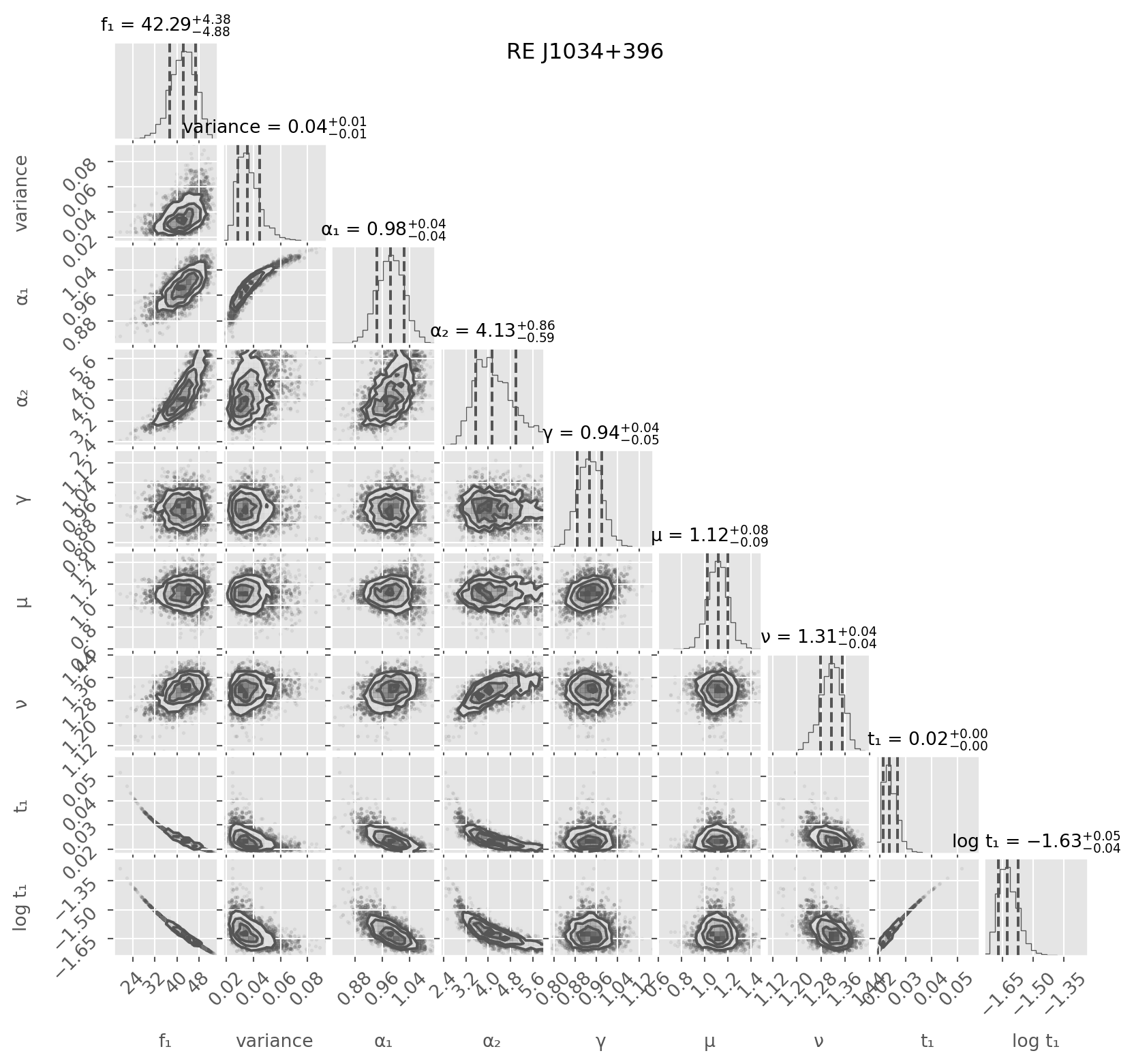

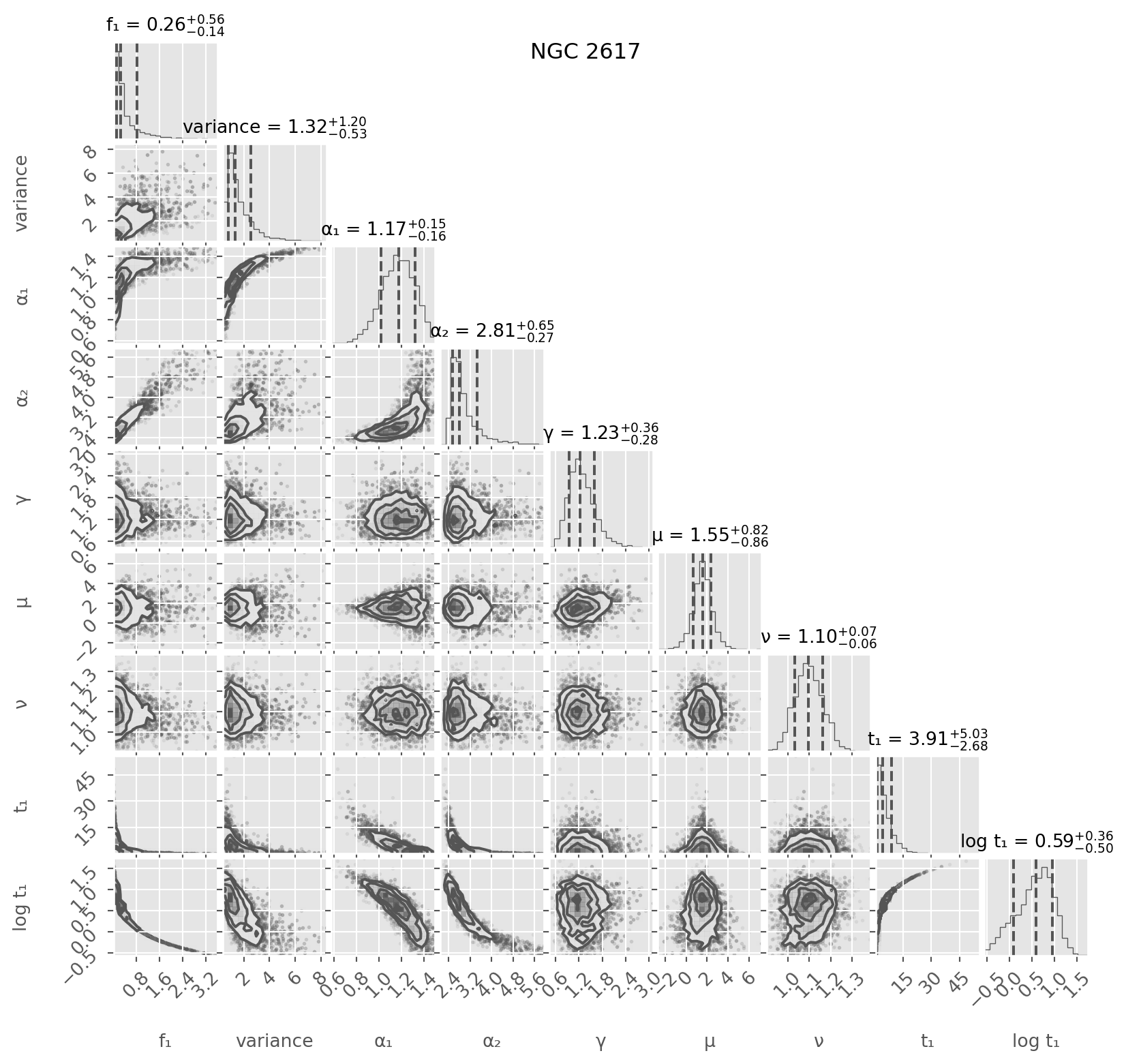

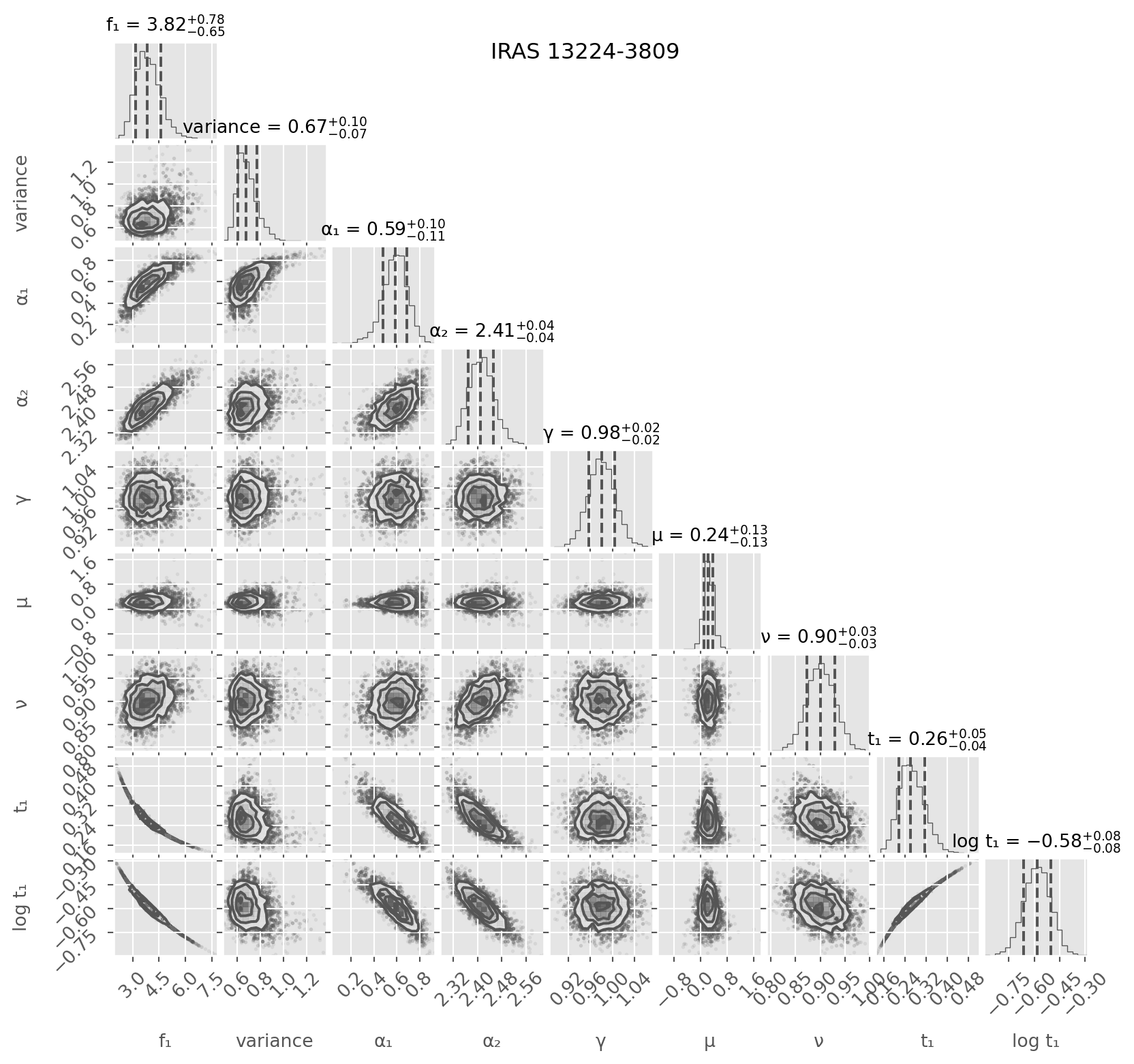

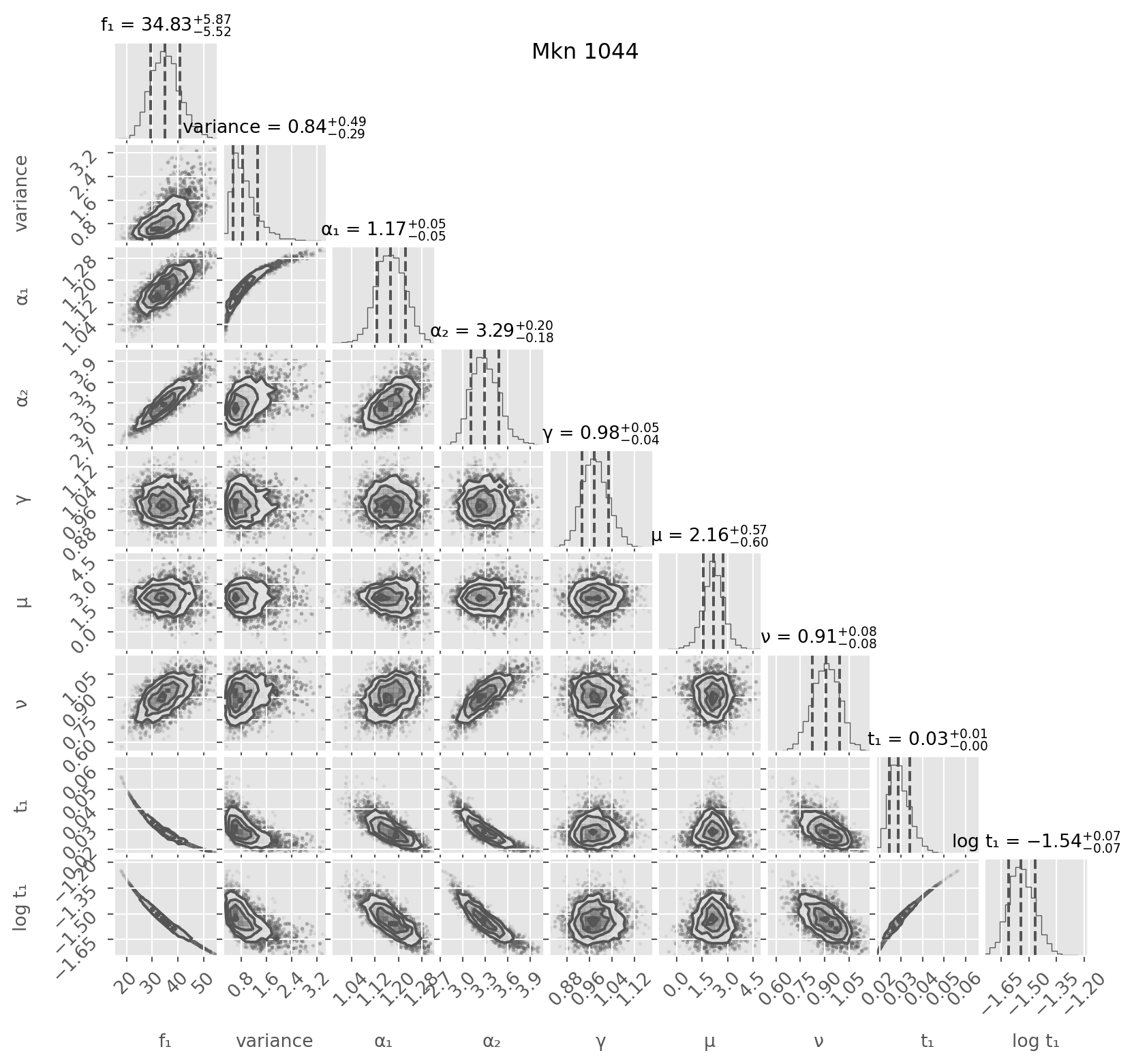

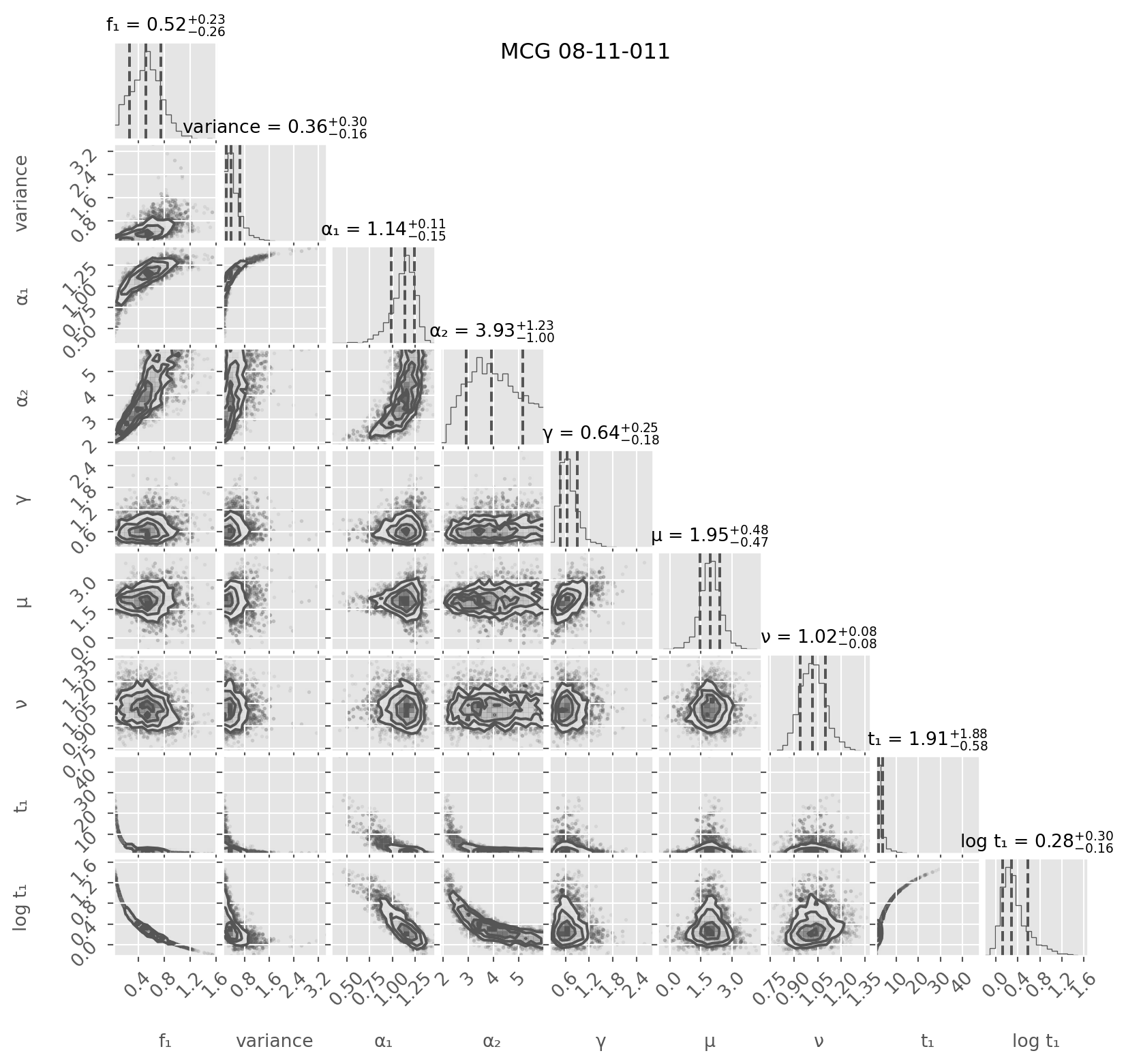

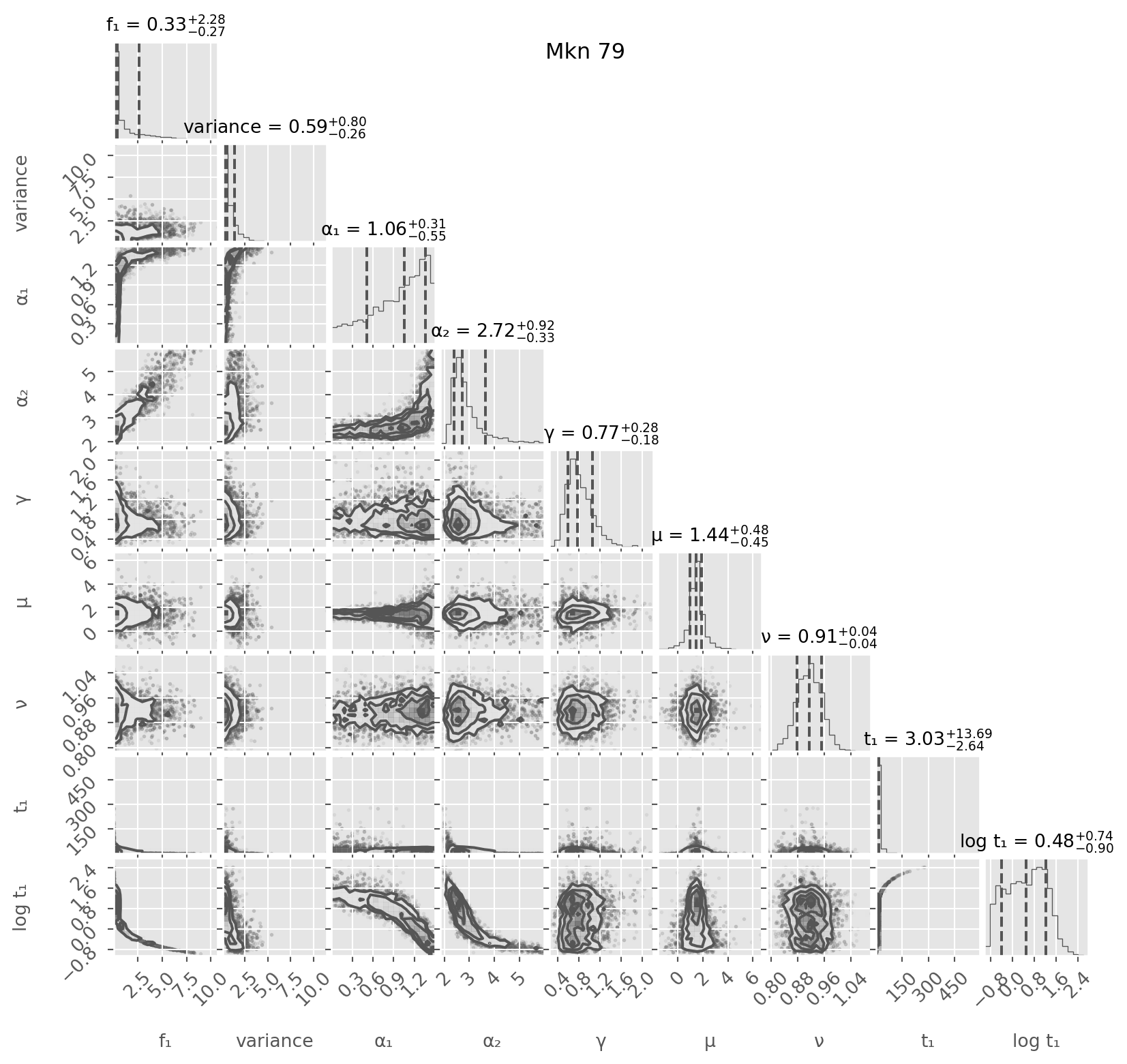

Single bending power-law

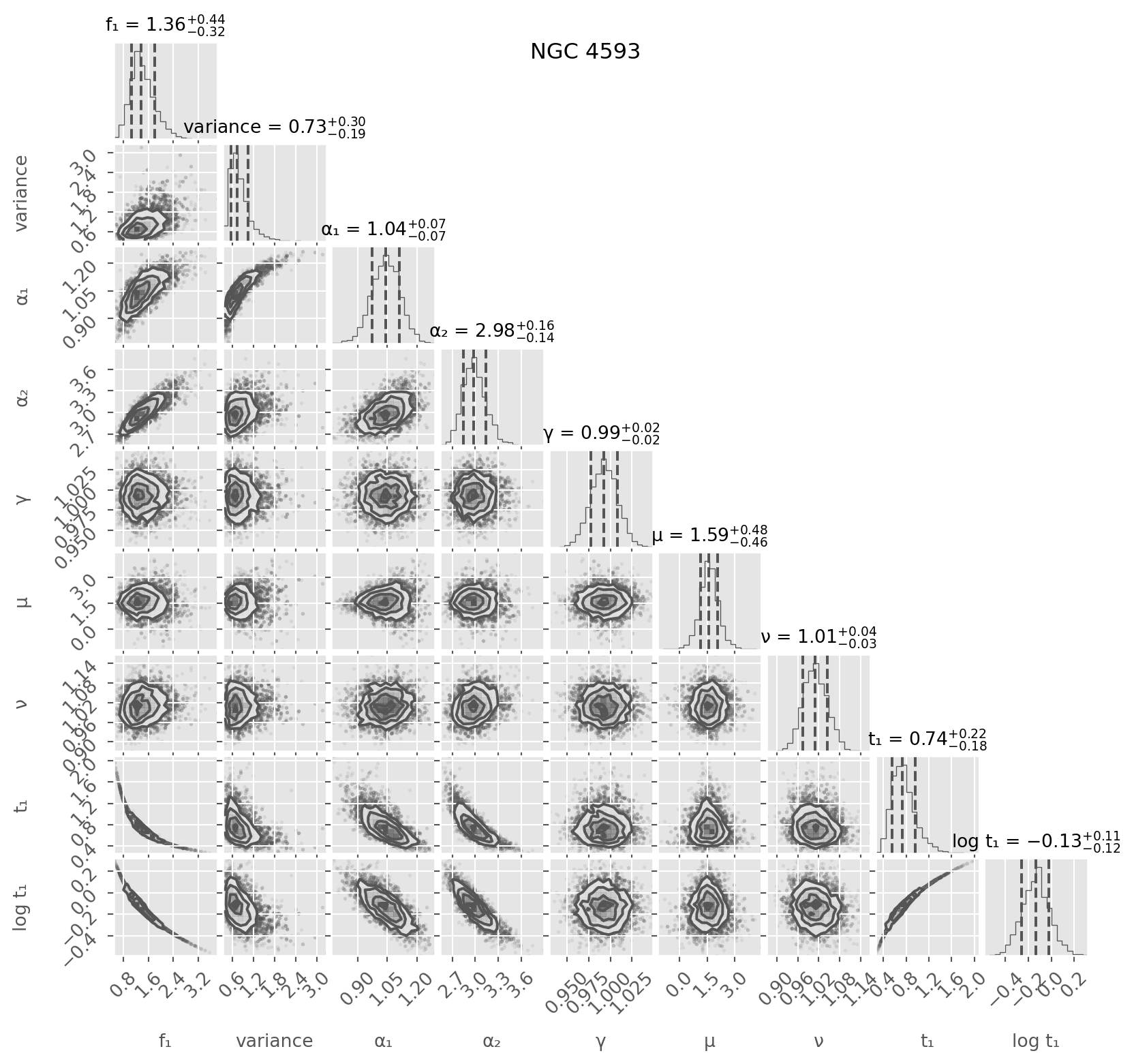

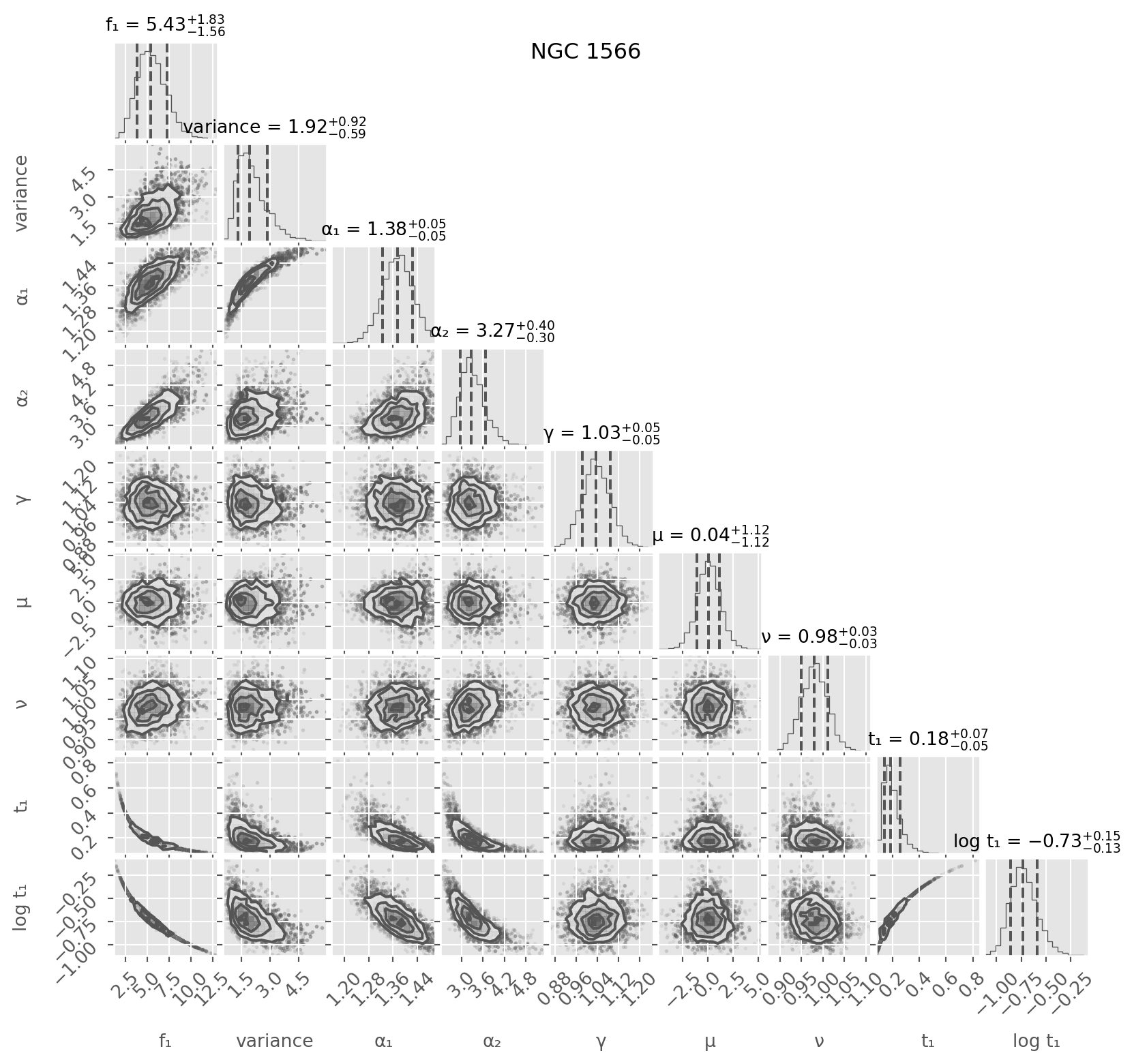

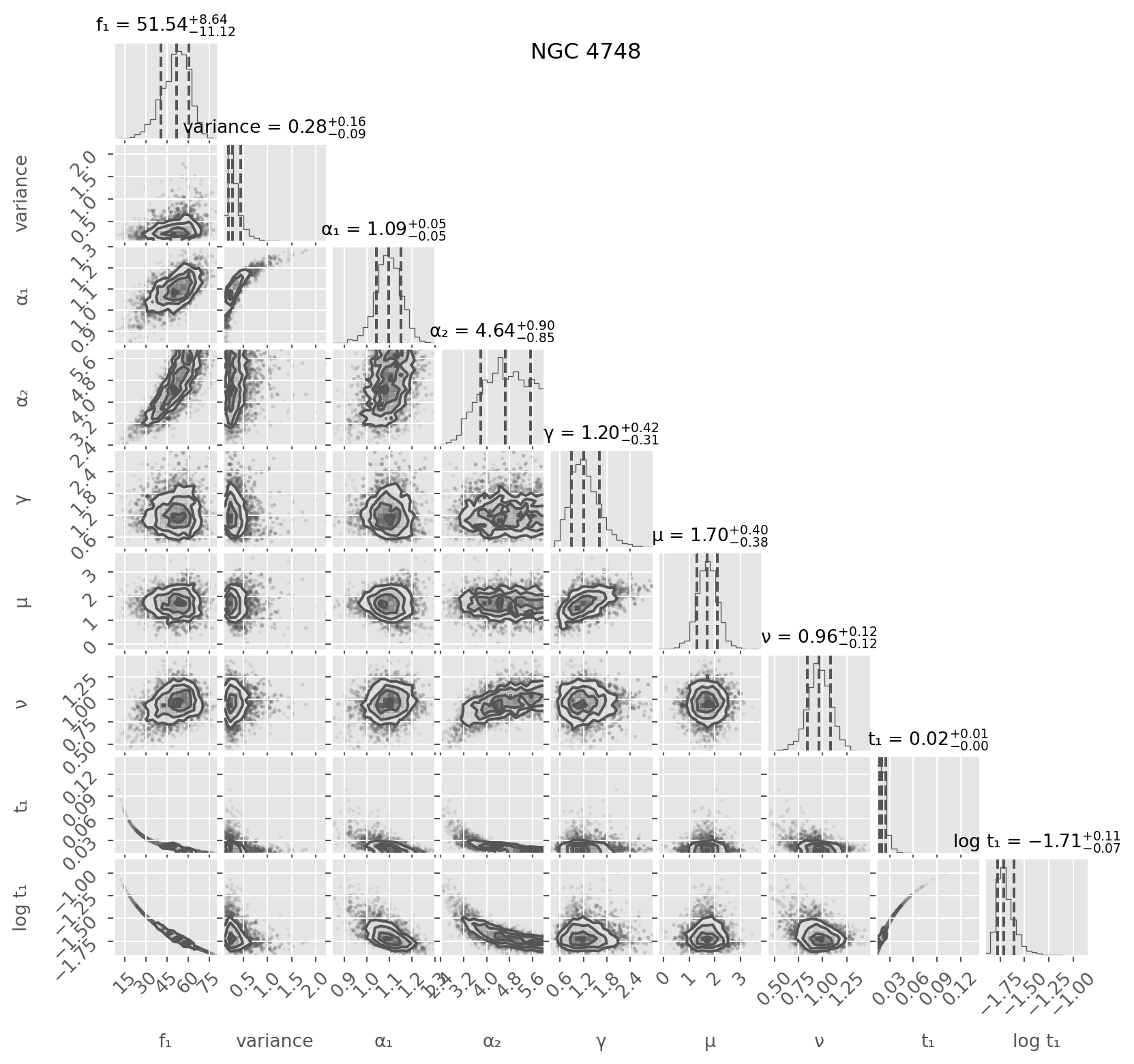

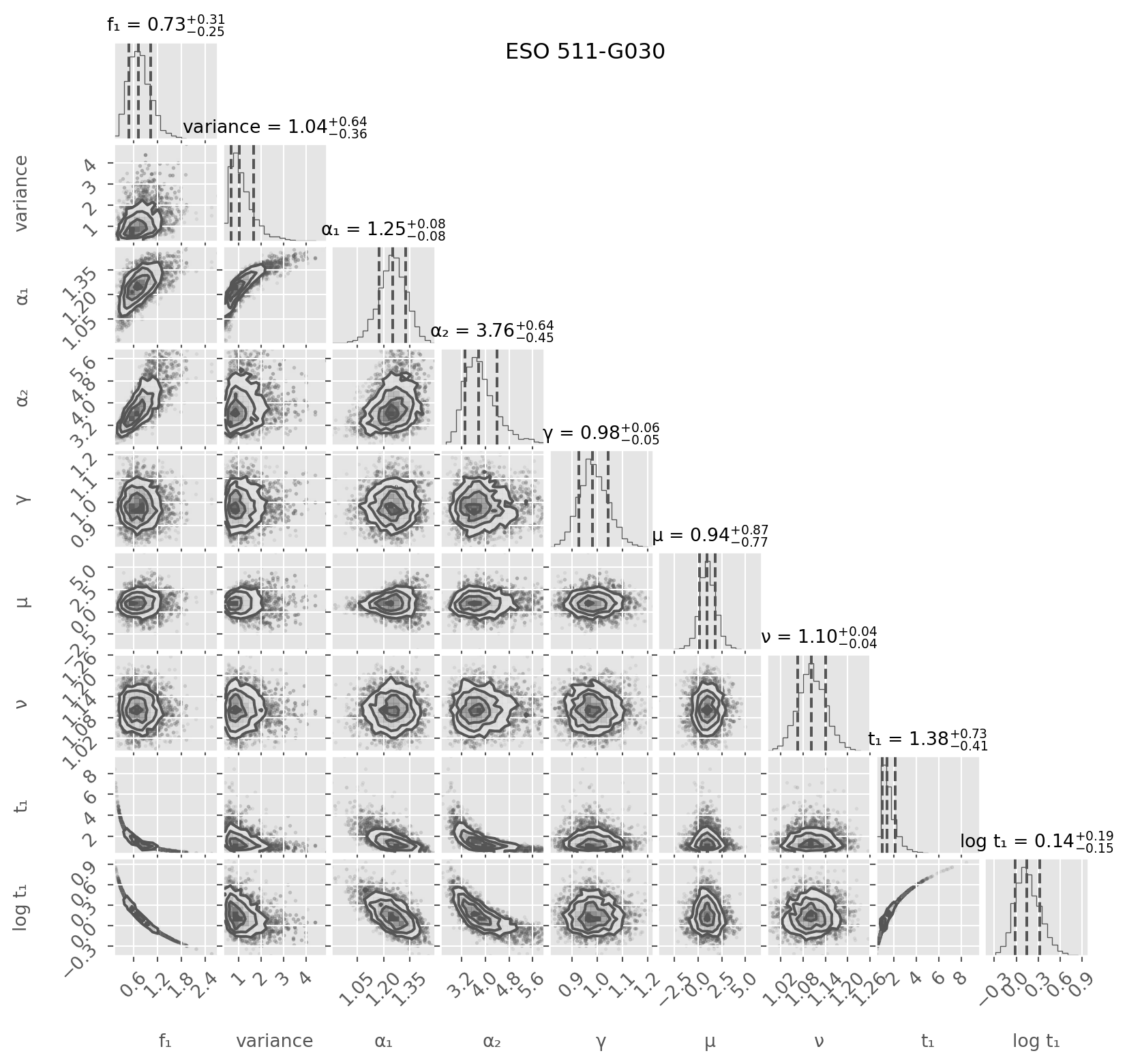

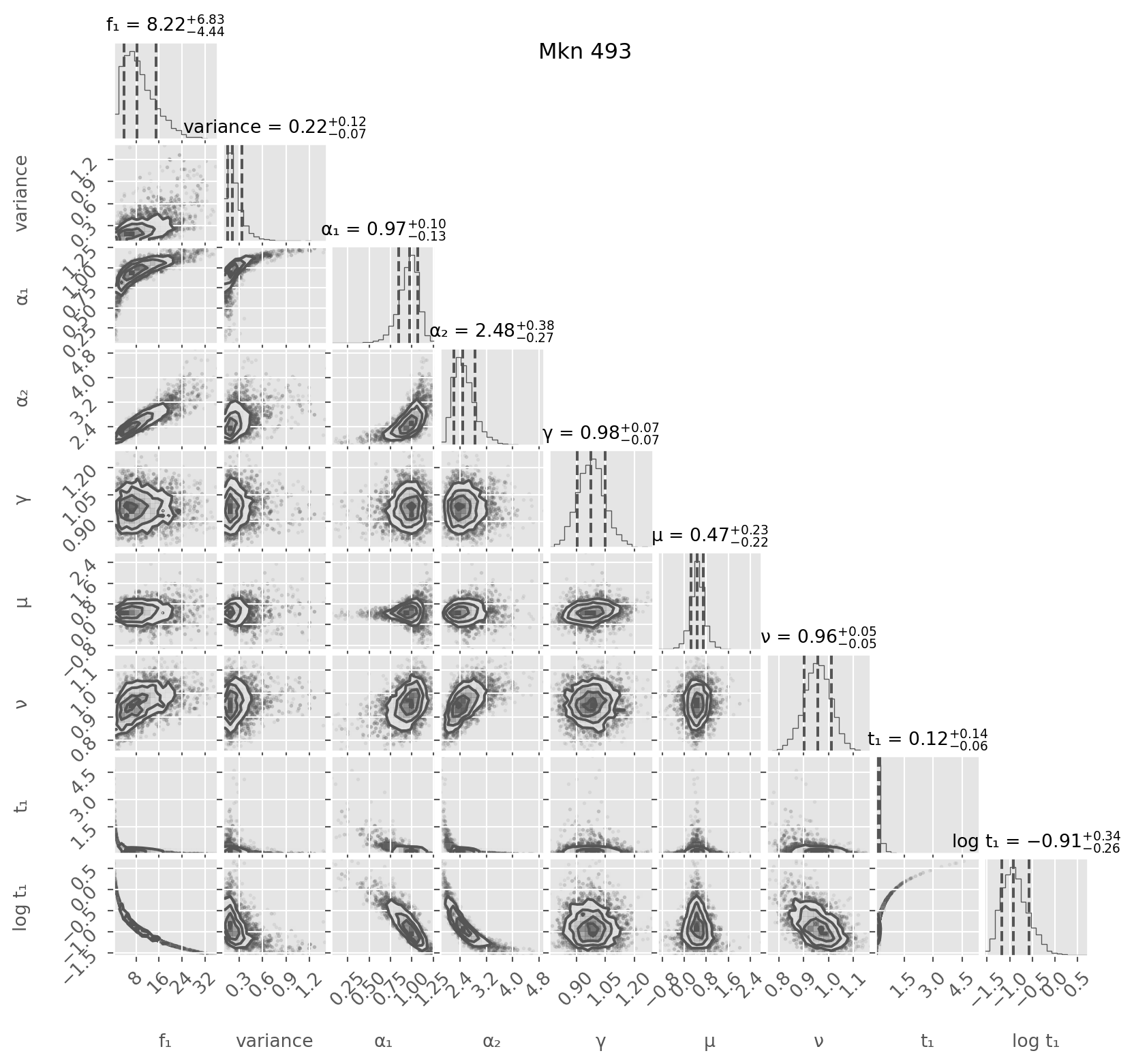

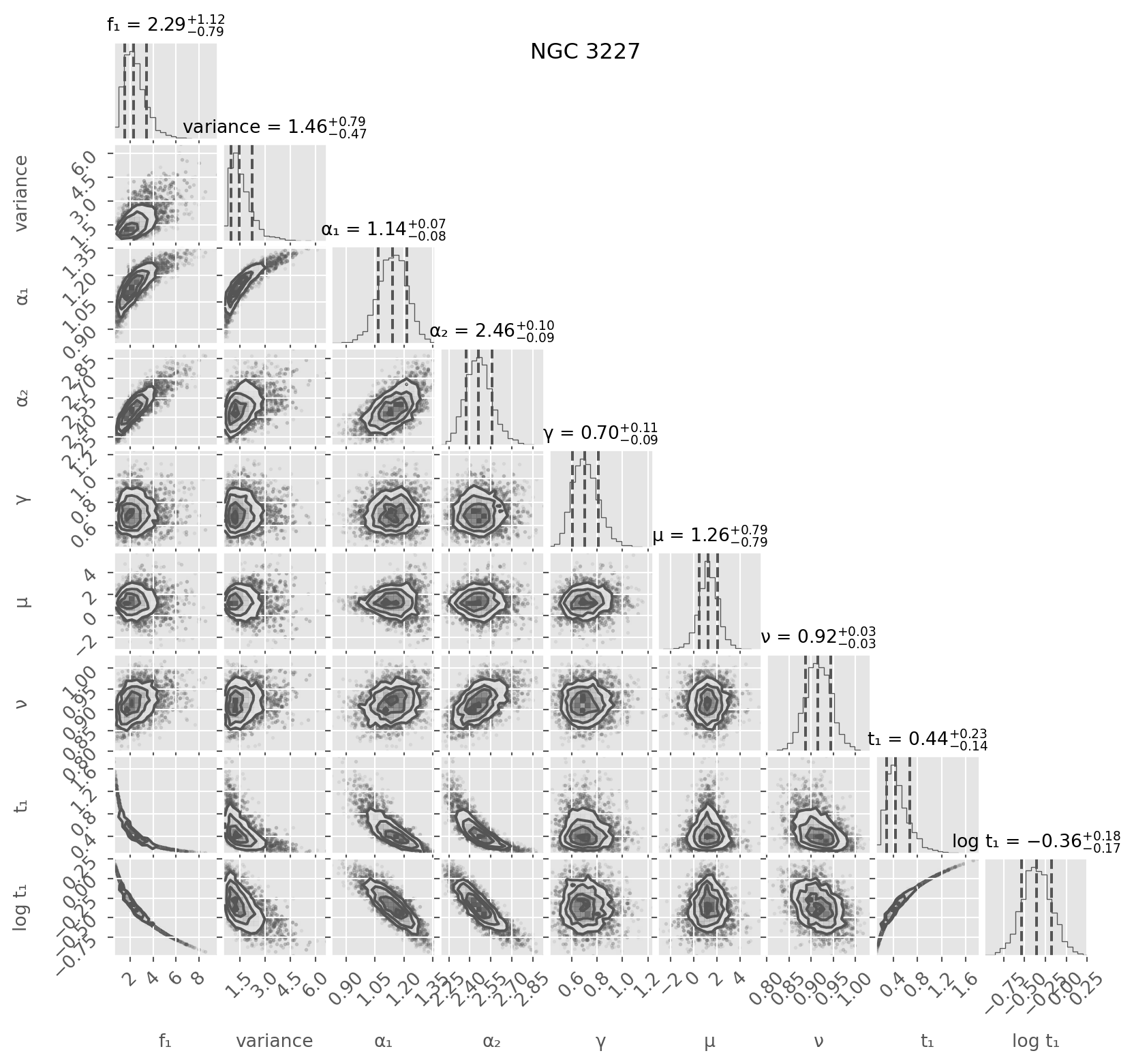

Code

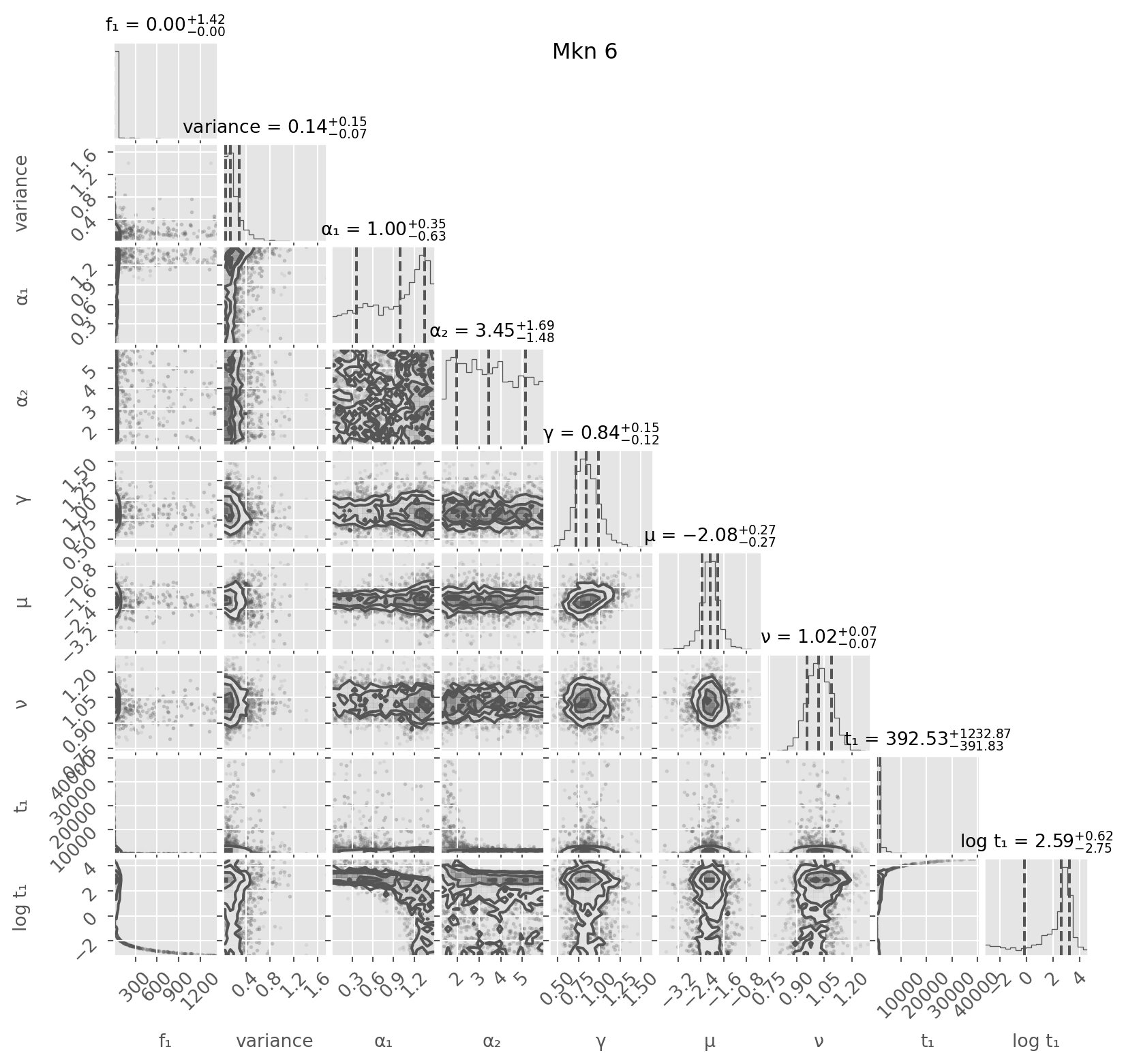

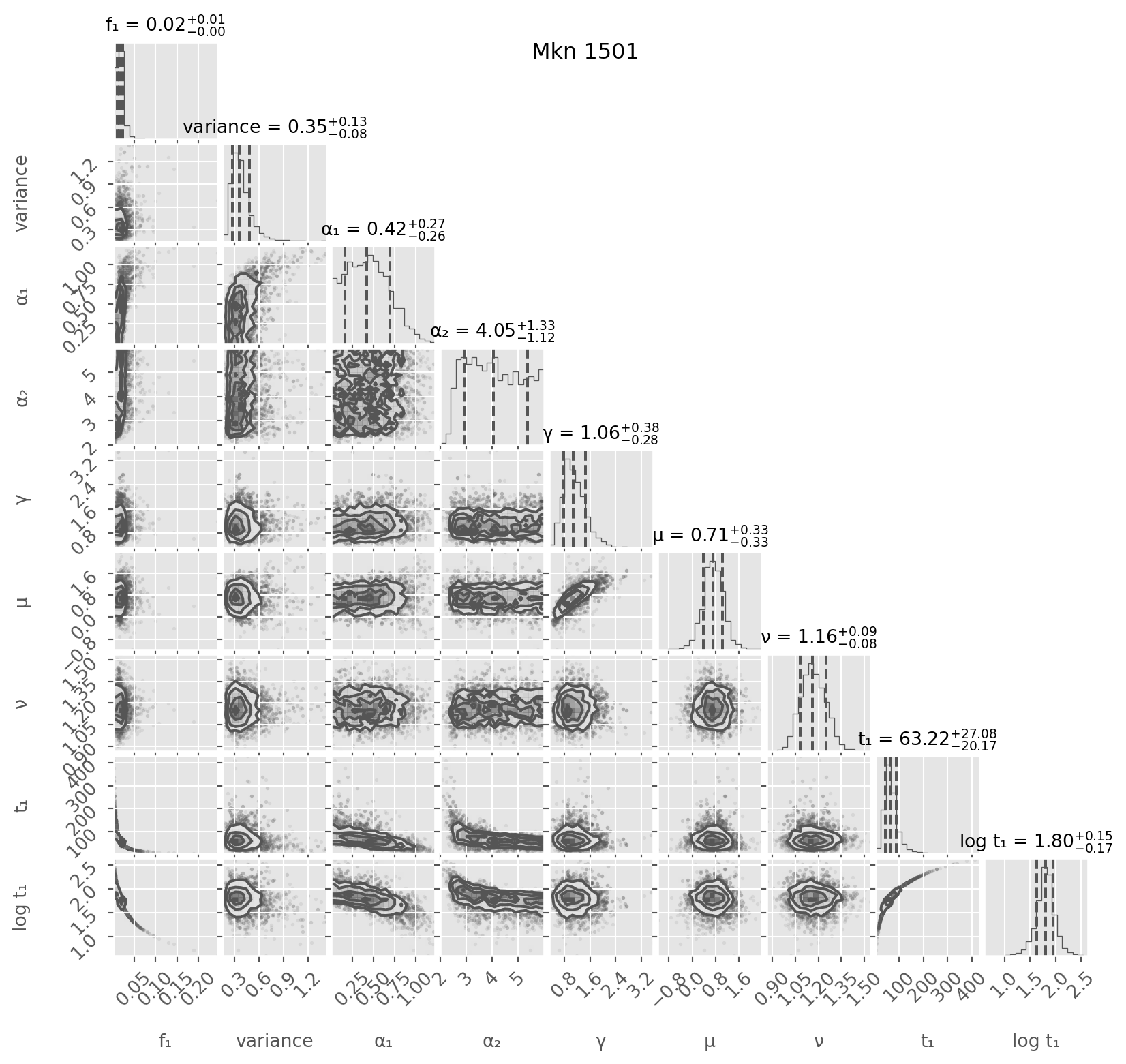

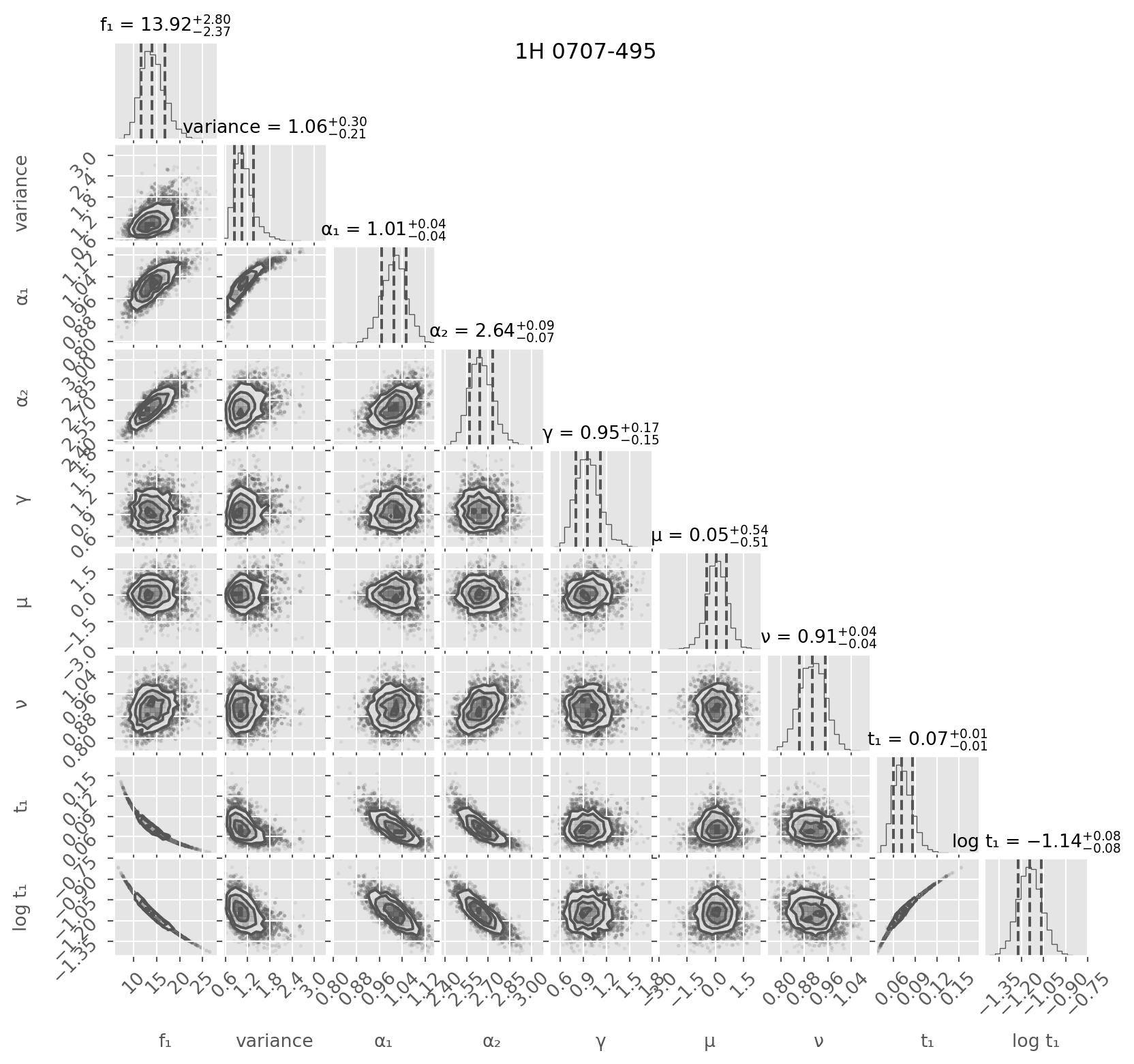

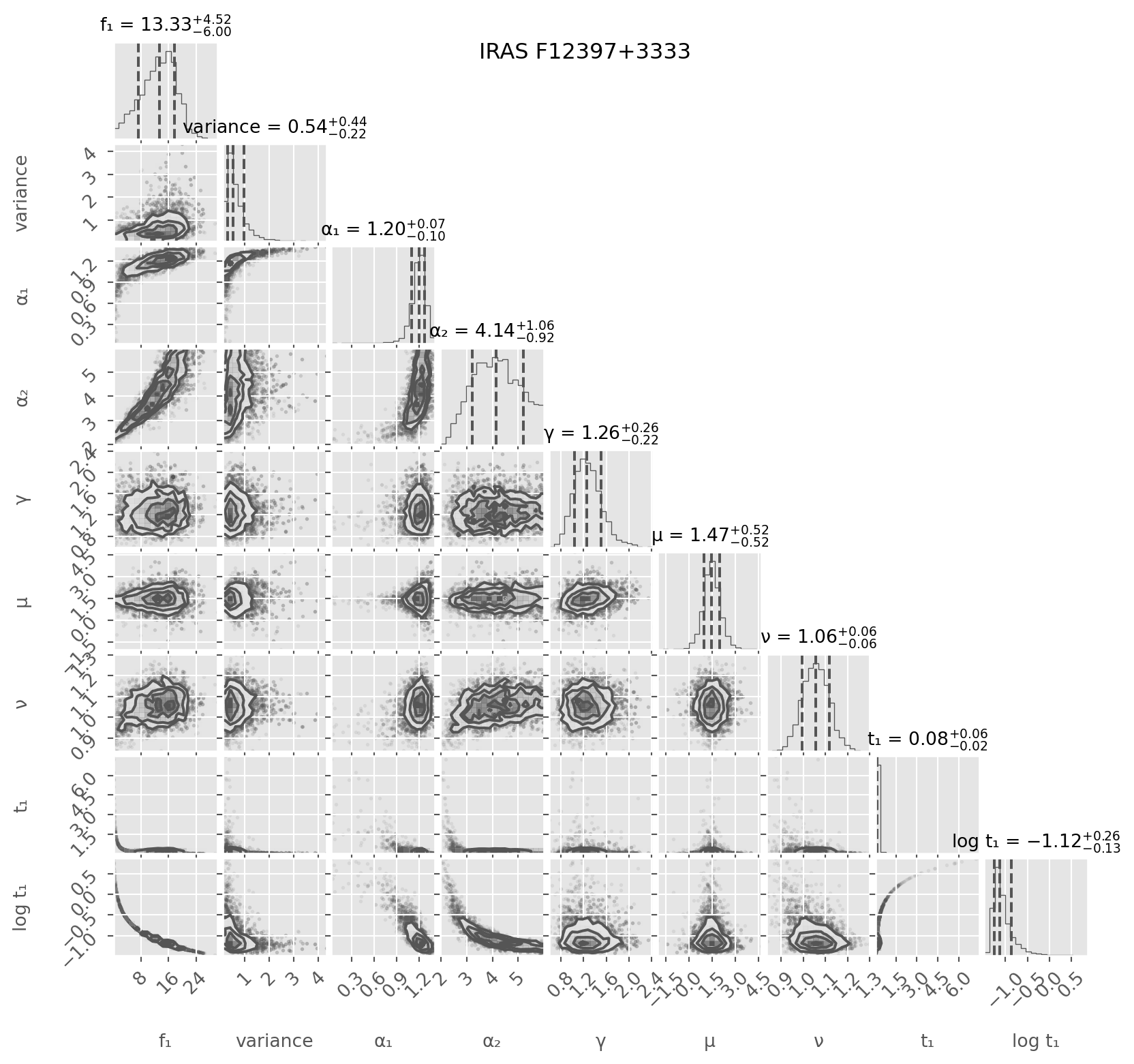

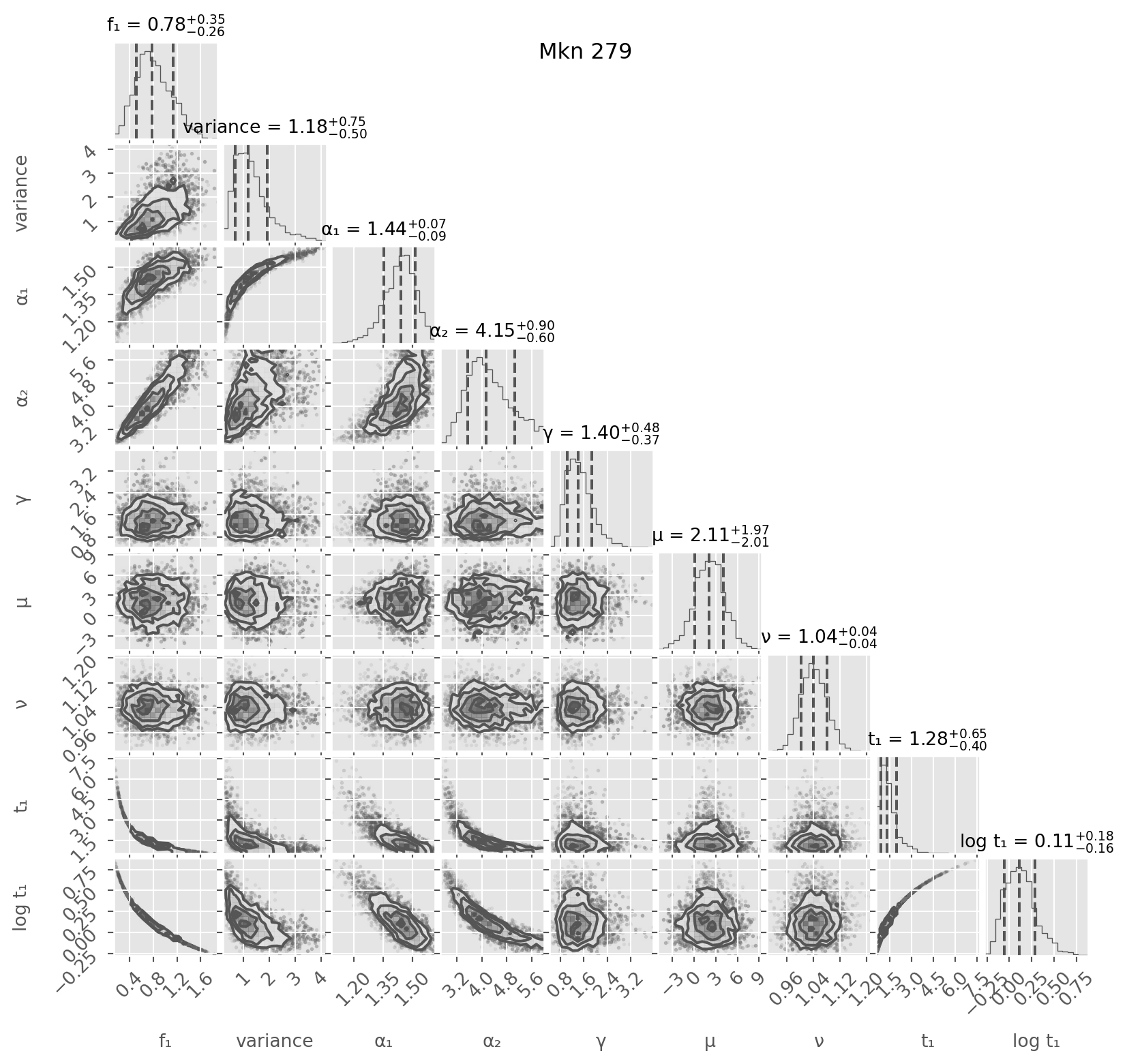

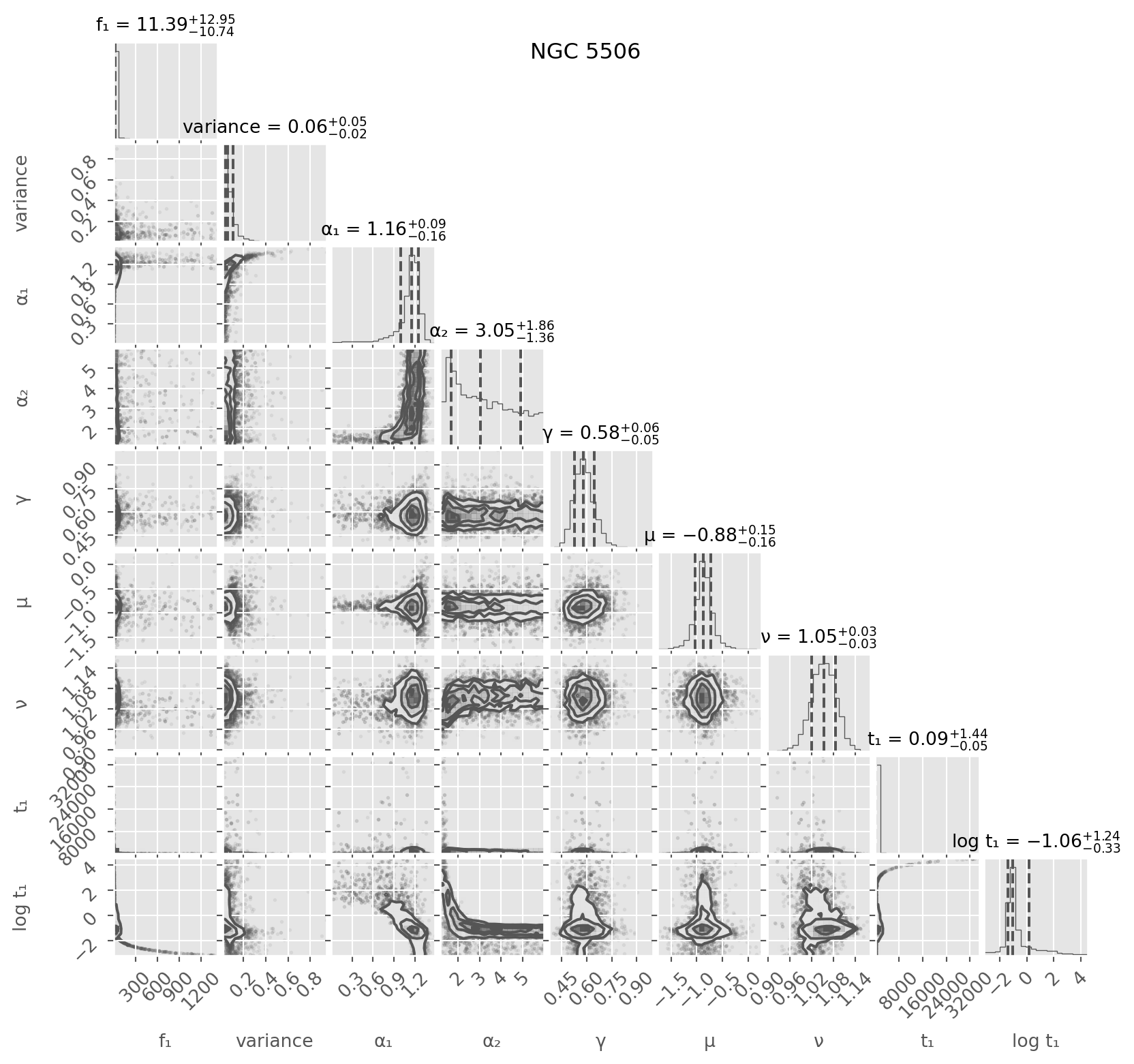

model = "single_steep"
short_model = "single"

names_single = json.load(open(f"{path}/{dir_list[0]}_combined_{band}_single_123_factor/info/results.json"))["paramnames"]
single_dirs = [f"{path}/{source}_combined_{band}_{short_model}_123_factor/chains/equal_weighted_post.txt" for source in dir_list]

inference_data_single = {}

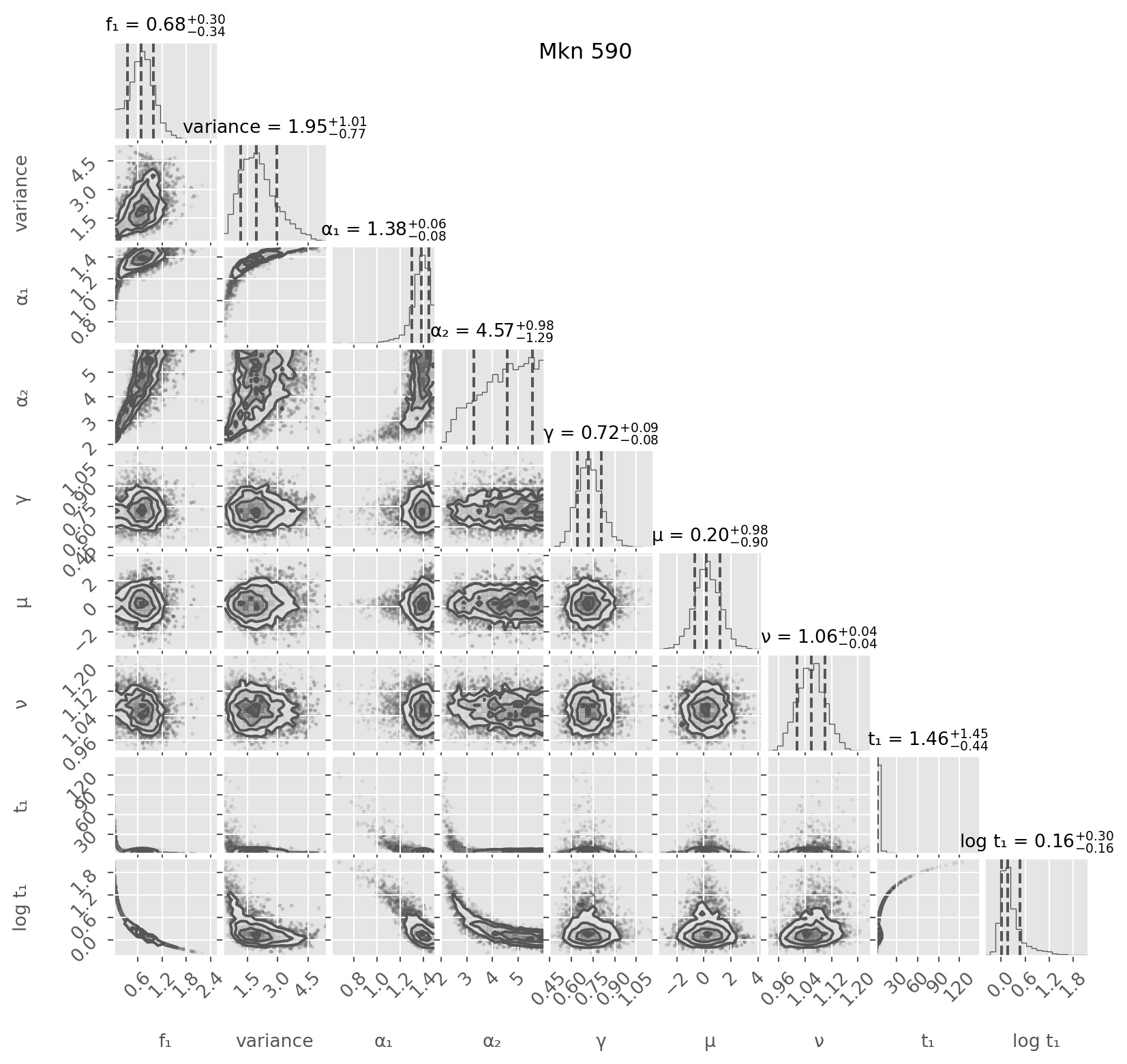

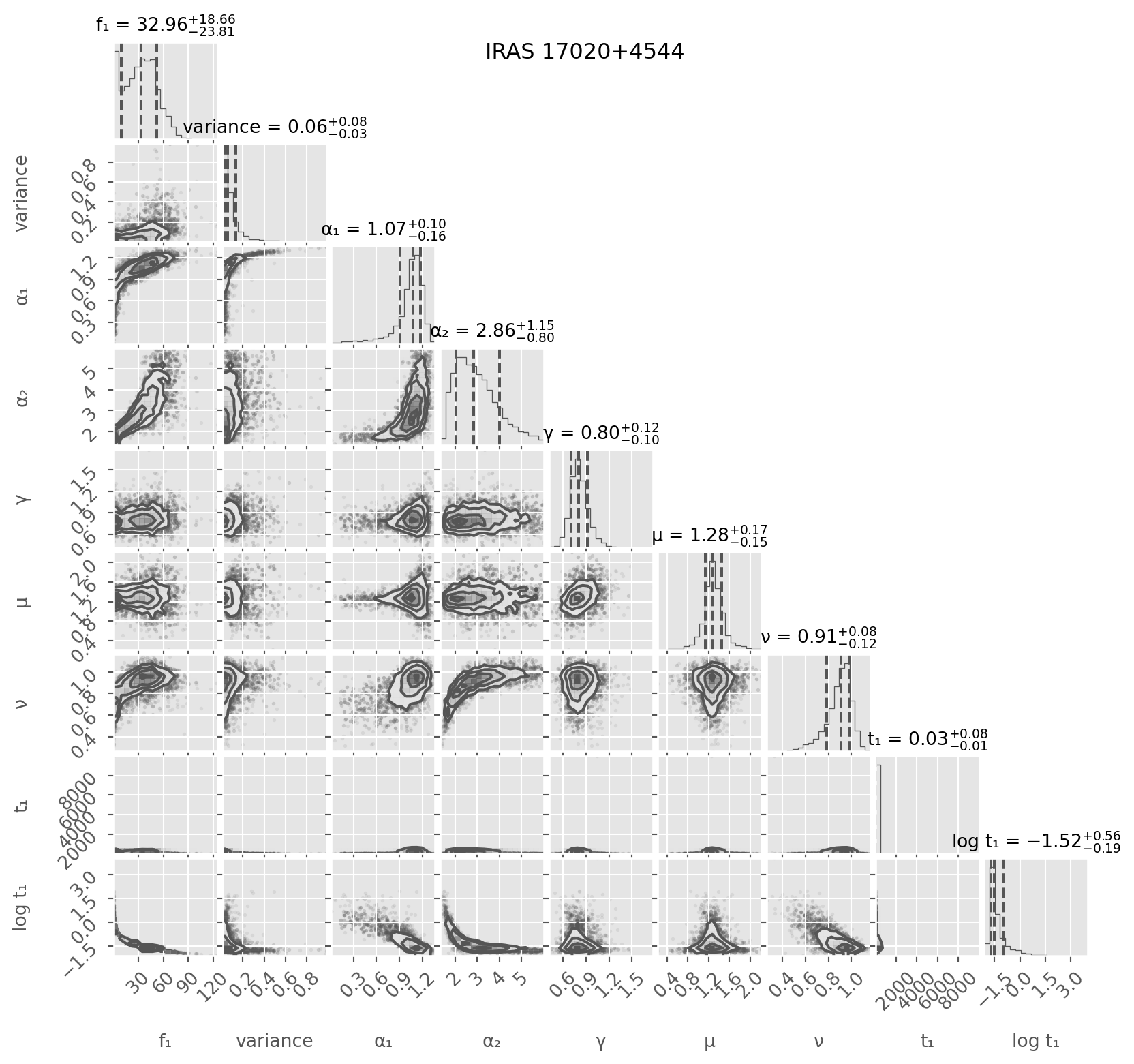

for i,dir in enumerate(single_dirs):
    source = dir_list[i]
    data = az.convert_to_inference_data(dict(zip(names_single,np.genfromtxt(dir,skip_header=1).T)))
    data.posterior["t₁"] = 1/data.posterior["f₁"]
    data.posterior["log t₁"] = np.log10(data.posterior["t₁"])
    inference_data_single[source] = data

    #chain = Chain.from_arviz(inference_data_single[source], dirname2prettyname(source), color="sky")
    #fig = ChainConsumer().add_chain(chain).plotter.plot()

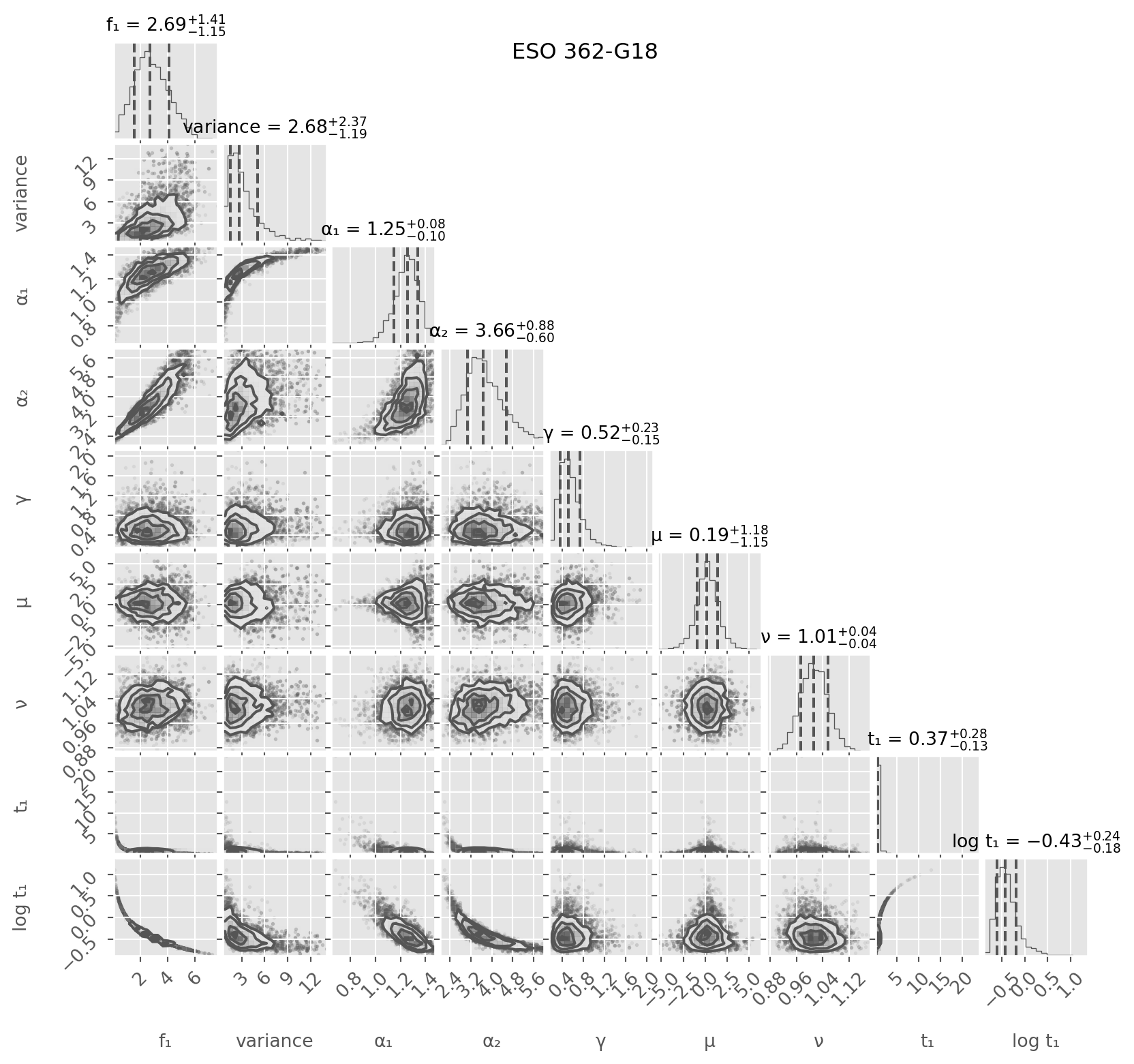

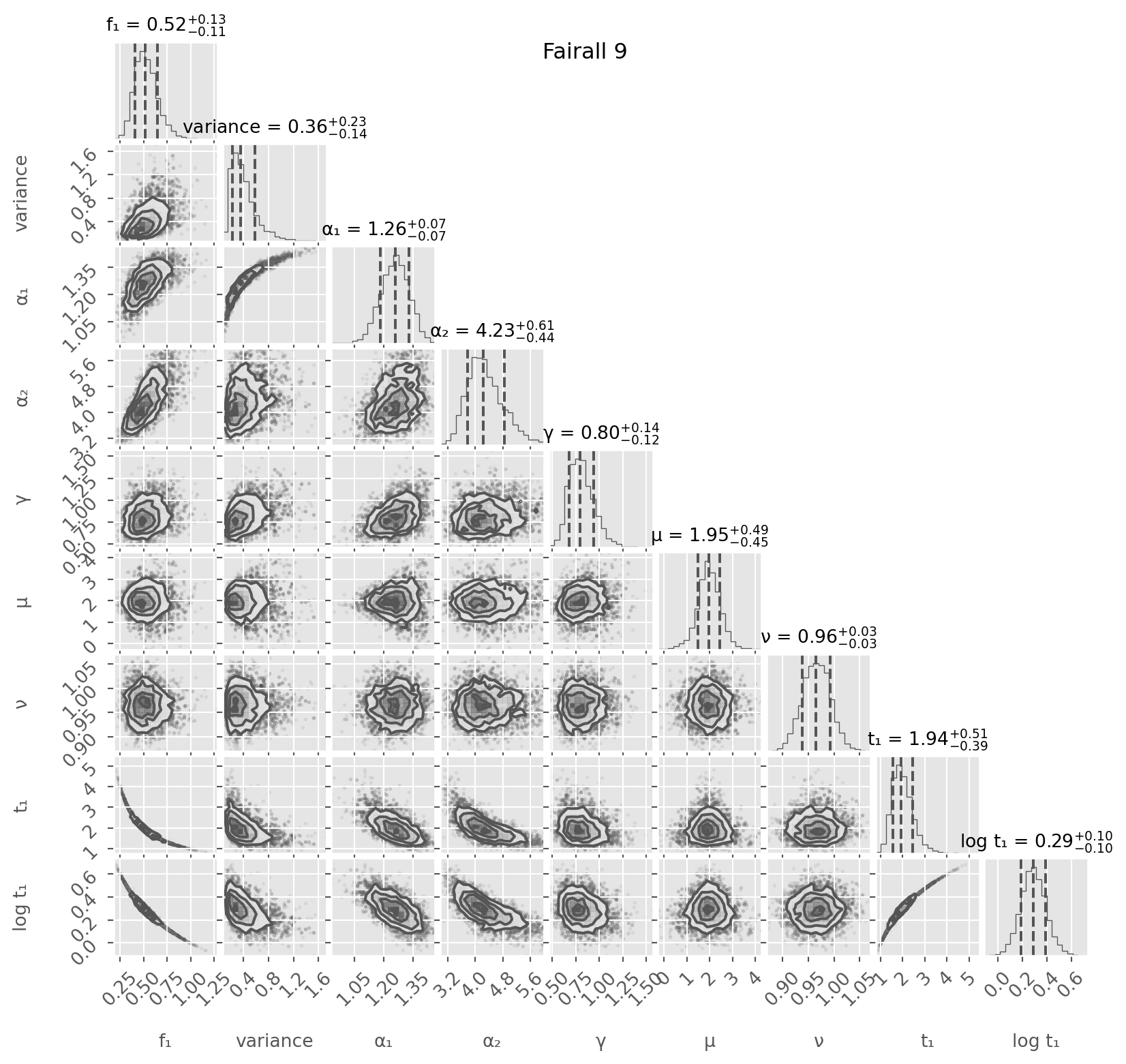

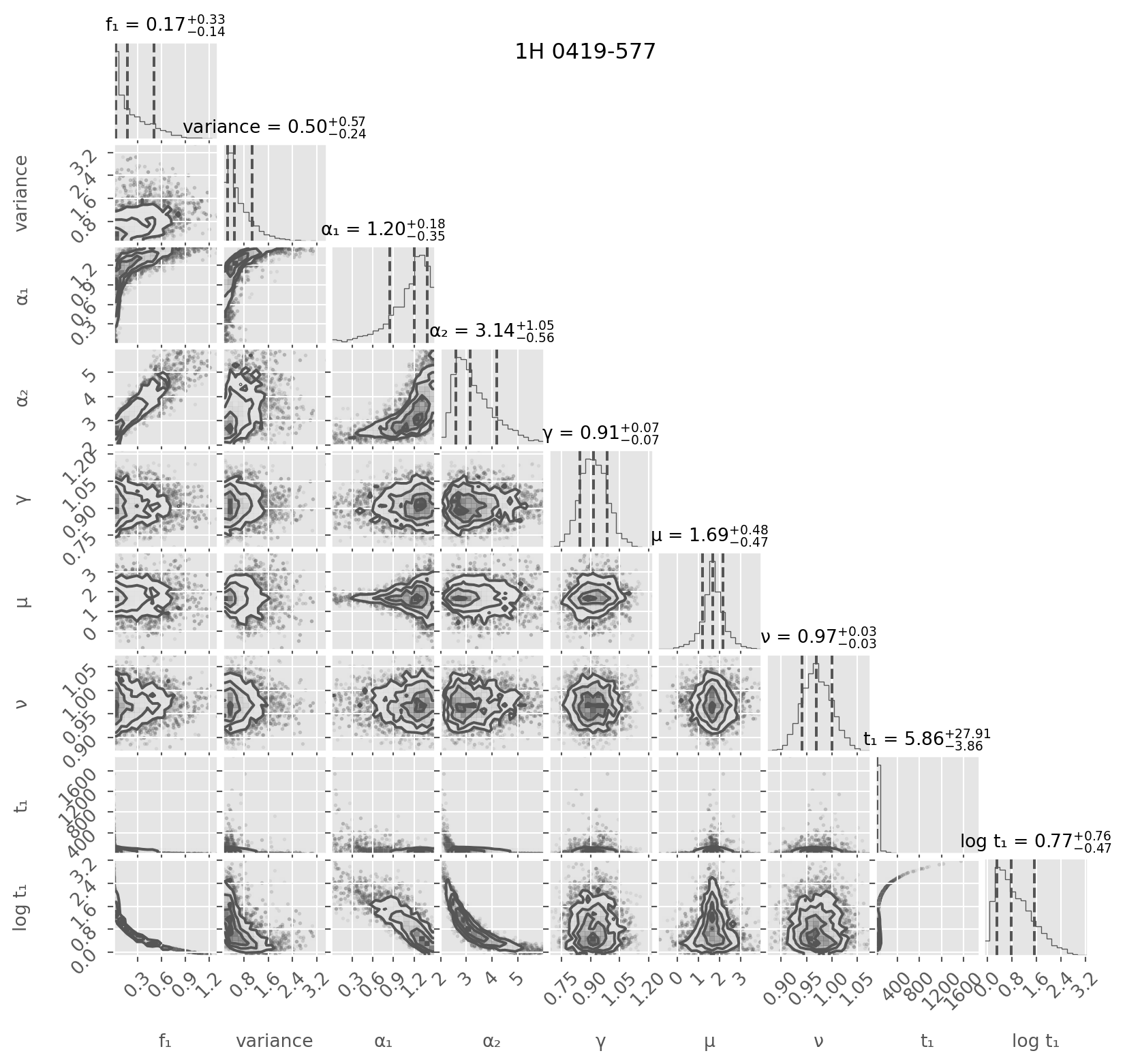

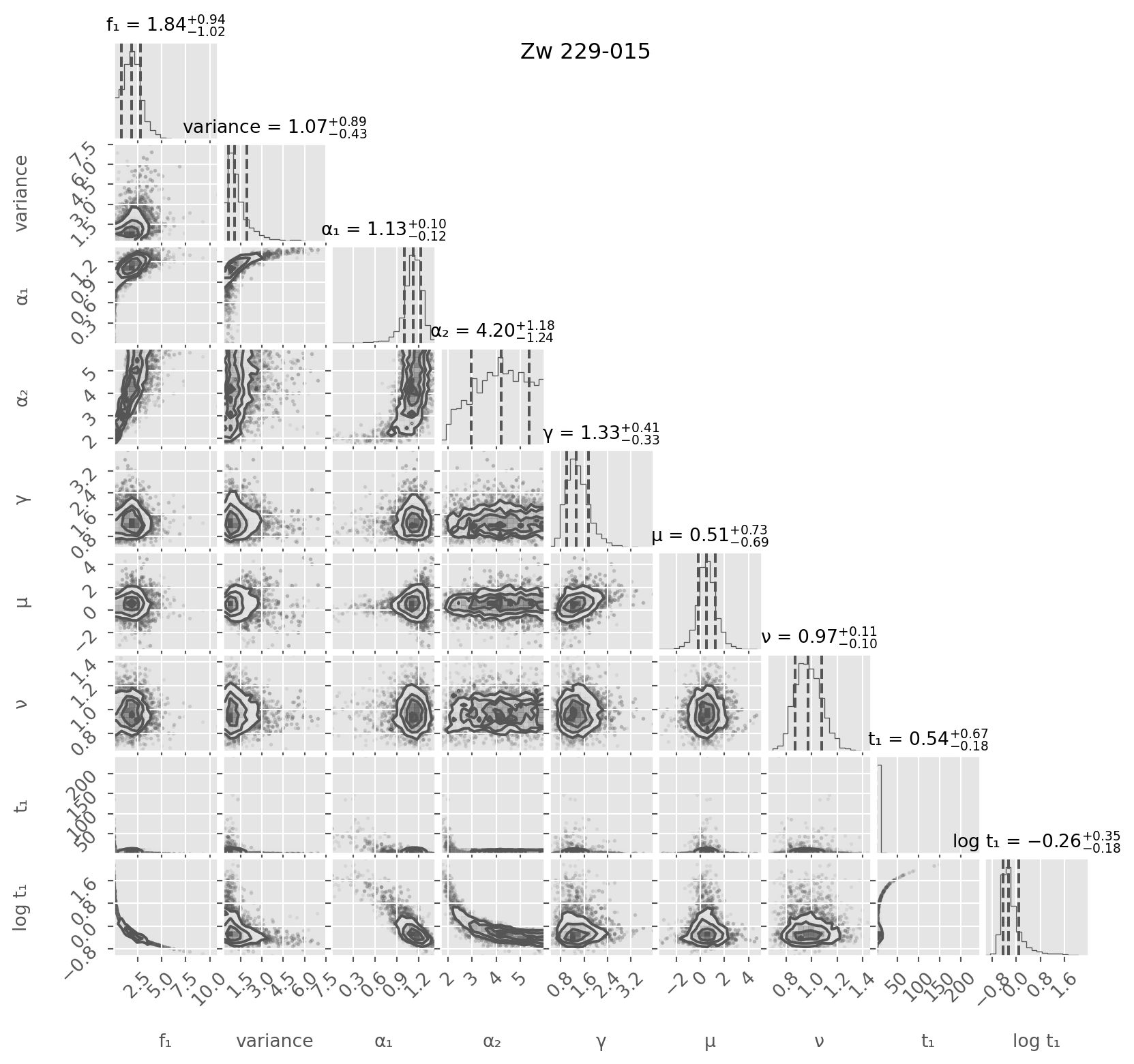

    with plt.style.context("ggplot"):

        fig = corner.corner(inference_data_single[source],  quantiles=[0.16, 0.5, 0.84],
        show_titles=True,title_kwargs={"fontsize": 10},label_kwargs={"fontsize": 10},labelpad=0.5,quiet=True)
        fig.set_size_inches(8., 7.5)
    #fig.tight_layout()
        fig.suptitle(f"{dirname2prettyname(source)}")

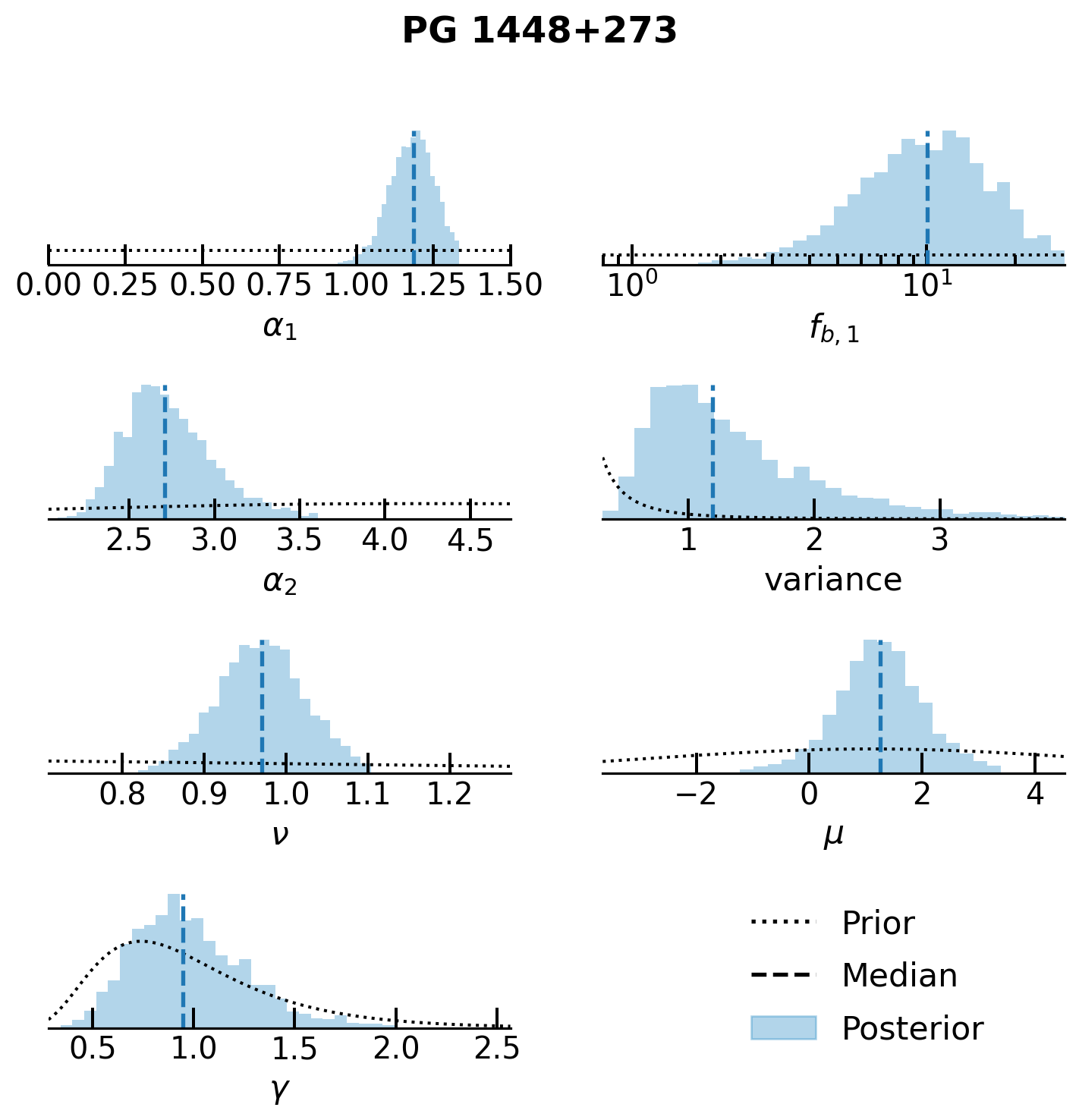

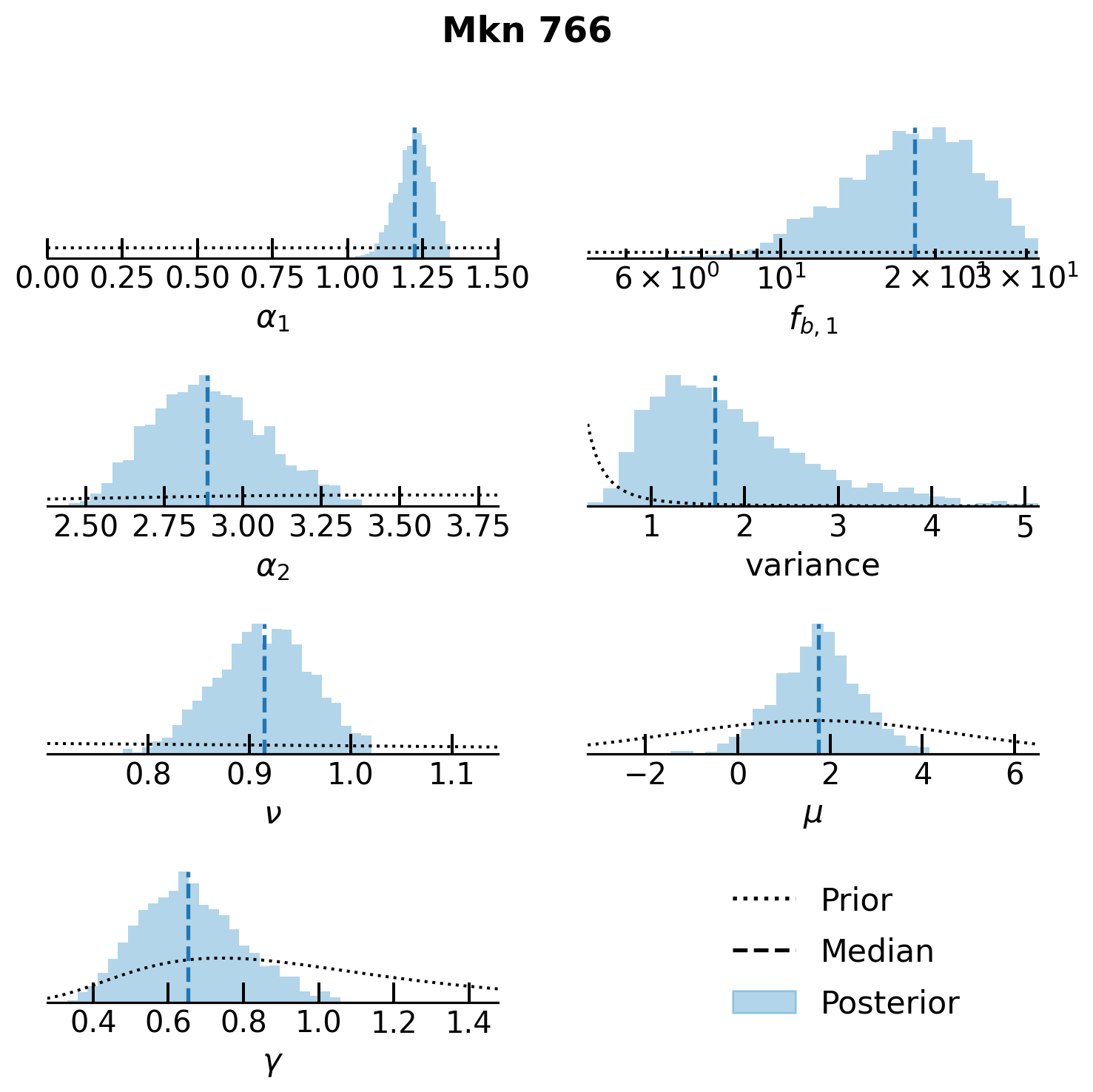

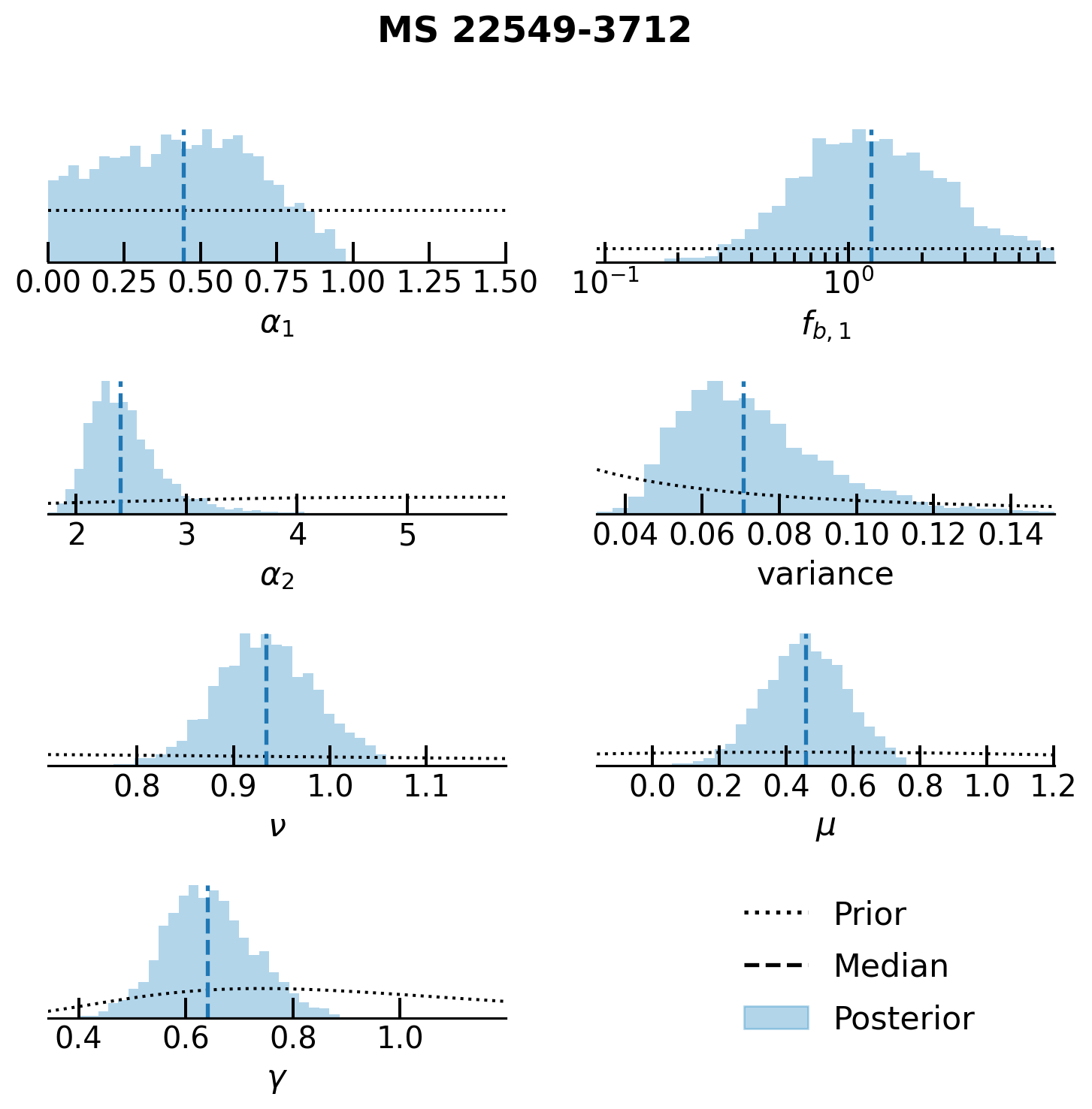

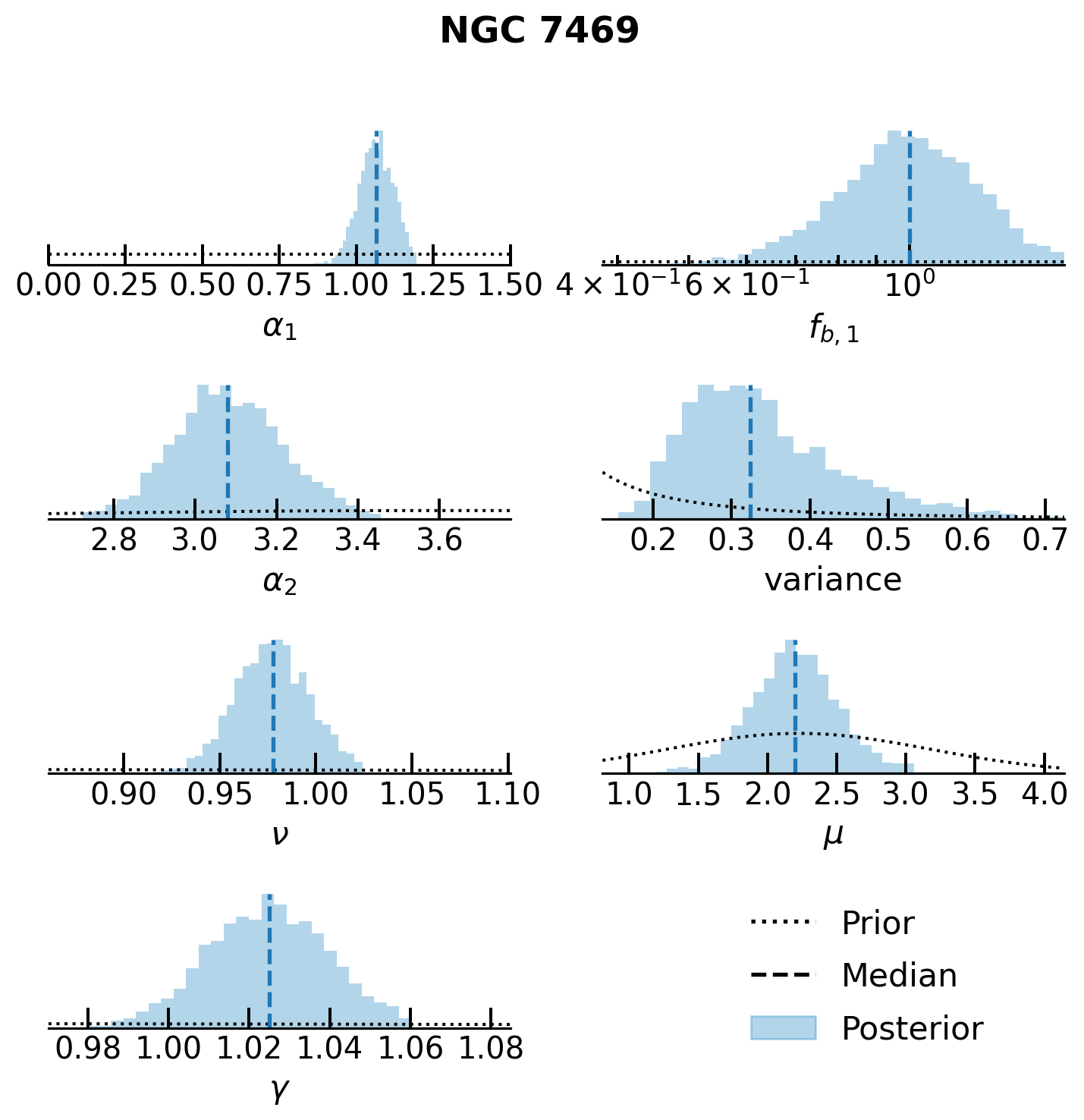

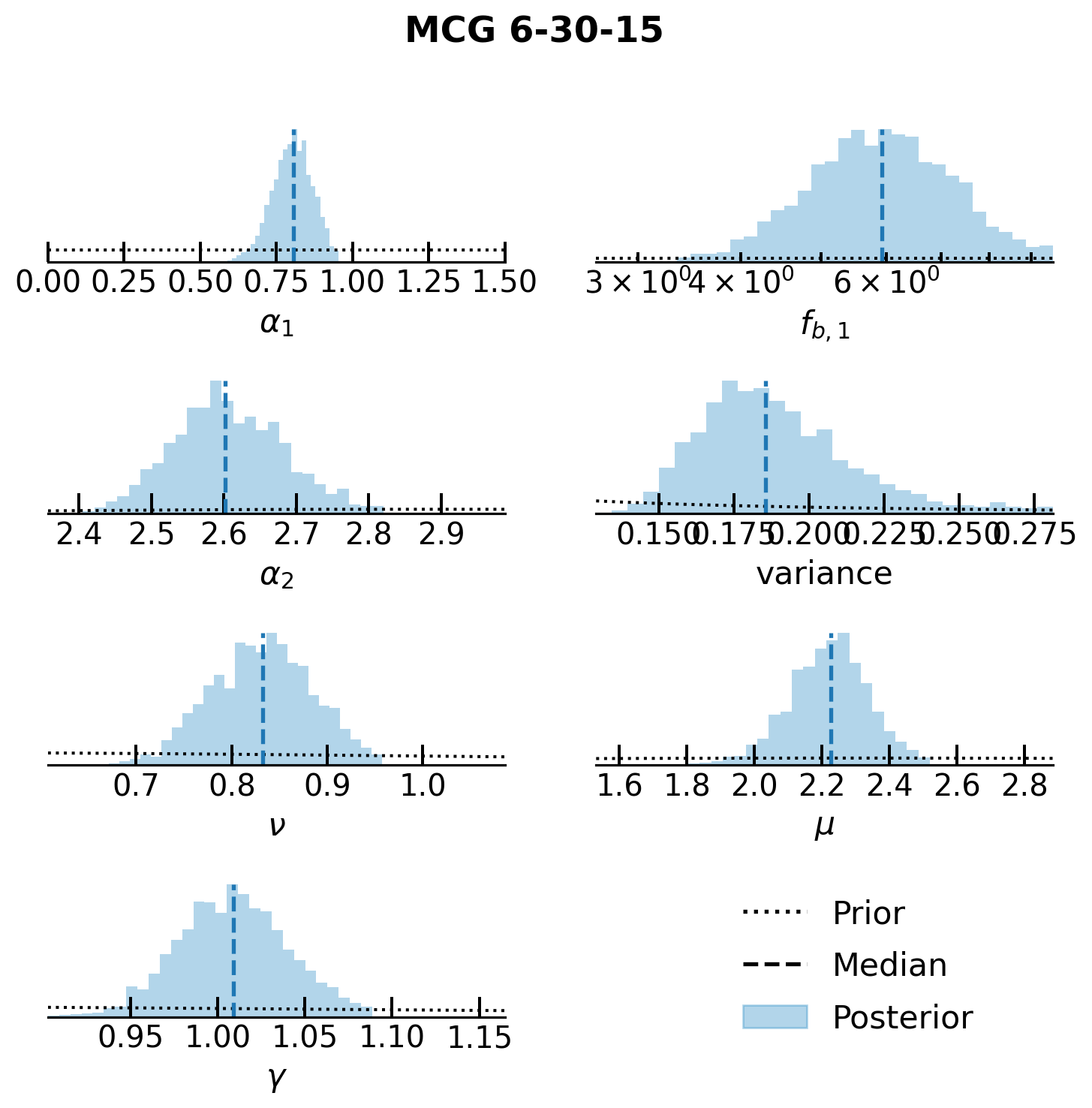

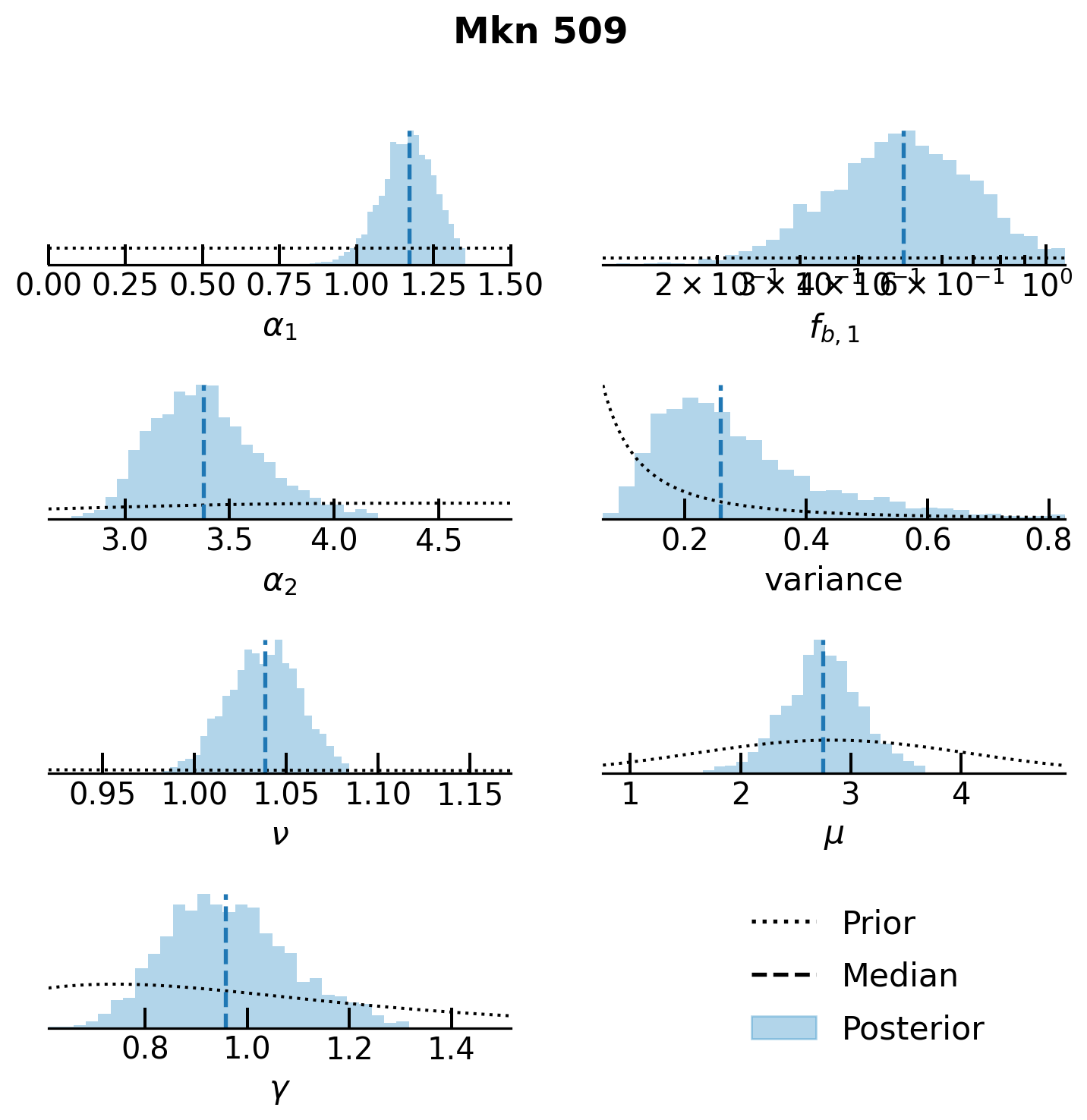

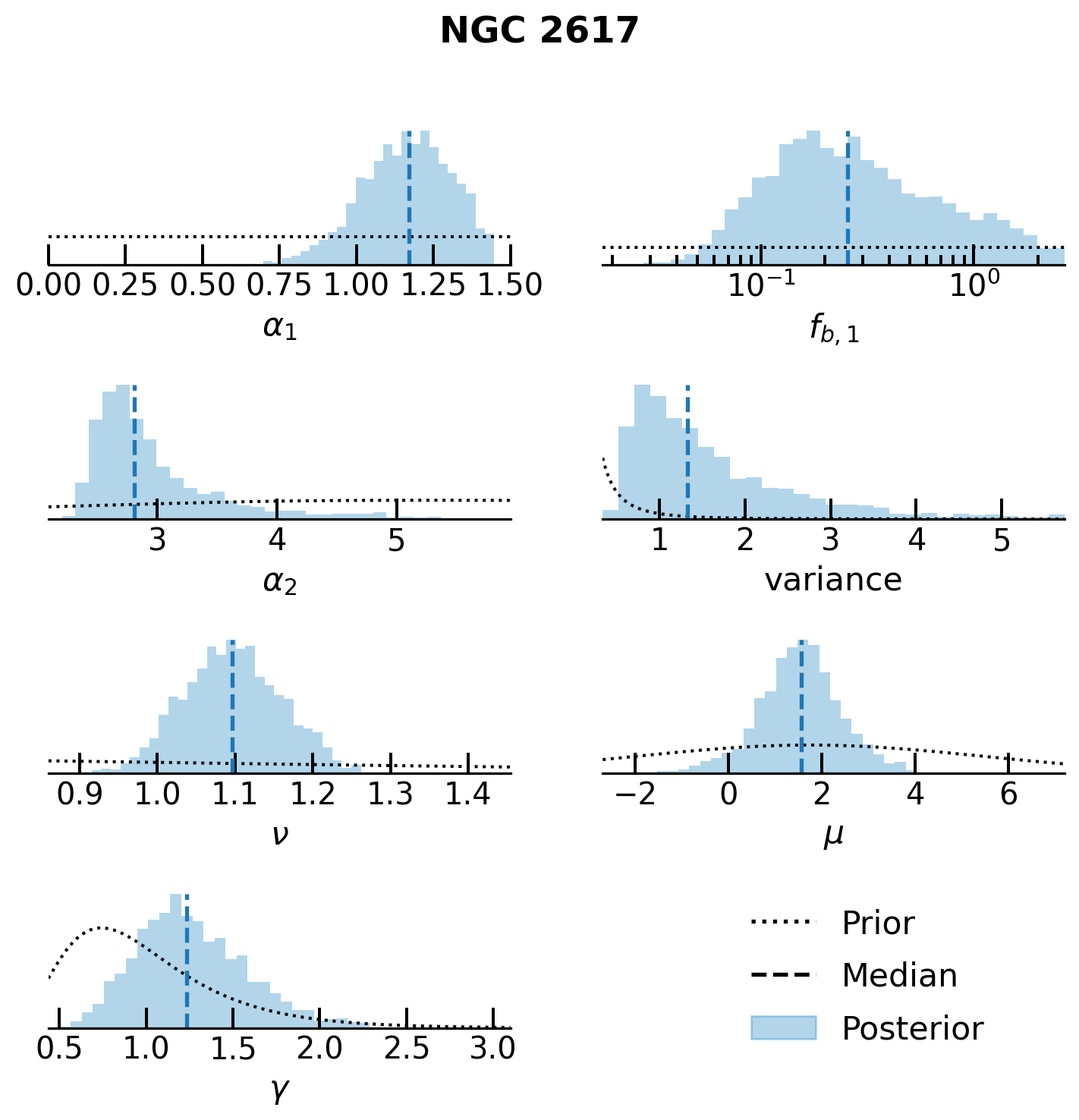

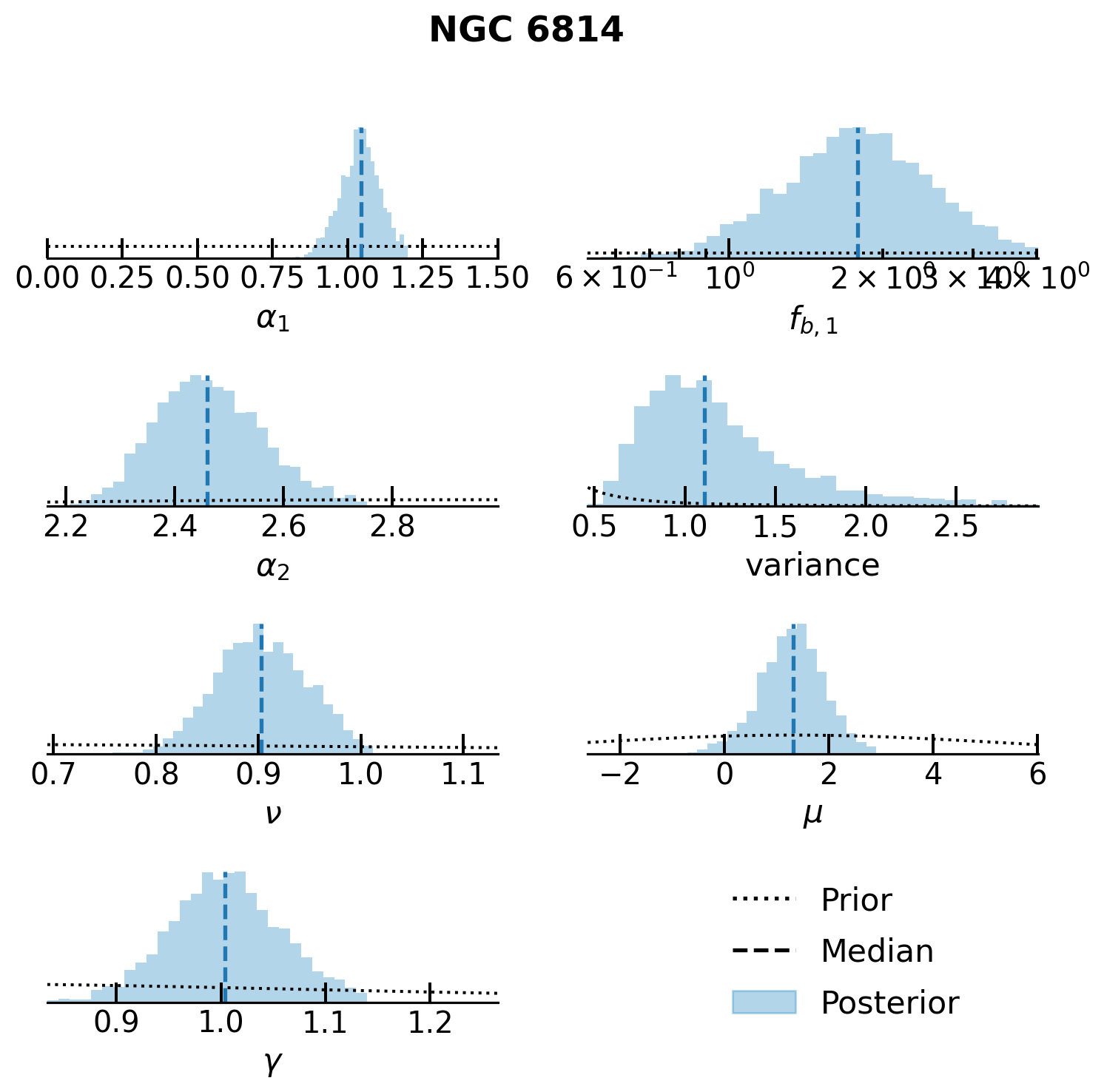

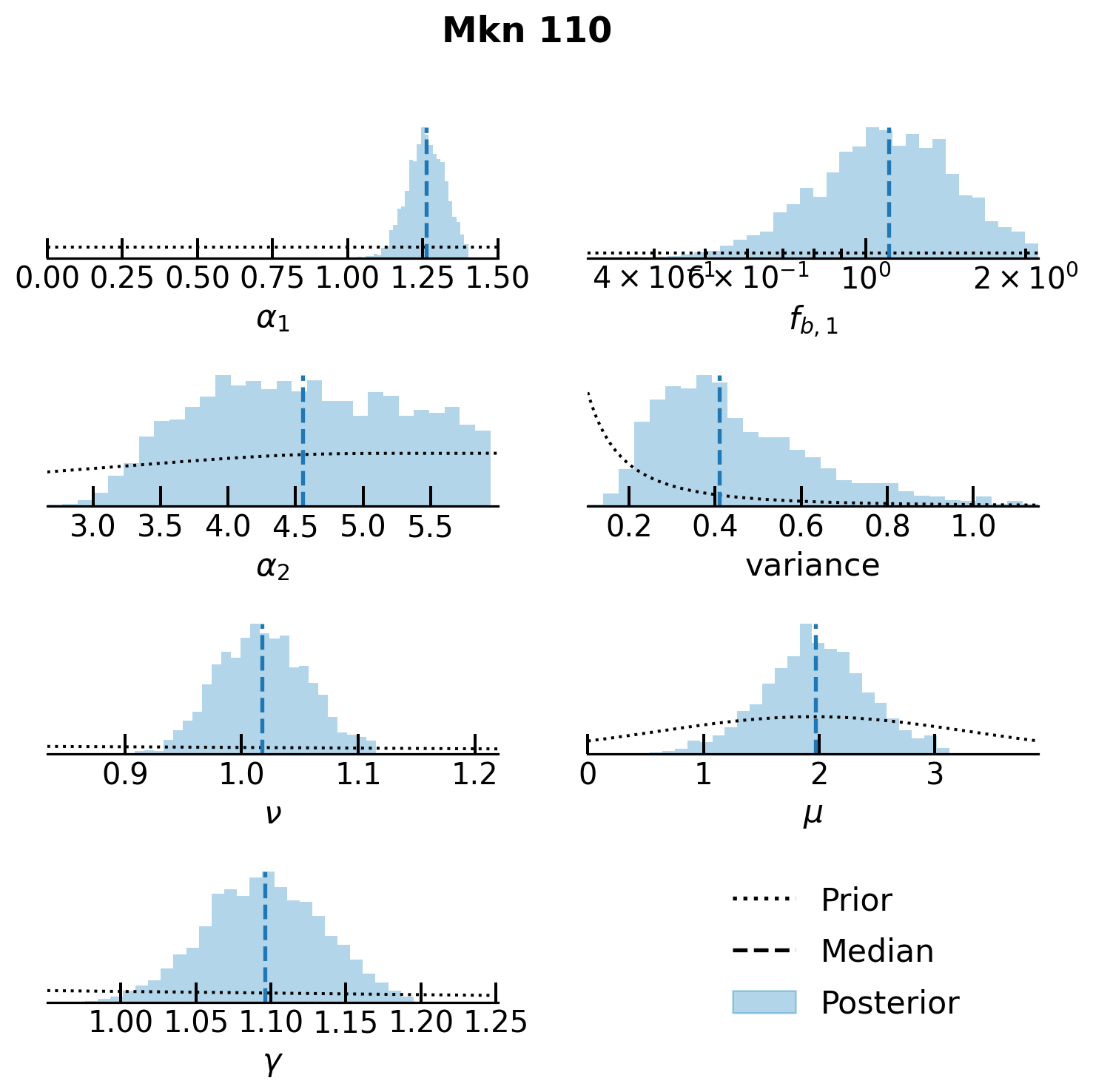

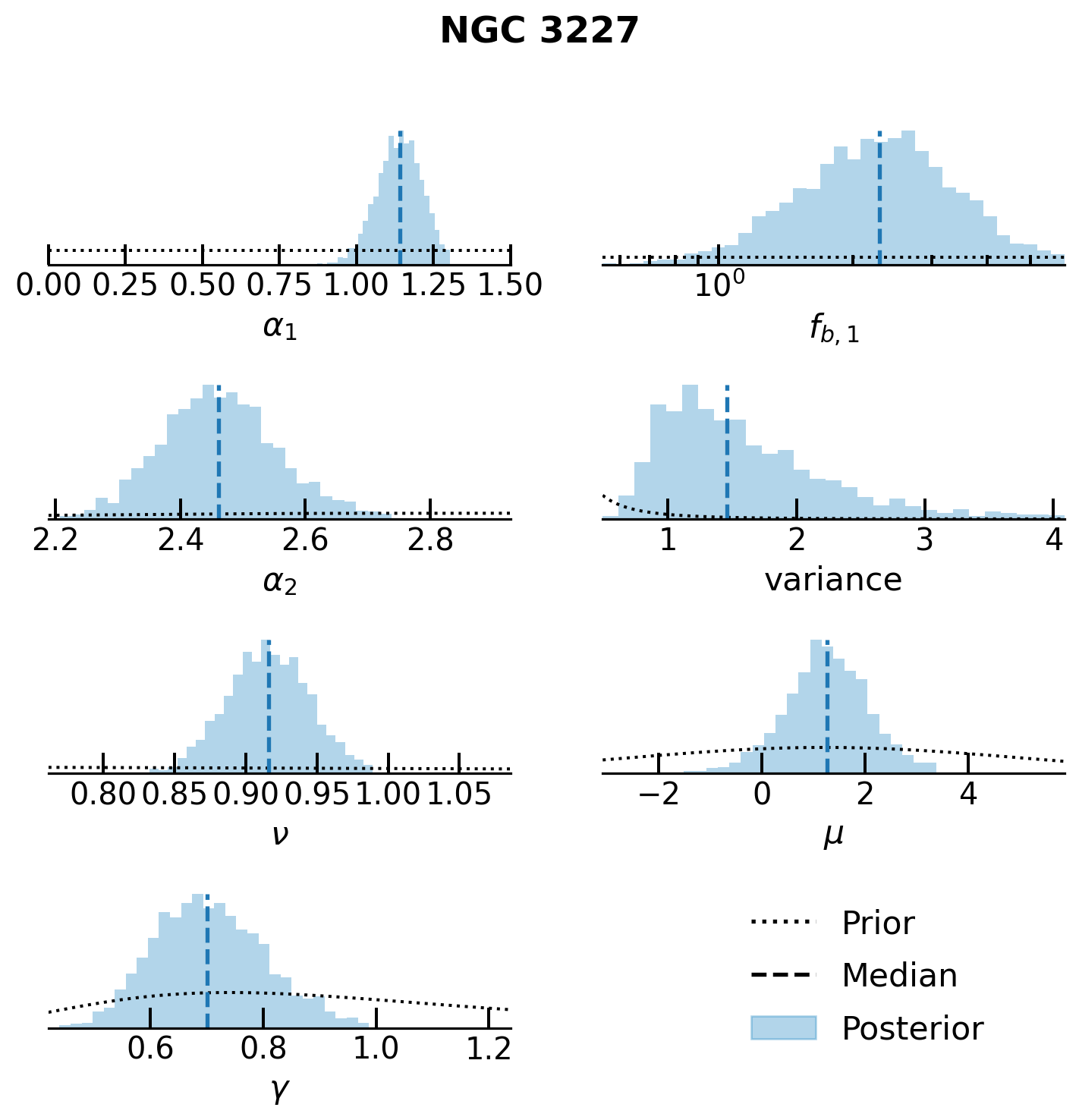

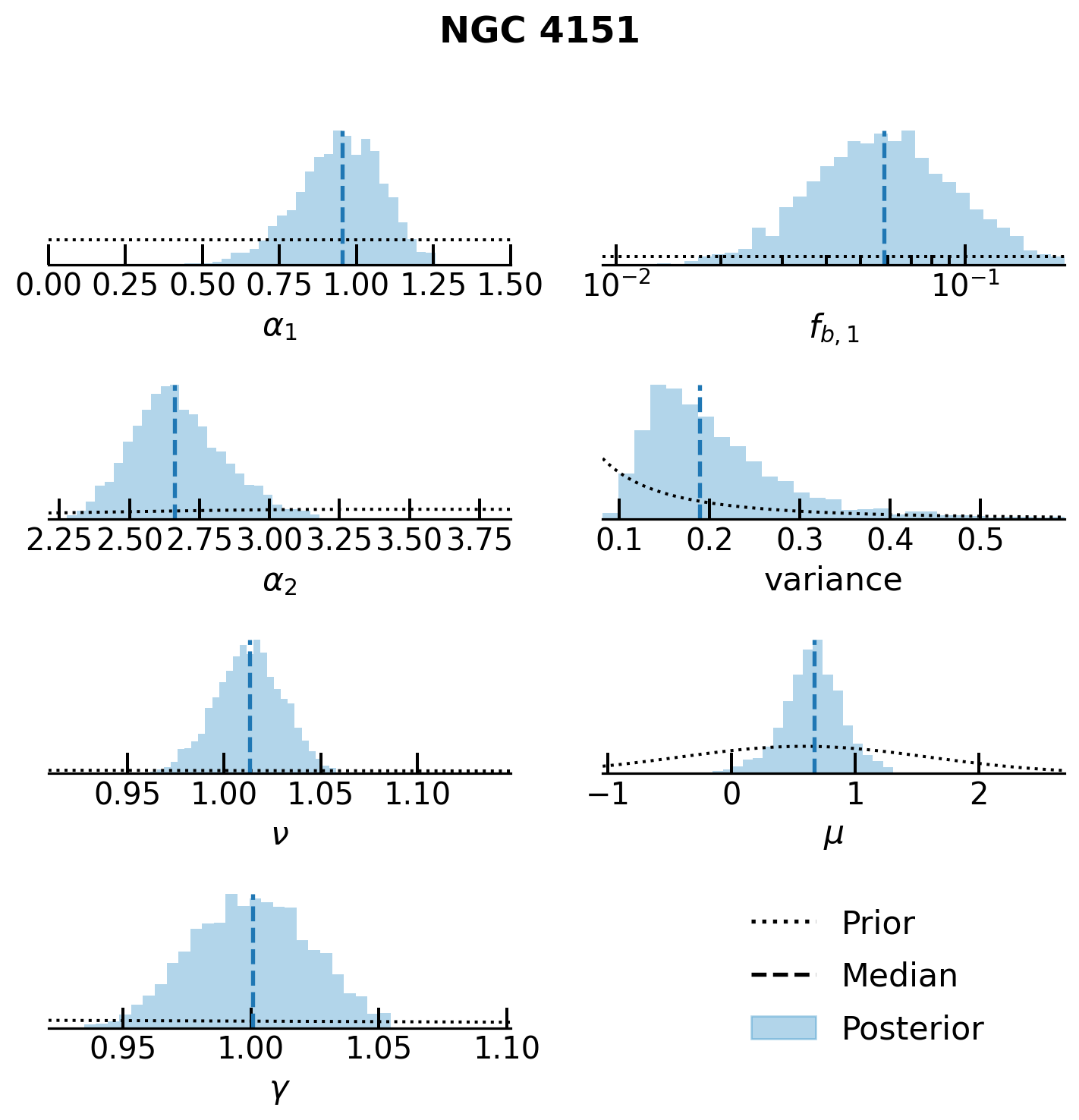

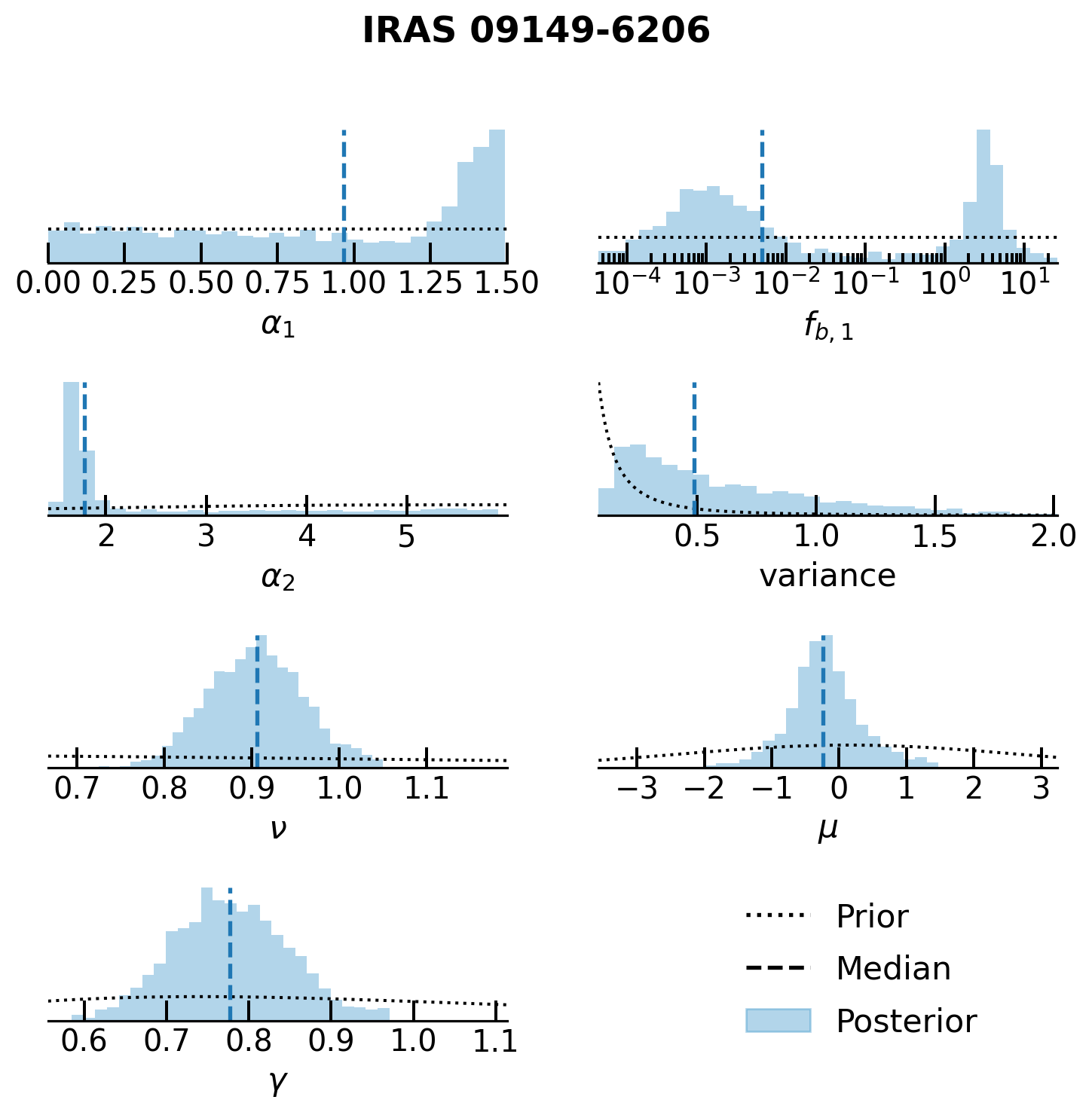

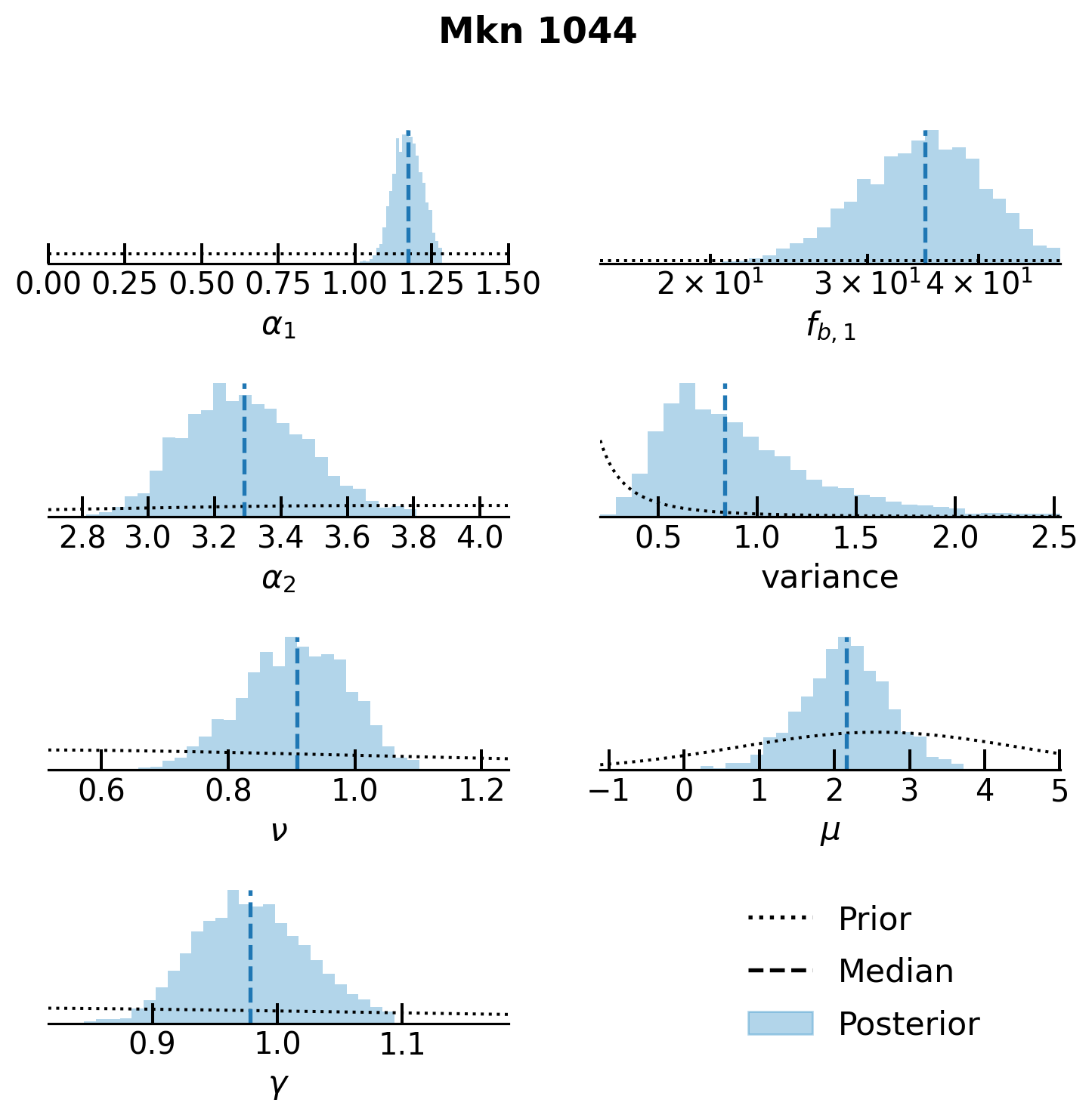

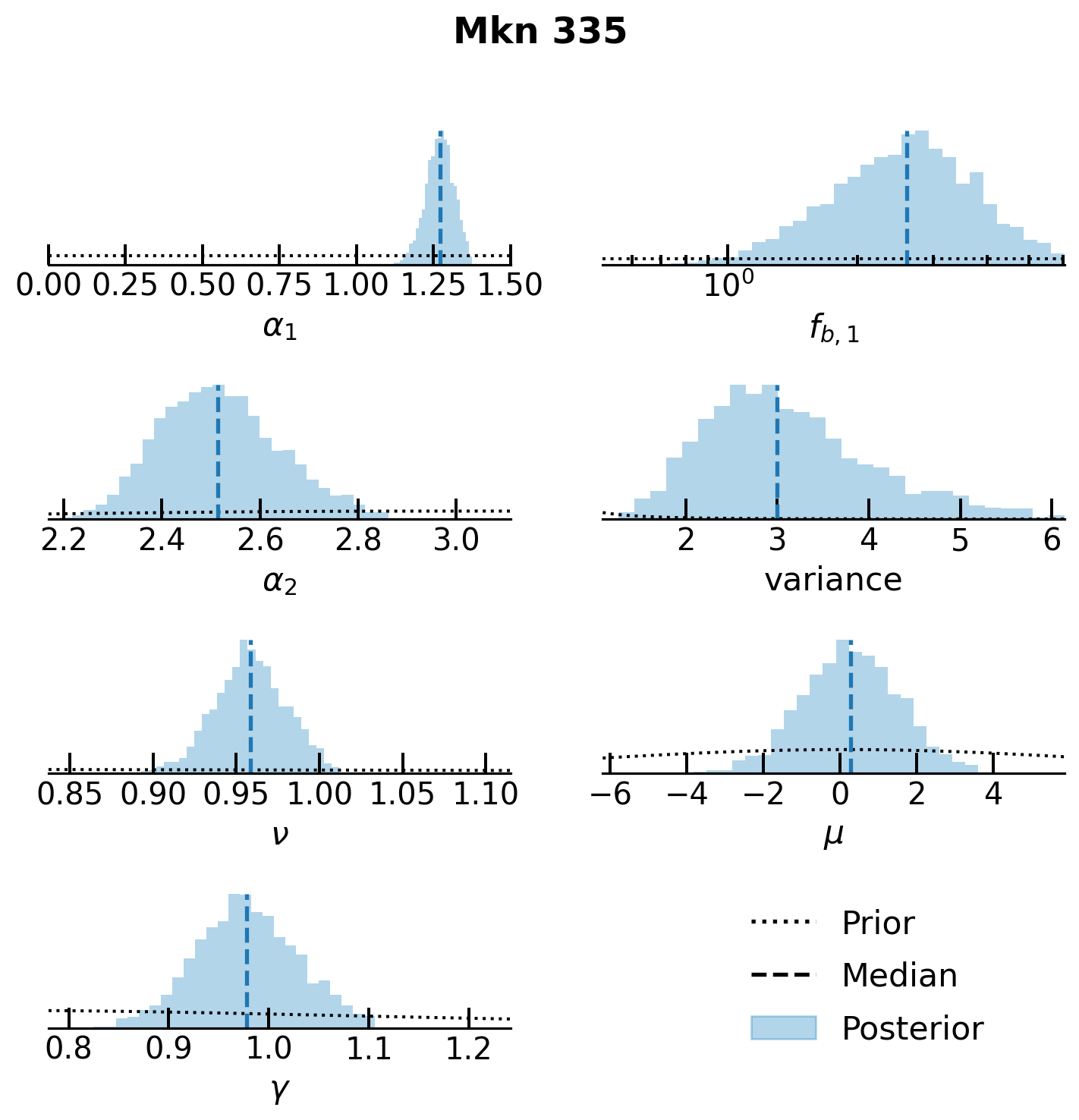

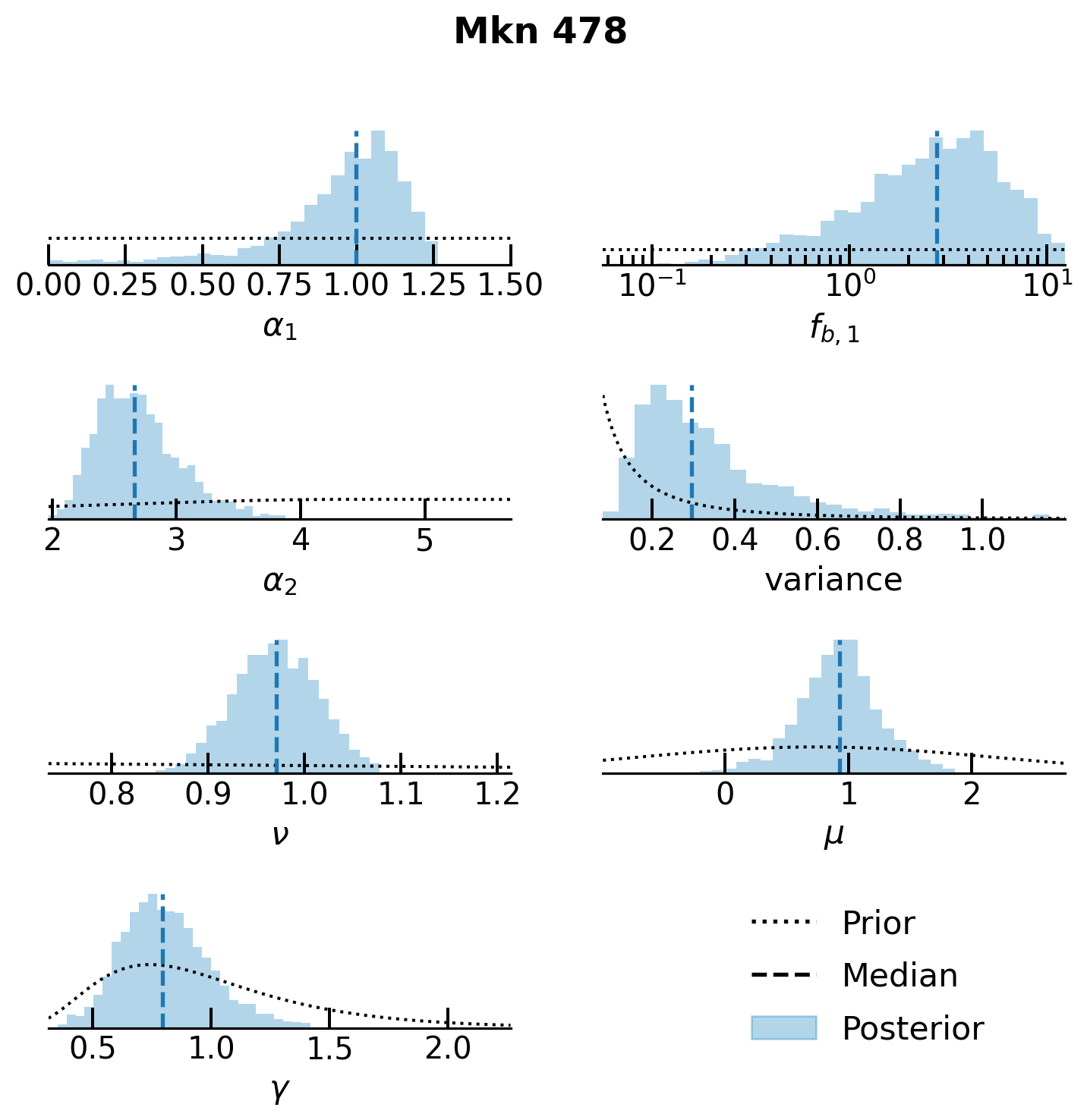

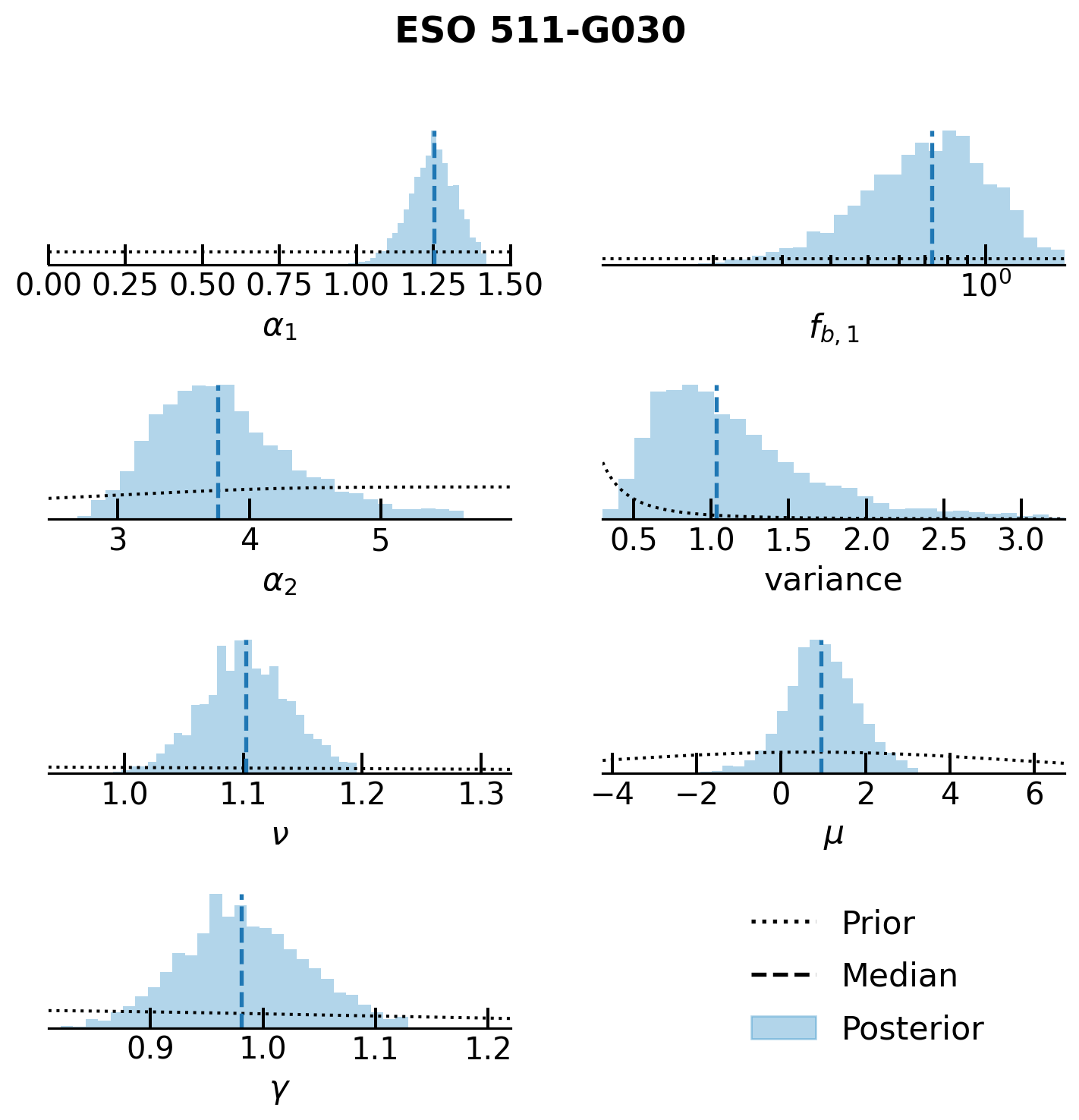

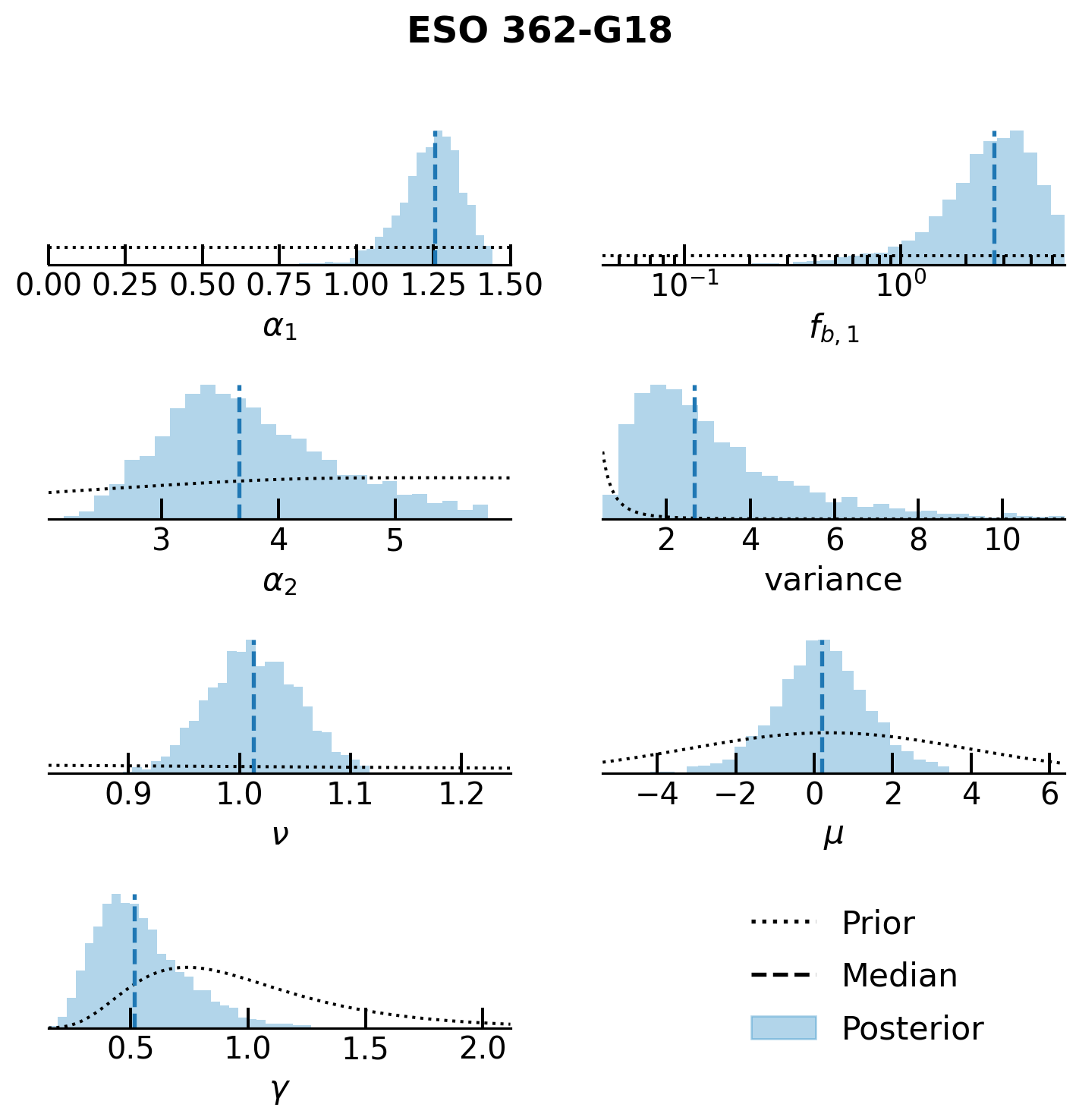

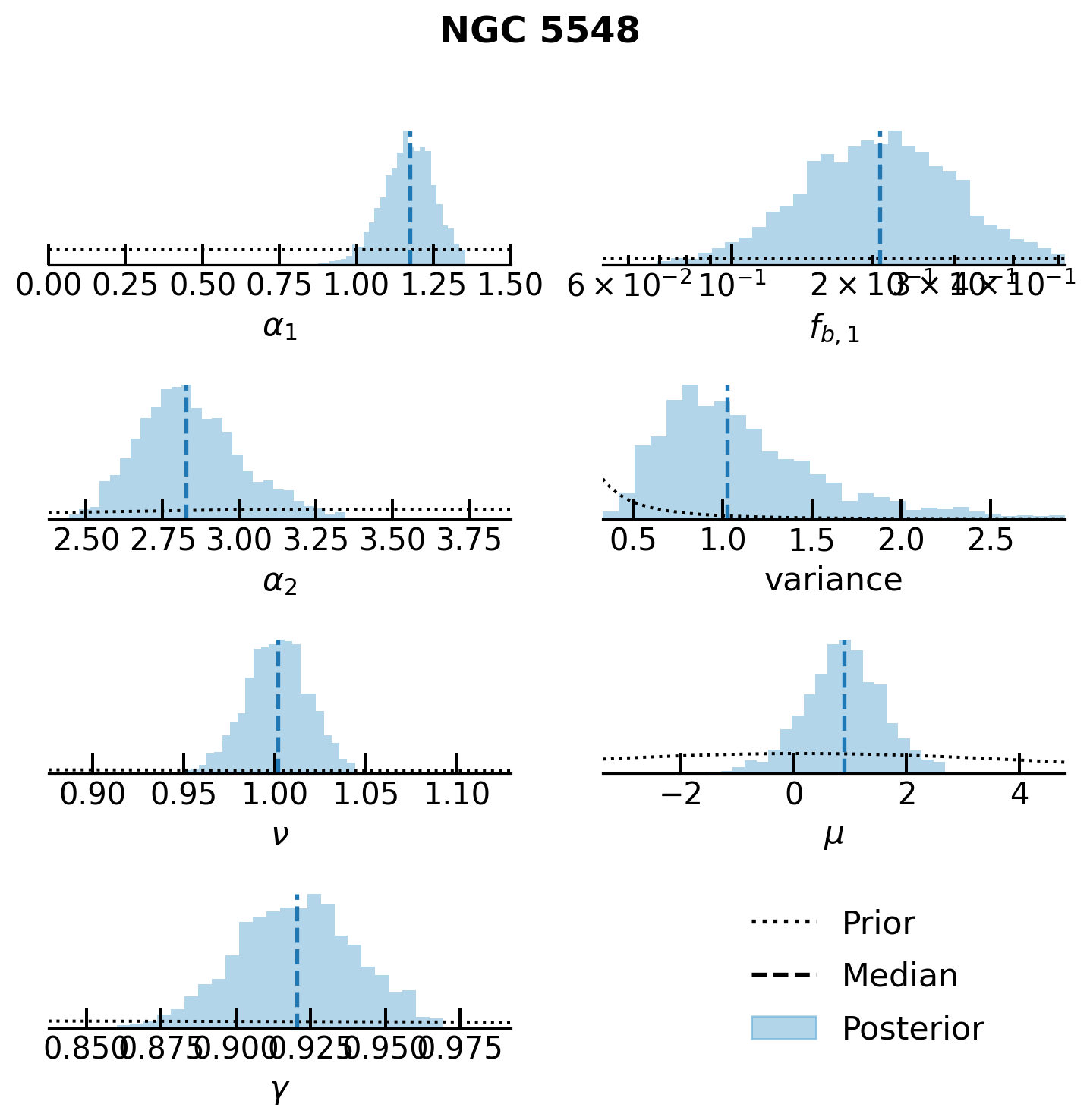

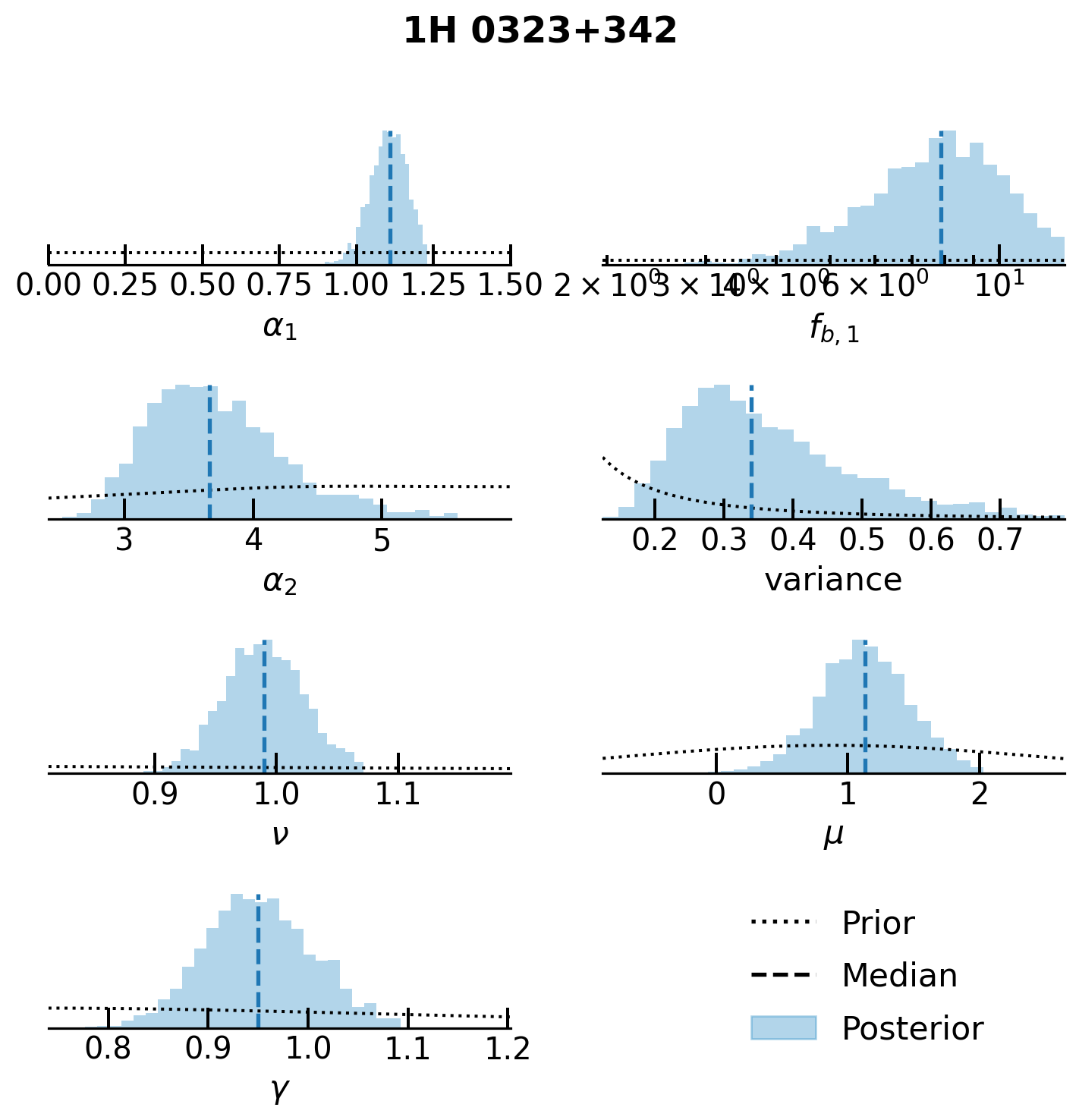

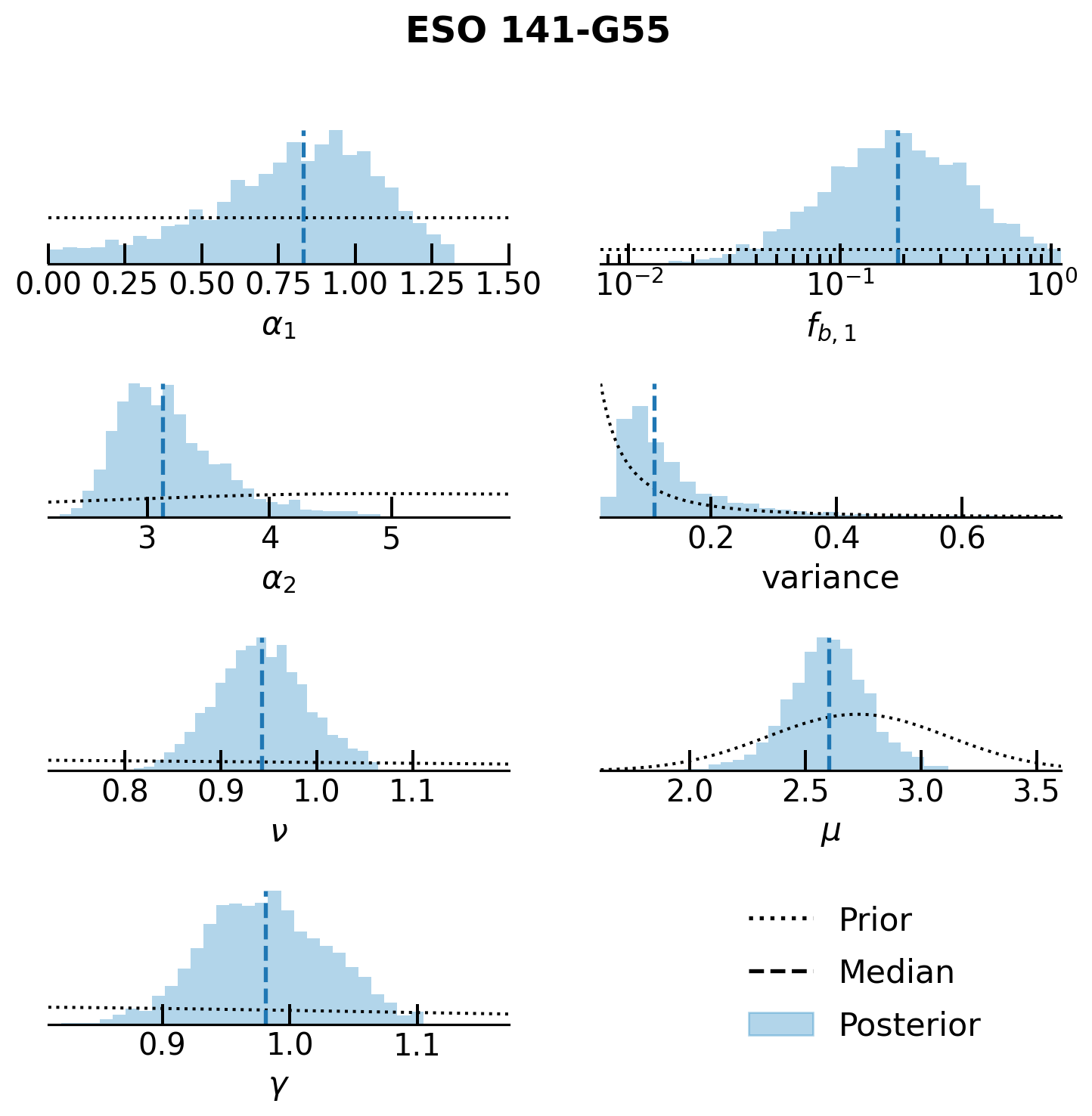

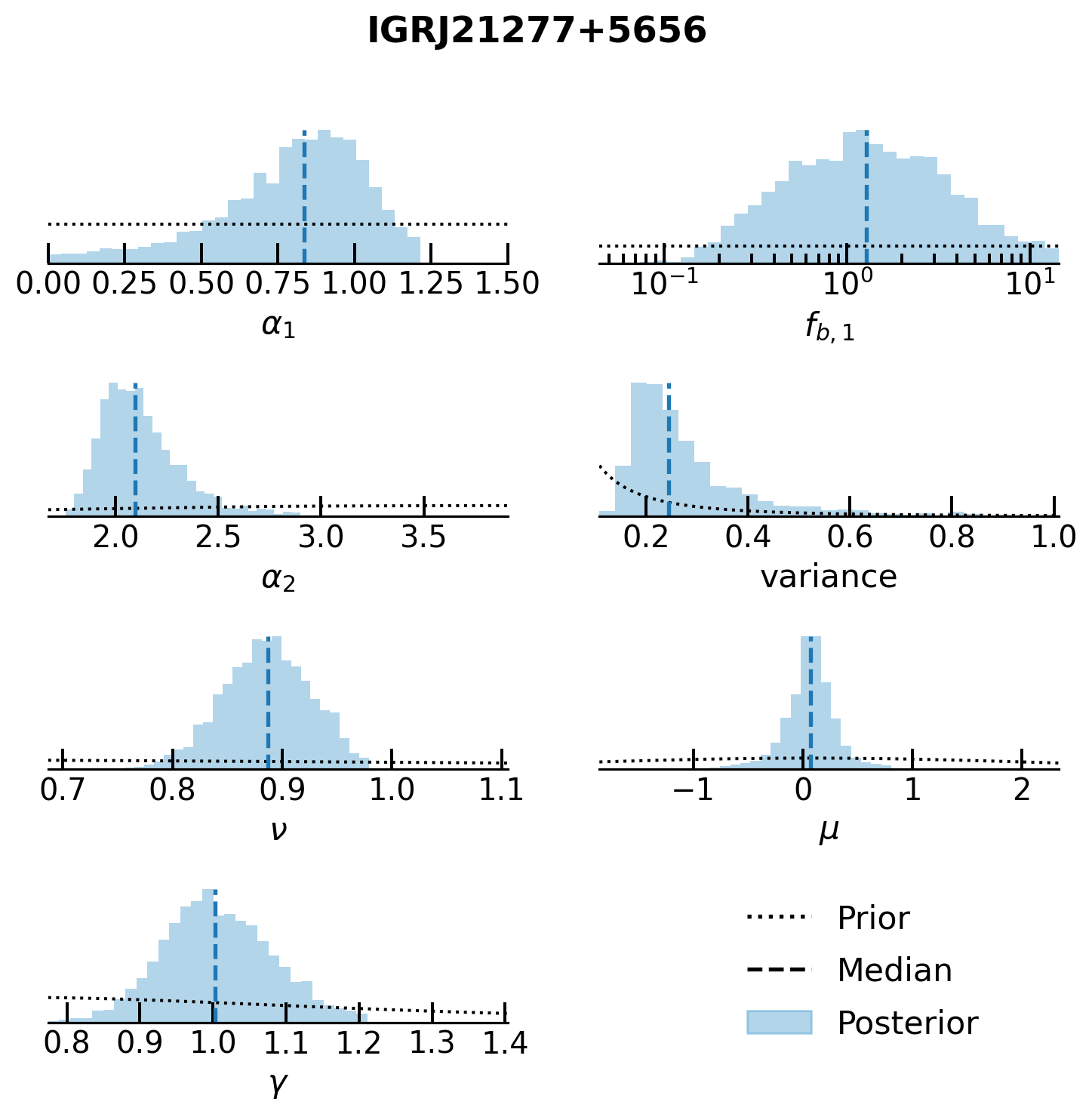

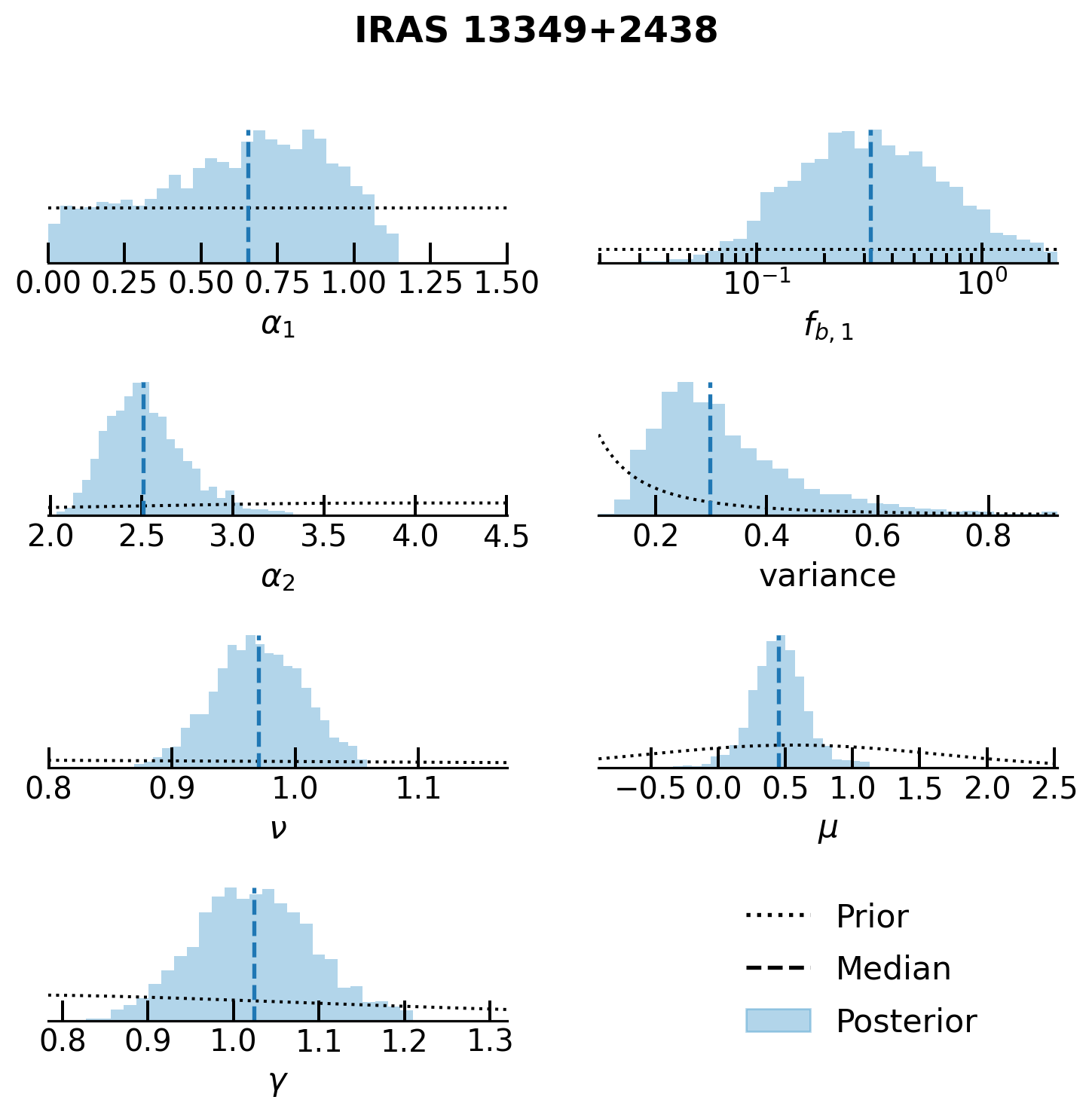

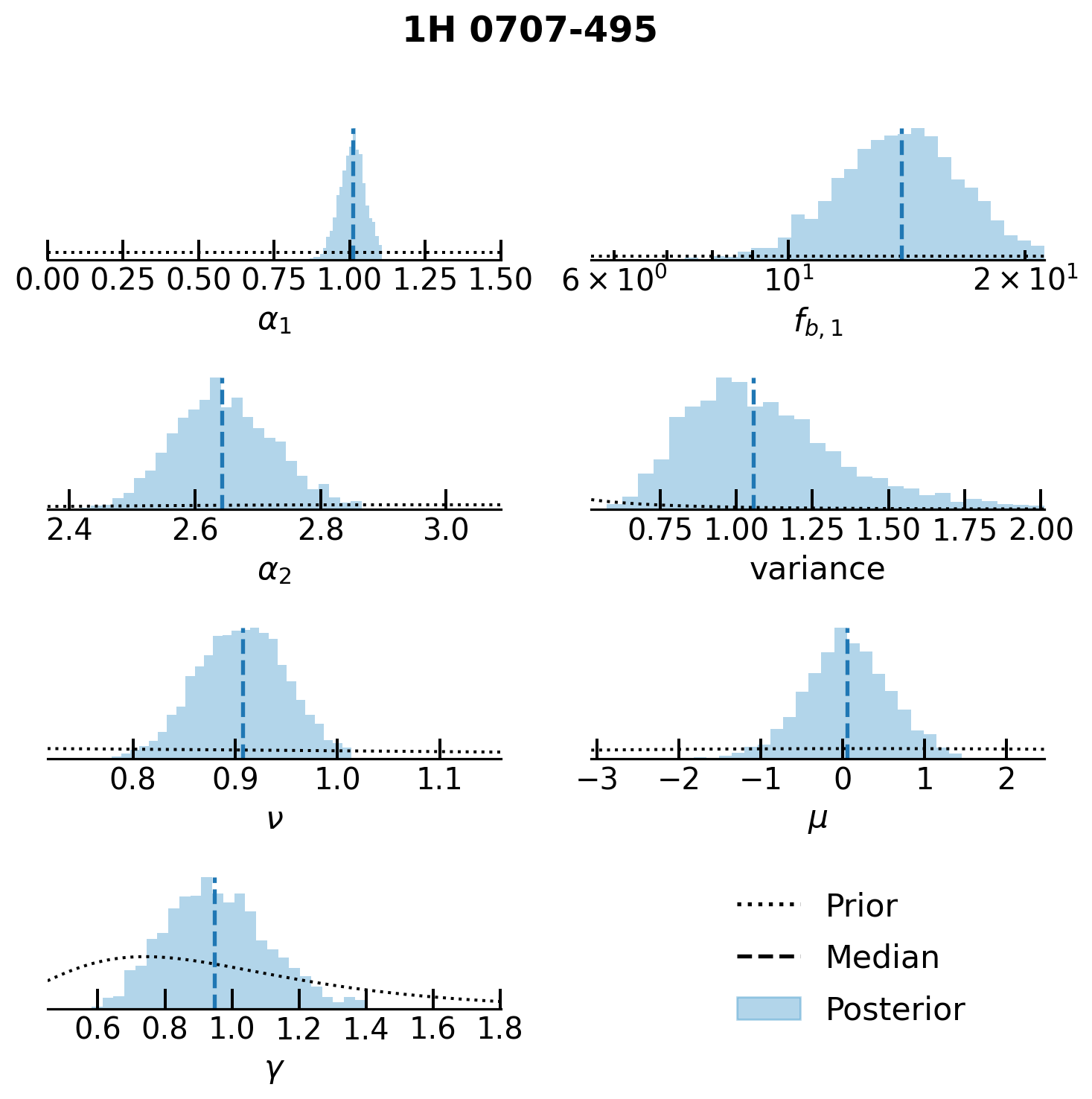

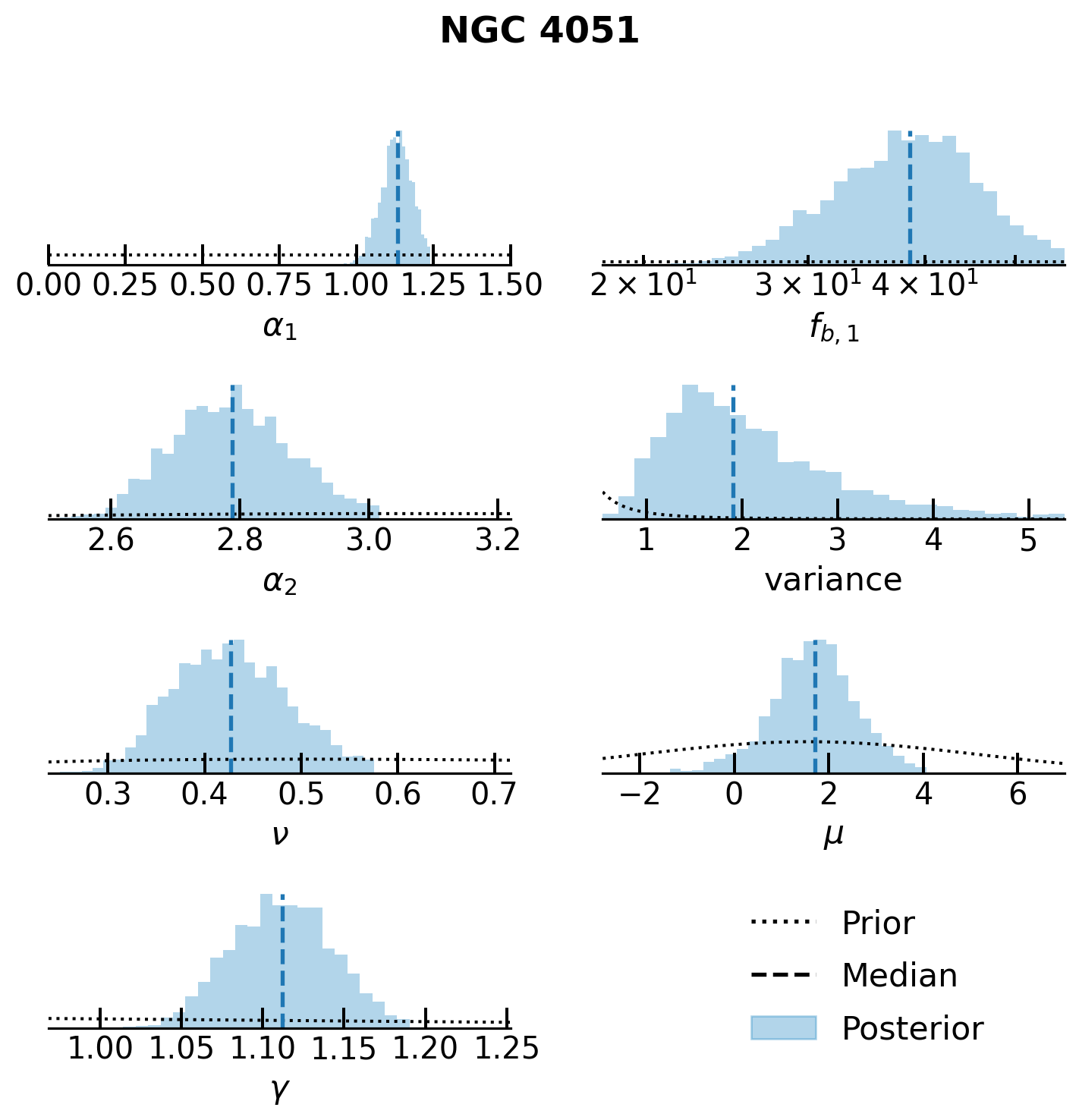

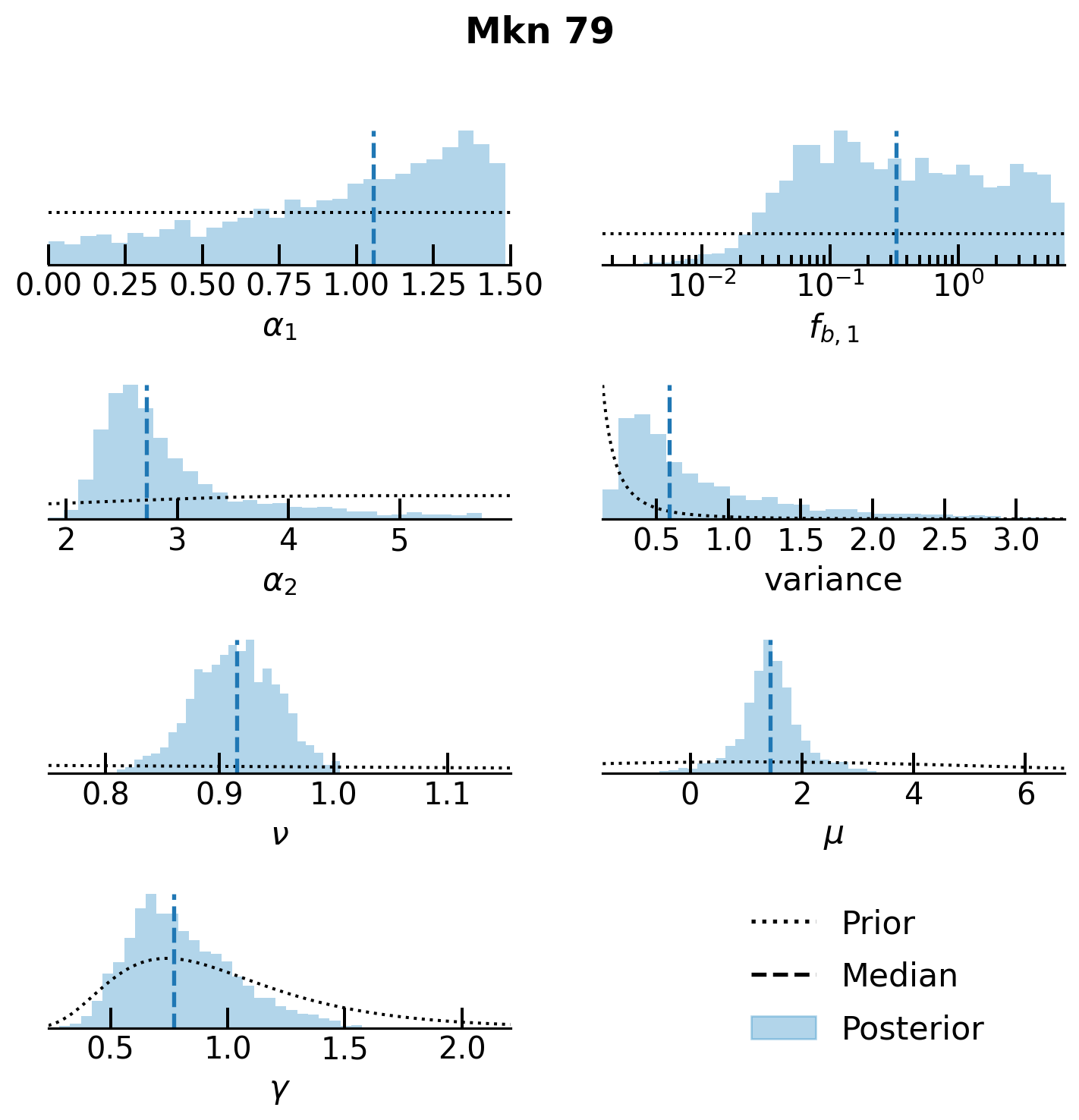

Code

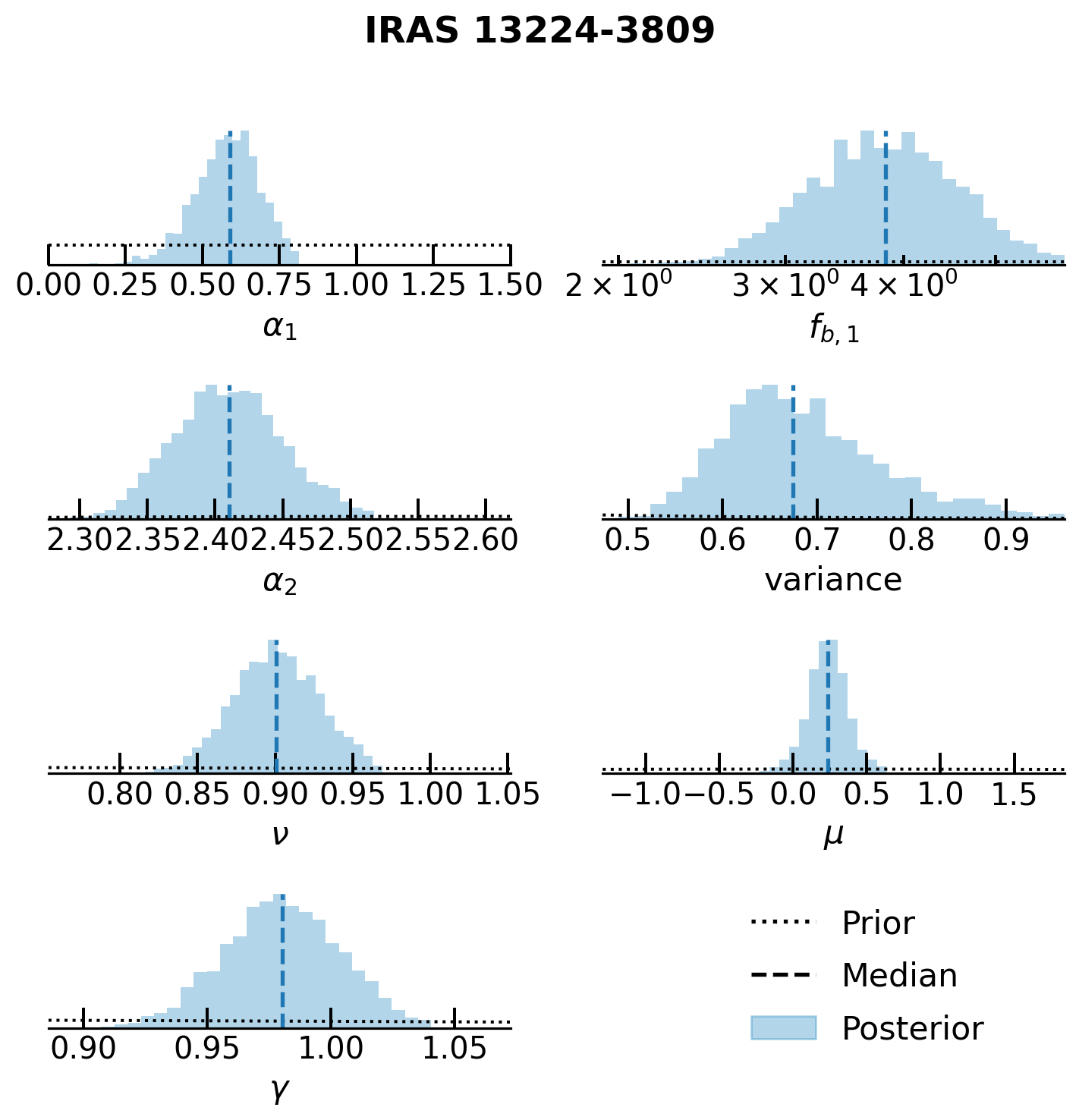

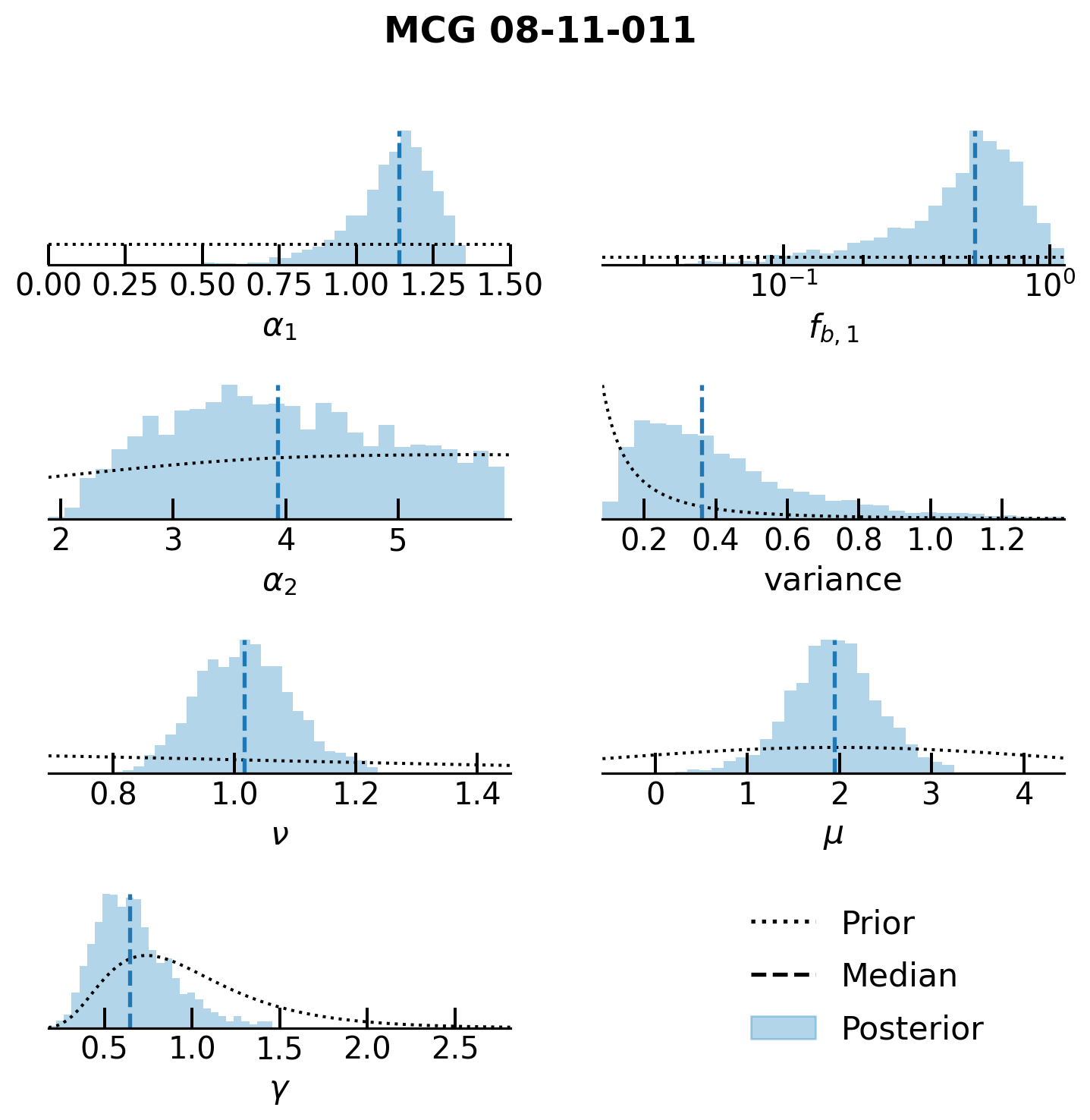

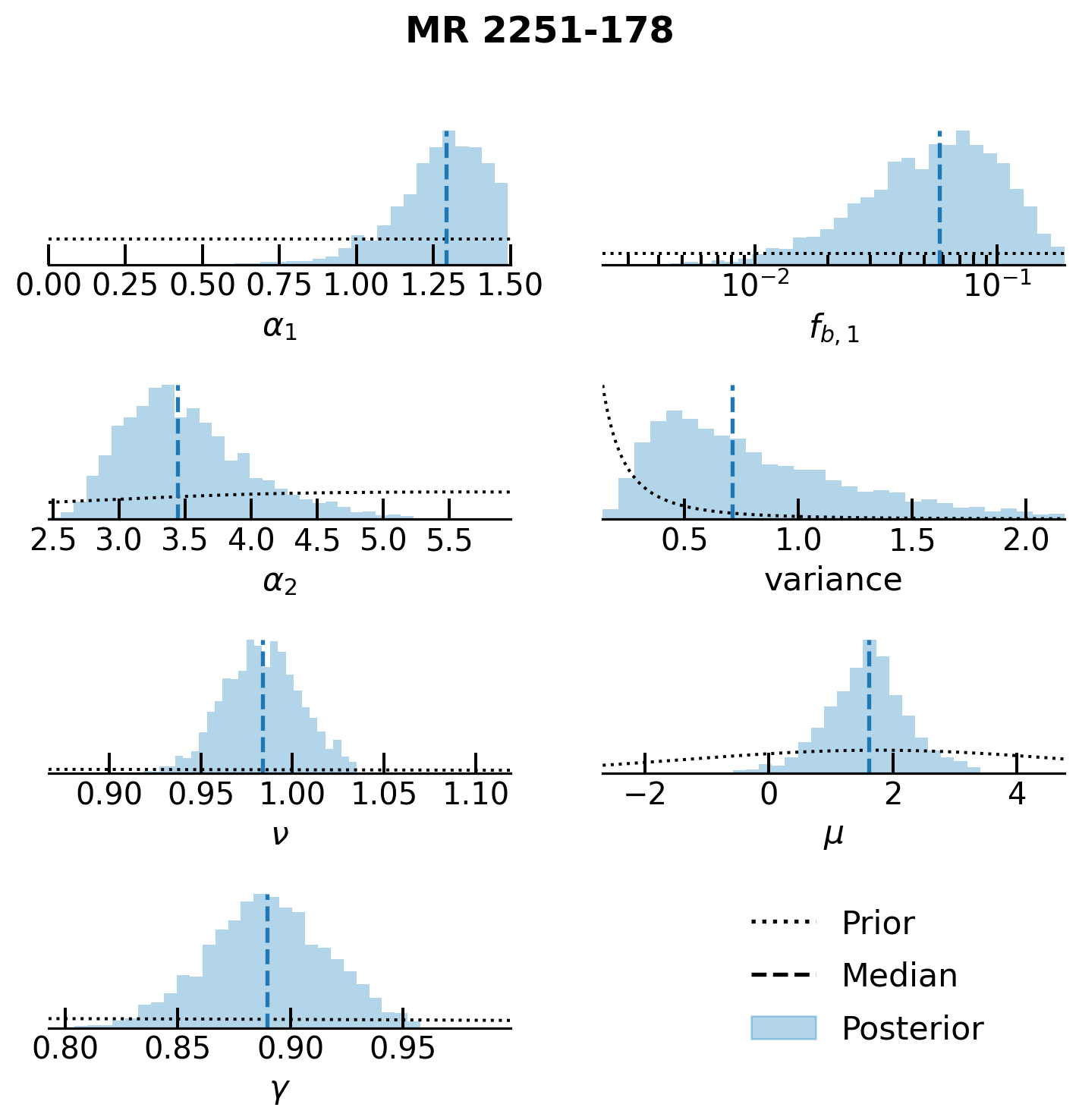

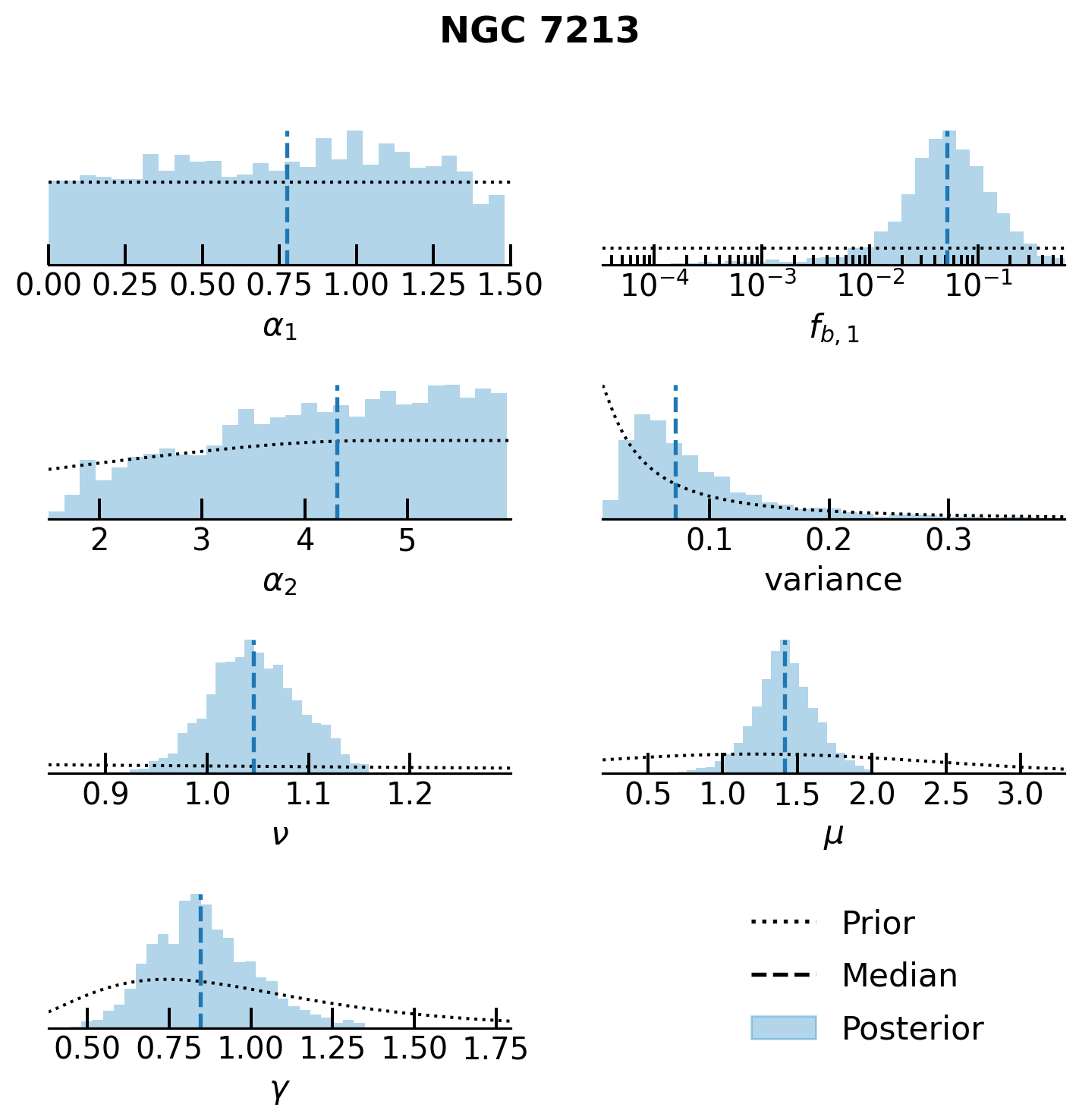

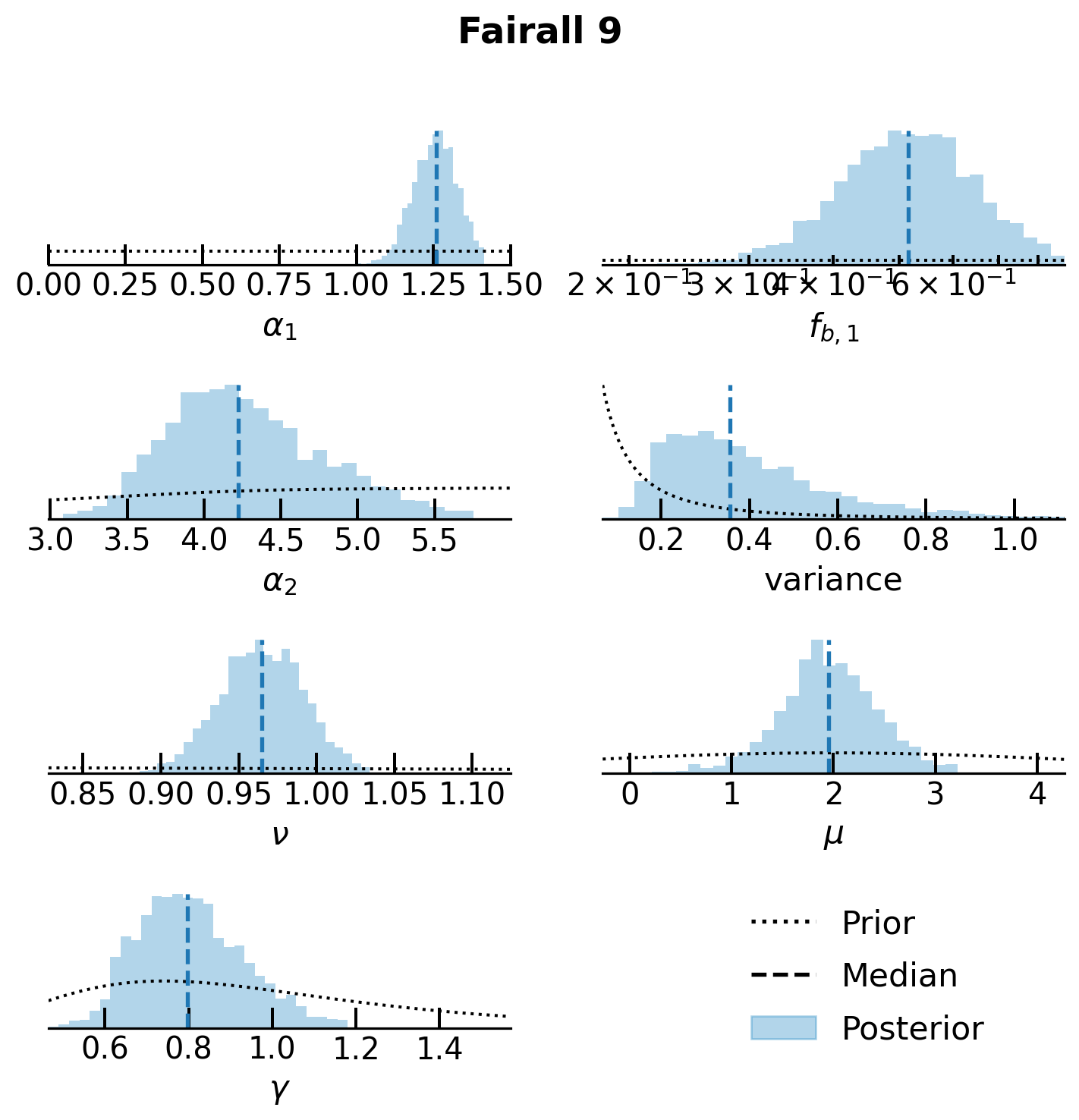

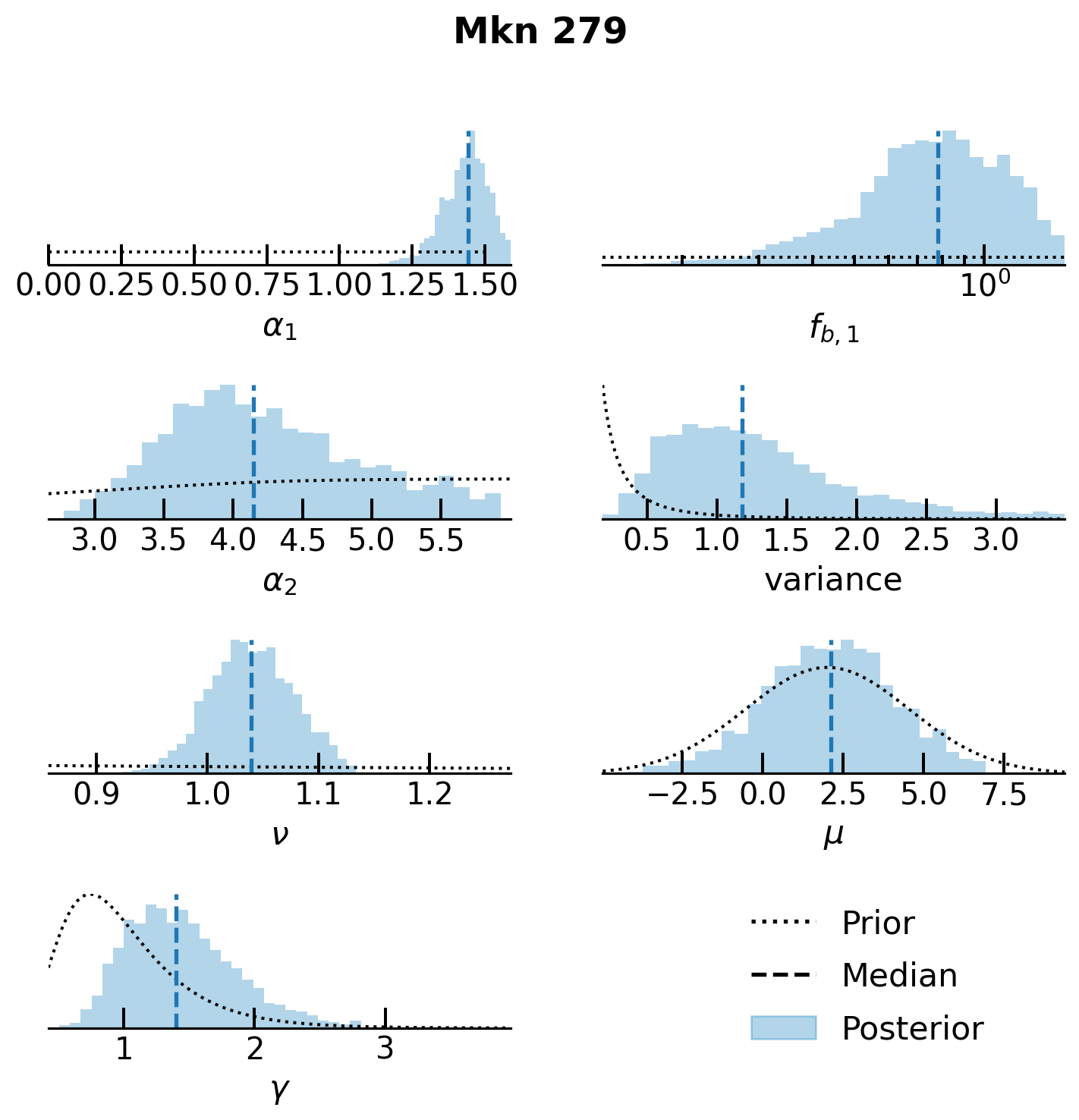

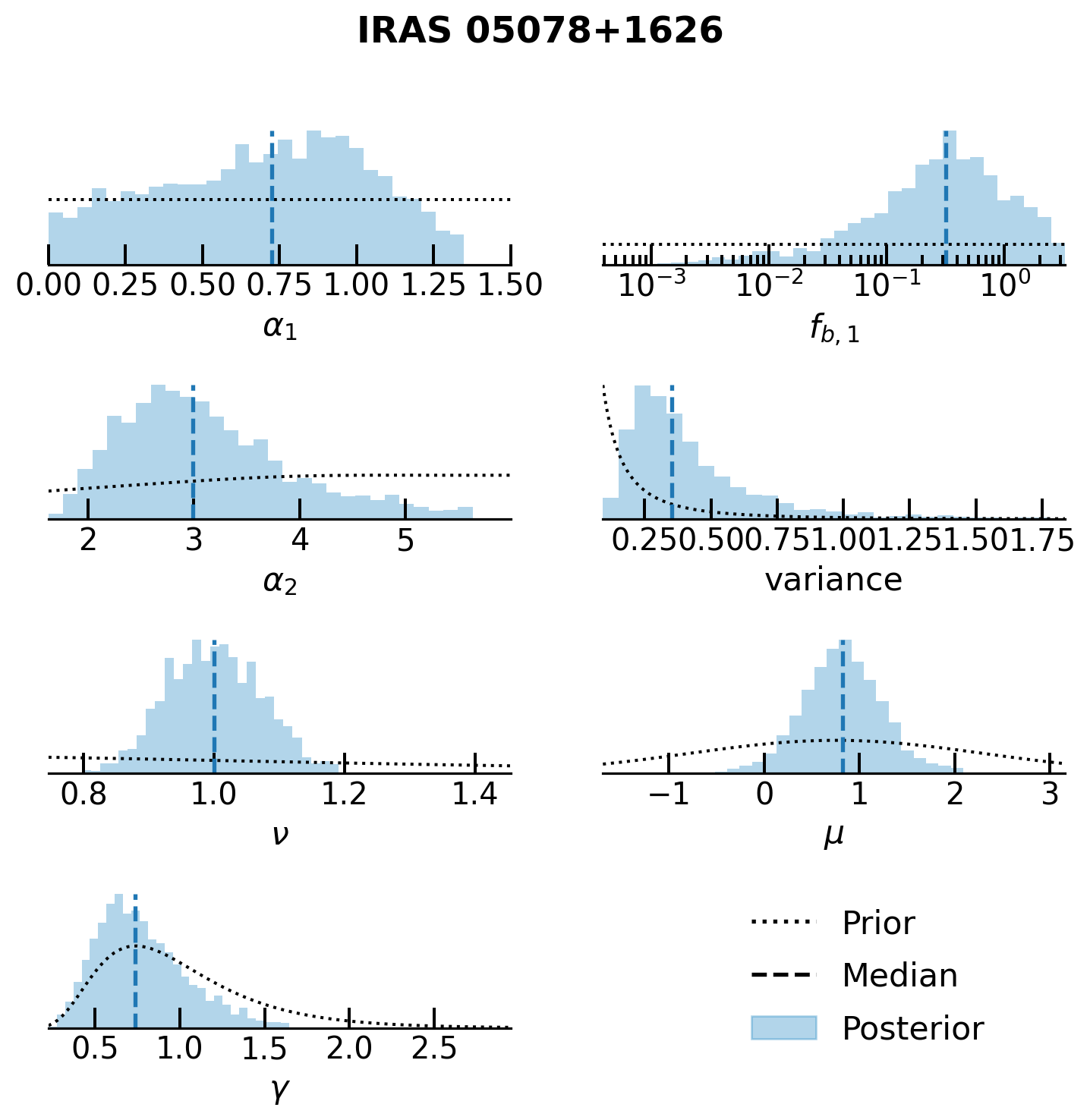

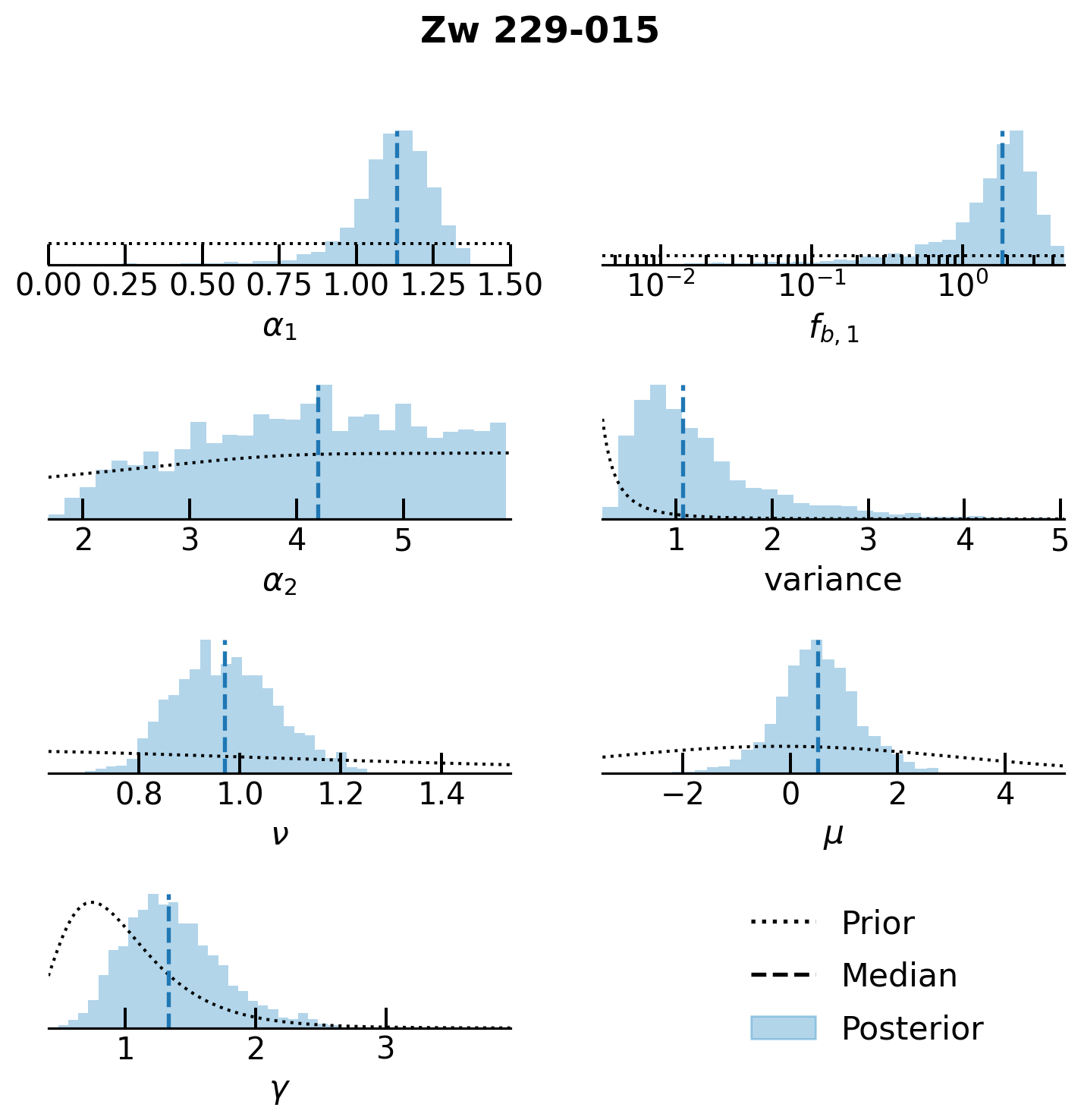

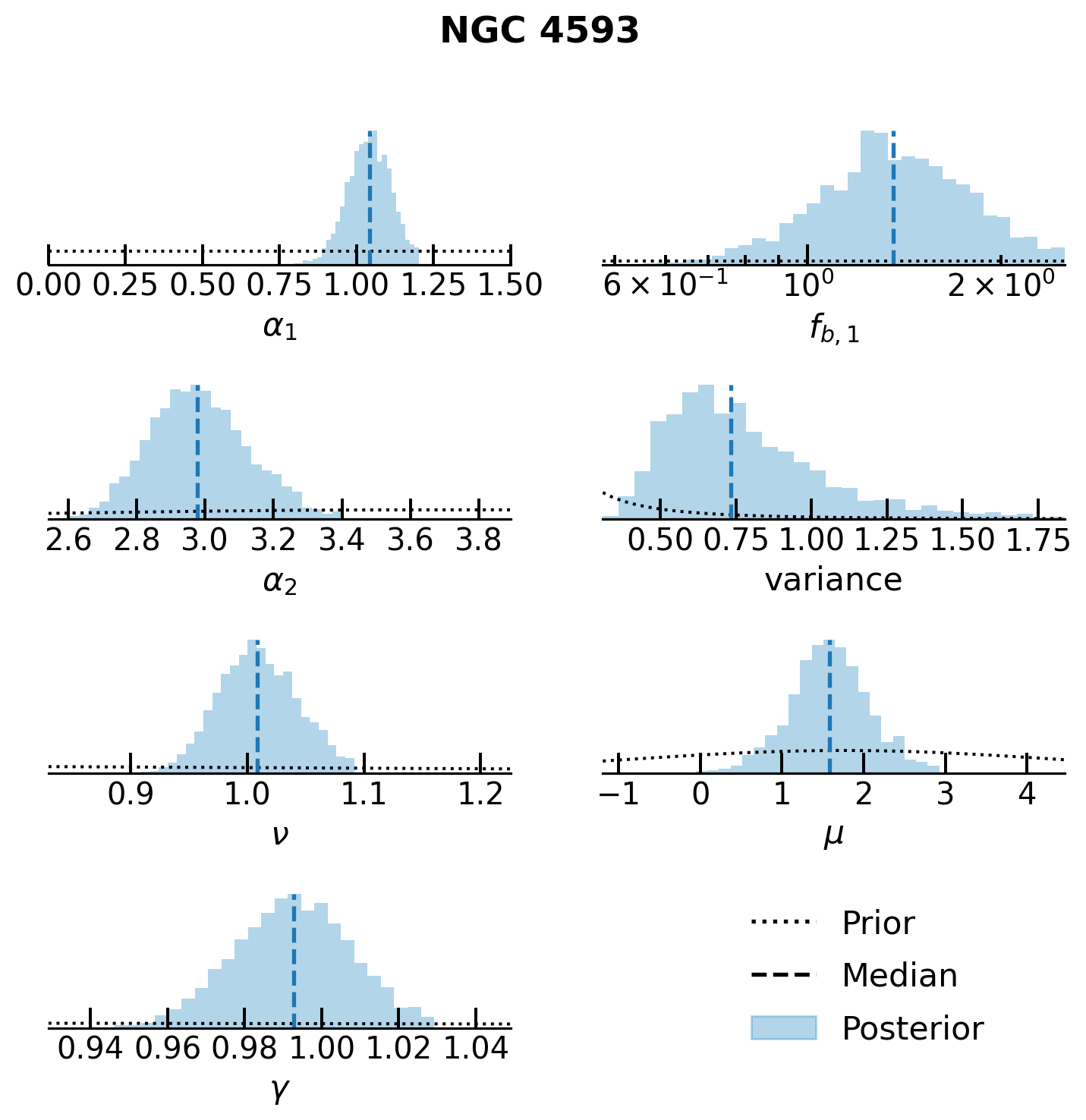

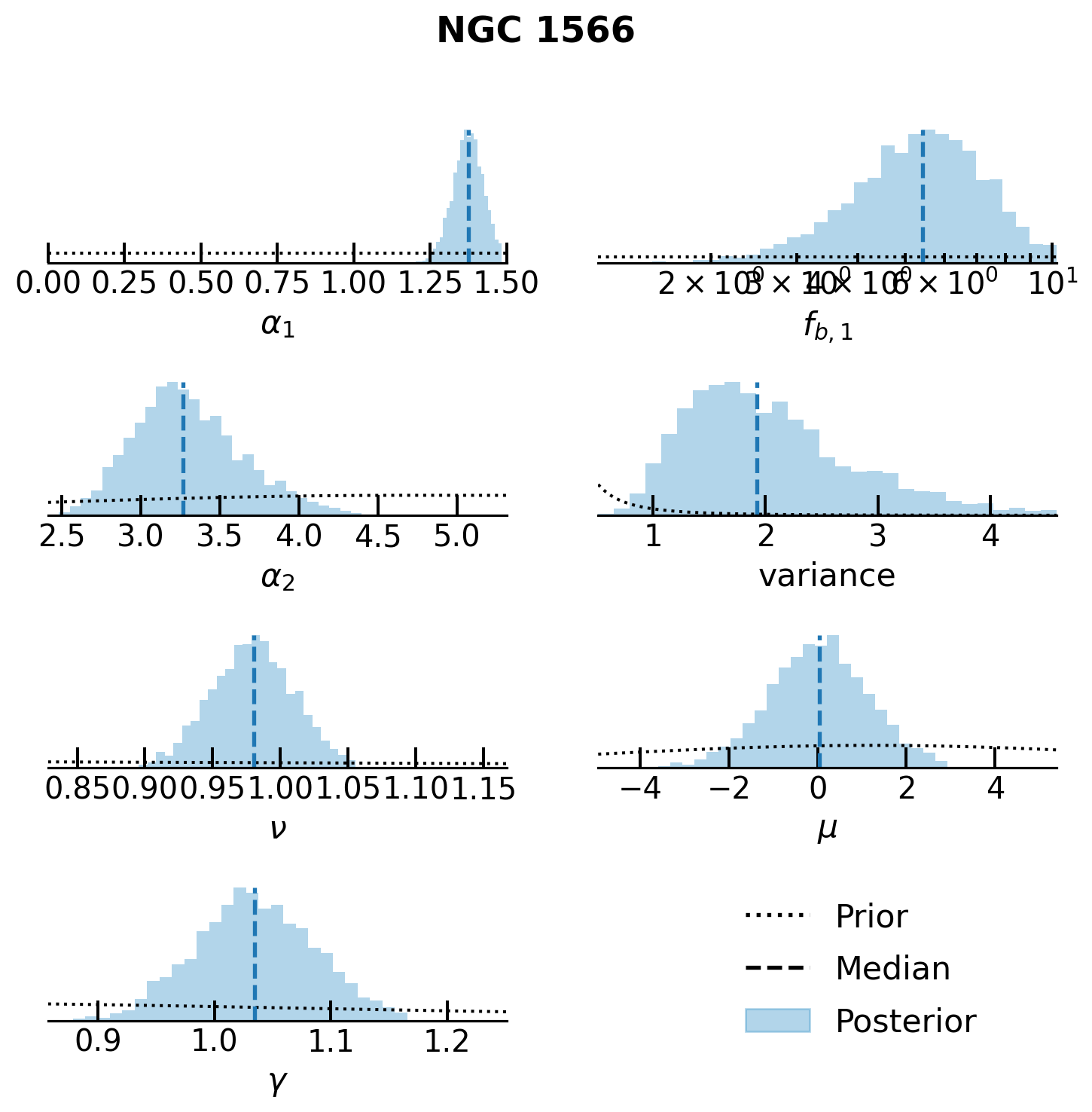

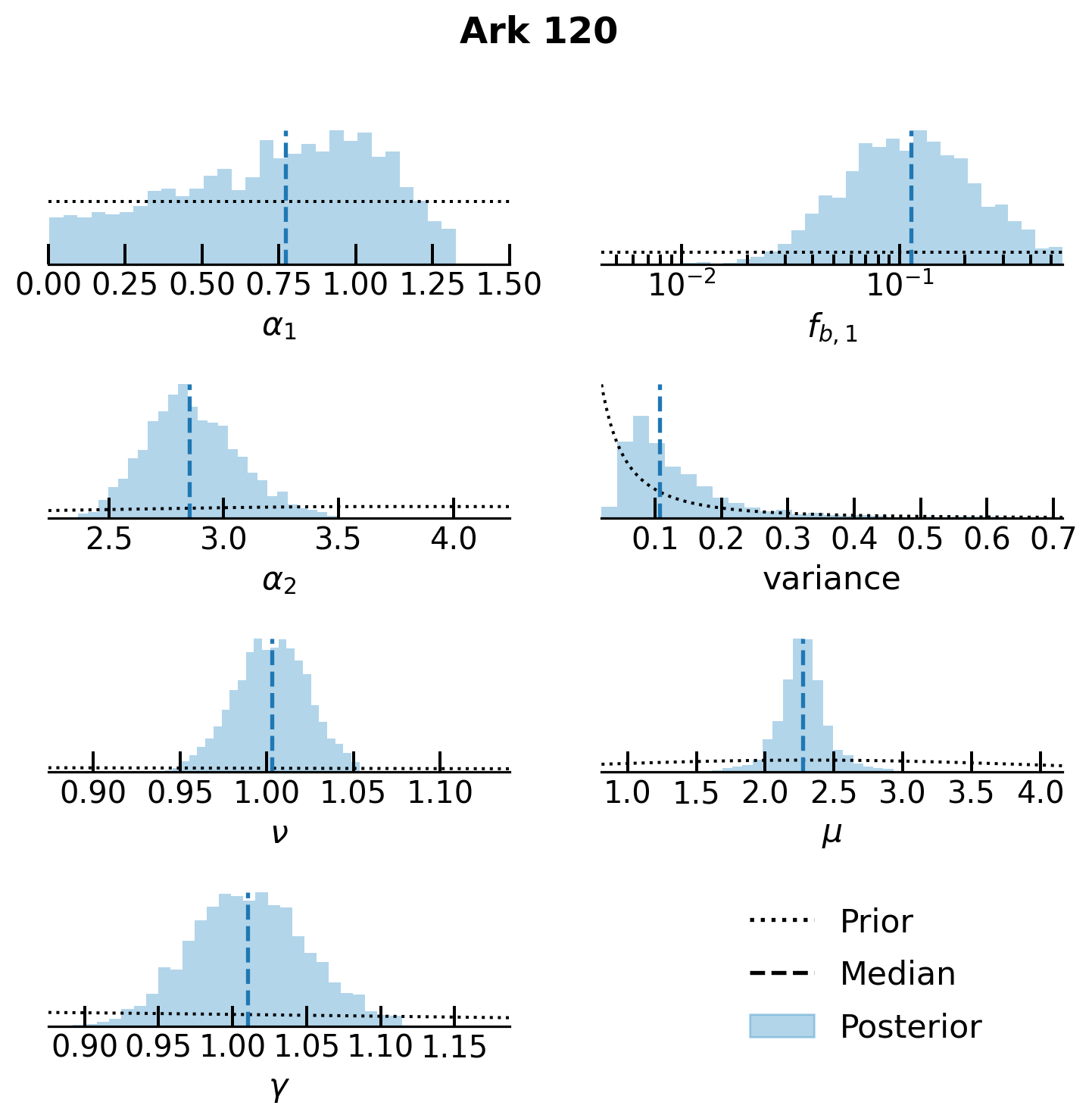

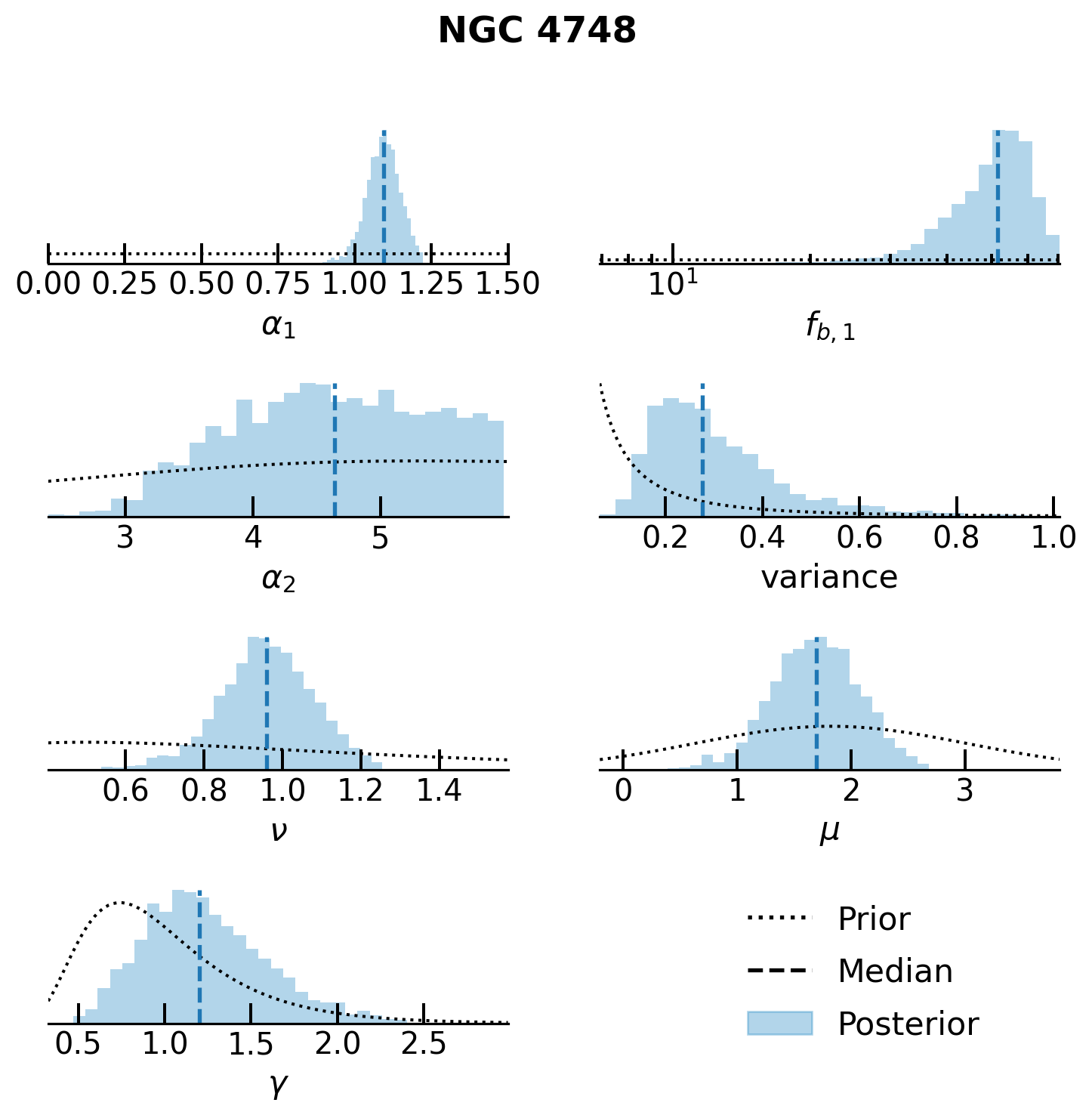

for i,dir in enumerate(single_dirs):
    source = dir_list[i]
    with plt.style.context("https://github.com/mlefkir/beauxgraphs/raw/main/beautifulgraphs_colblind.mplstyle"):
        fig,ax = plot_posterior_density(f"{path}/{source}_combined_{band}_{short_model}_123_factor/", short_model,source, band)
        fig.suptitle(f"{dirname2prettyname(source)}")

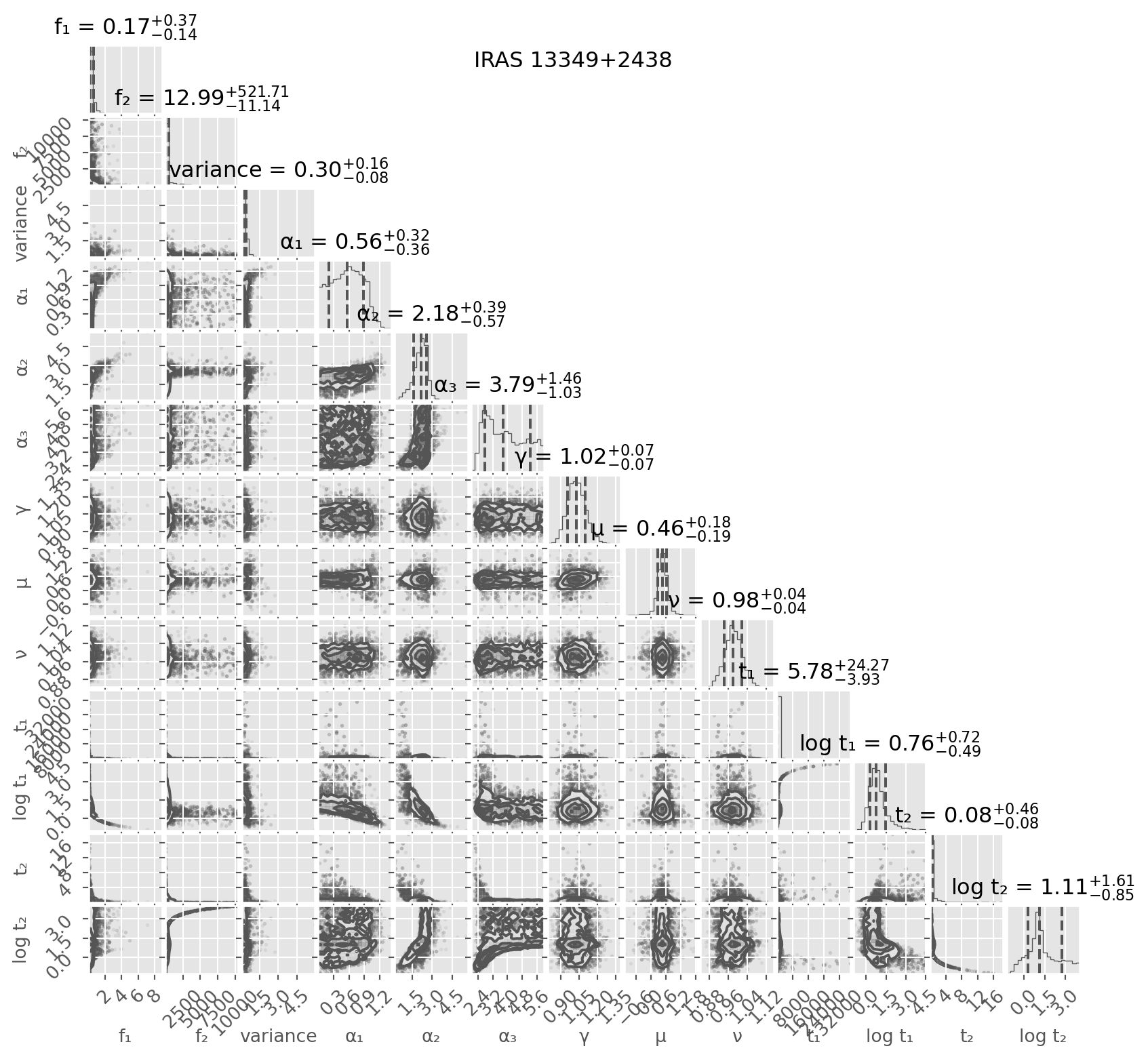

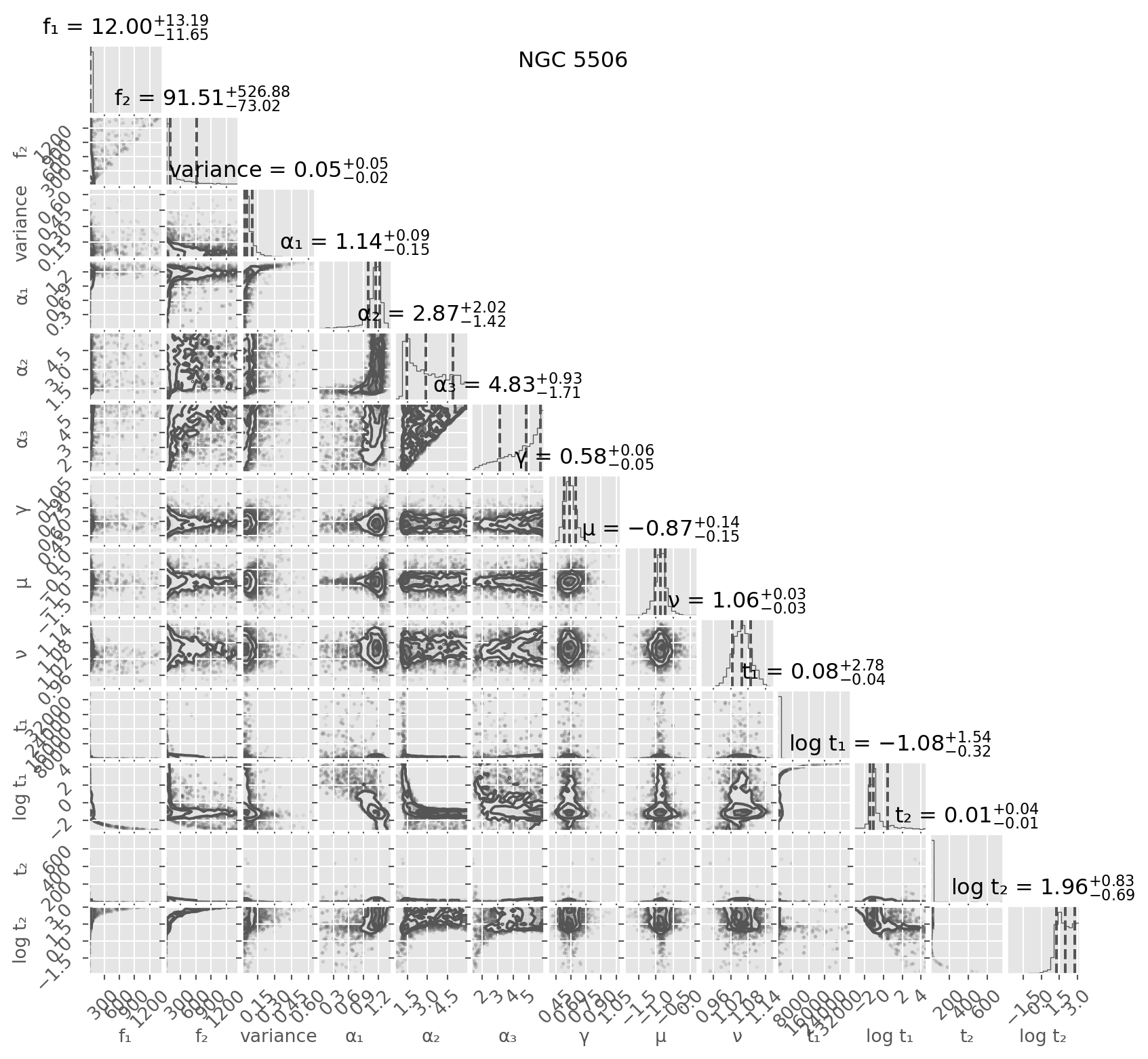

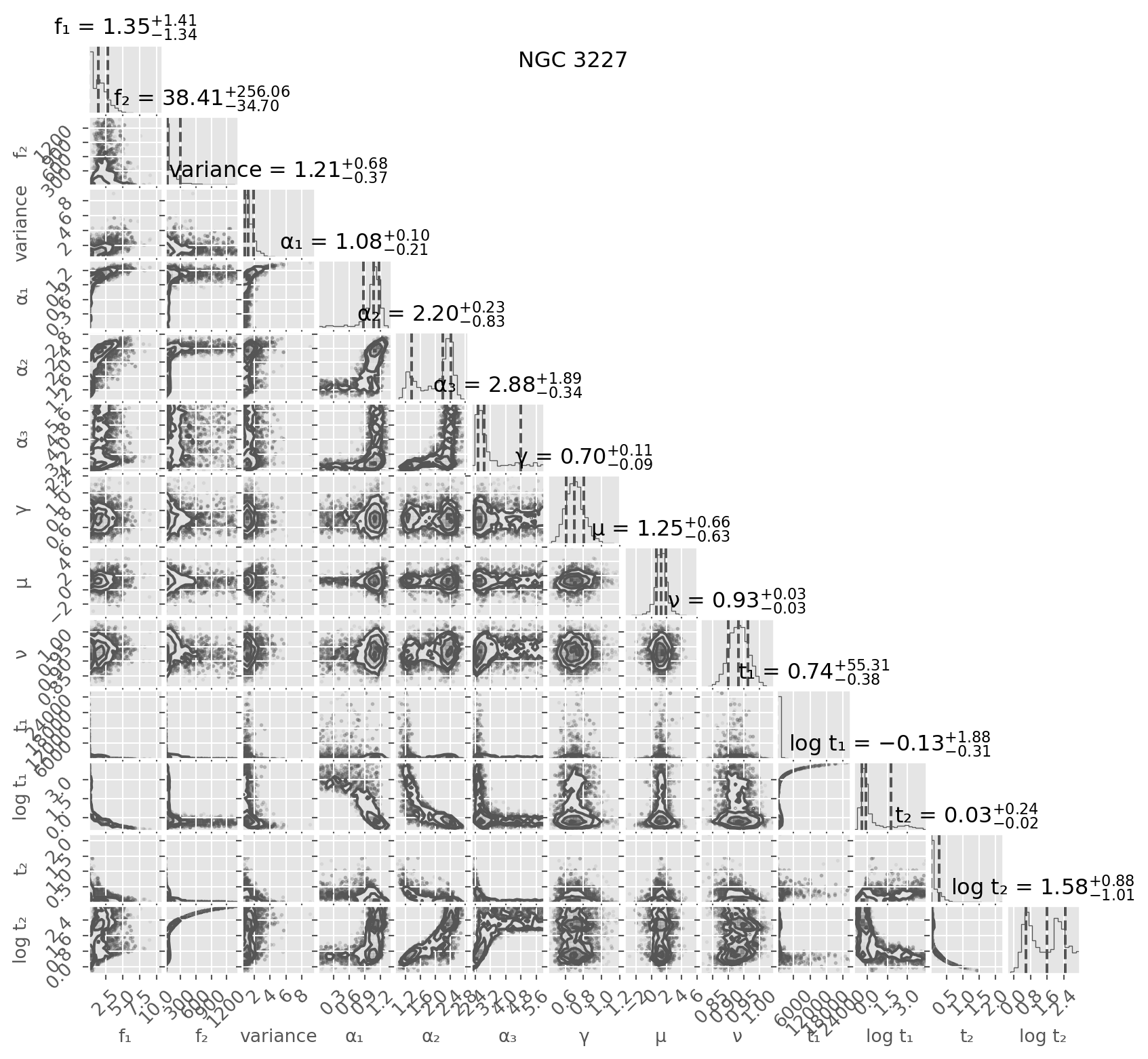

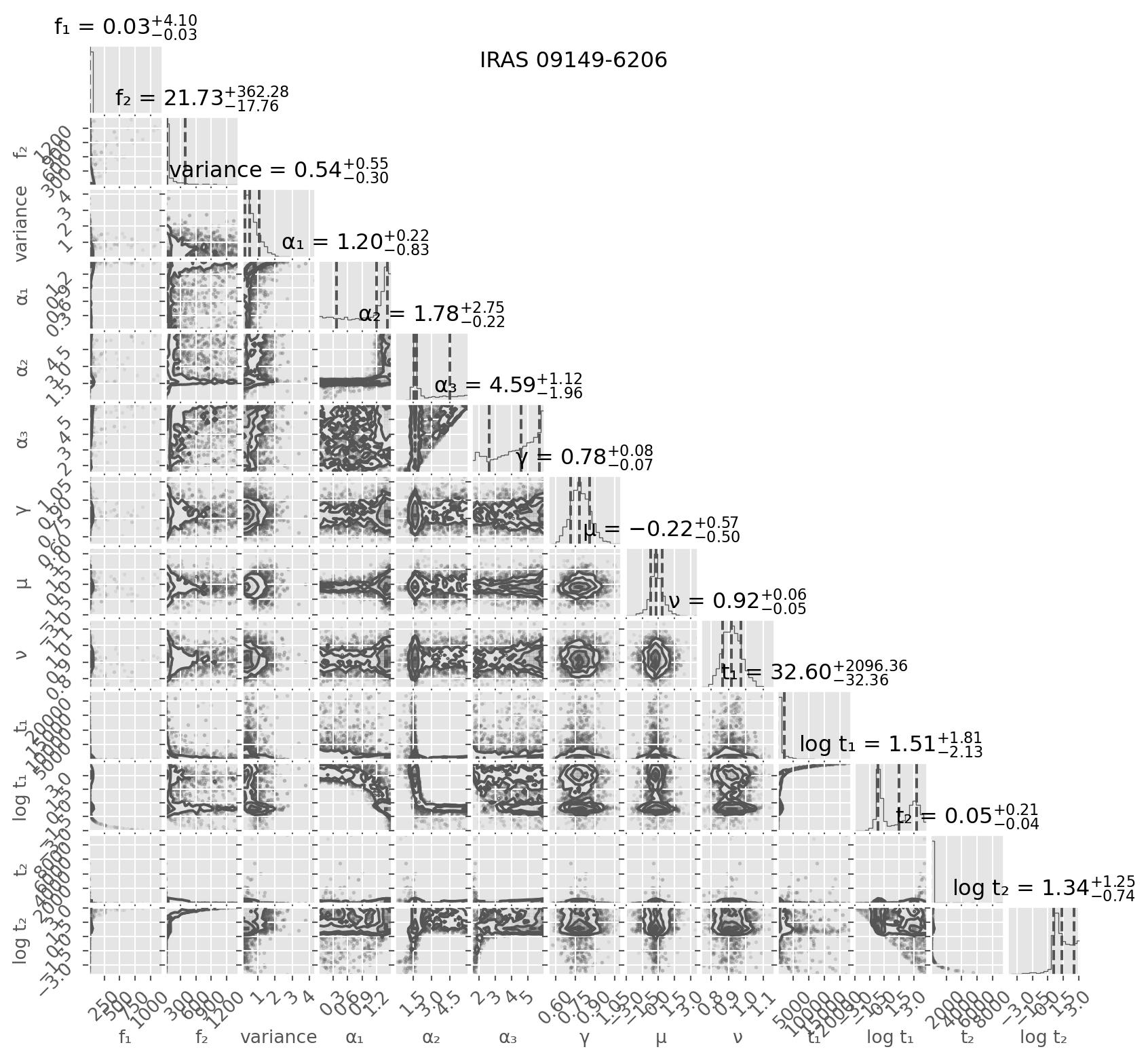

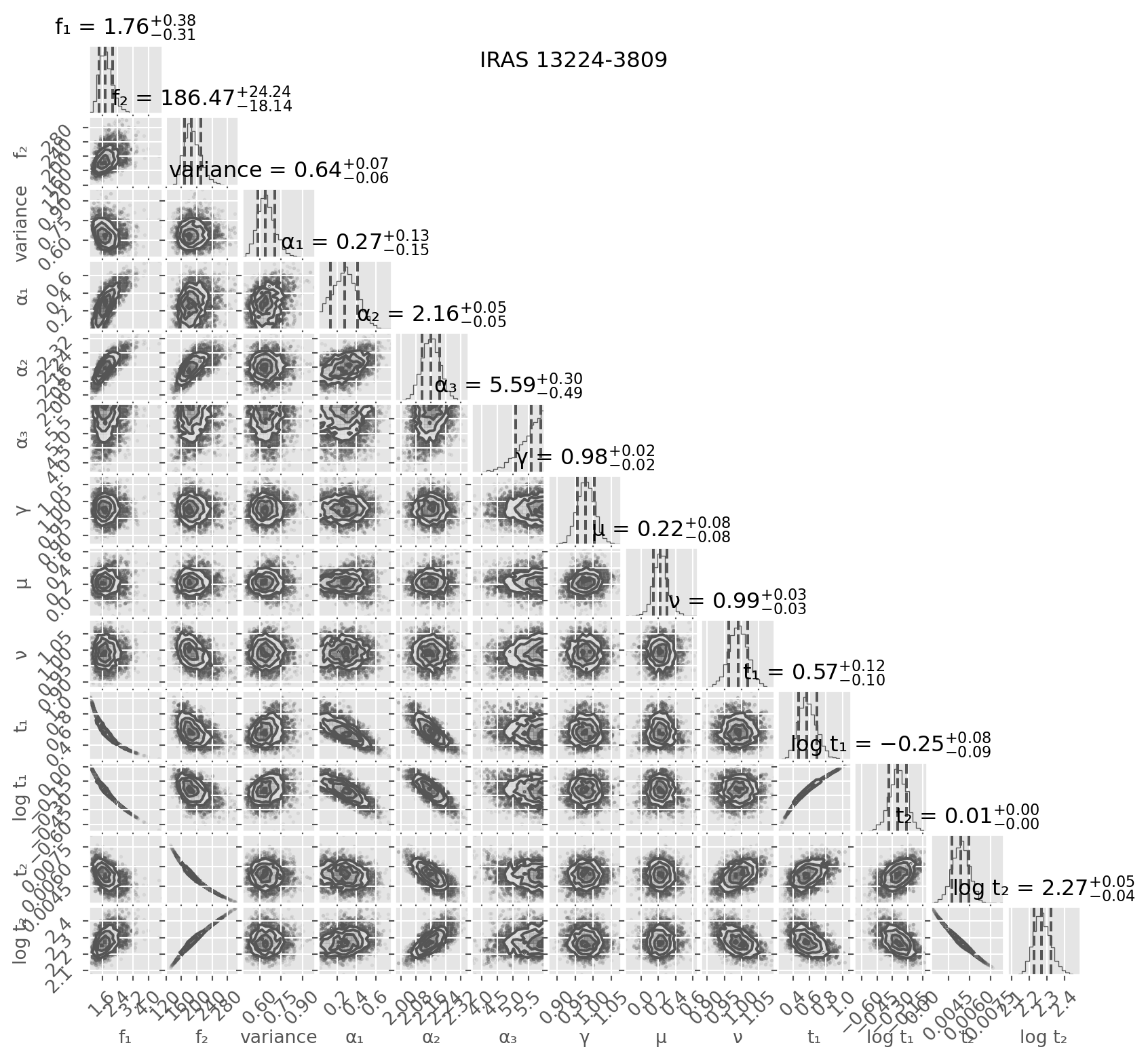

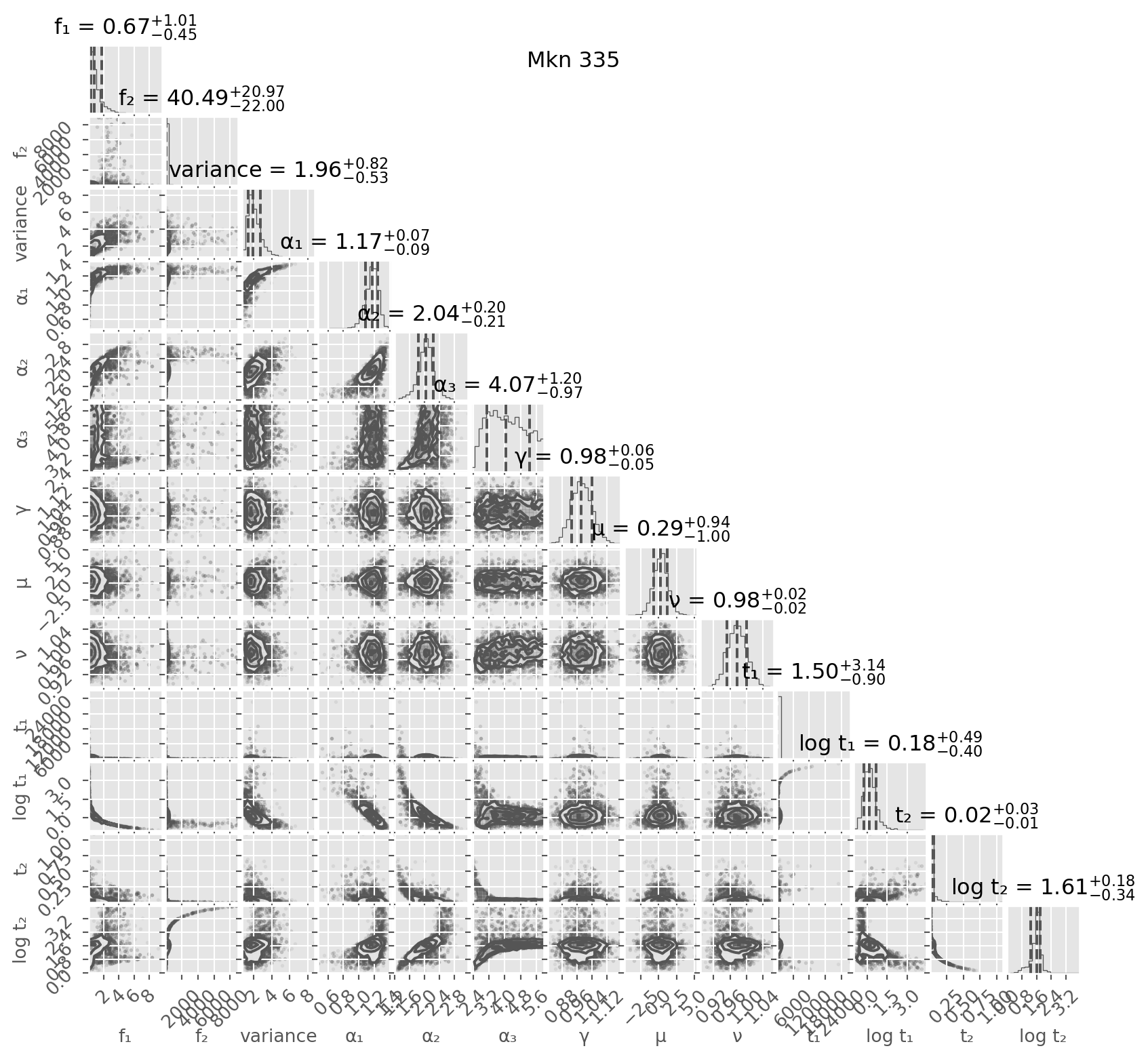

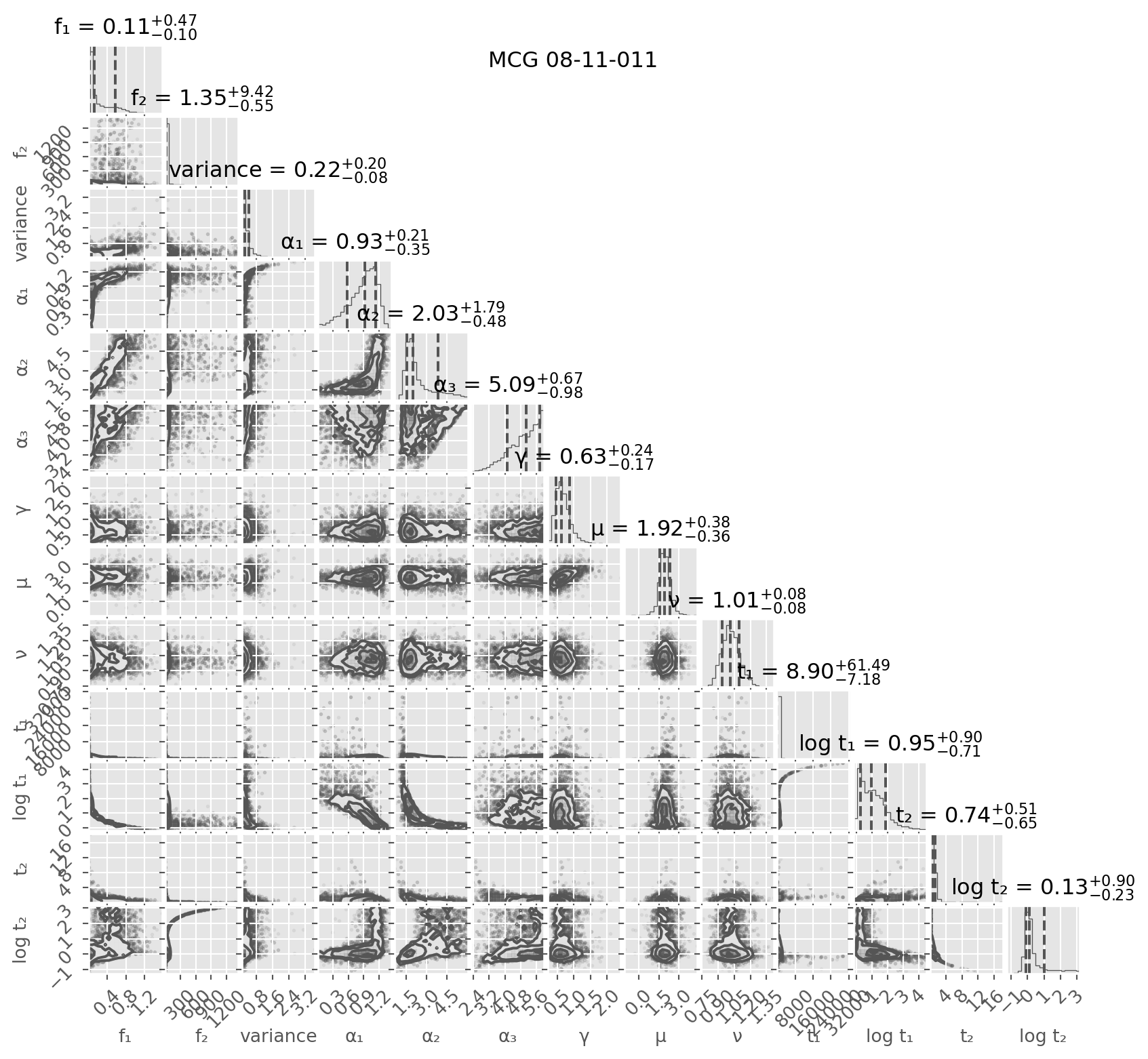

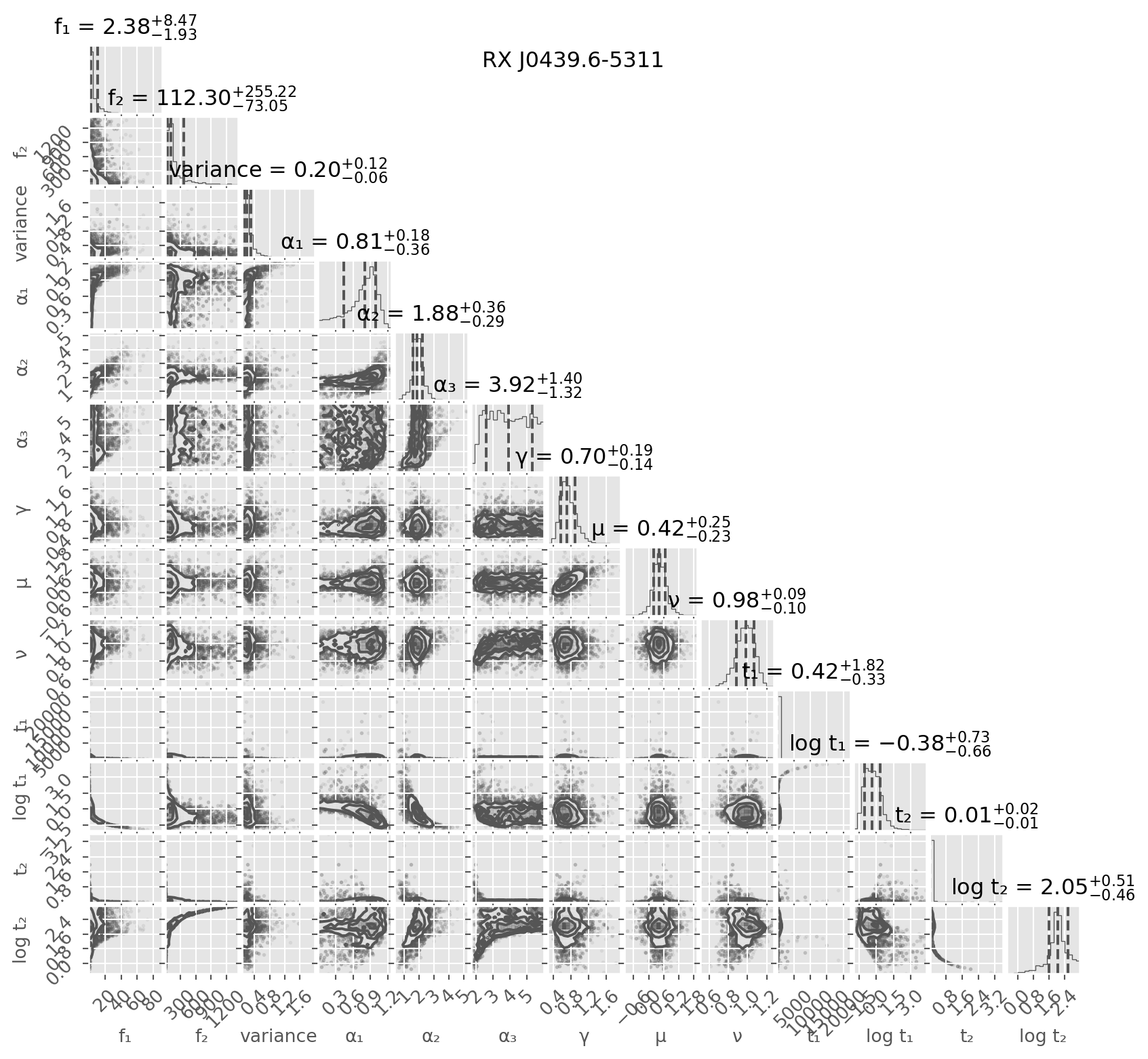

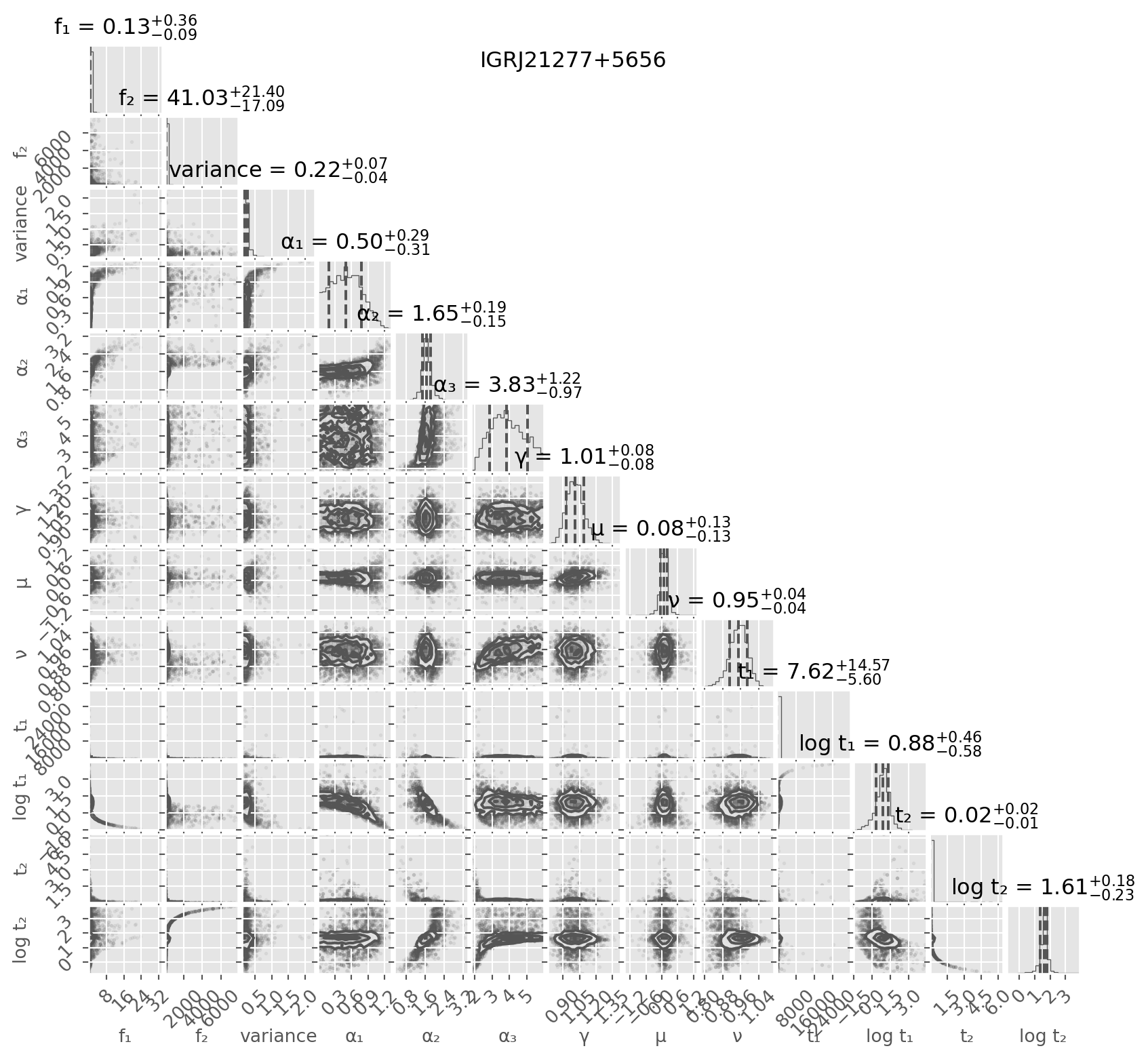

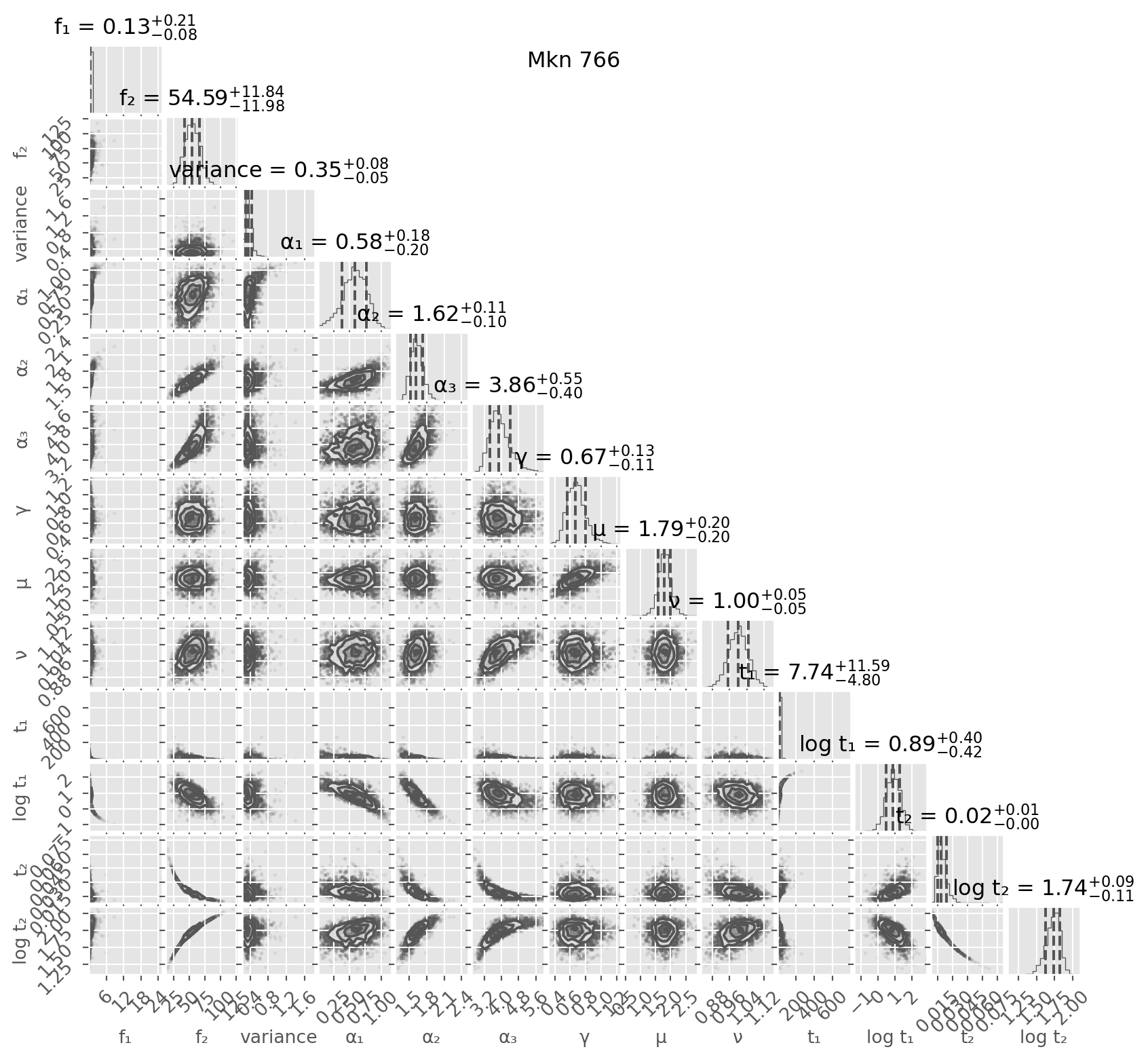

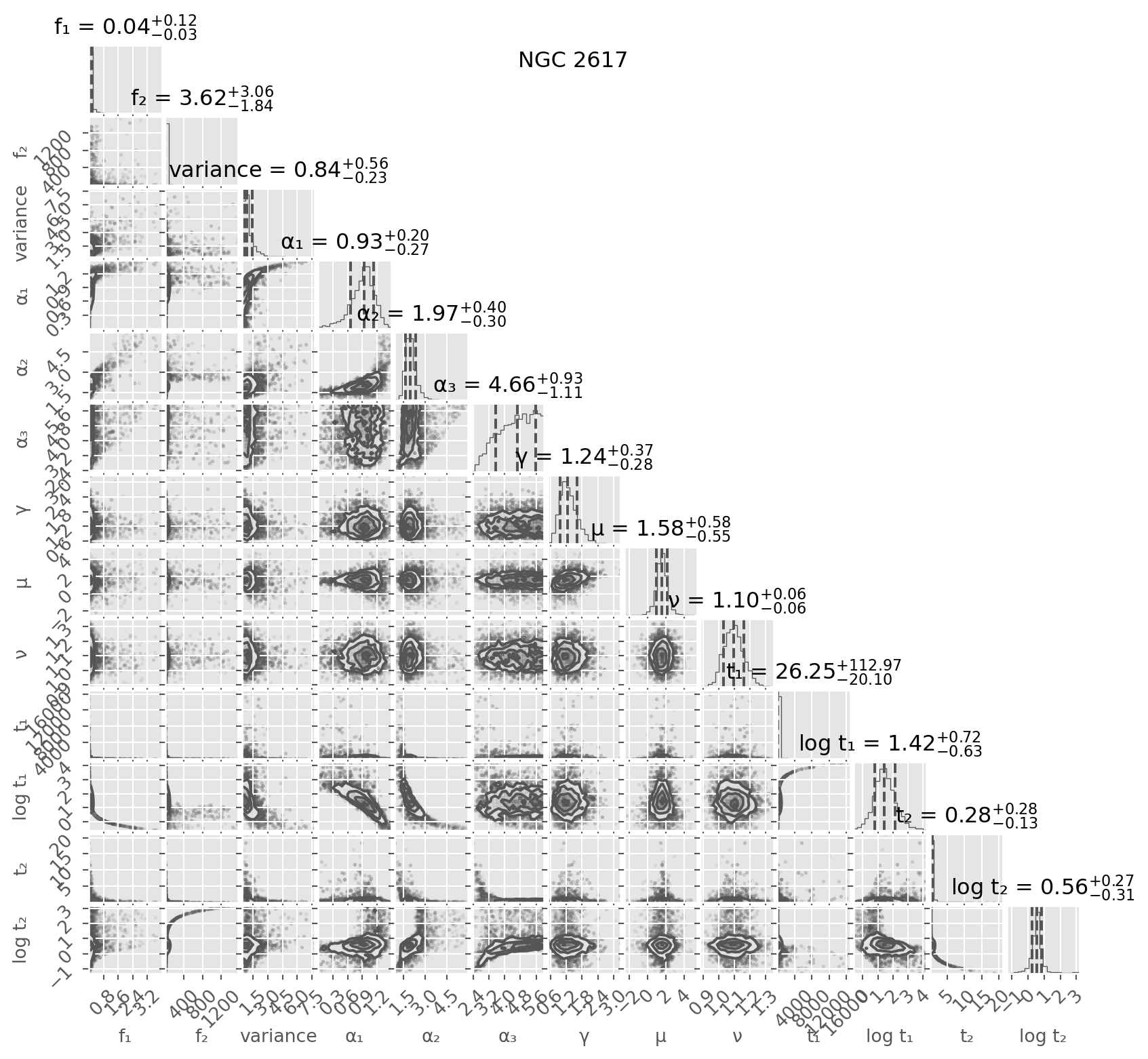

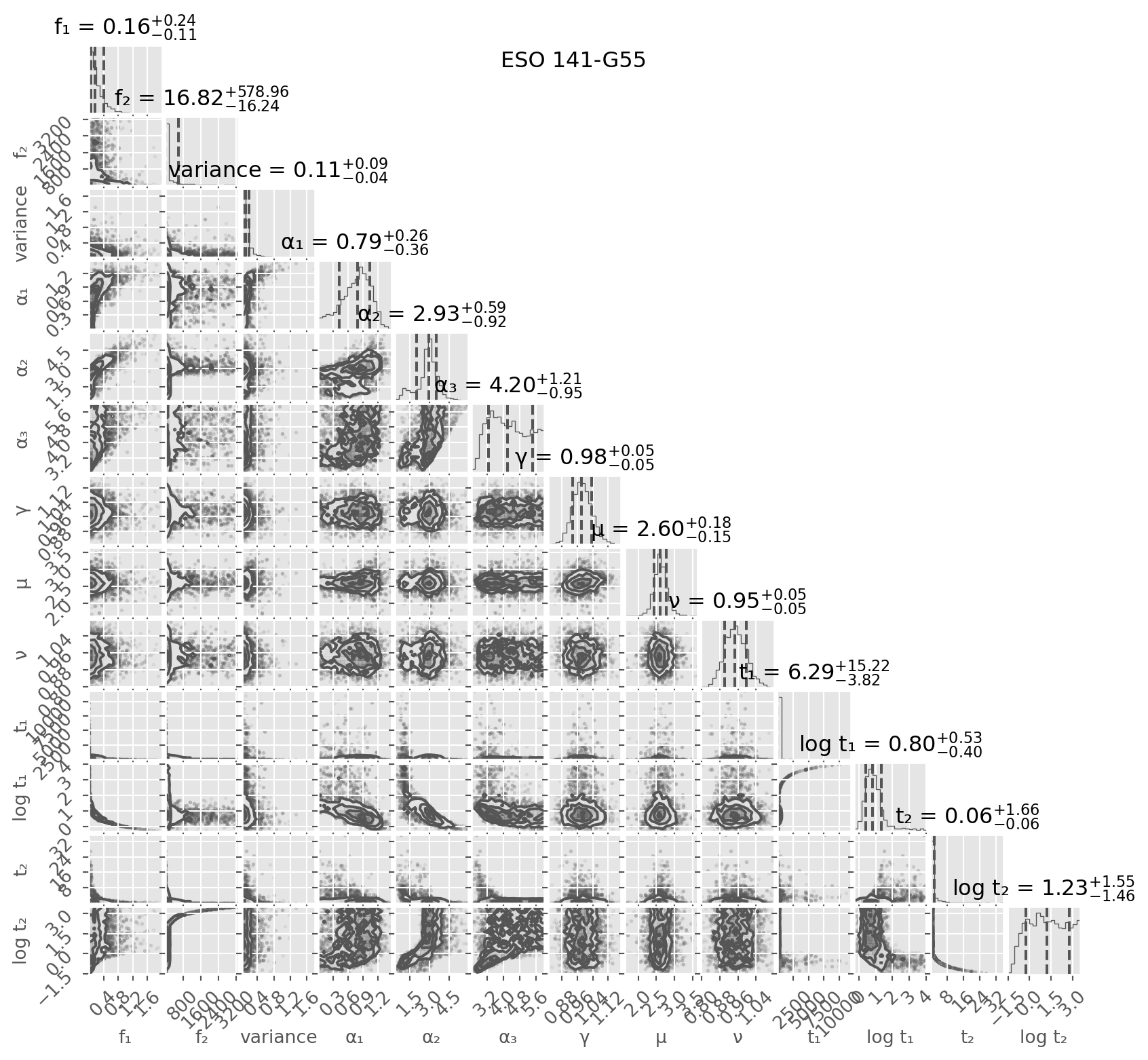

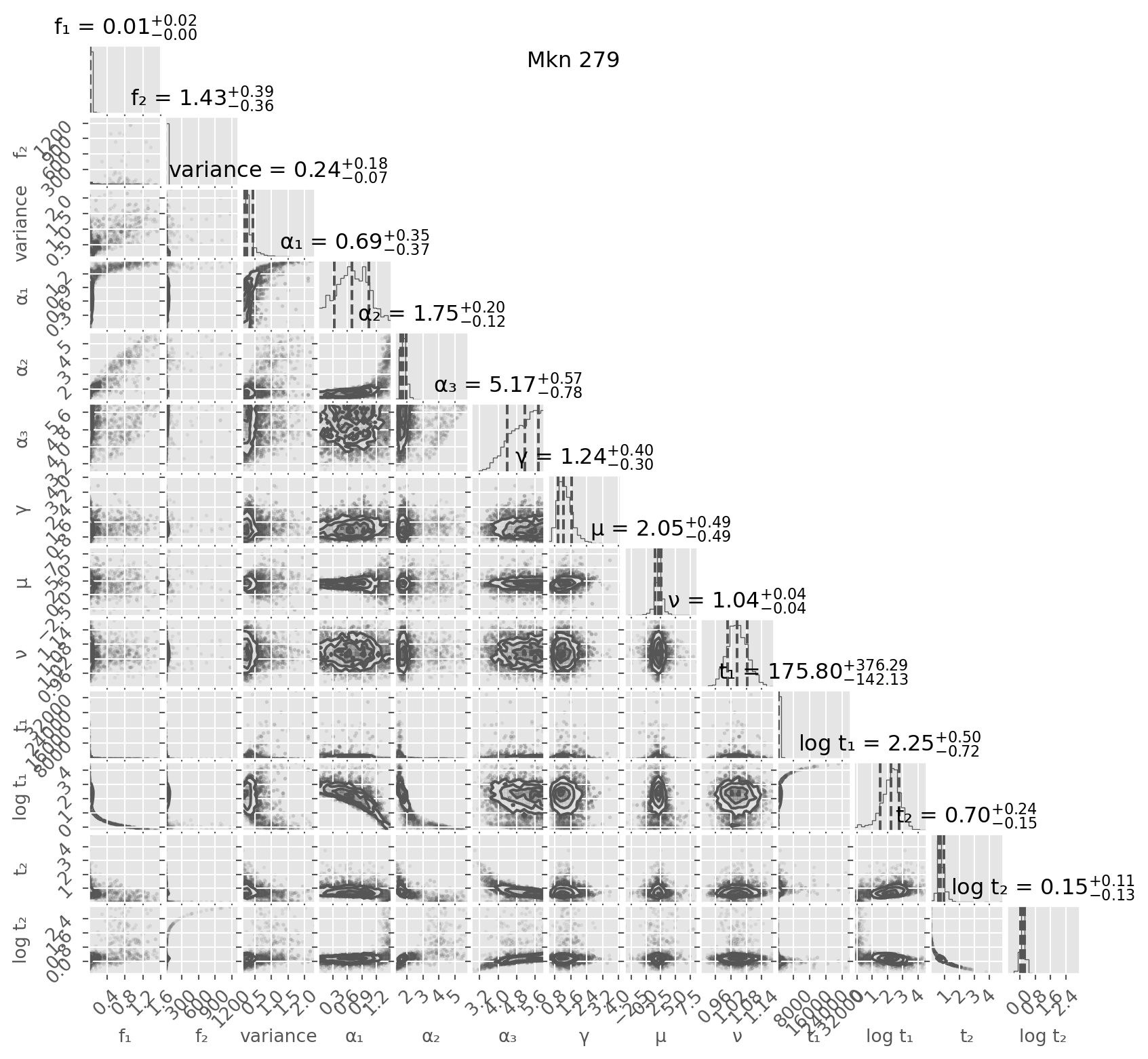

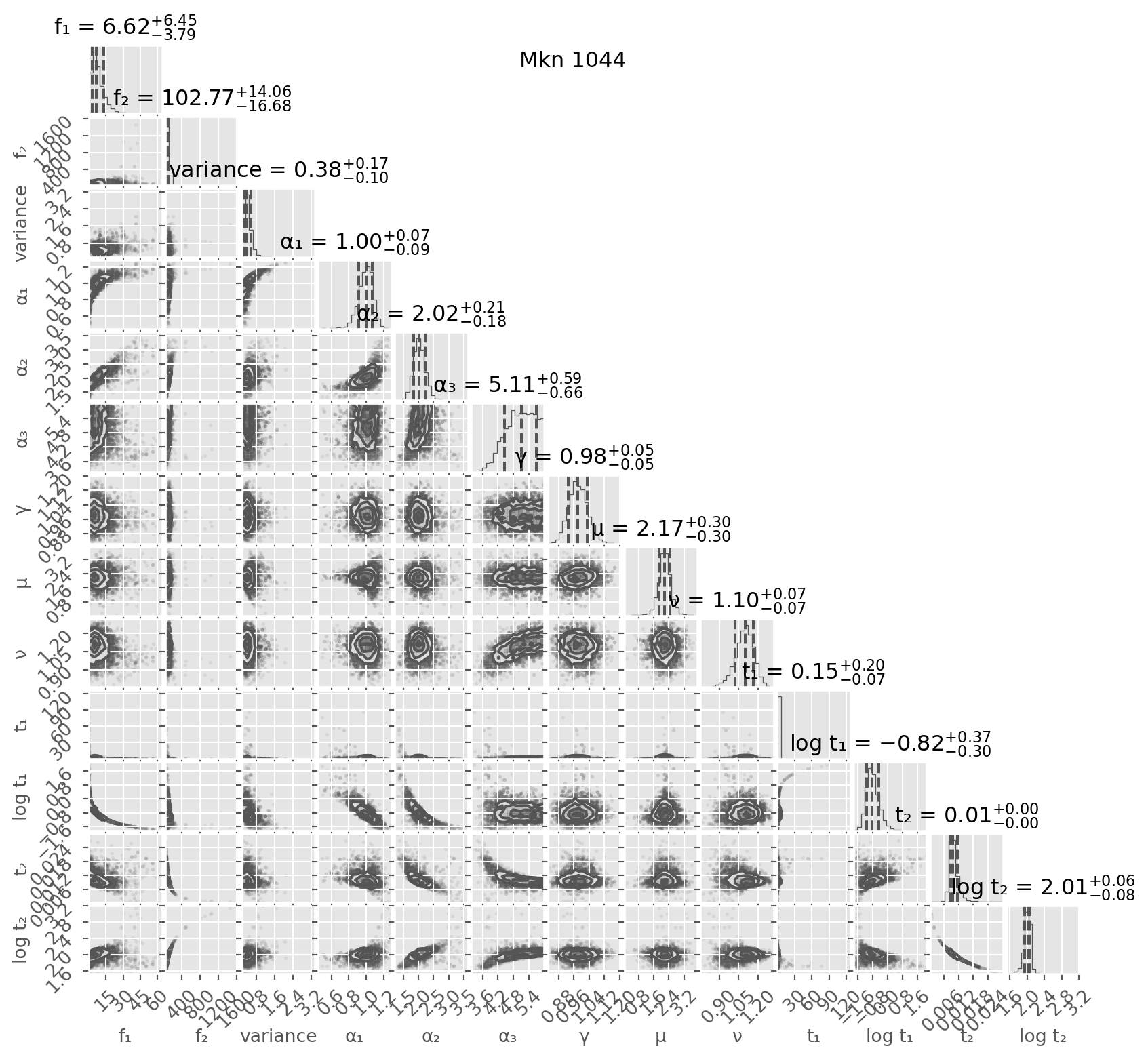

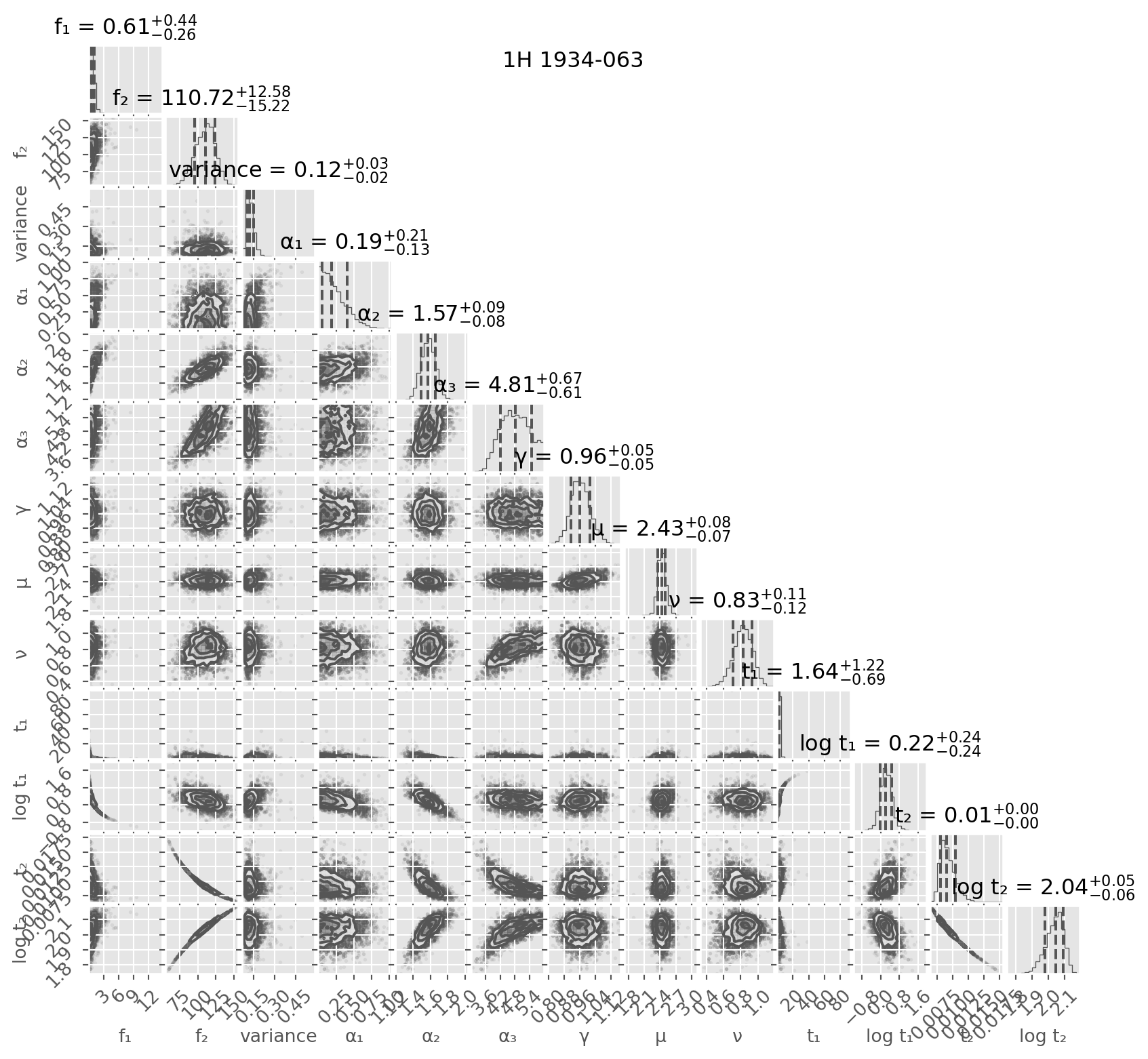

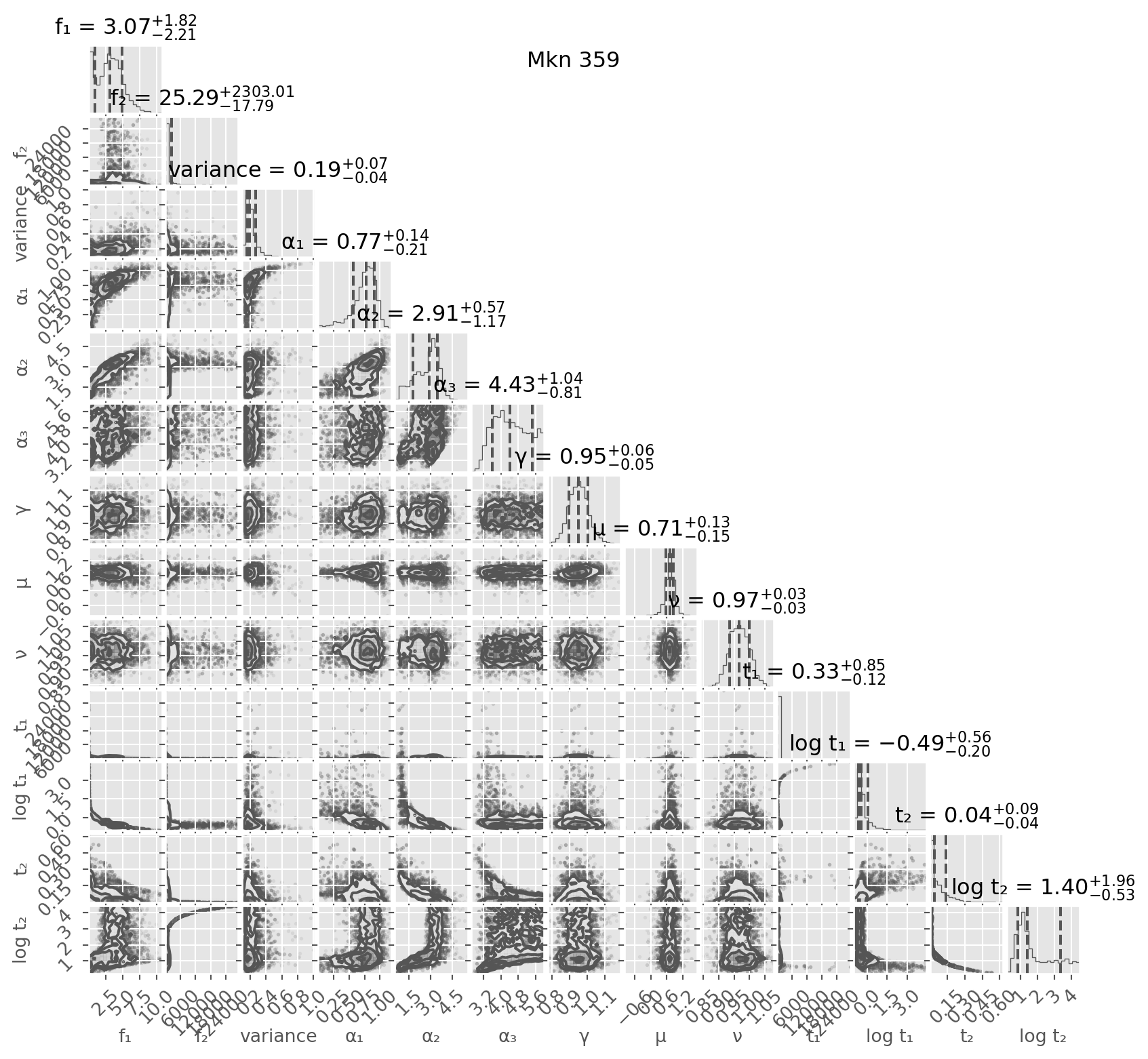

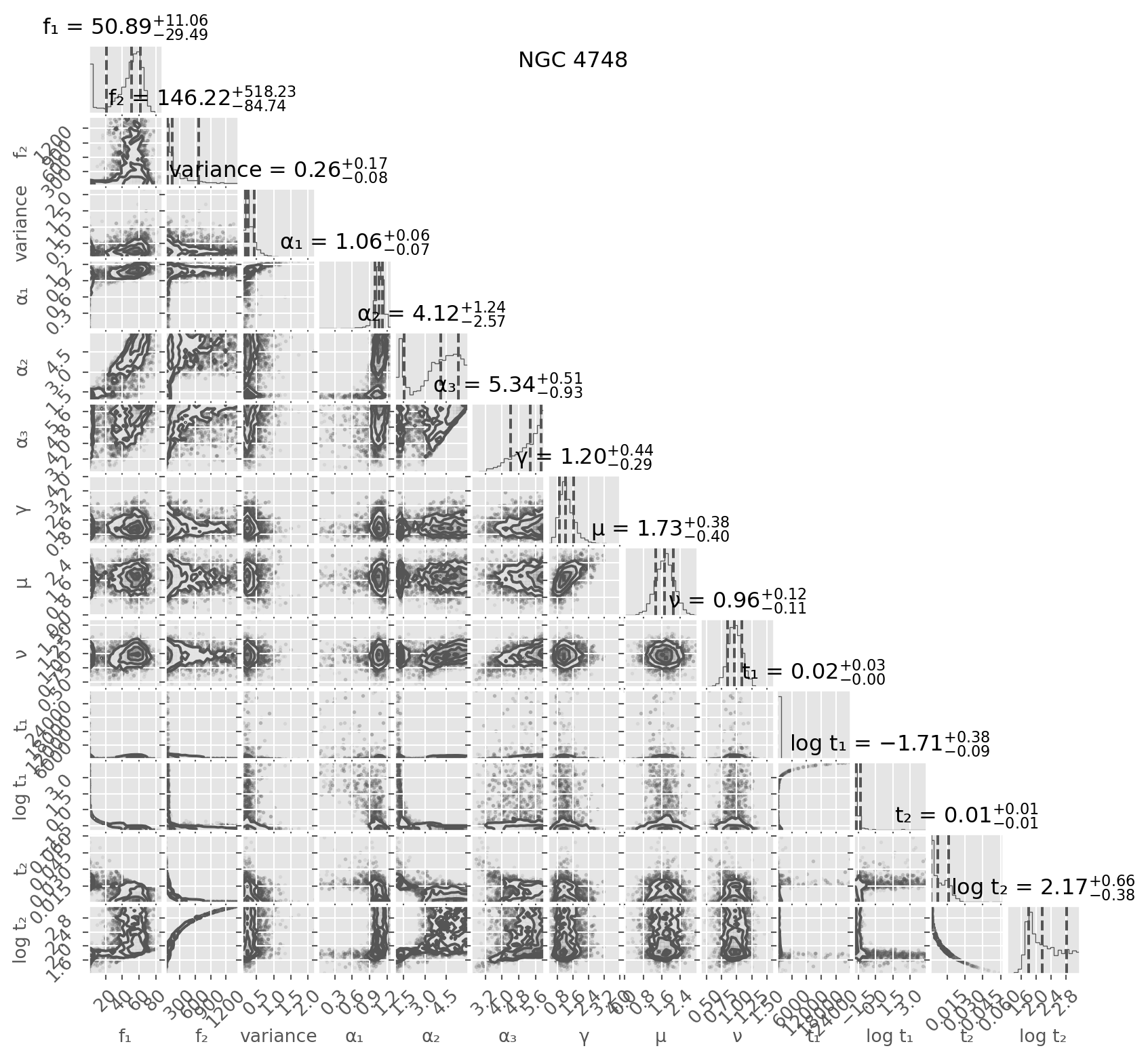

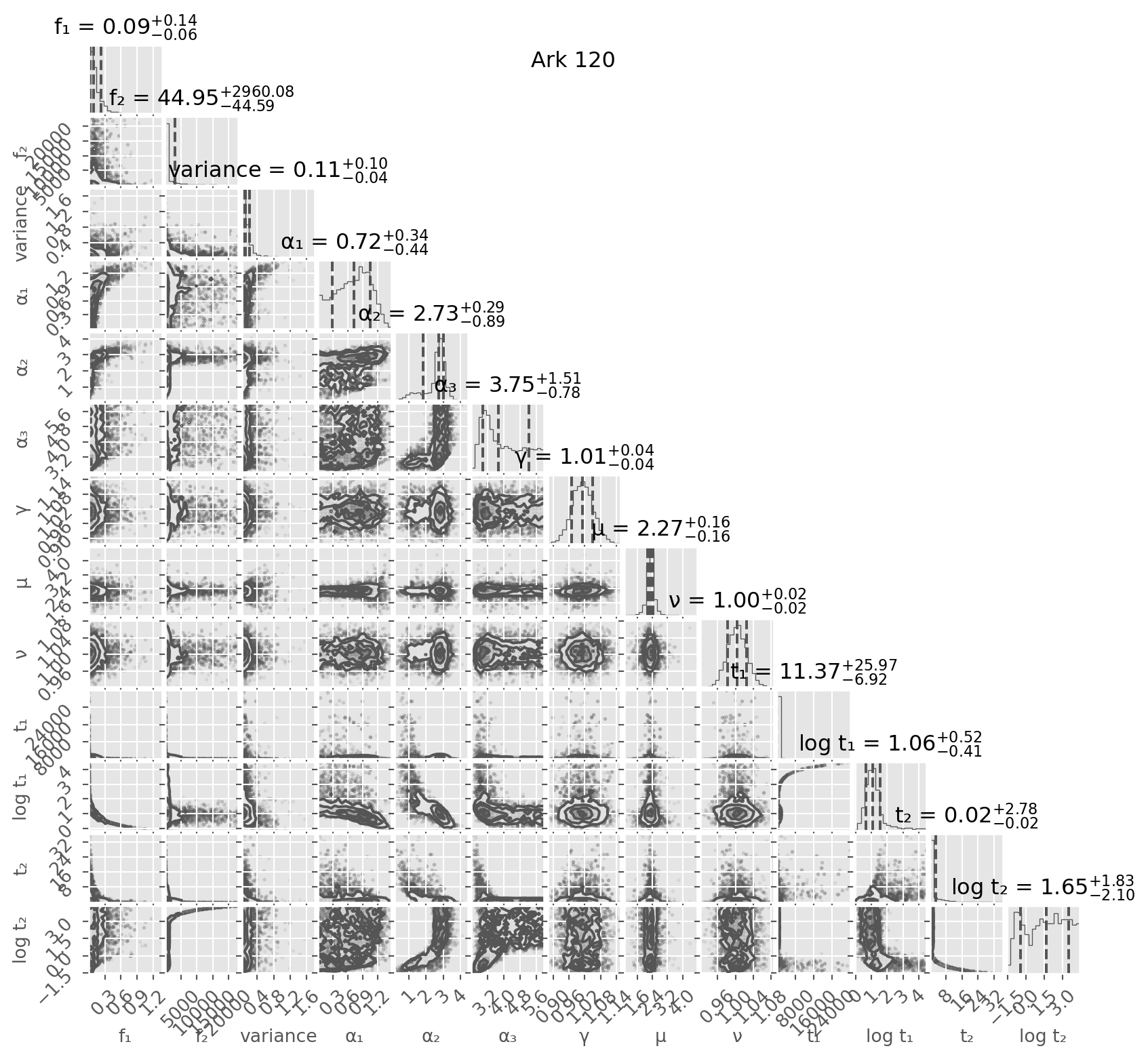

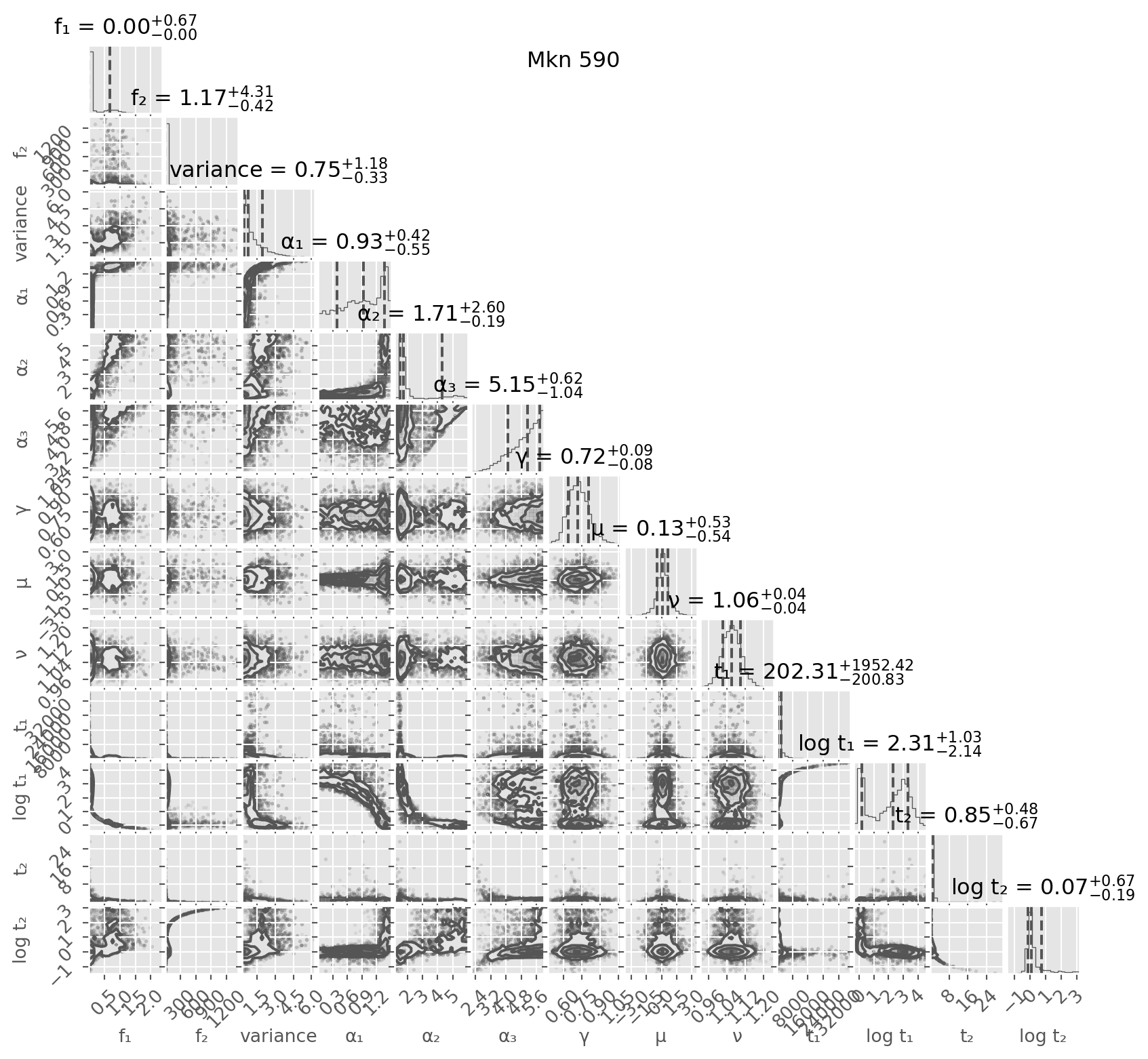

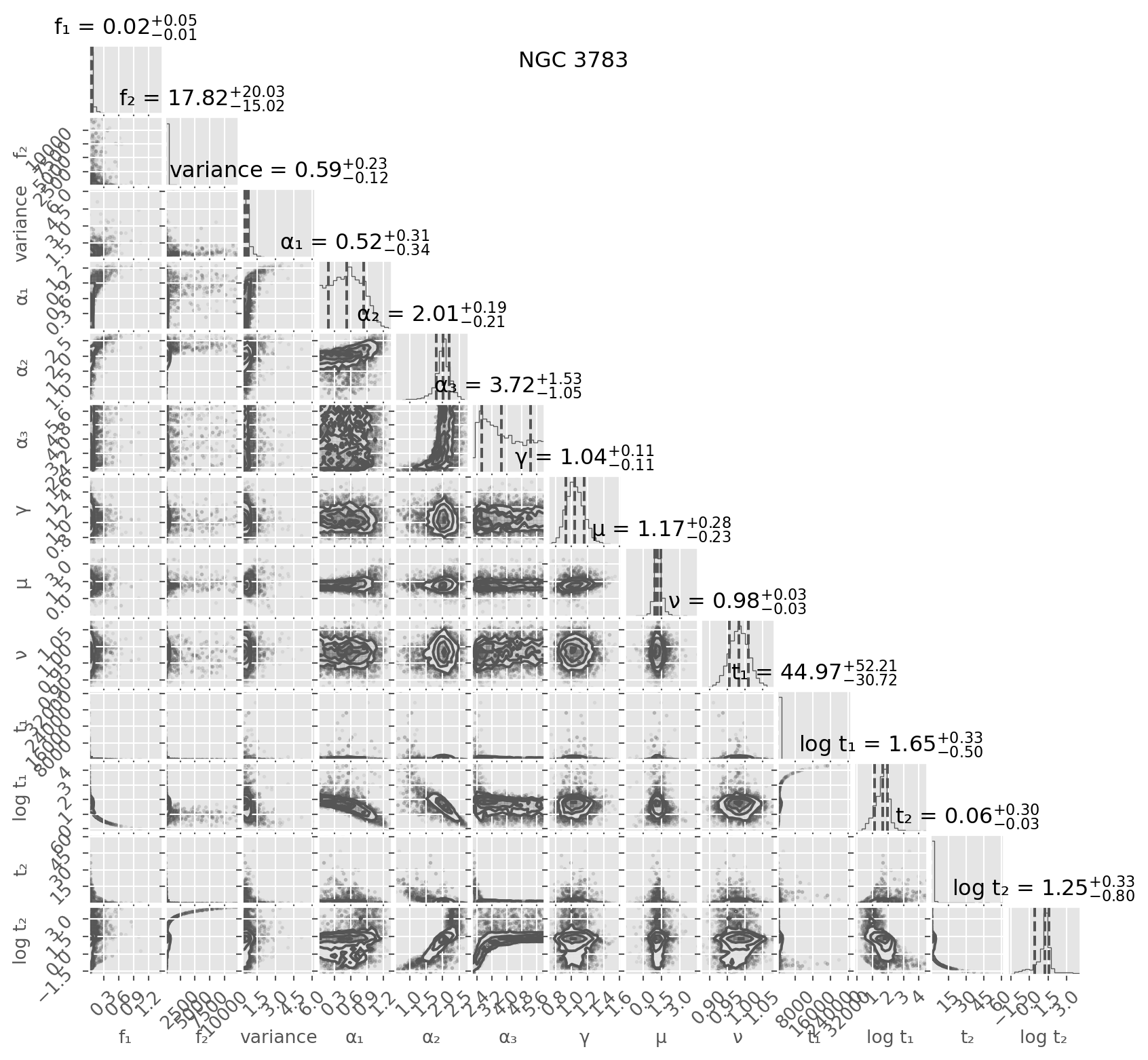

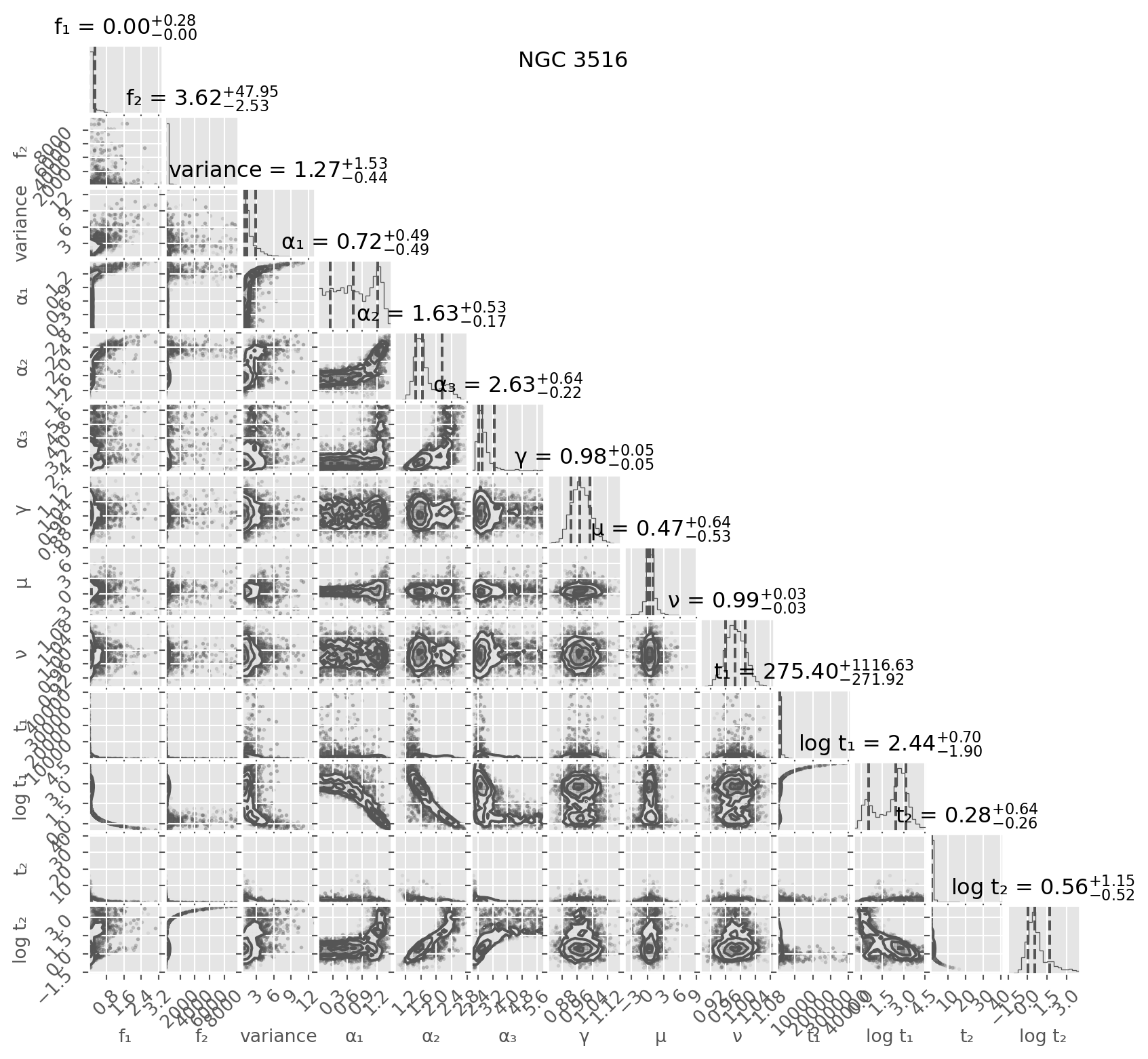

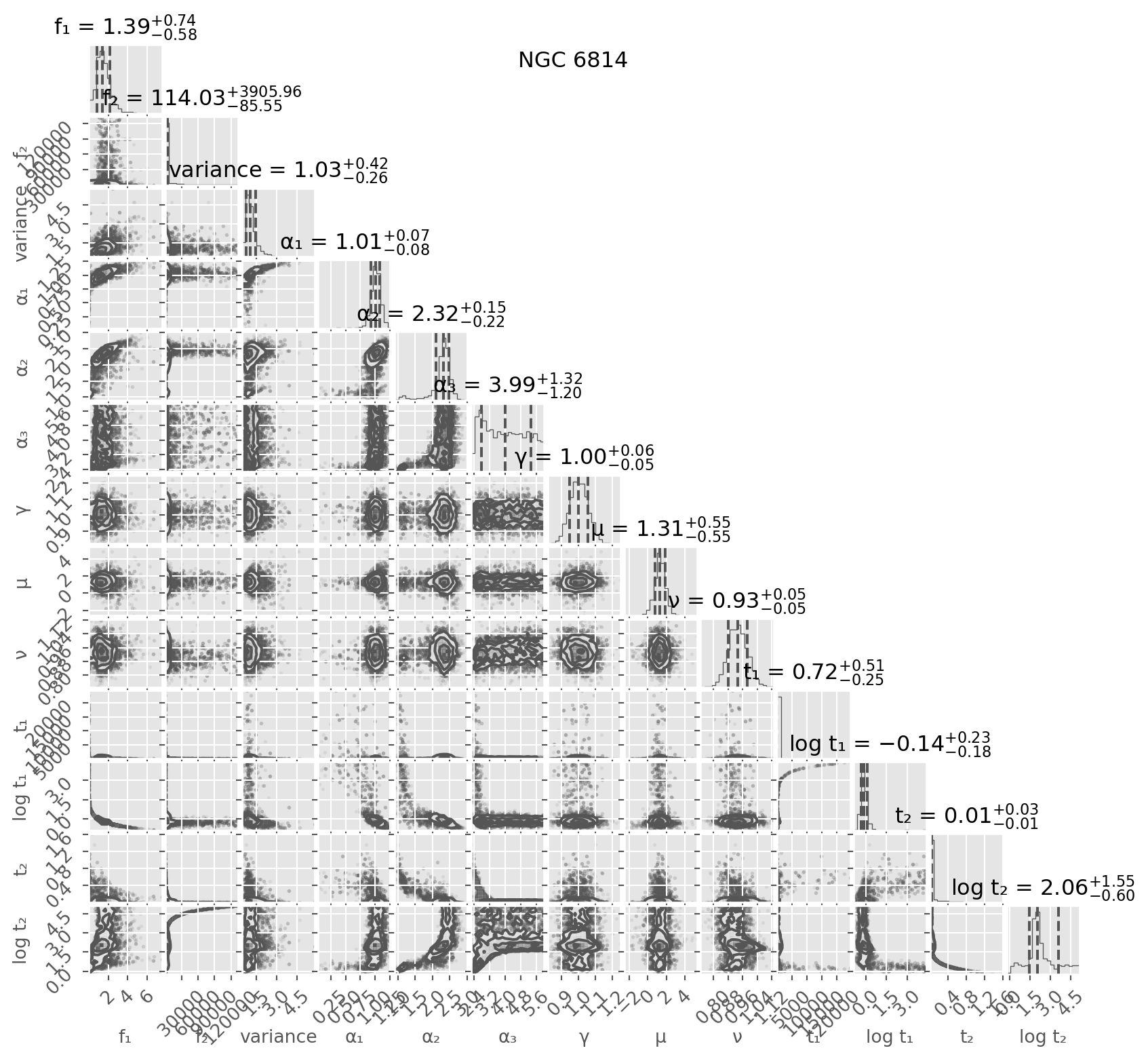

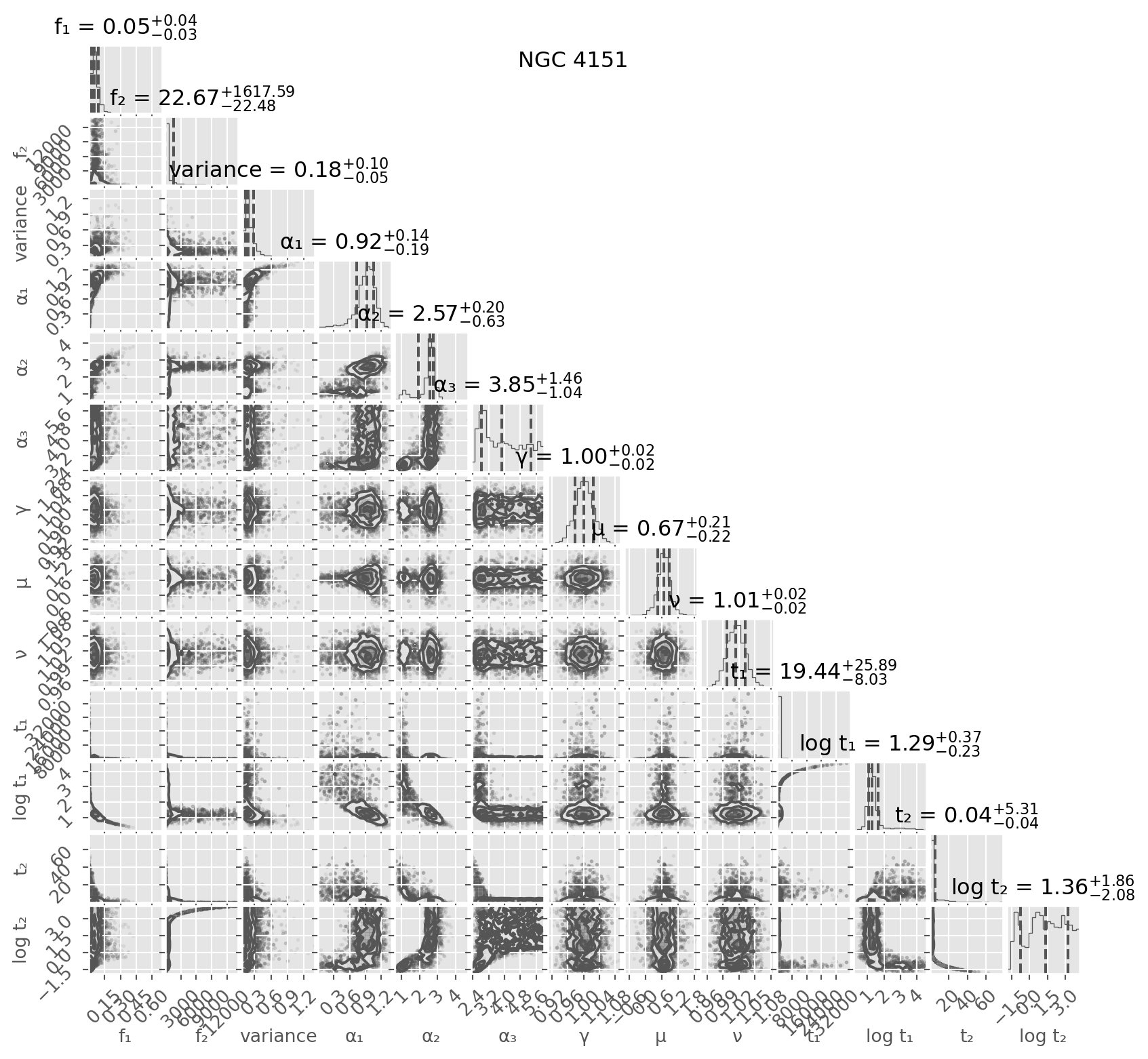

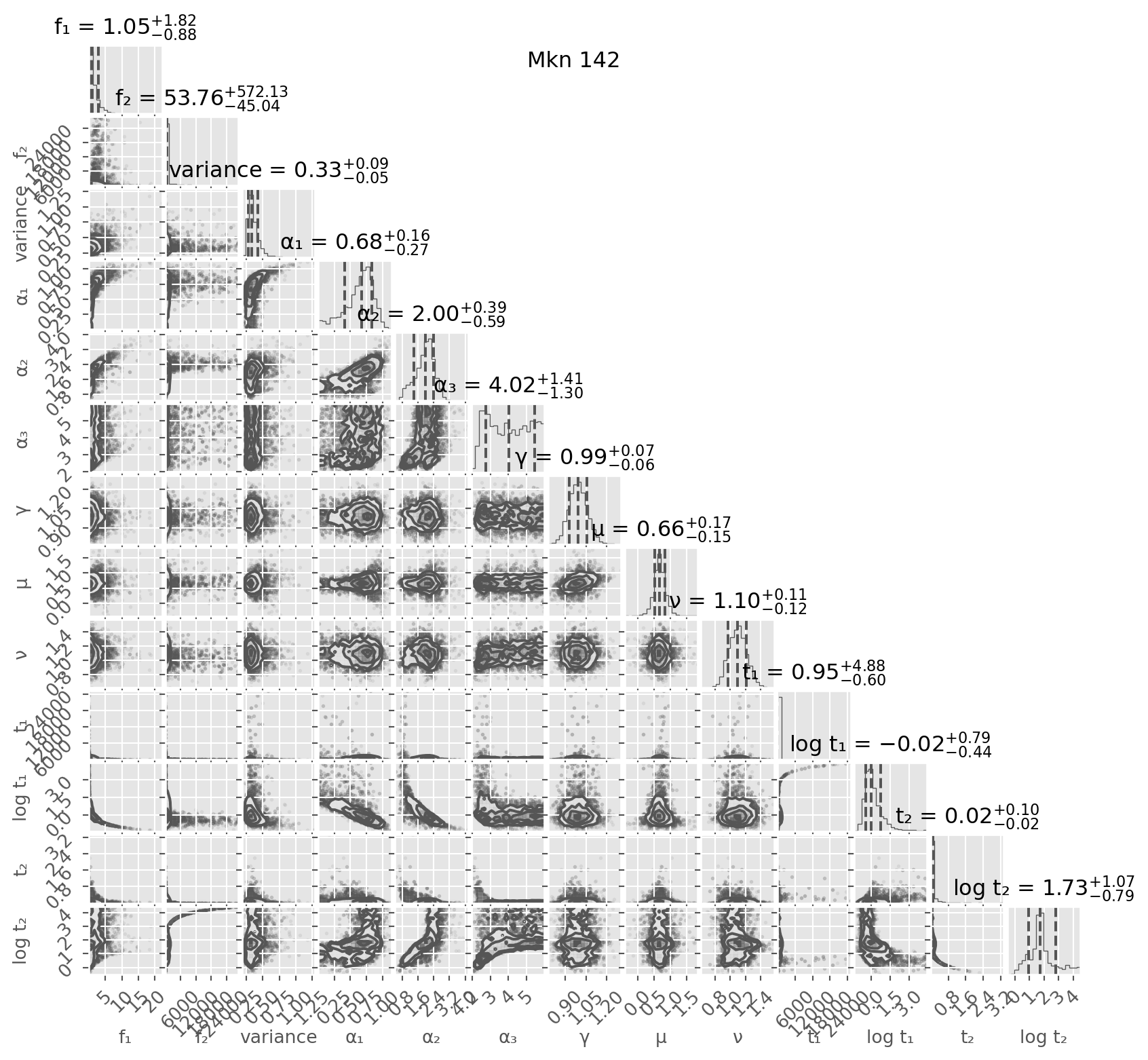

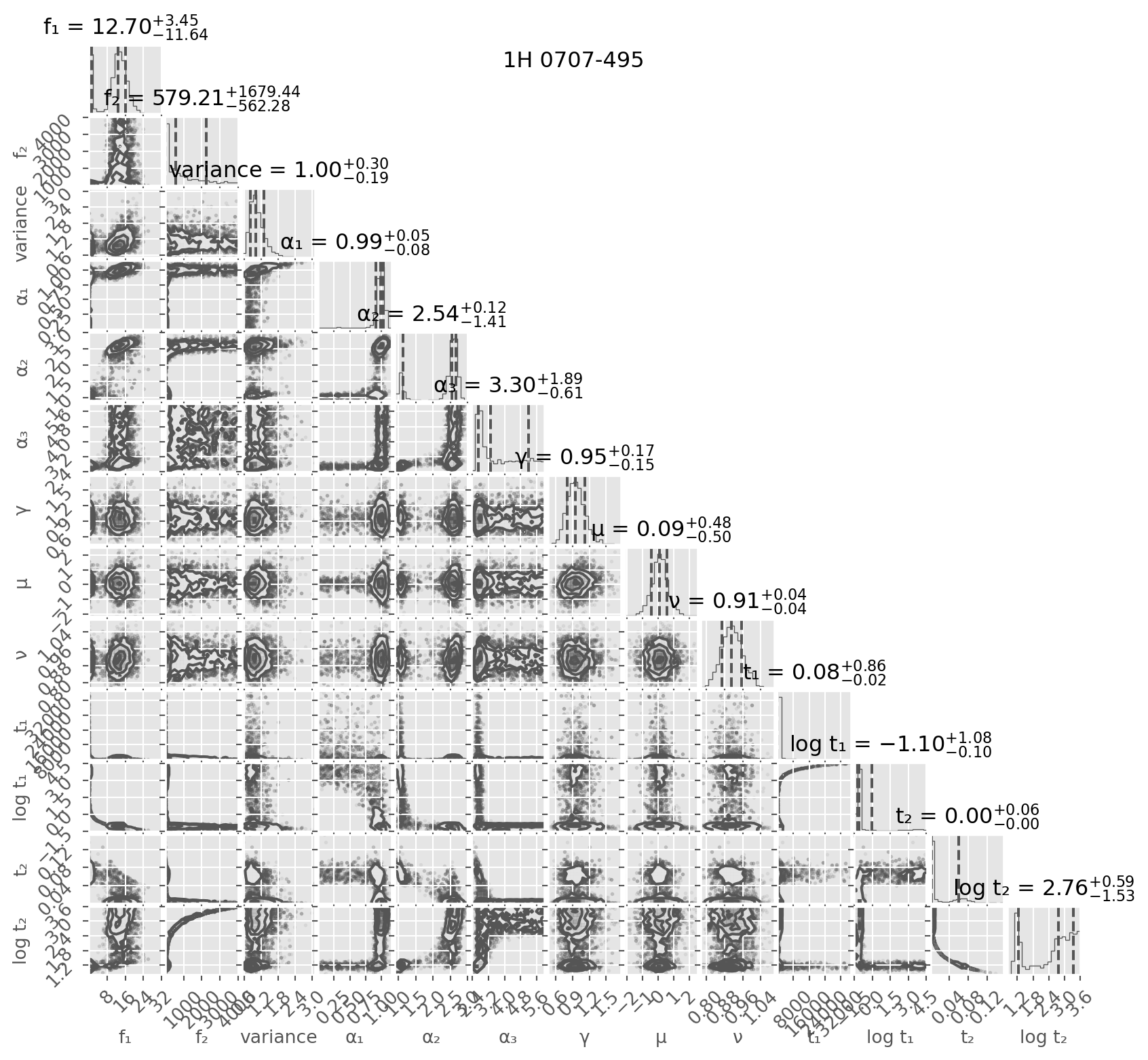

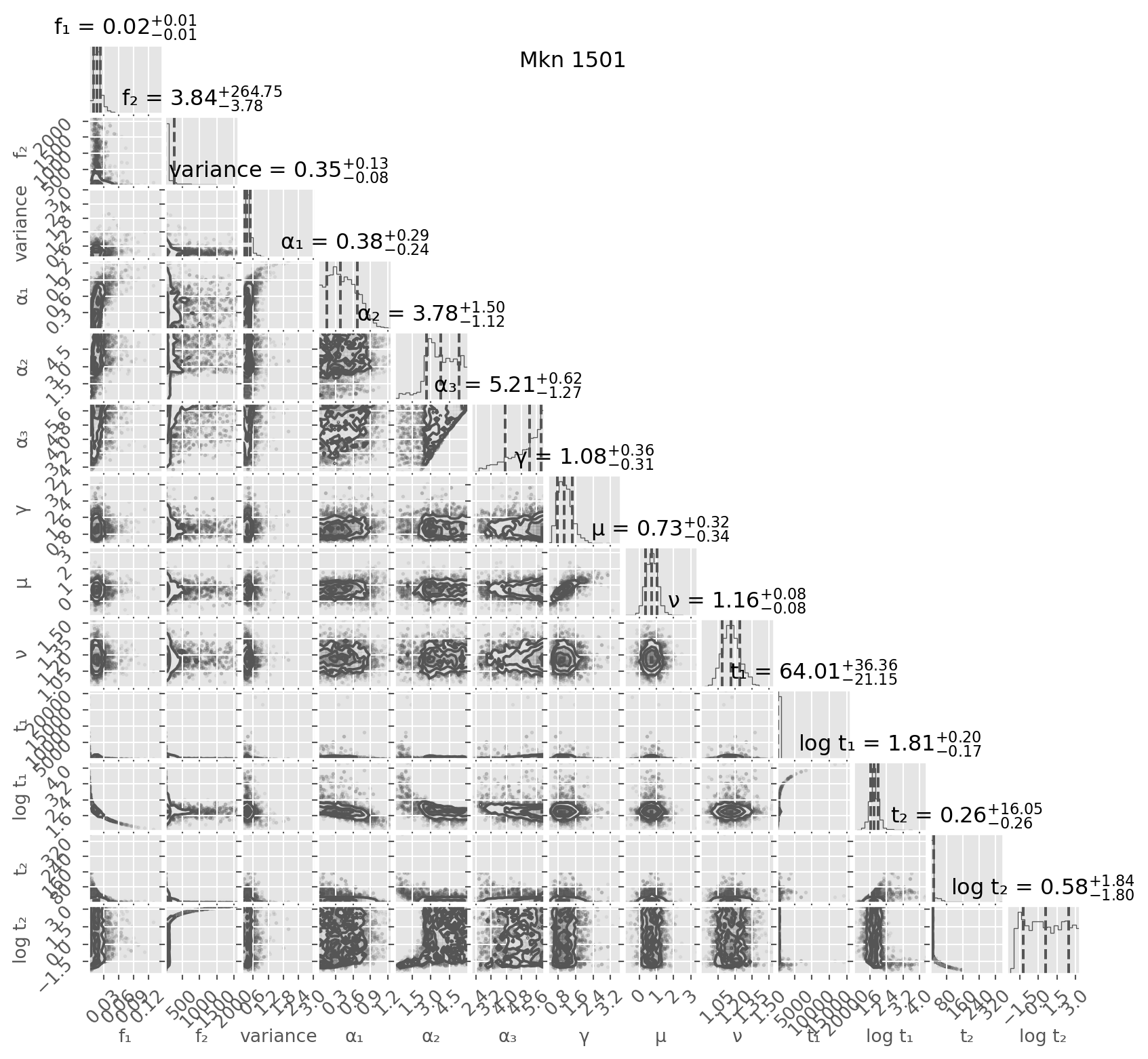

Double bending power-law

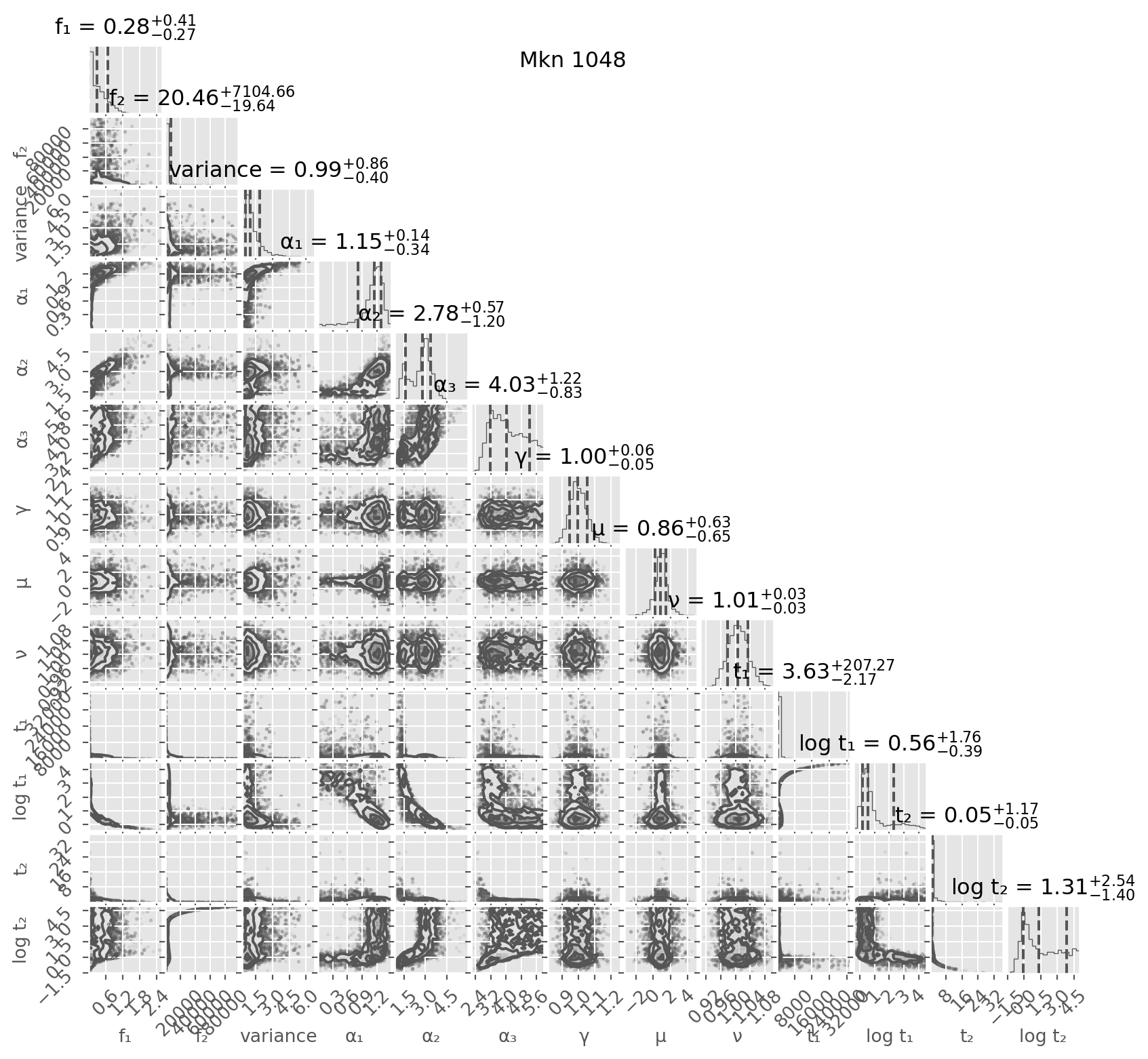

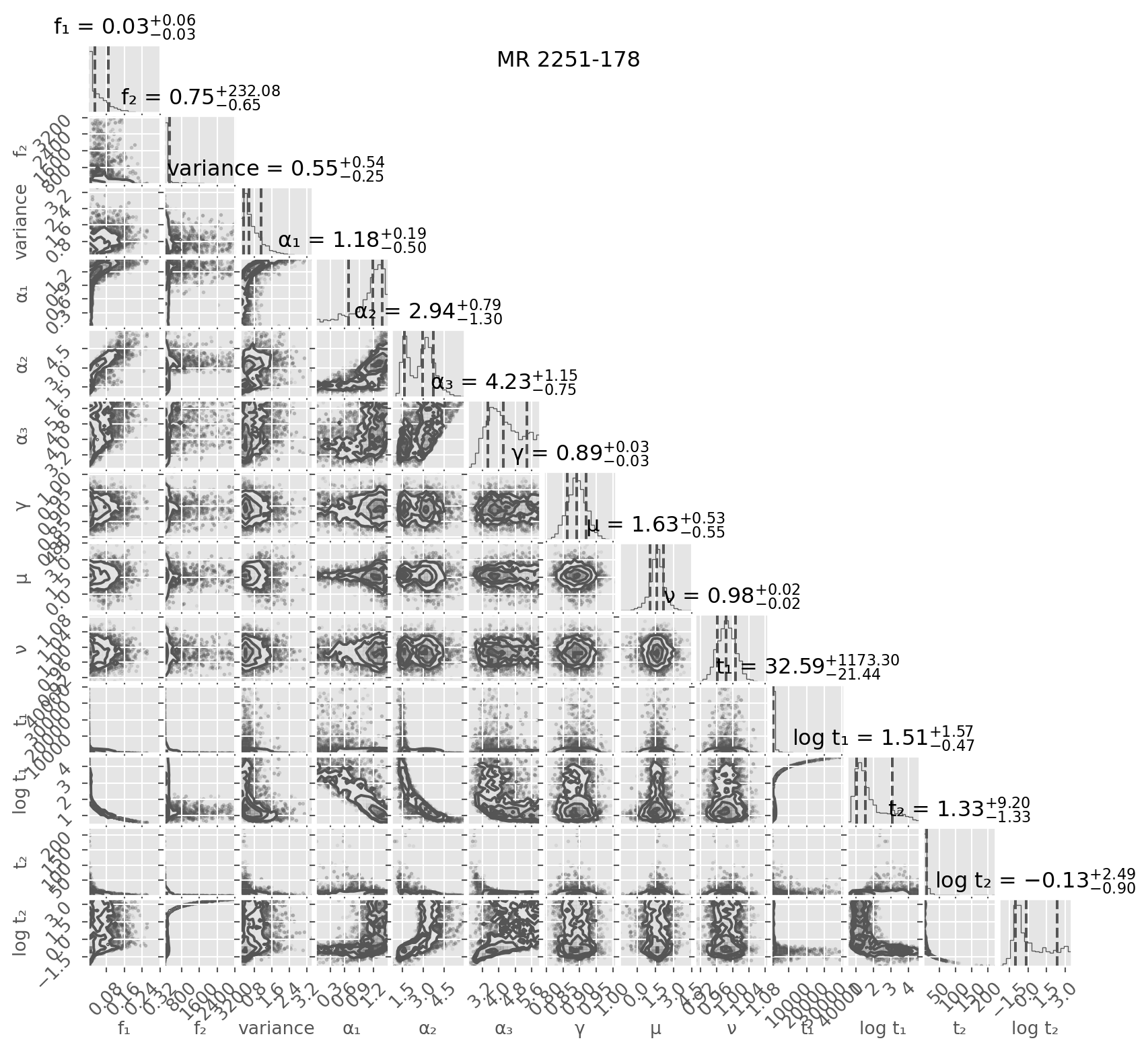

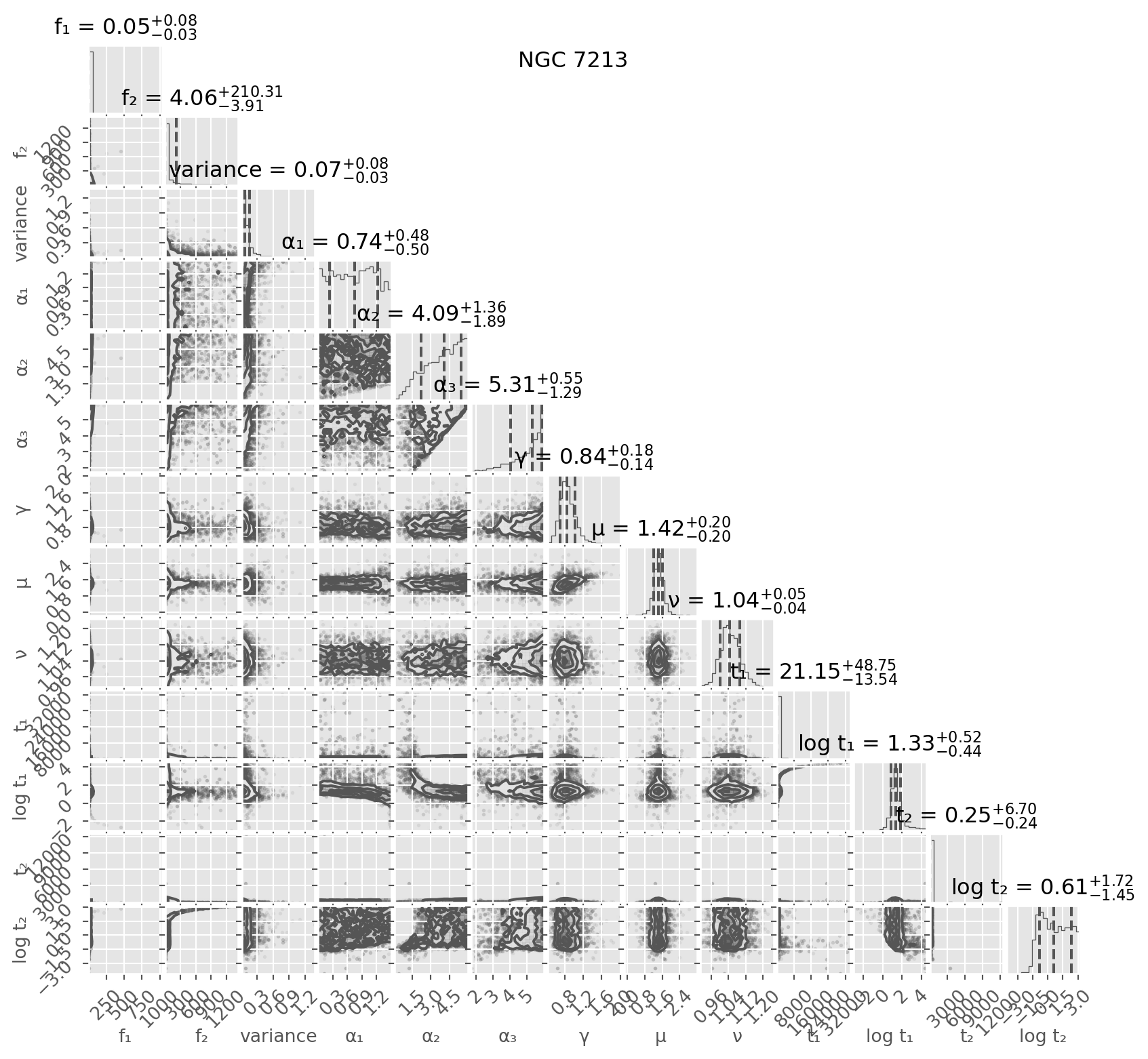

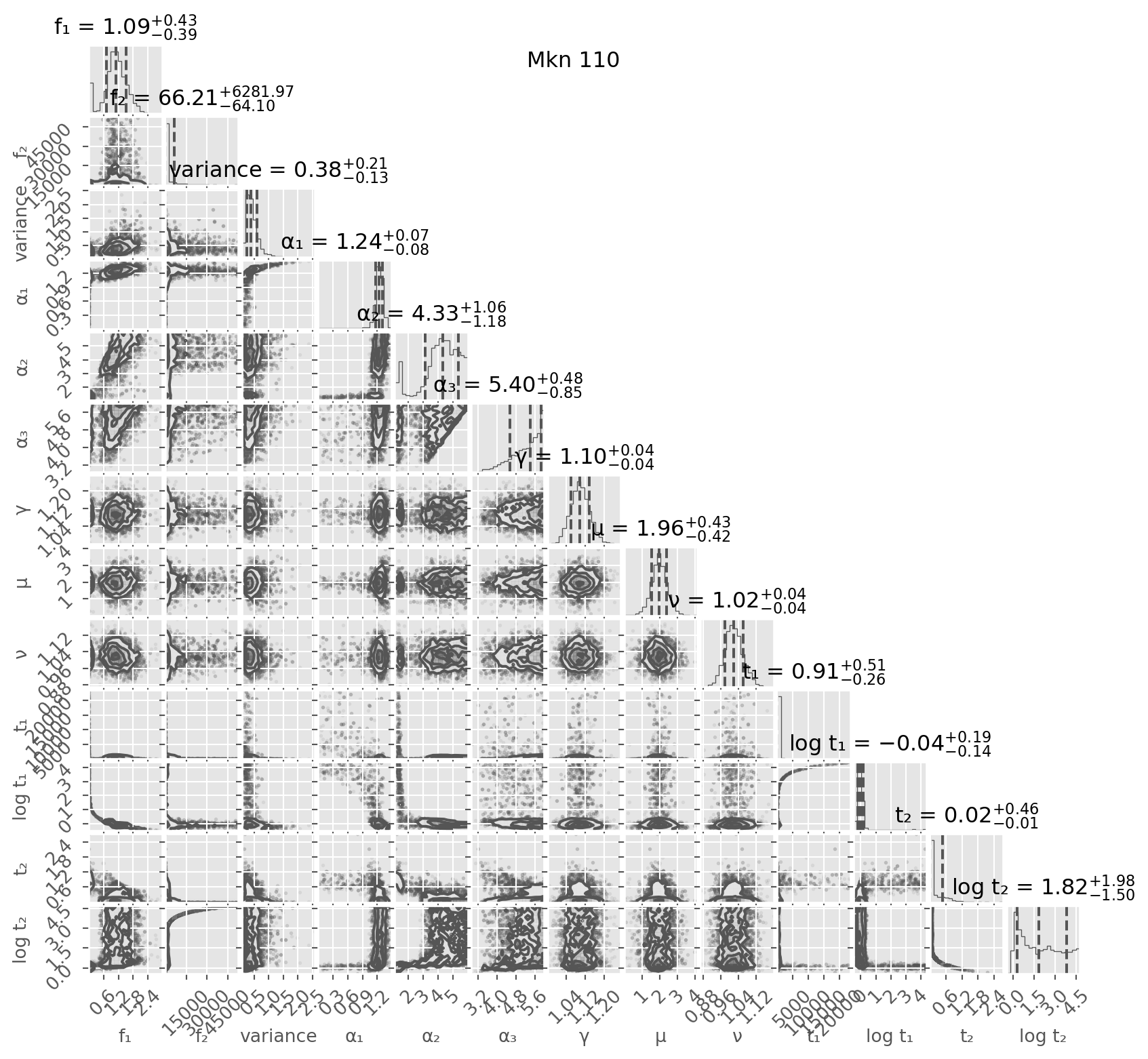

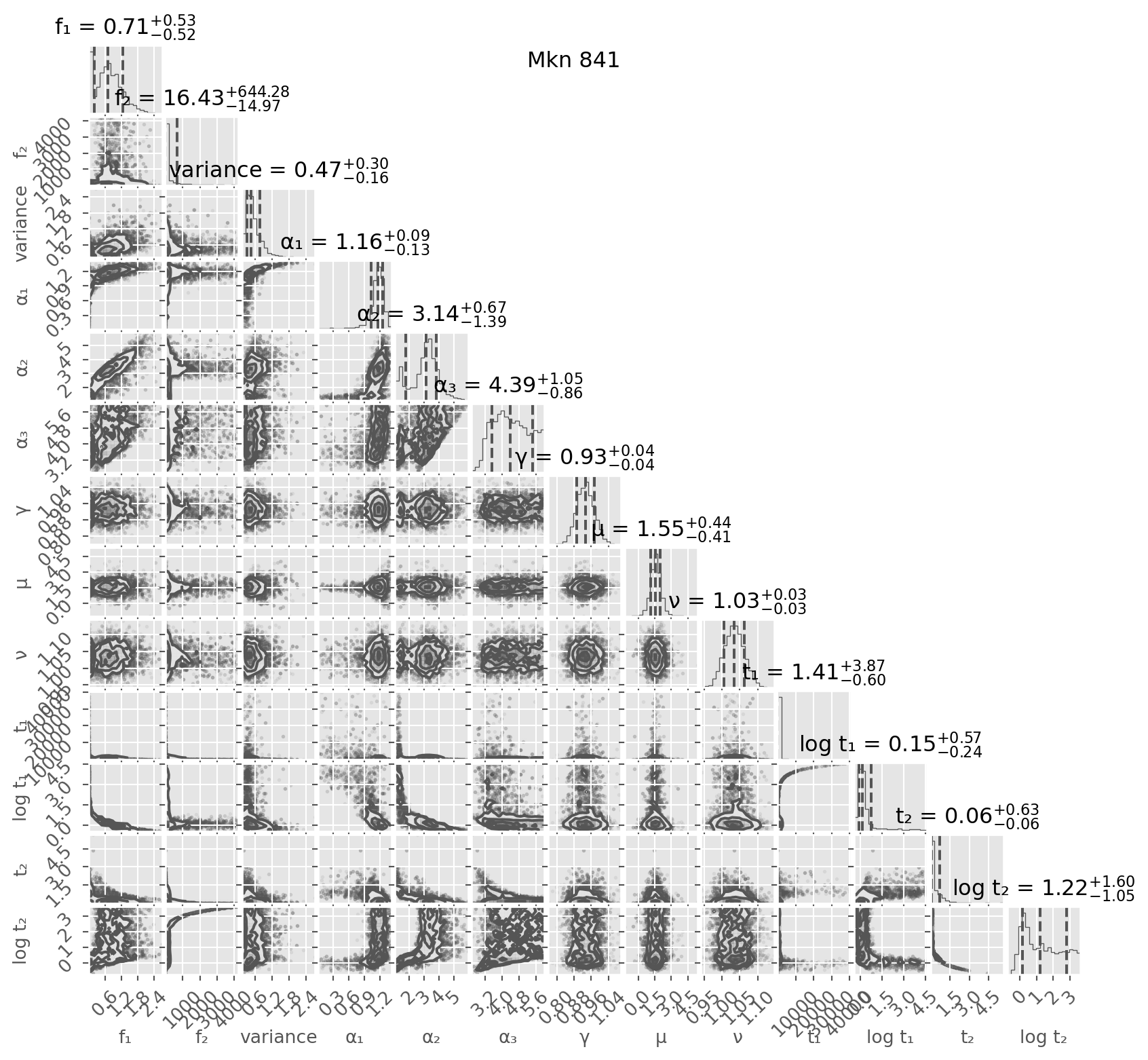

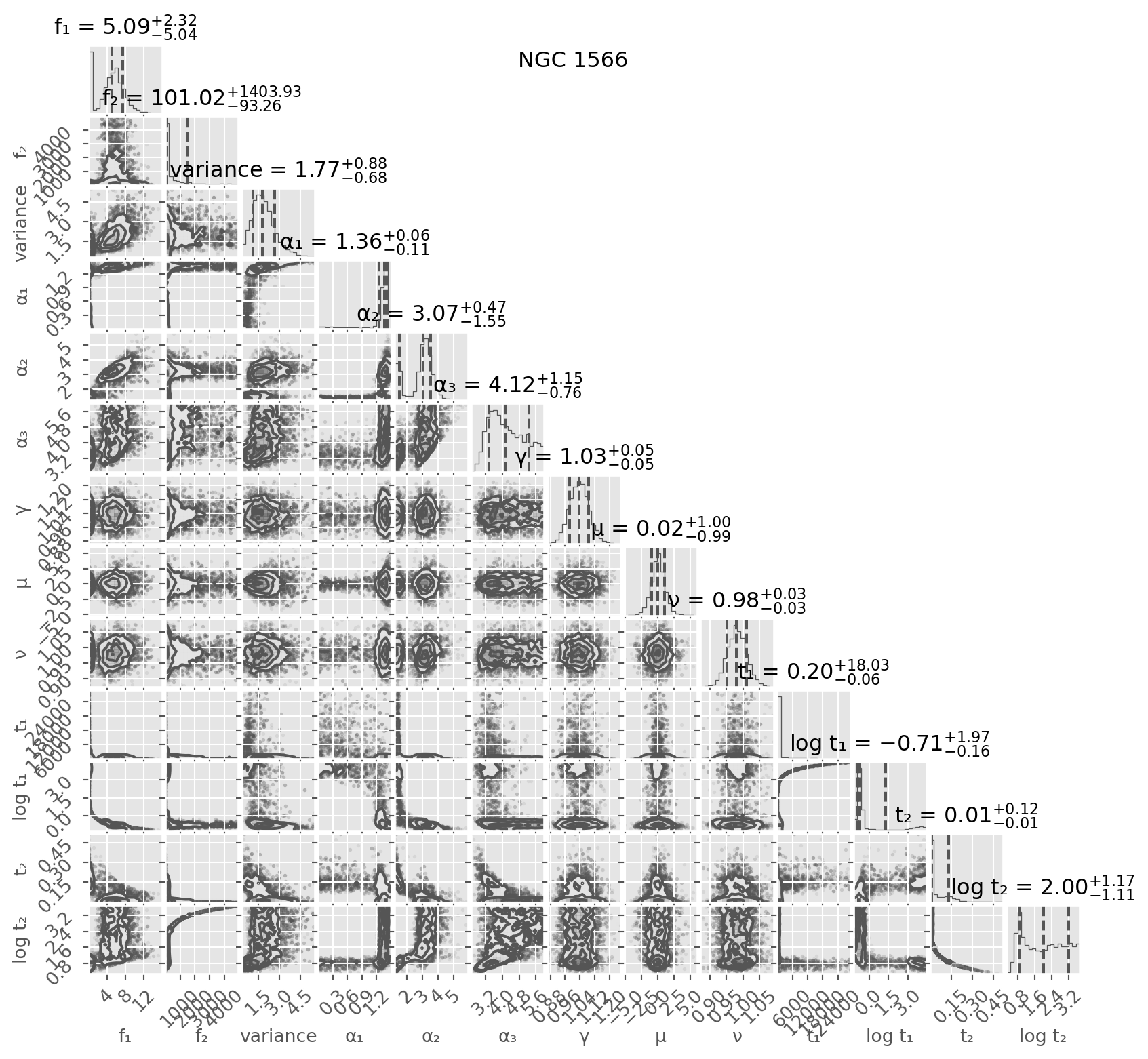

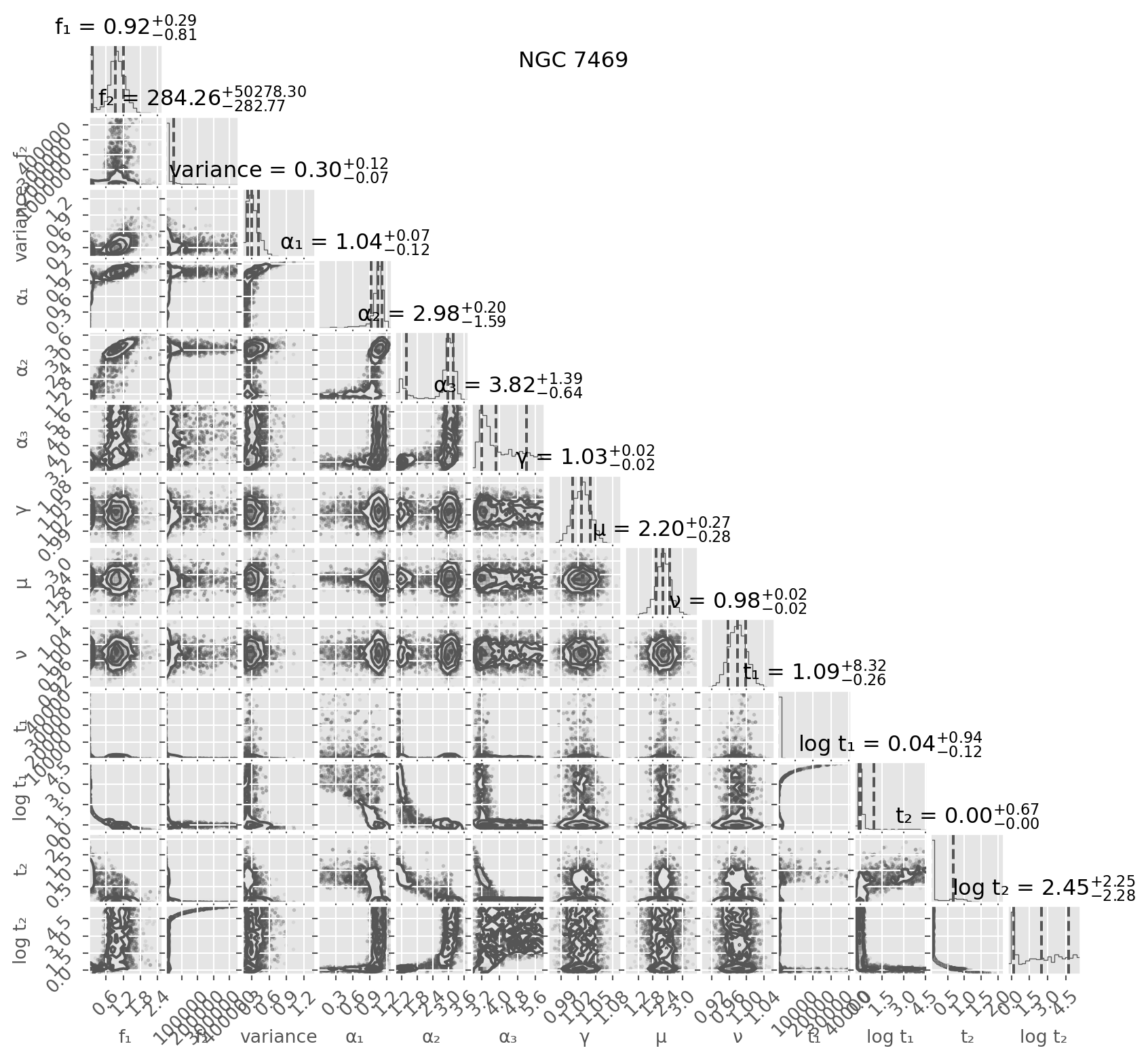

Code

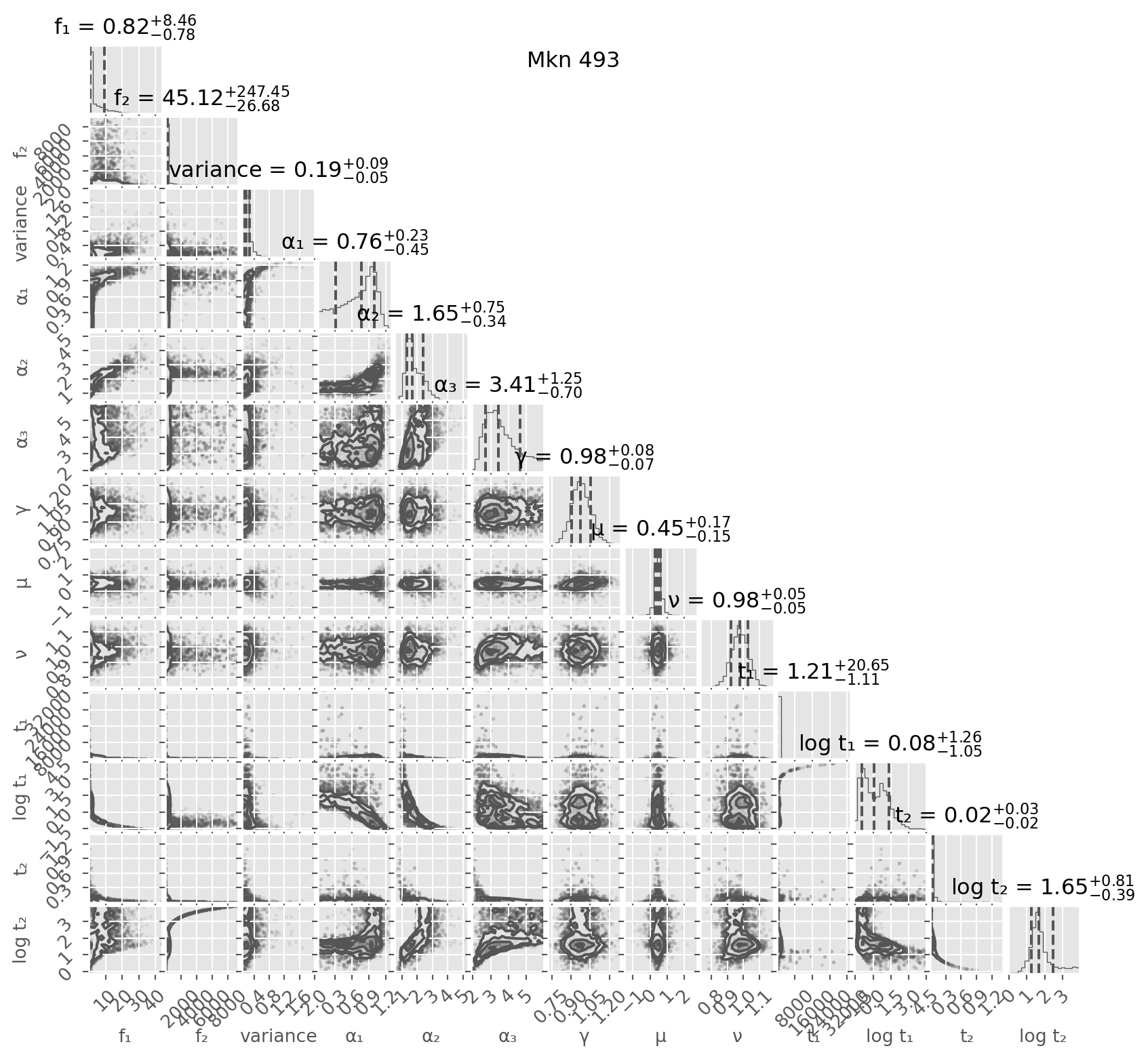

model = "double_steep"
short_model = "double"

double_dirs = [f"{path}/{source}_combined_{band}_{short_model}_123_factor/chains/equal_weighted_post.txt" for source in dir_list]
names_double = json.load(open(f"{path}/{dir_list[0]}_combined_{band}_{short_model}_123_factor/info/results.json"))["paramnames"]

inference_data_double = {}

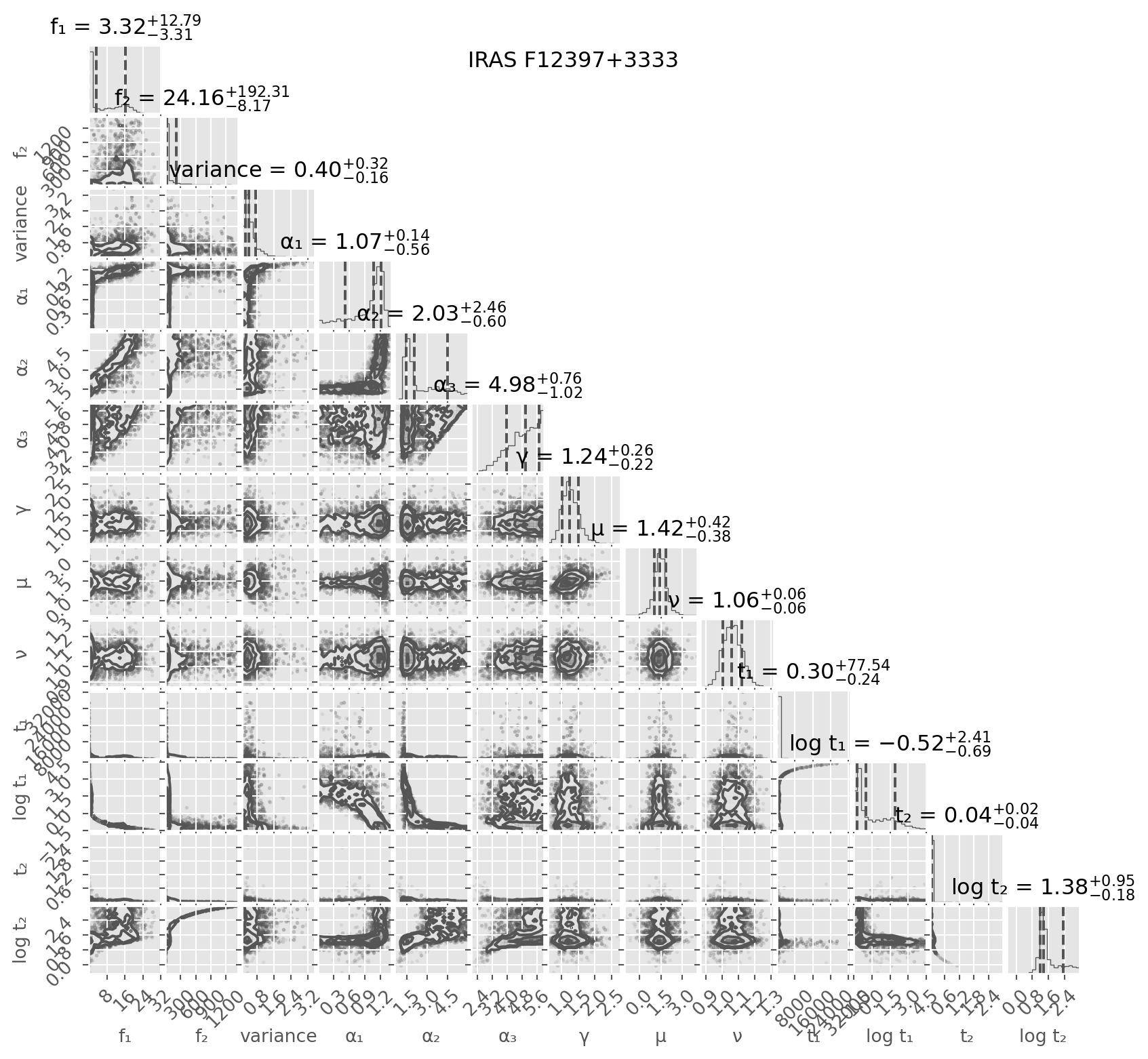

for i,dir in enumerate(double_dirs):
    source = dir_list[i]
    if os.path.exists(dir):

        data = az.convert_to_inference_data(dict(zip(names_double,np.genfromtxt(dir,skip_header=1).T)))
        data.posterior["t₁"] = 1/data.posterior["f₁"]
        data.posterior["log t₁"] = np.log10(data.posterior["t₁"])
        data.posterior["t₂"] = 1/data.posterior["f₂"]
        data.posterior["log t₂"] = np.log10(data.posterior["f₂"])

        inference_data_double[source] = data

        #chain = Chain.from_arviz(inference_data_double[source], dirname2prettyname(source), color="sky")
        #fig = ChainConsumer().add_chain(chain).plotter.plot()

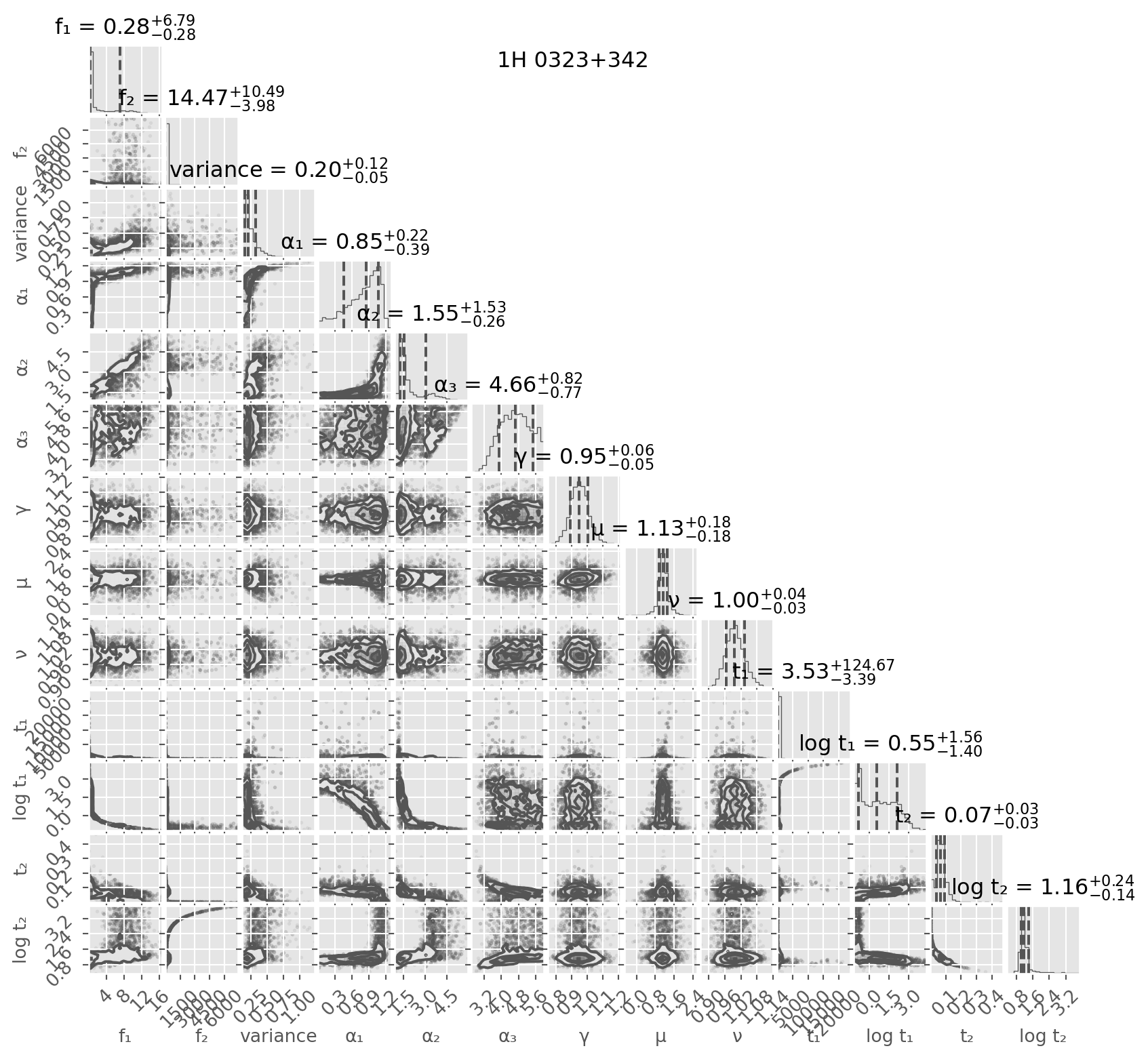

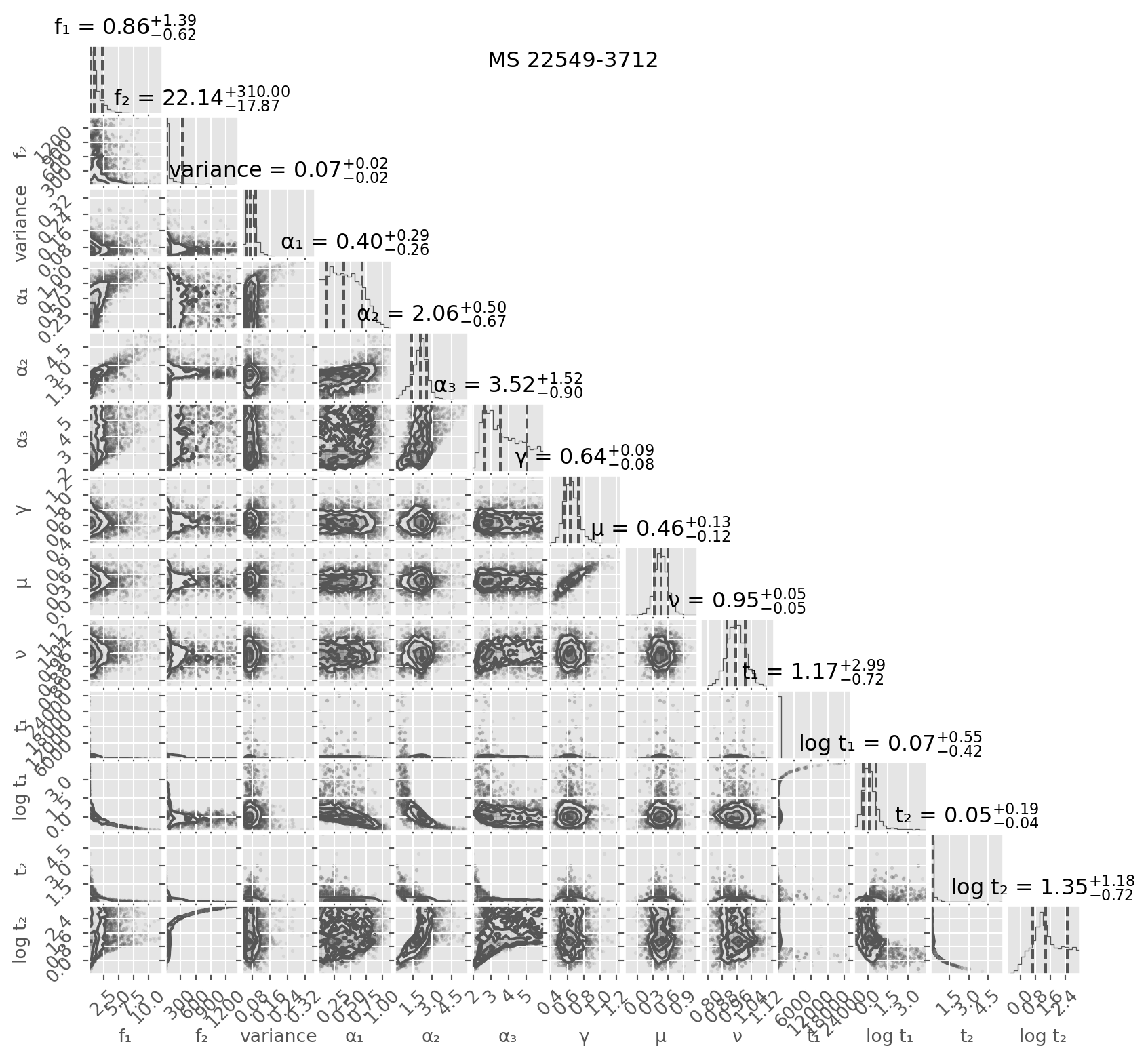

        with plt.style.context("ggplot"):
            fig = corner.corner(inference_data_double[source],    quantiles=[0.16, 0.5, 0.84], show_titles=True, title_kwargs={"fontsize": 12},label_kwargs={"fontsize": 10},labelpad=0.5,quiet=True)
            fig.set_size_inches(8., 7.5)
            #fig.tight_layout()
            fig.suptitle(f"{dirname2prettyname(source)}")

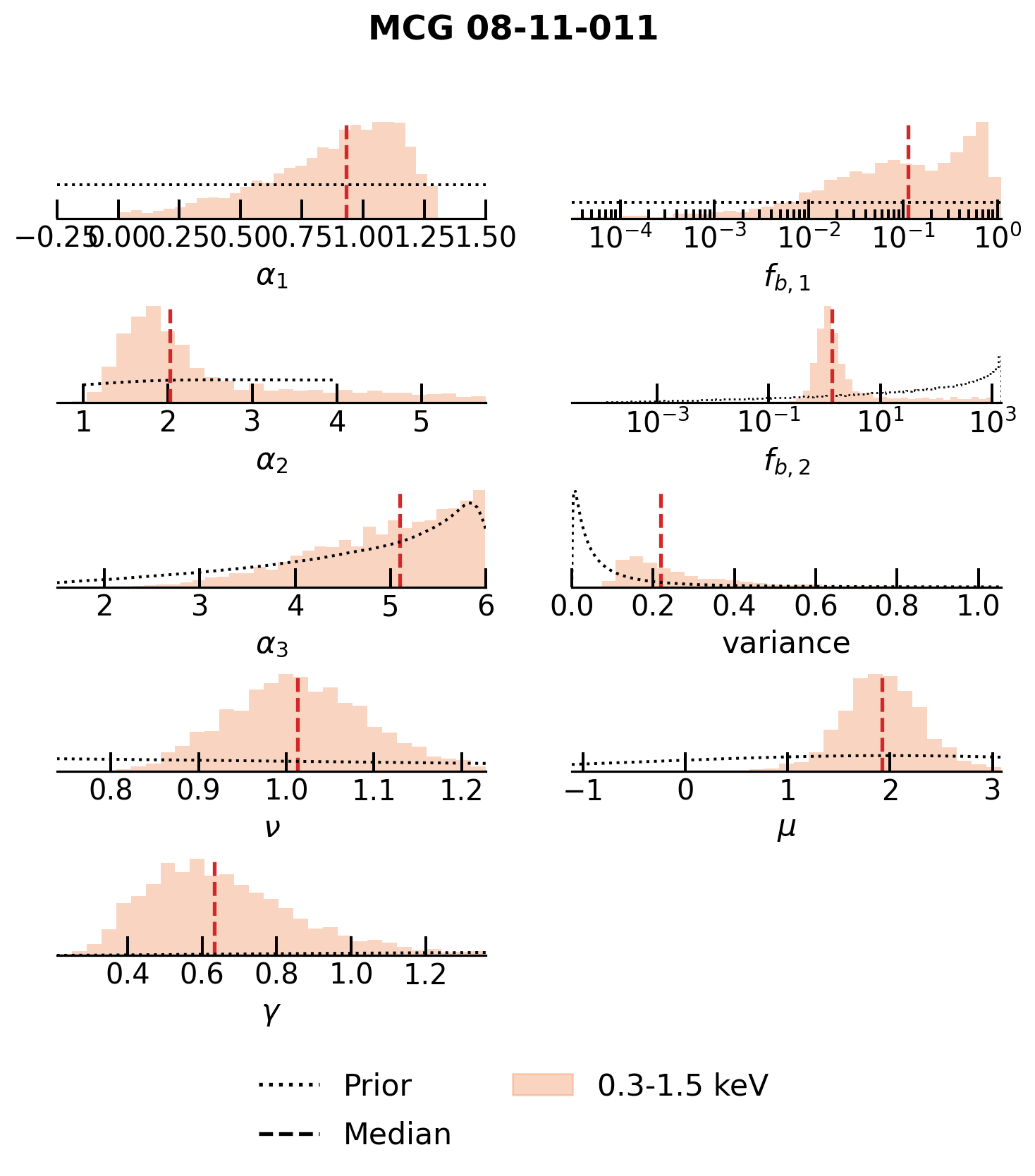

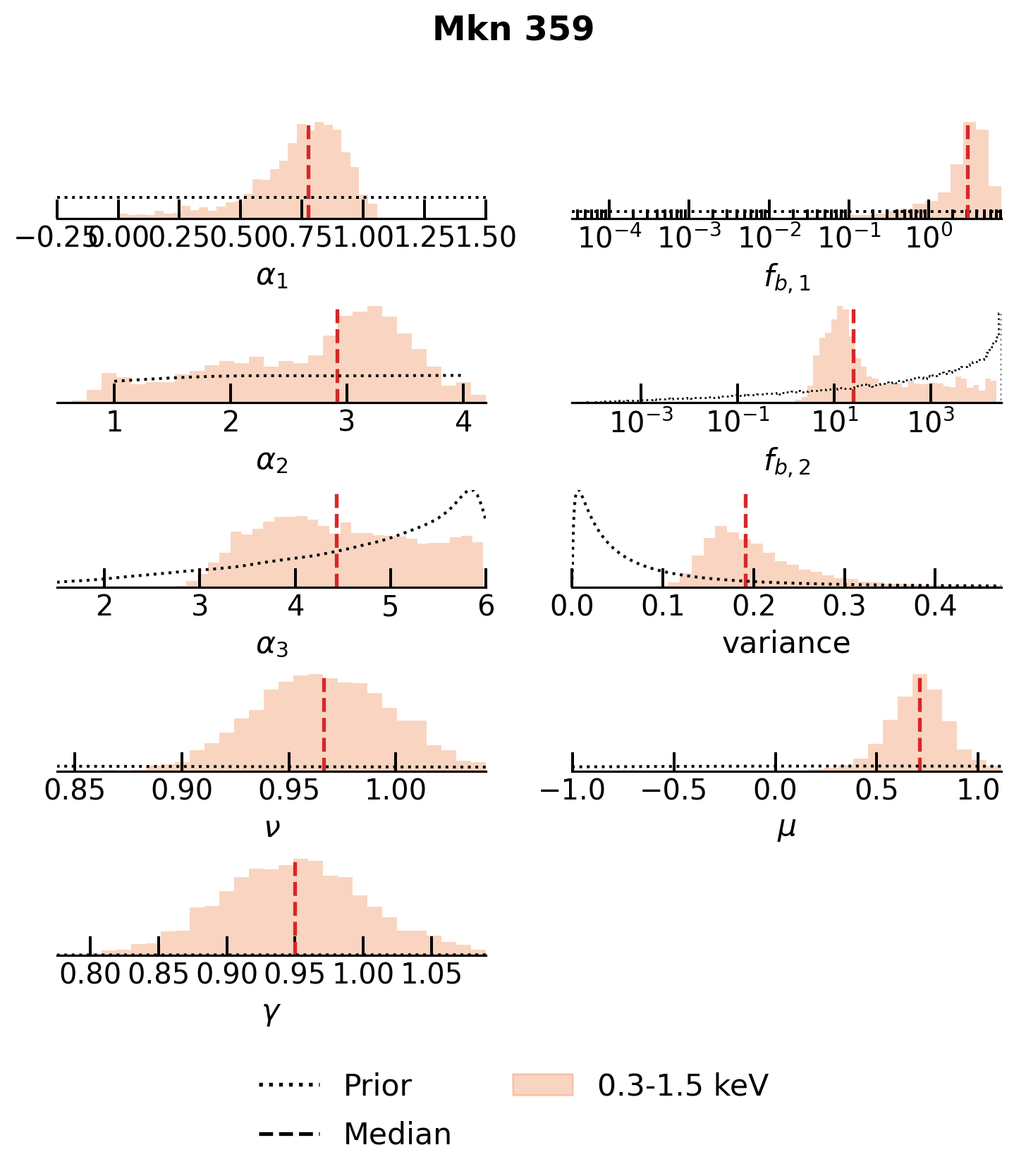

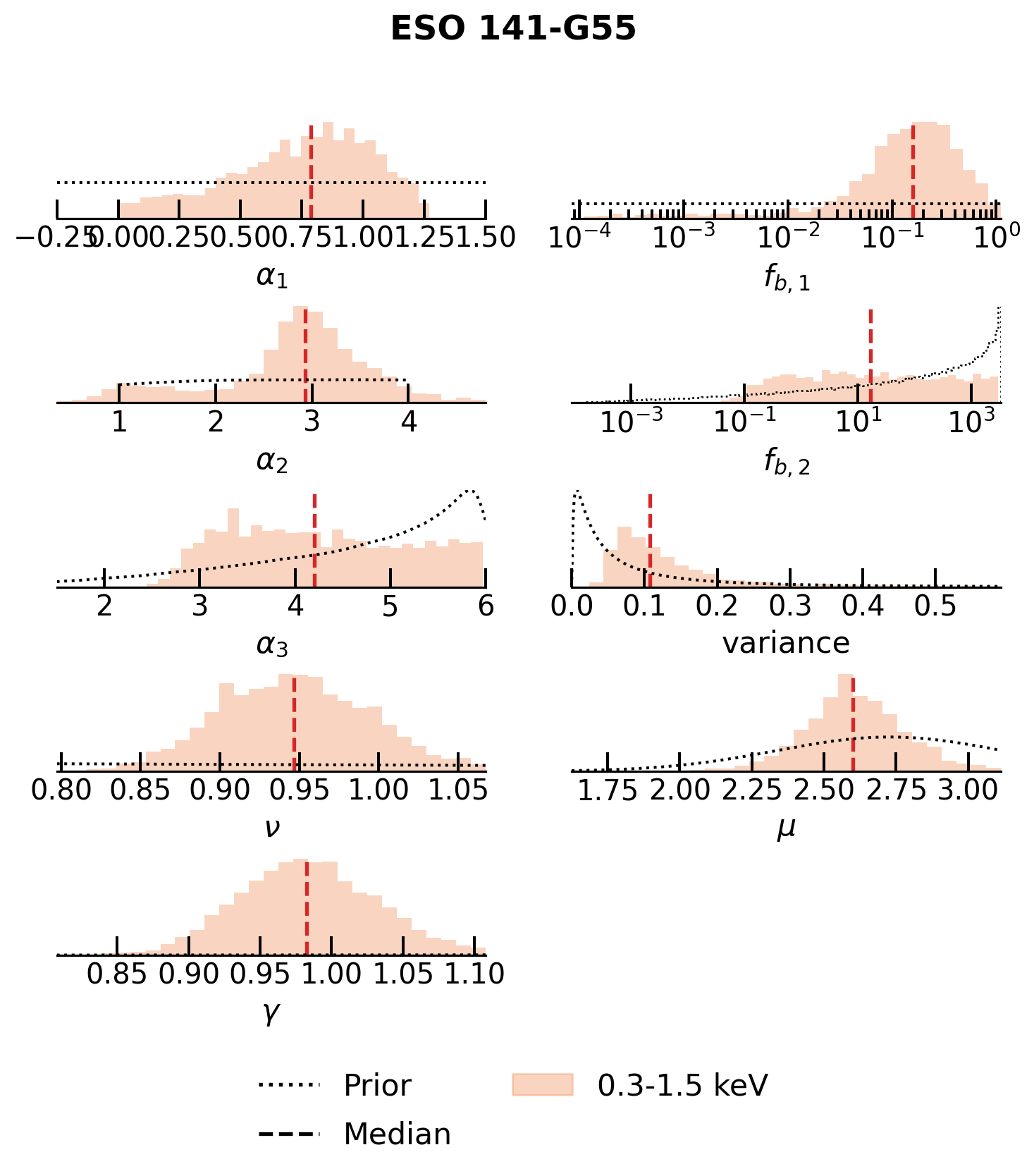

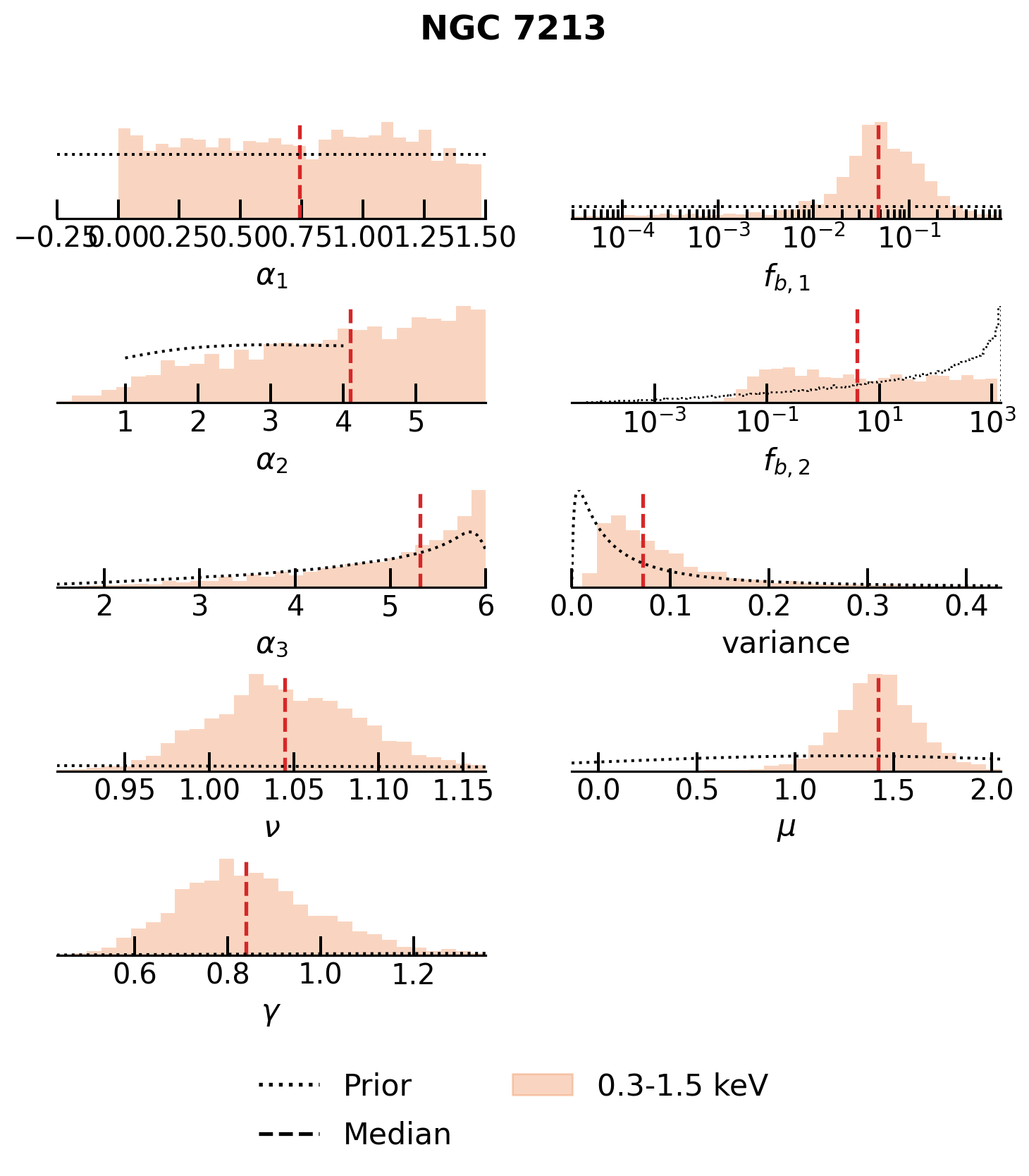

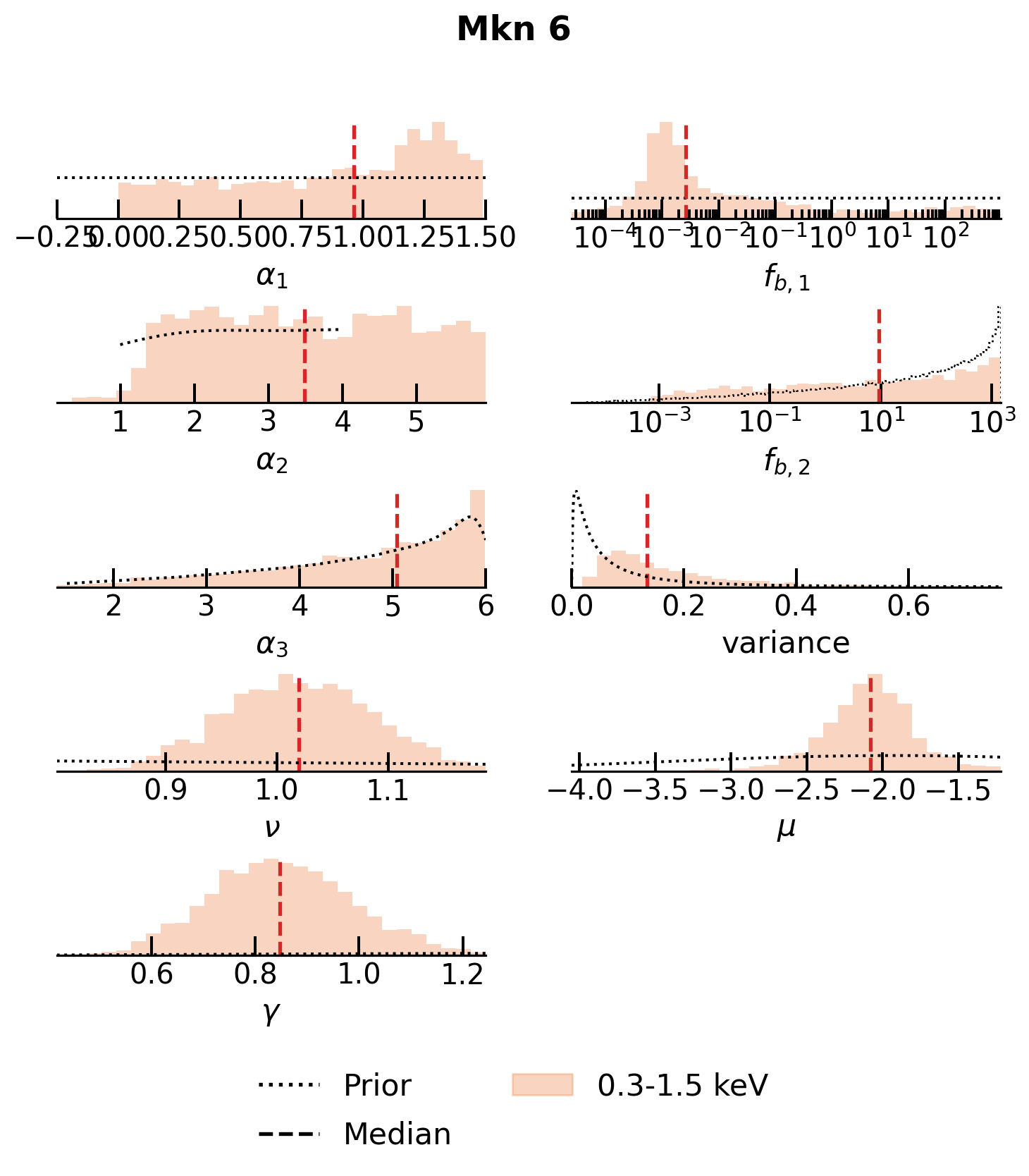

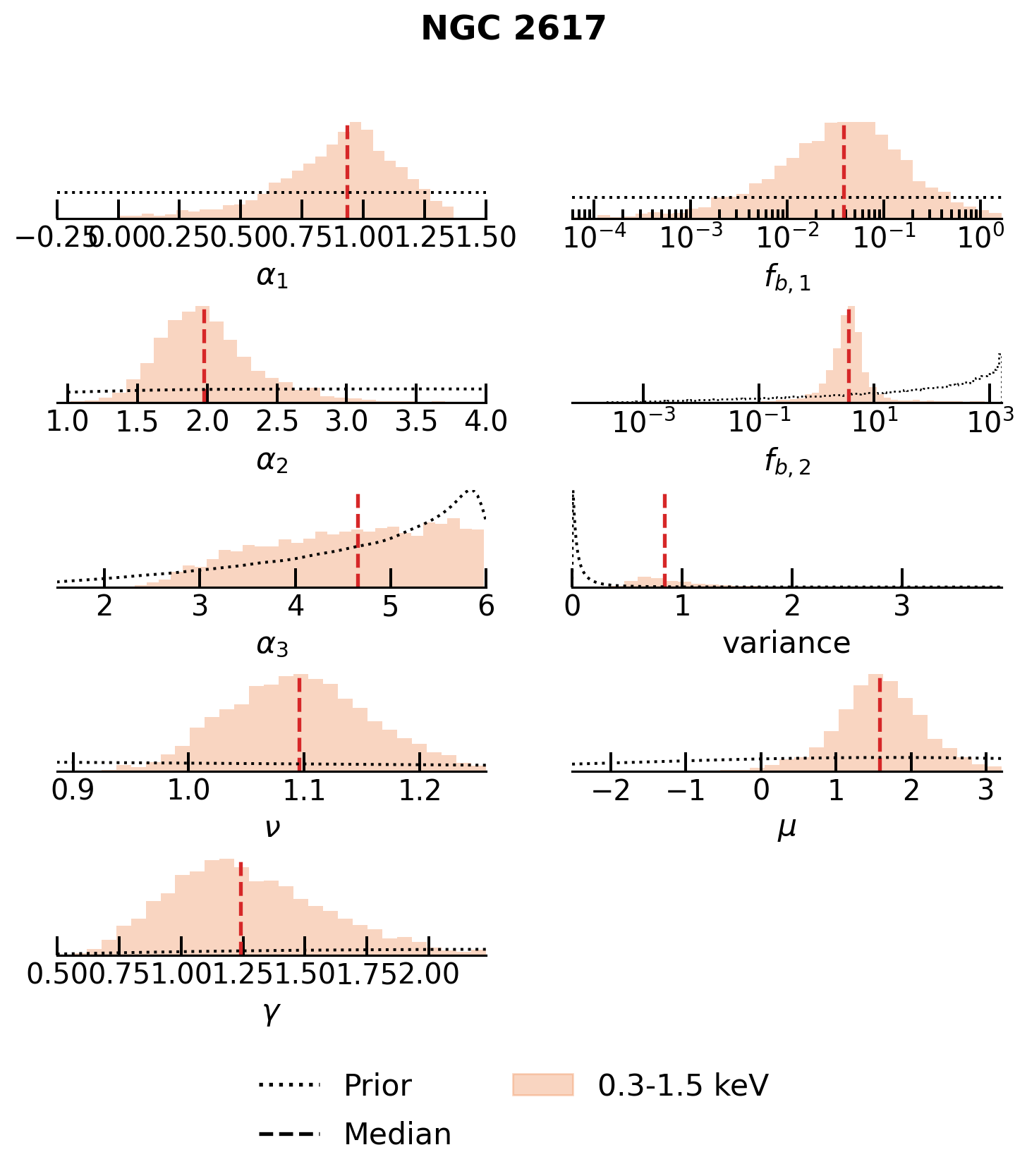

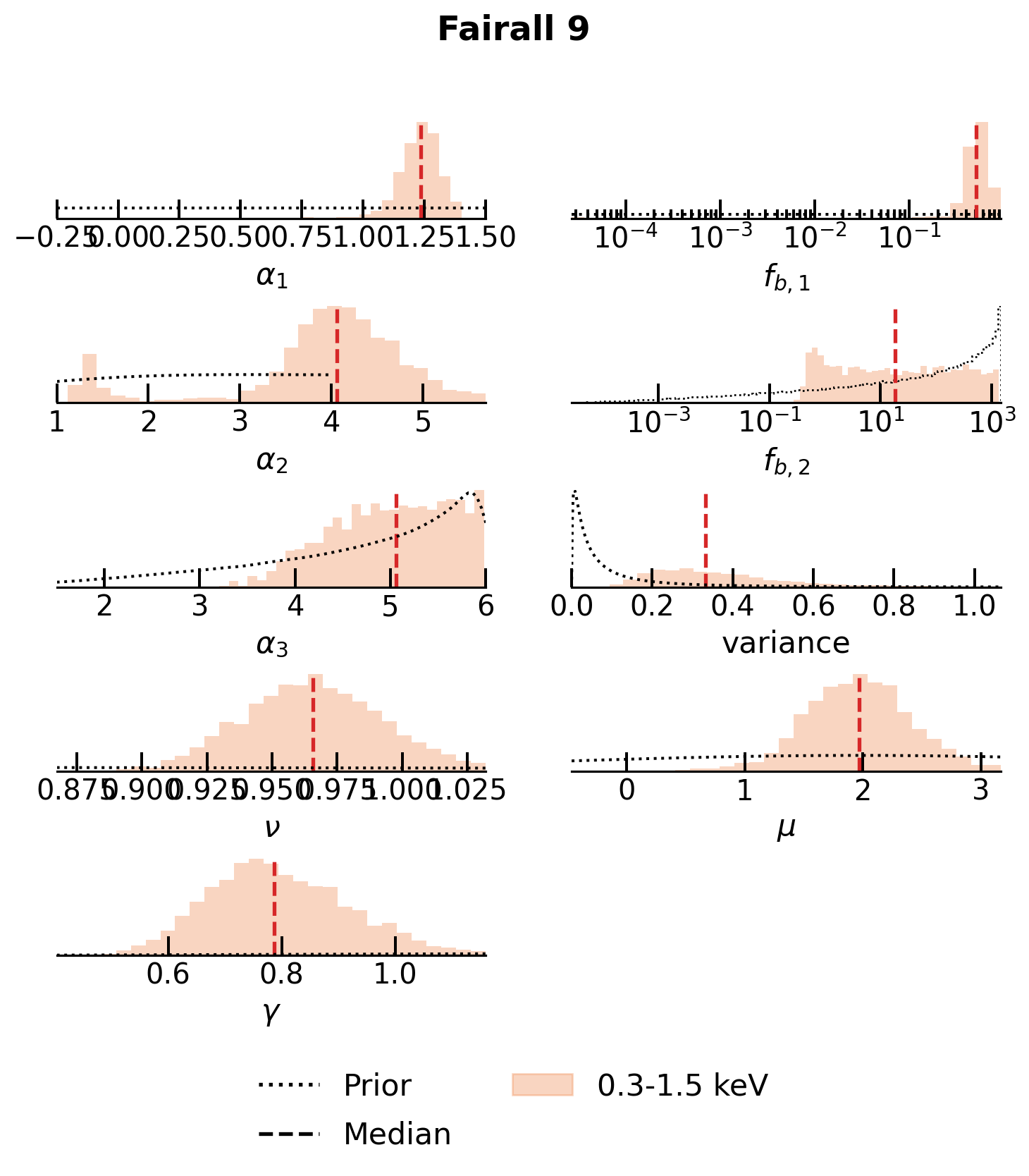

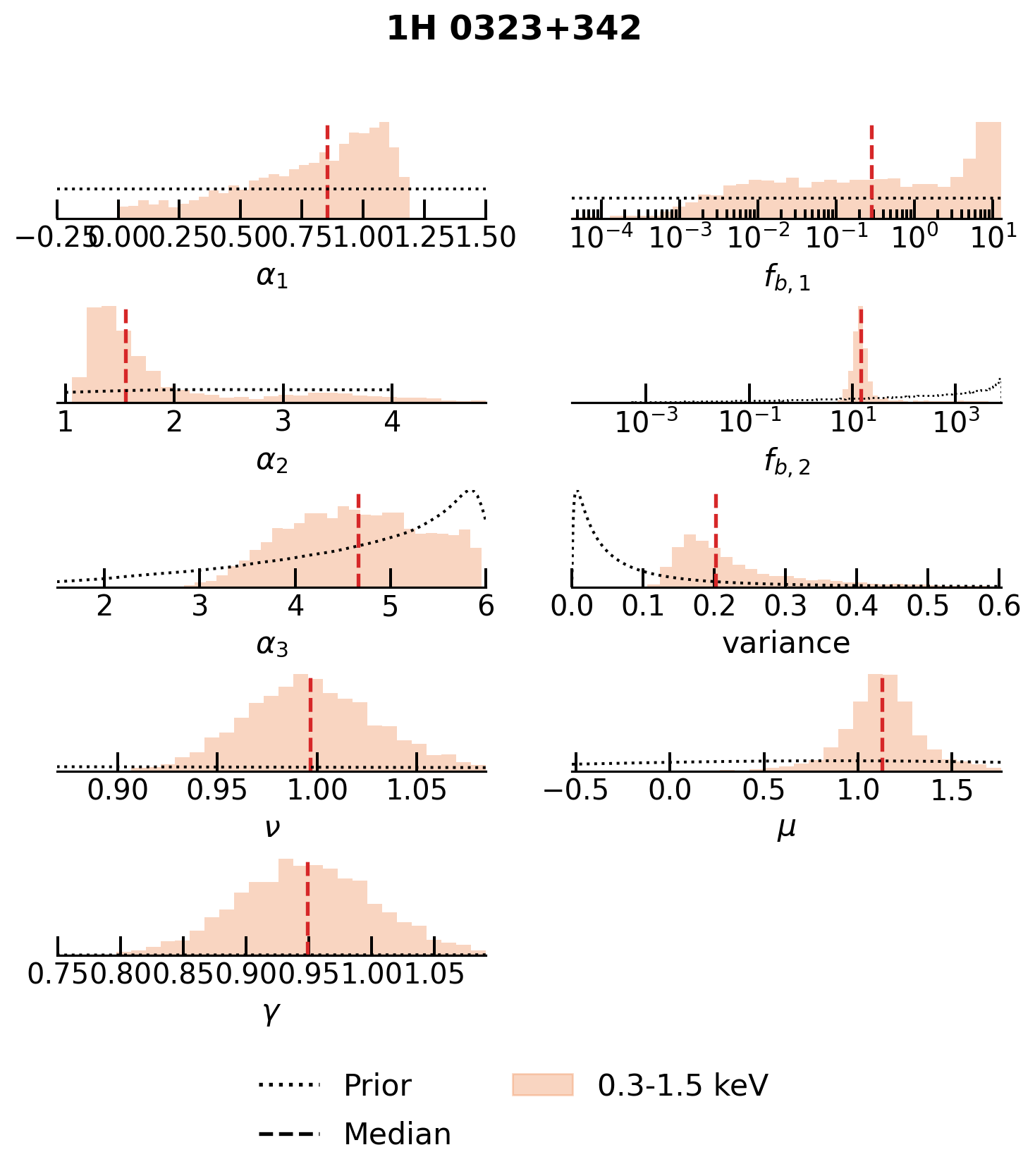

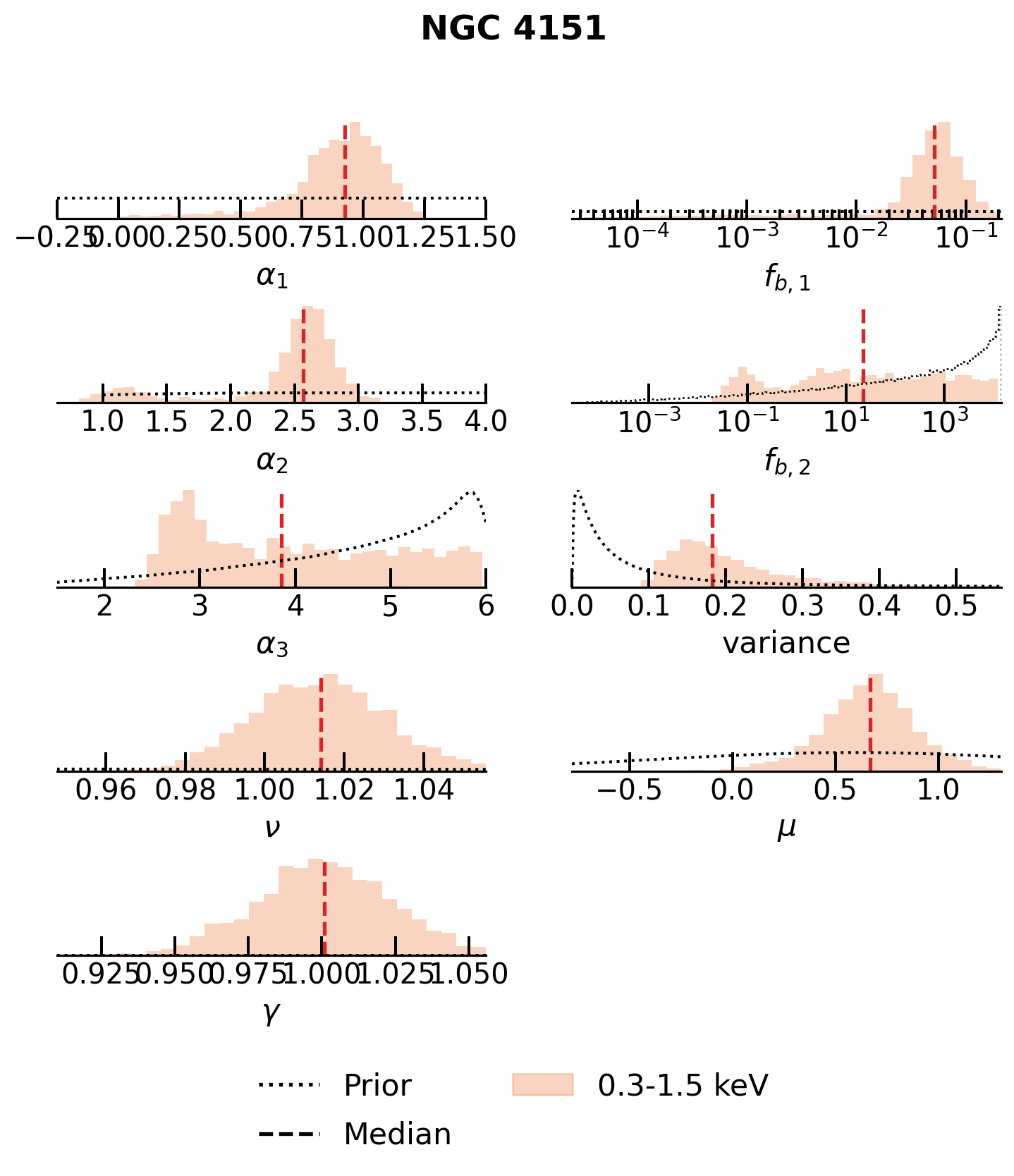

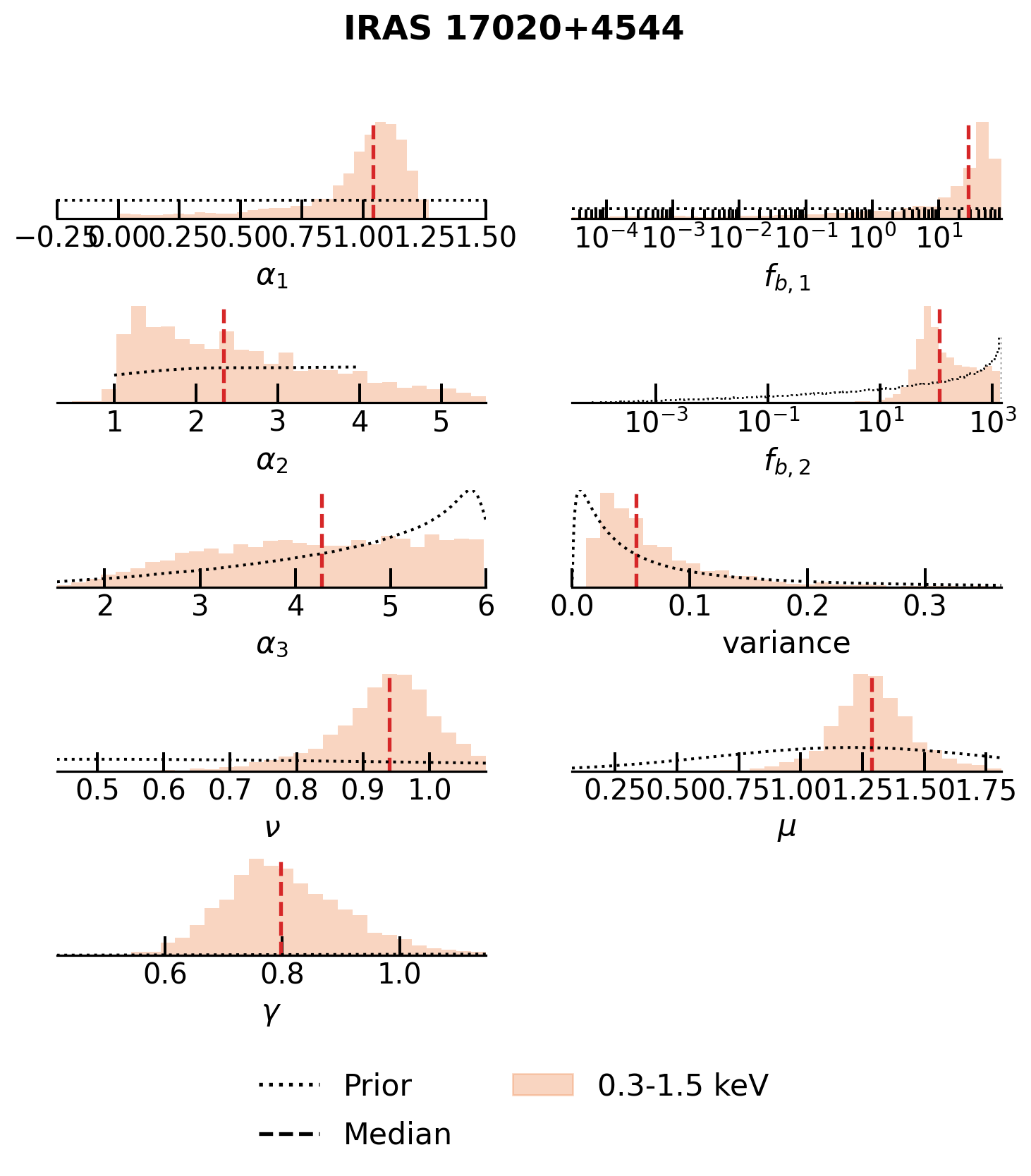

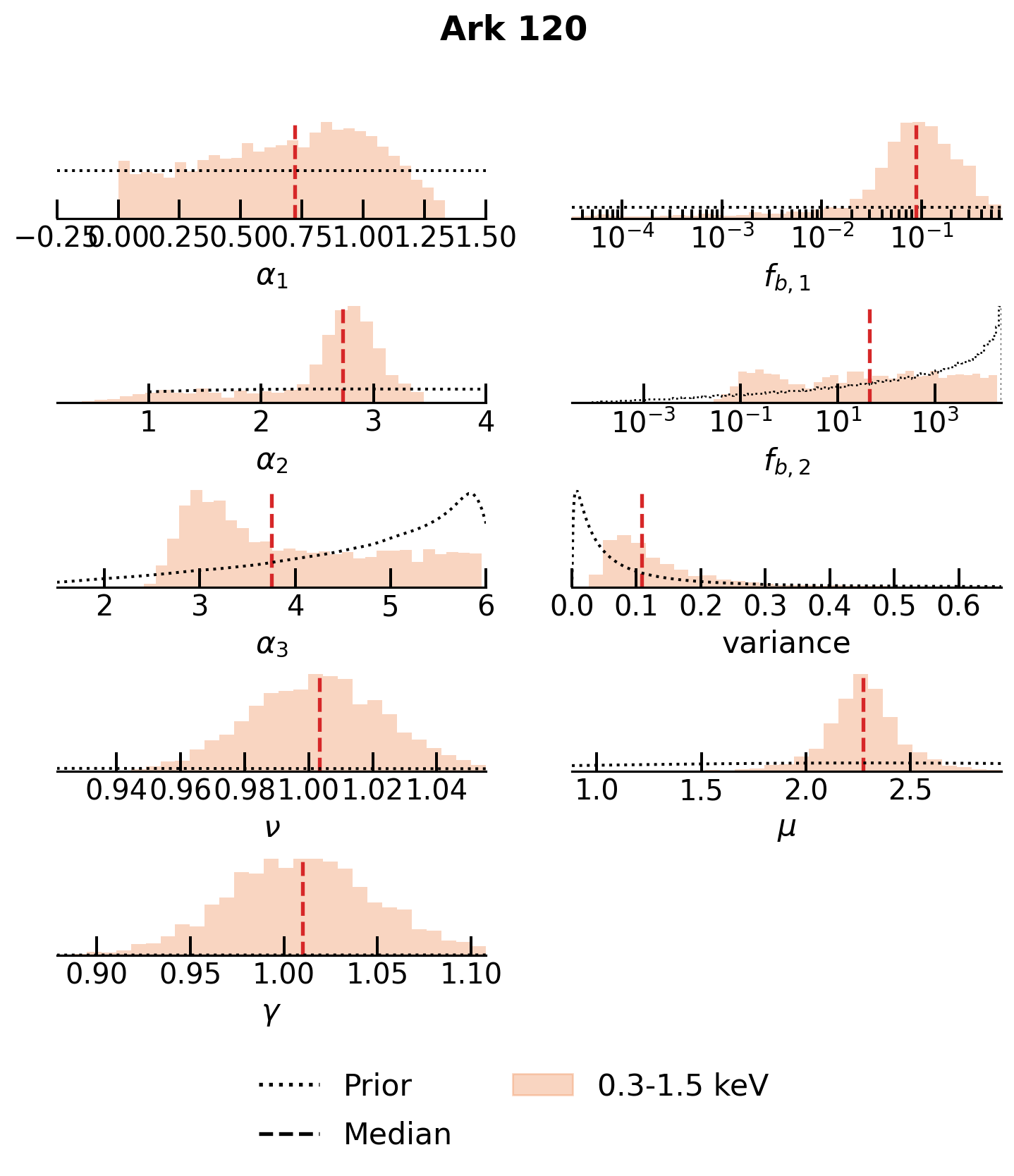

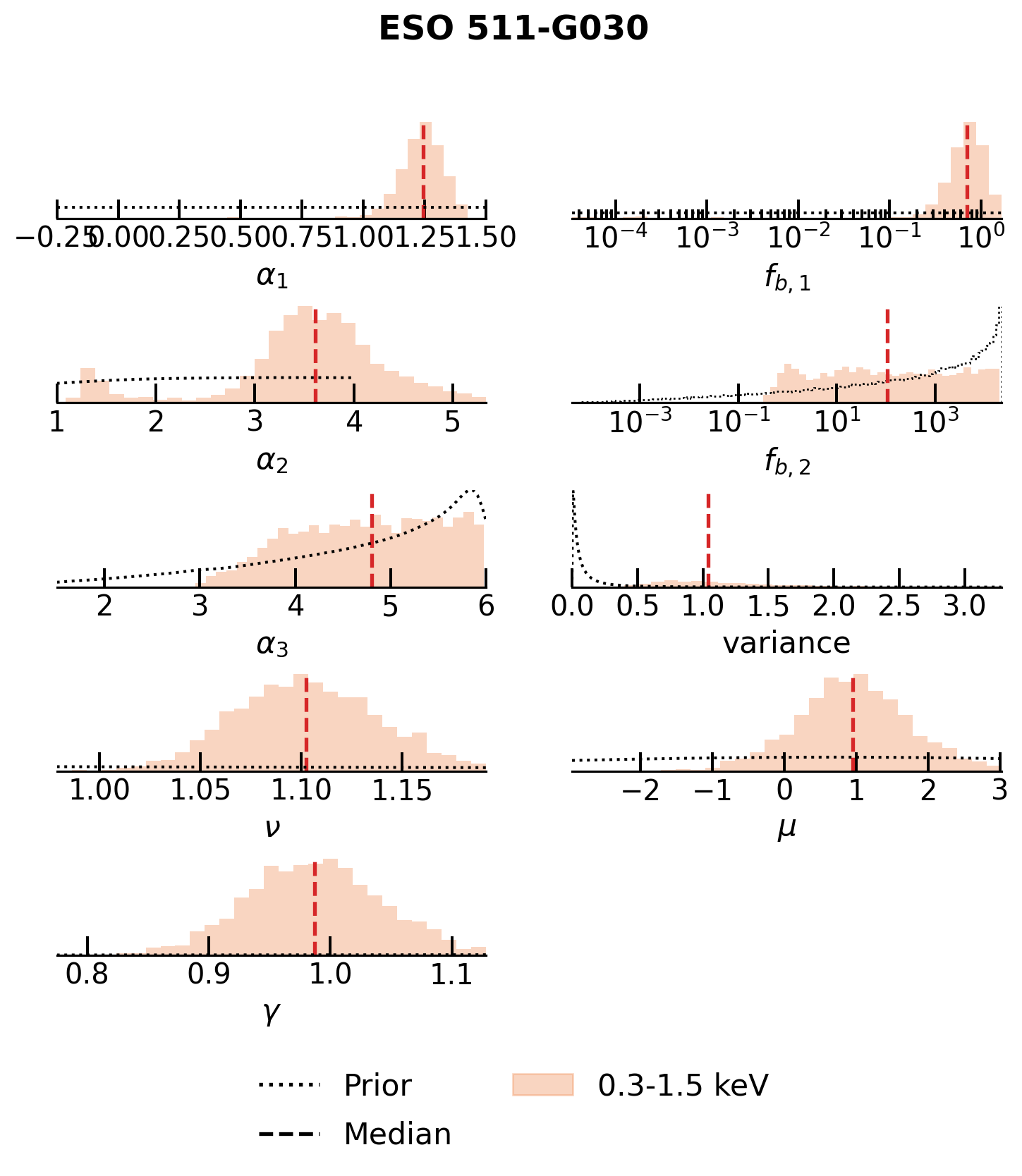

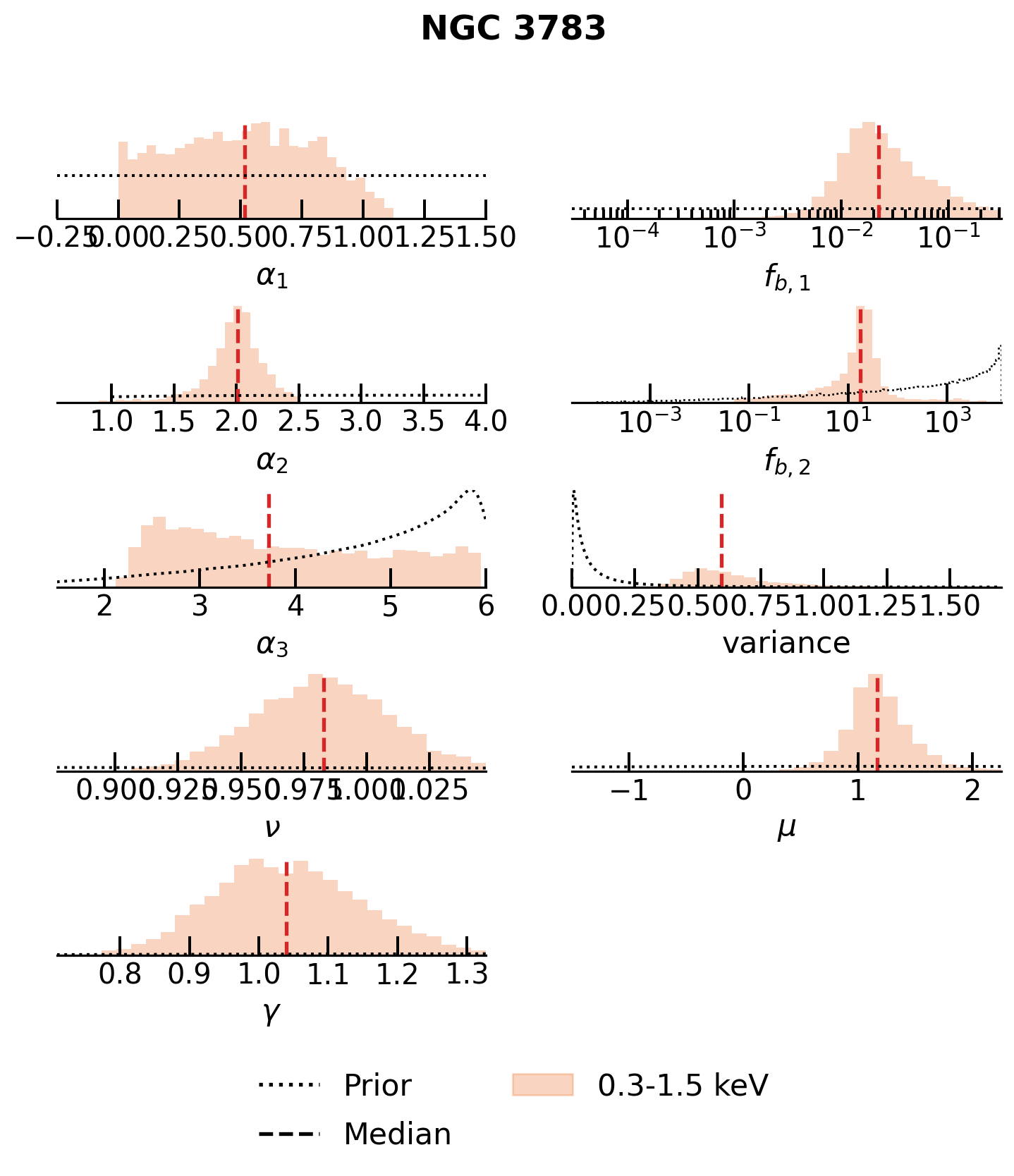

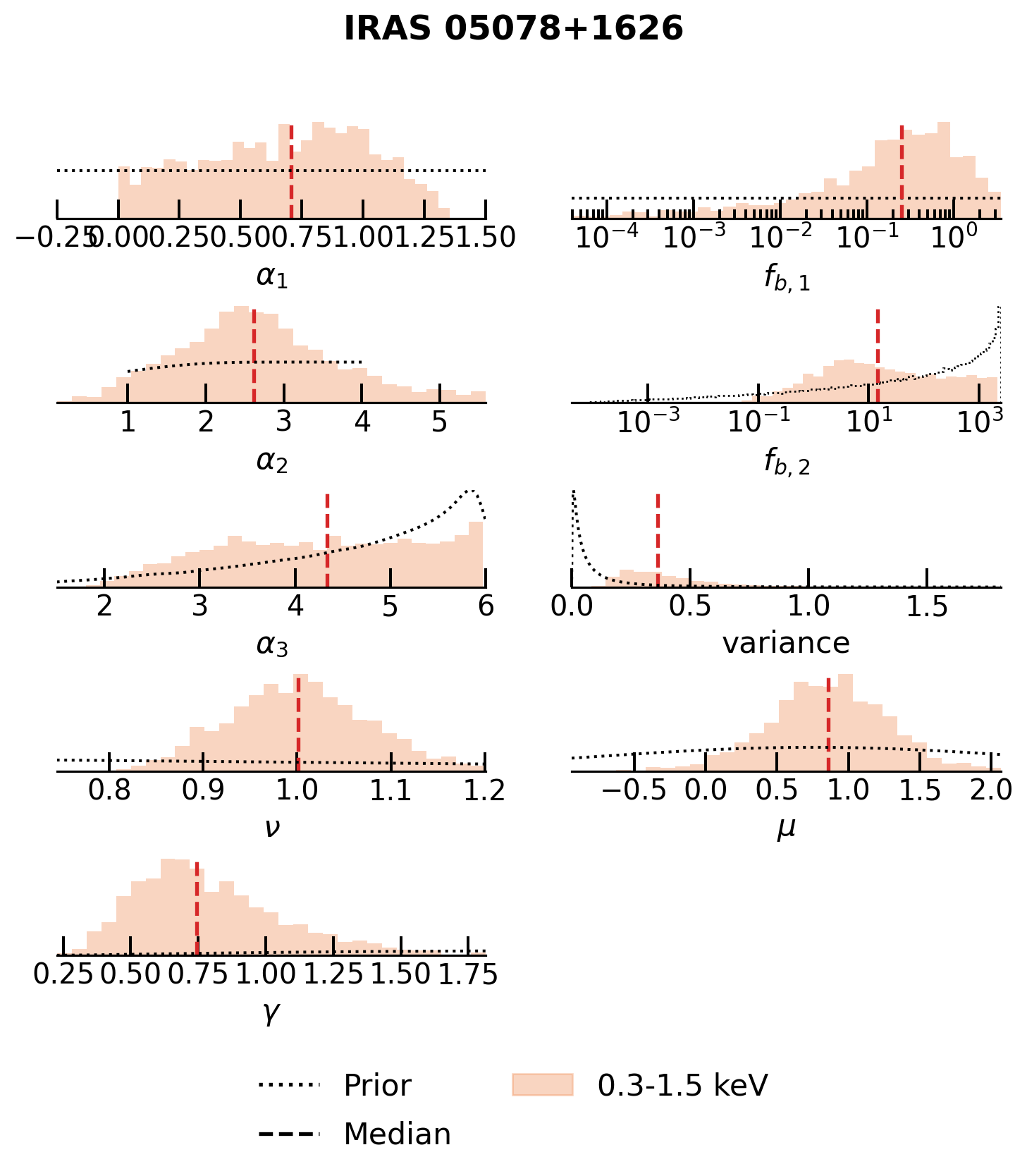

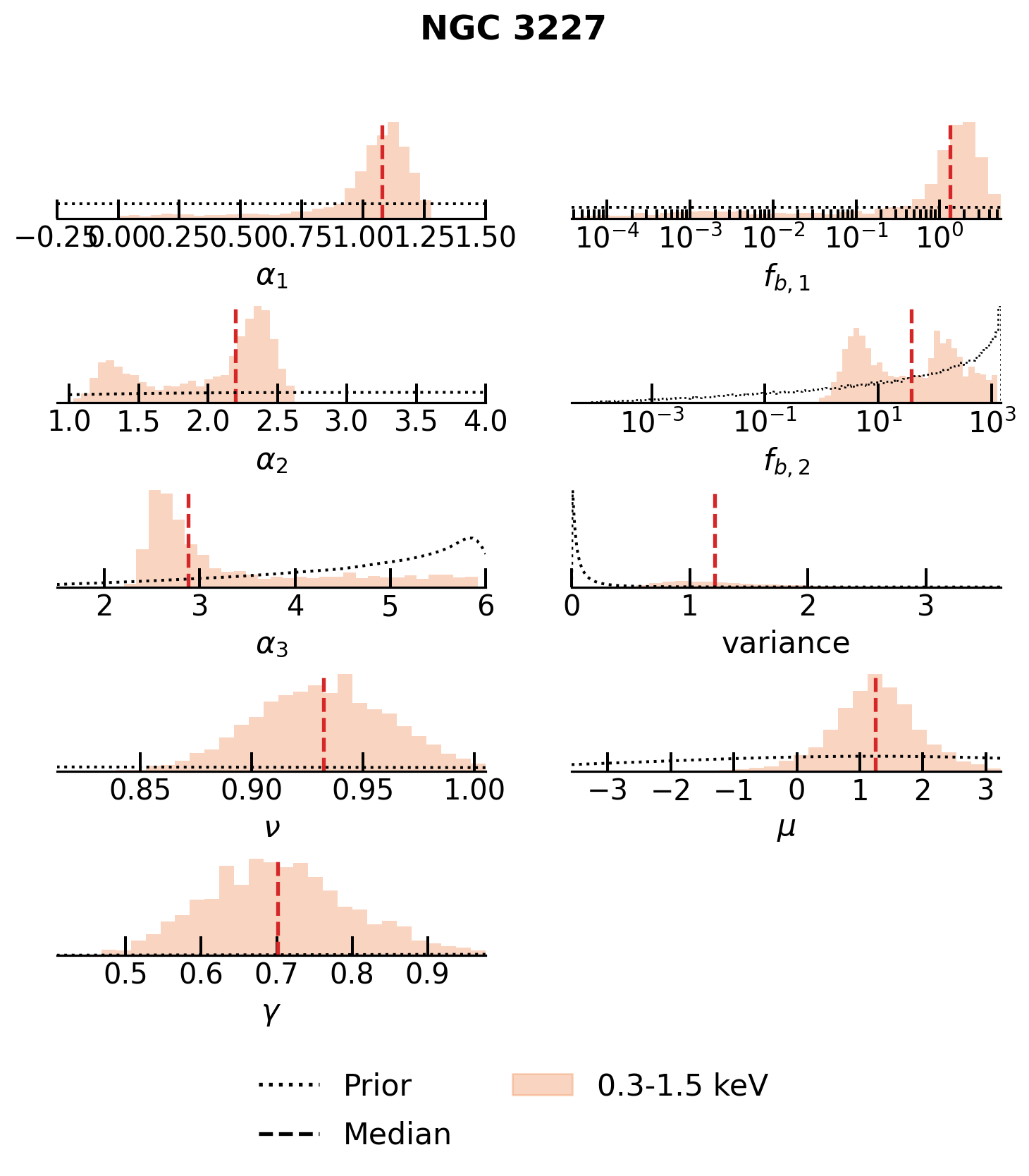

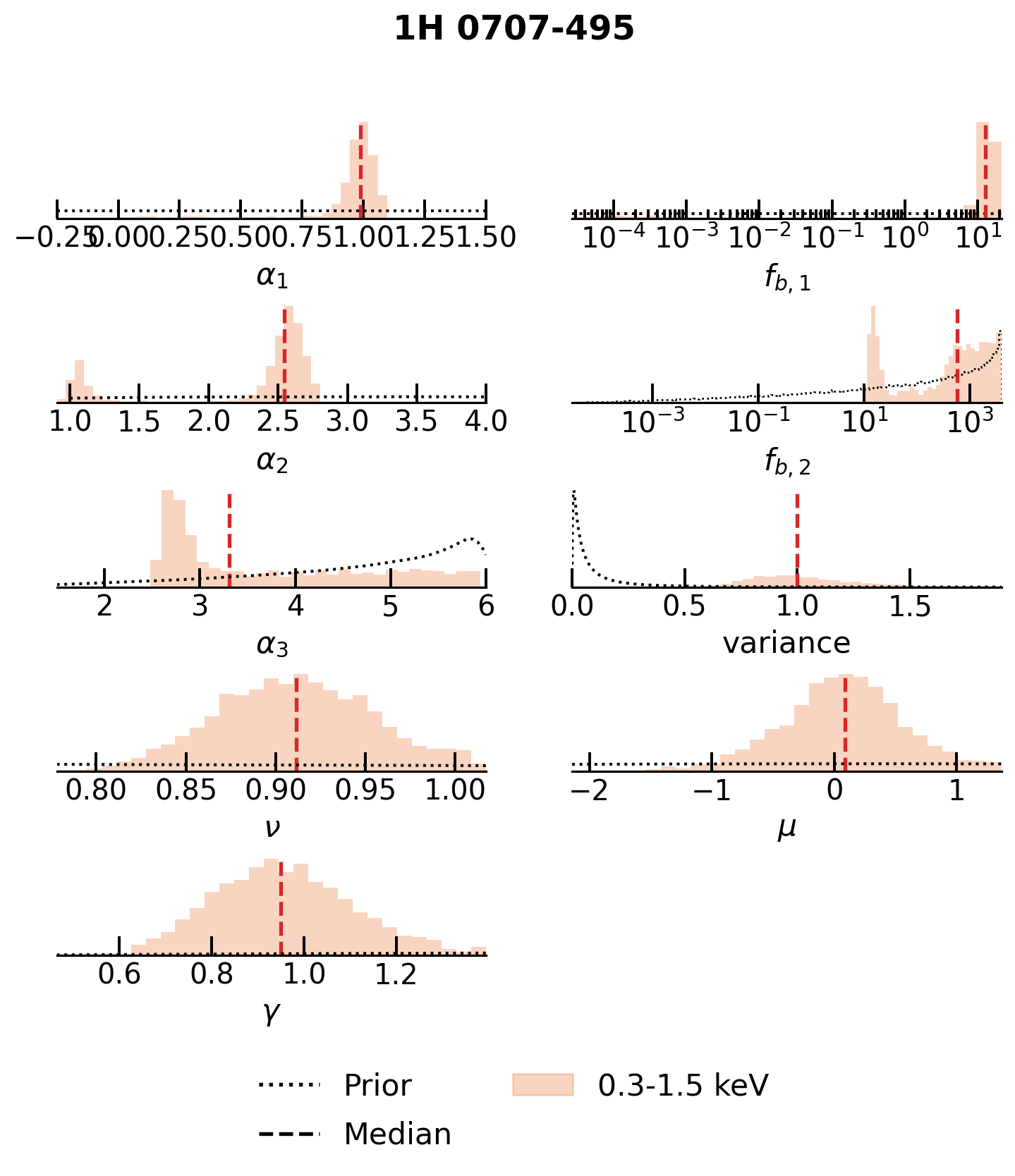

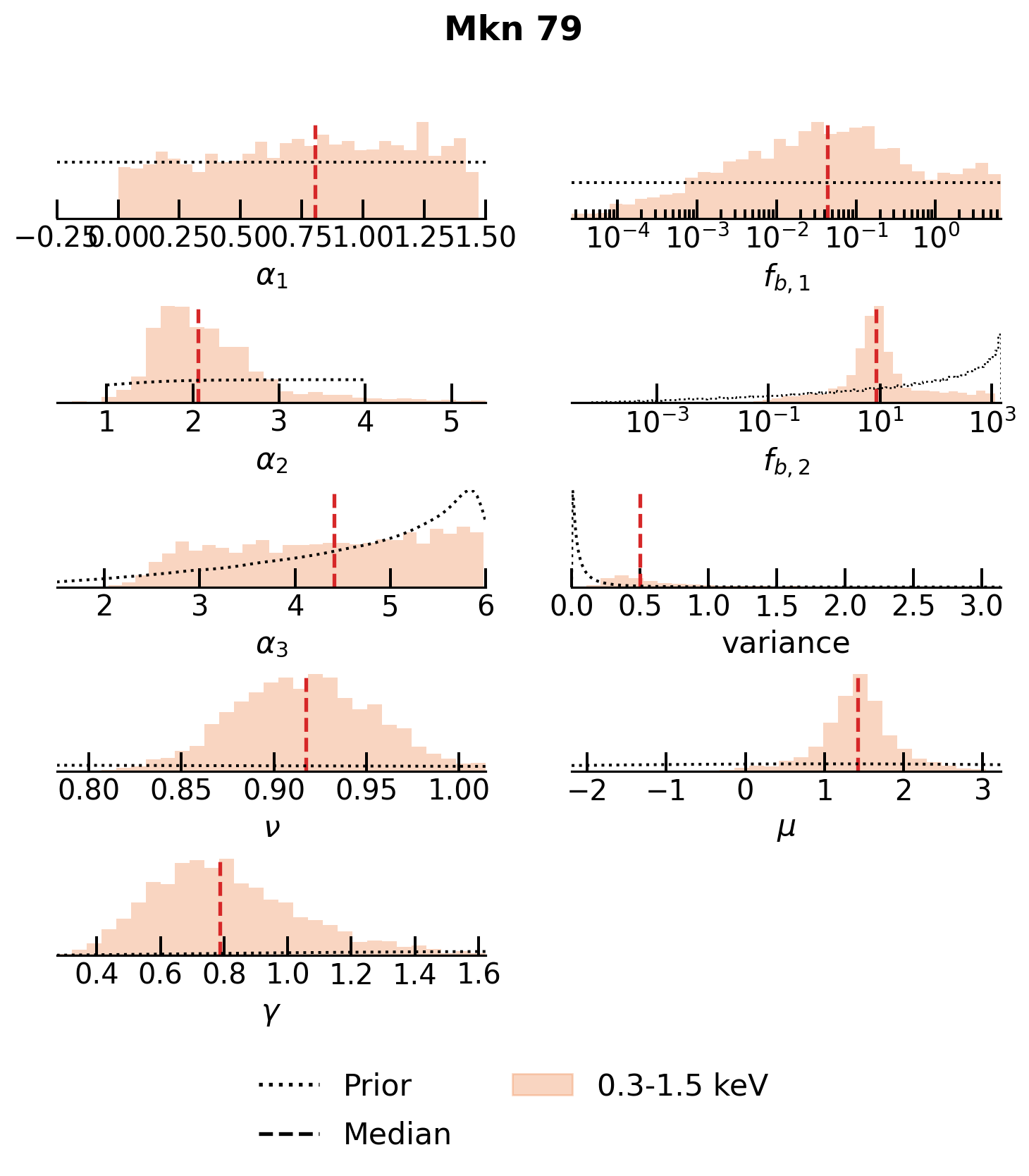

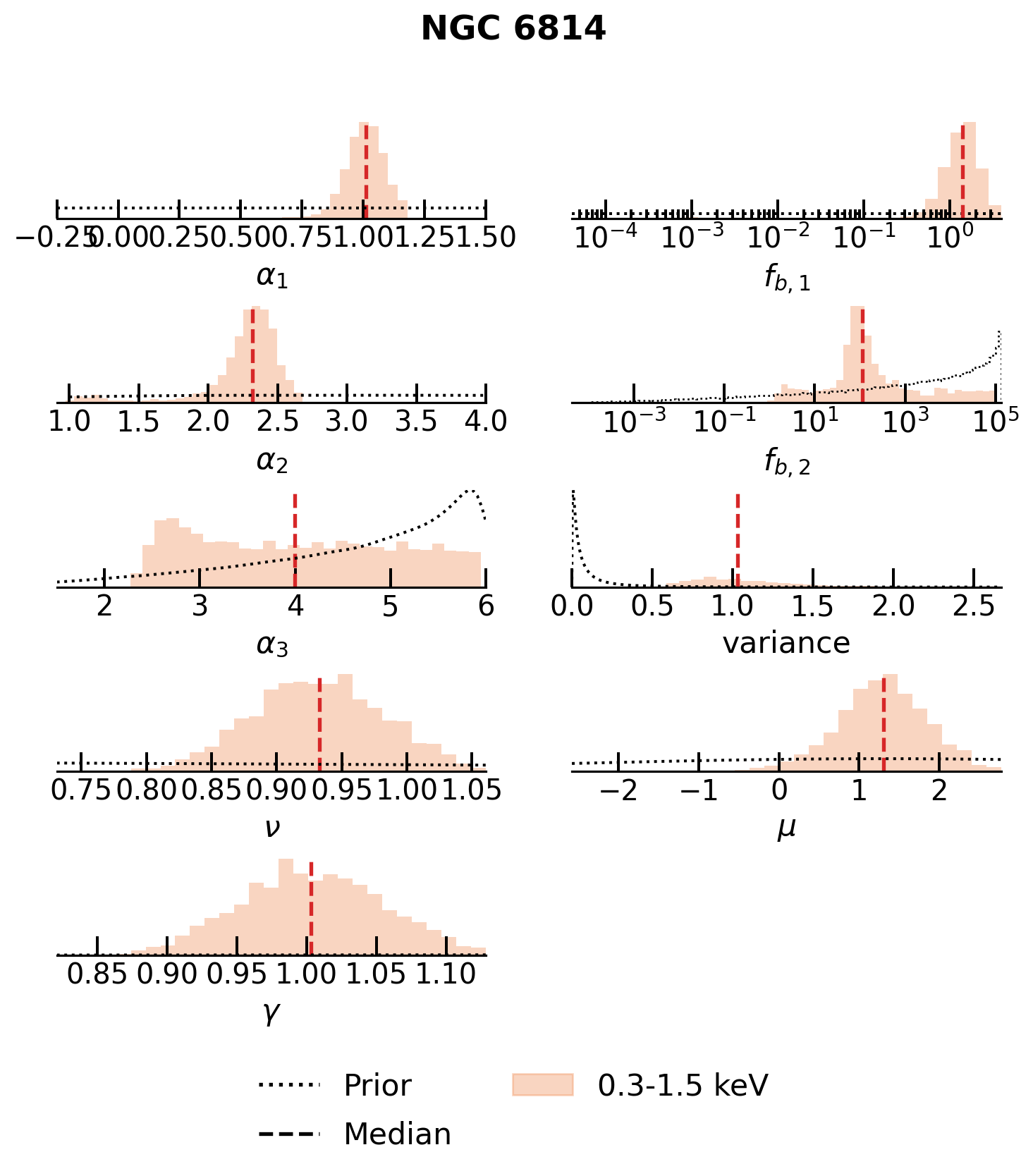

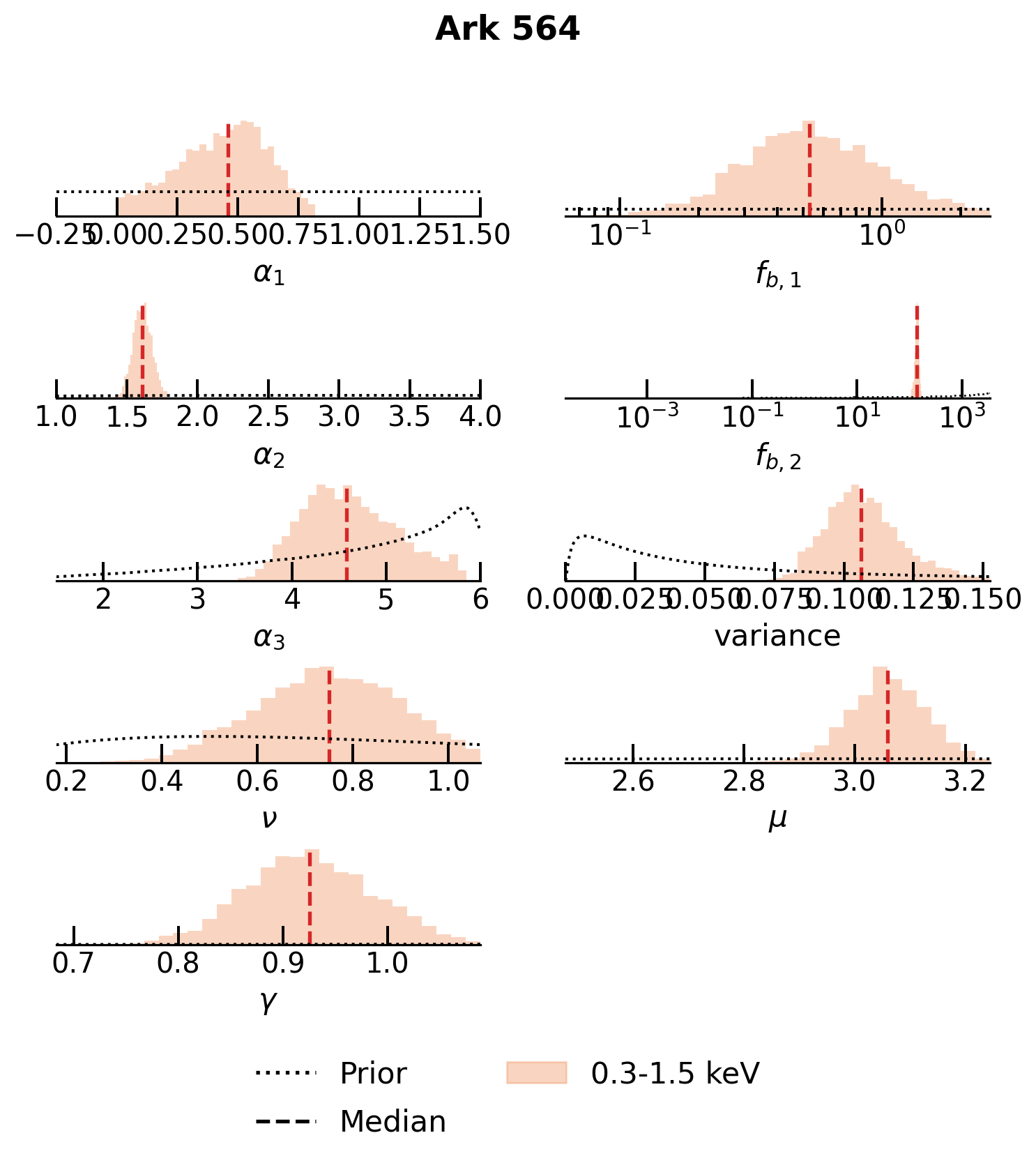

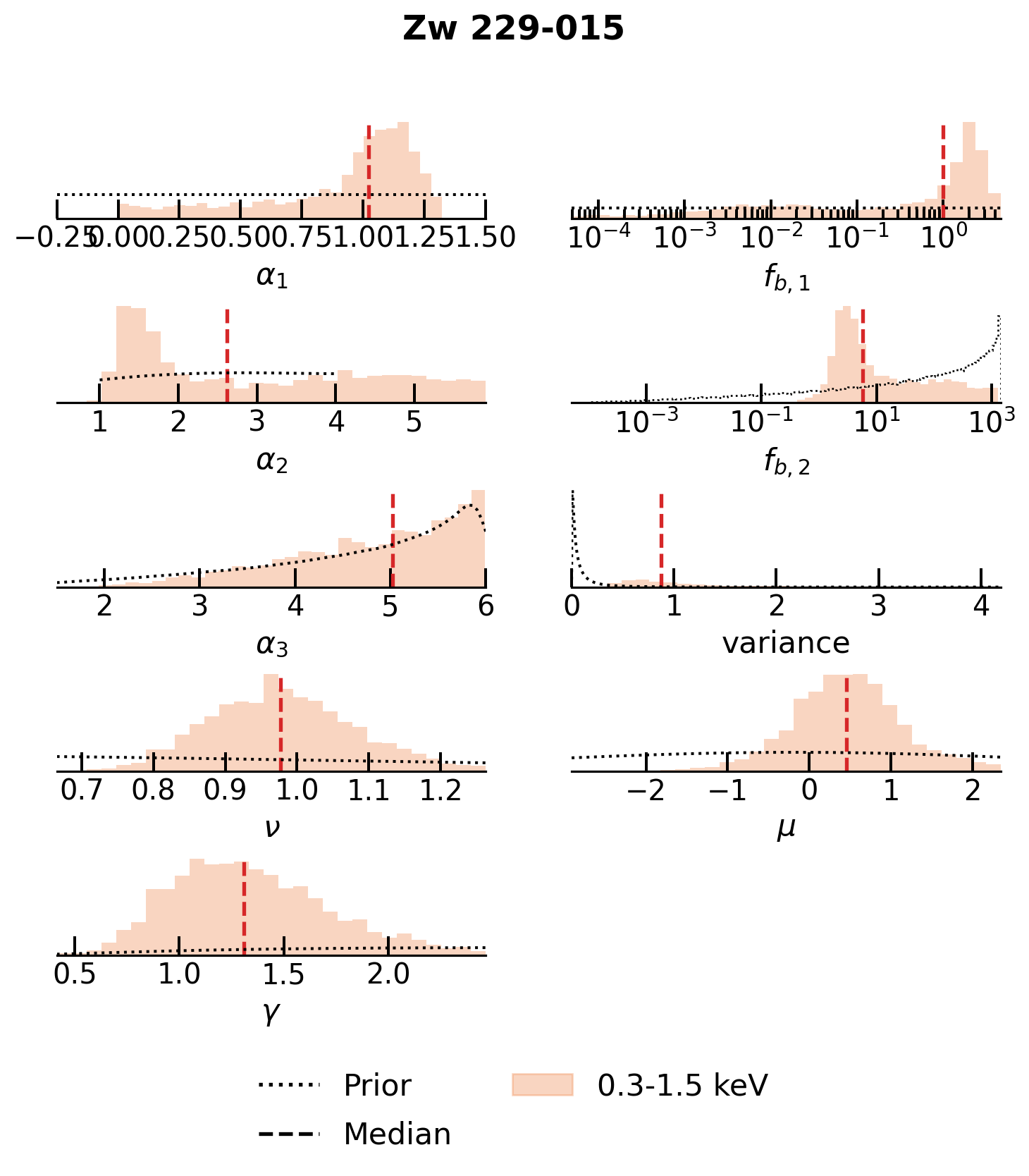

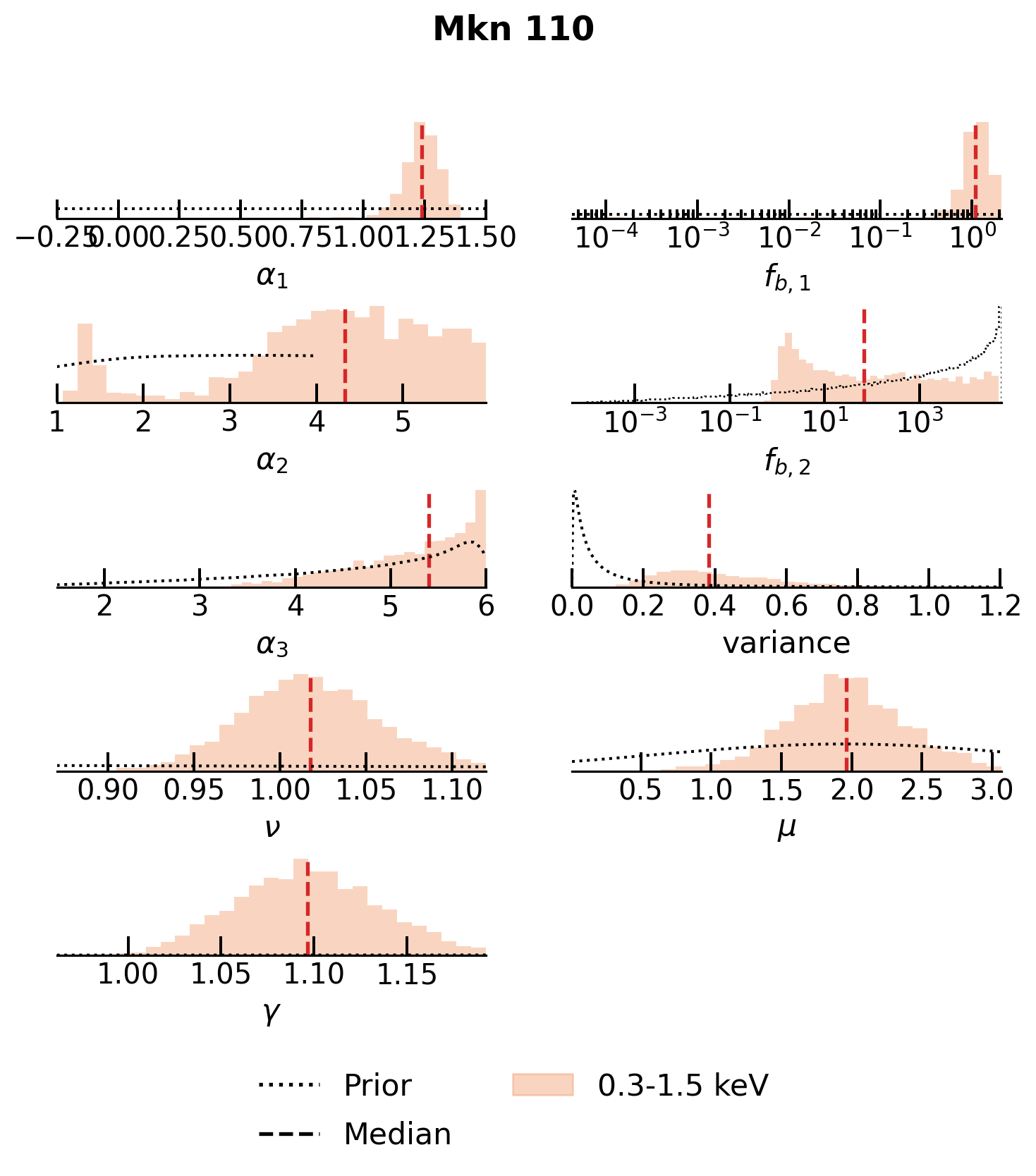

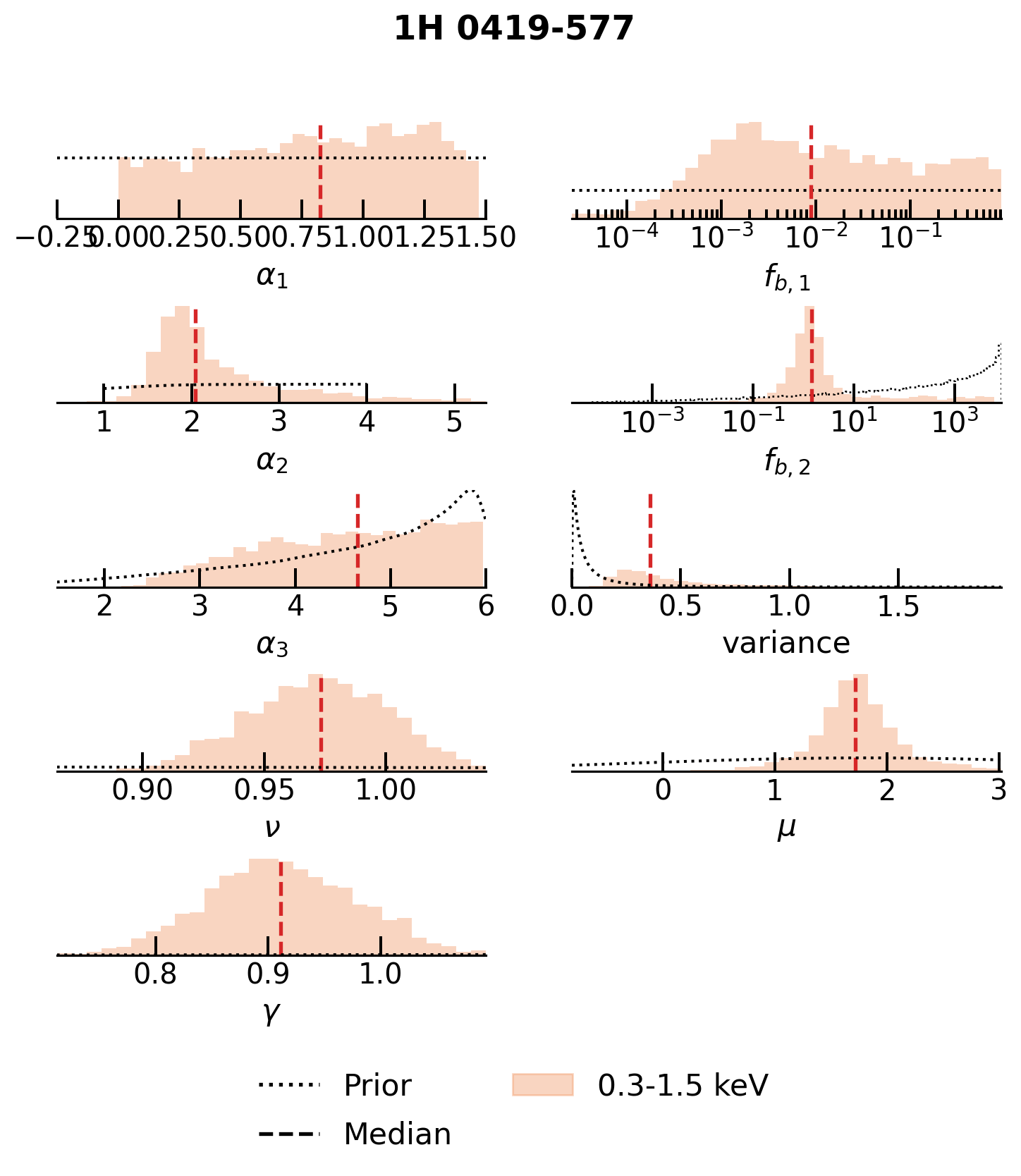

Code

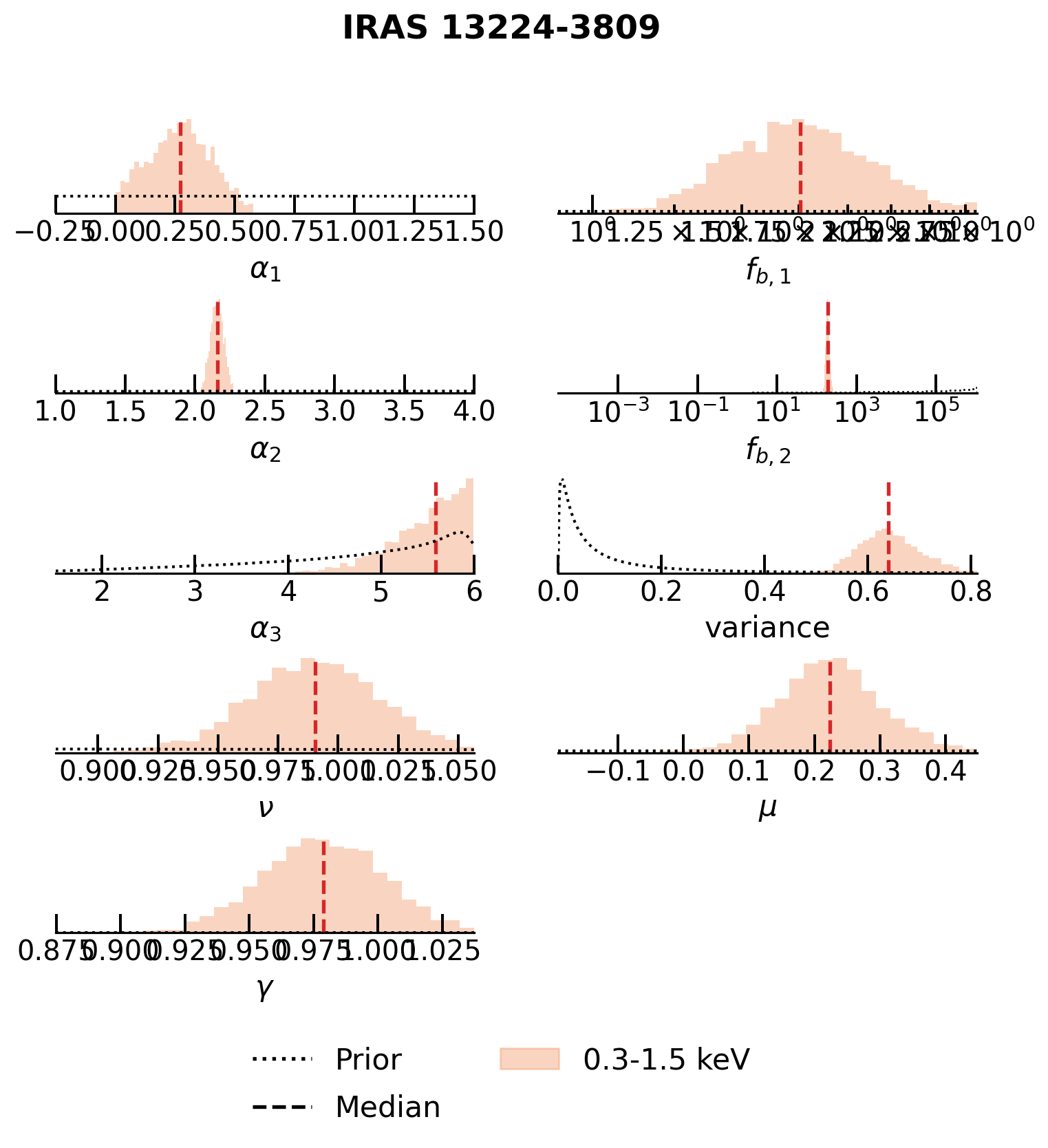

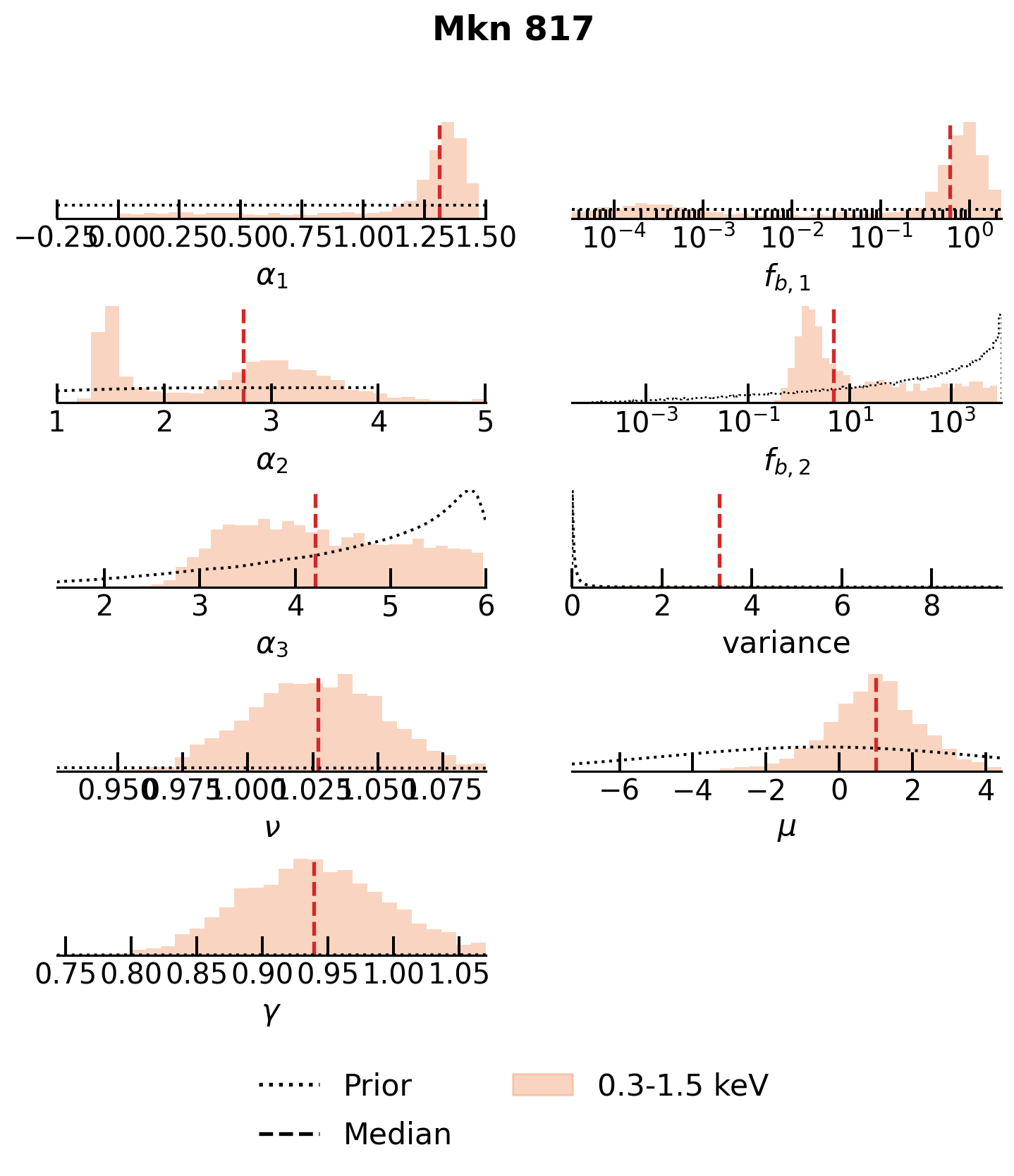

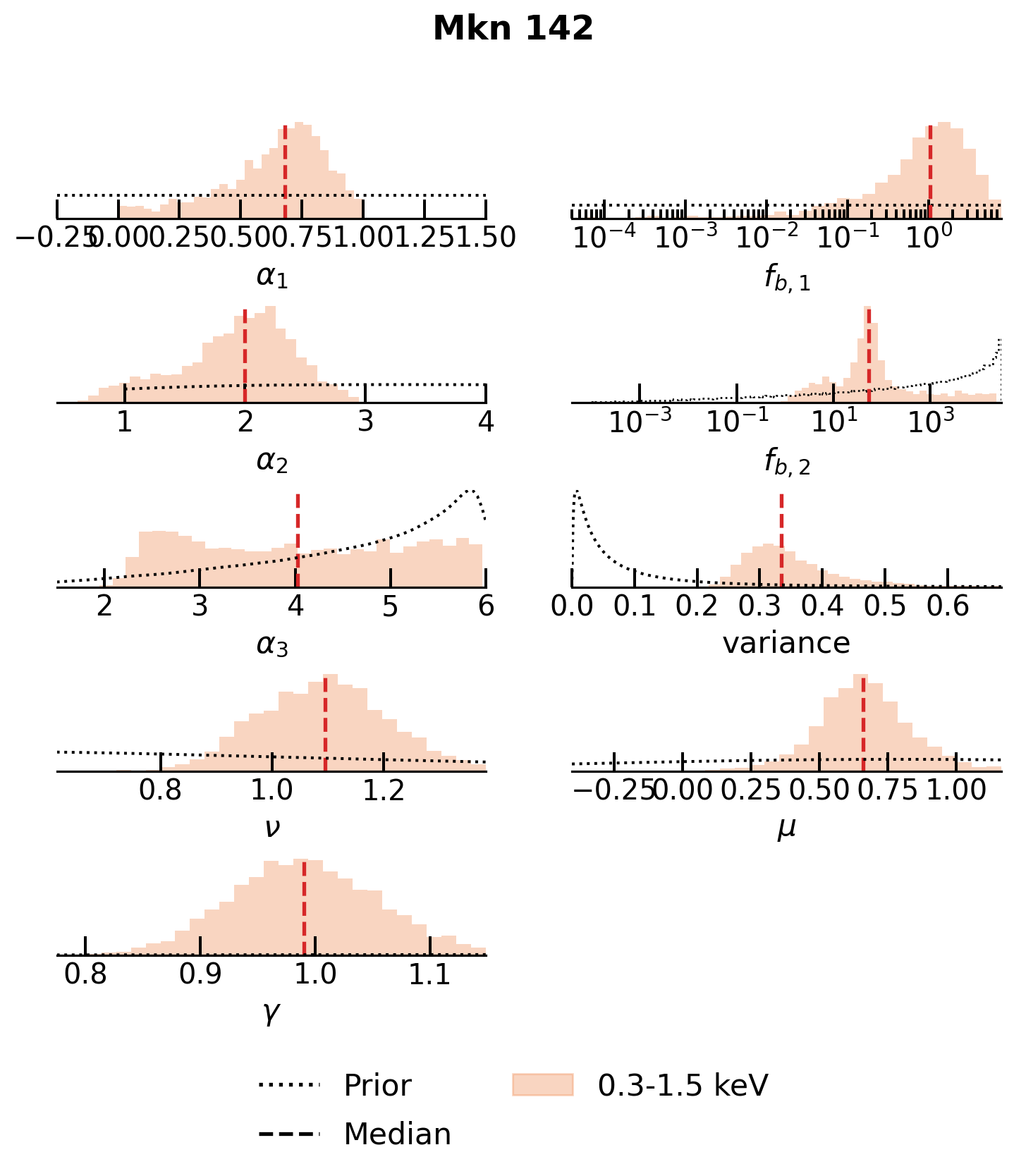

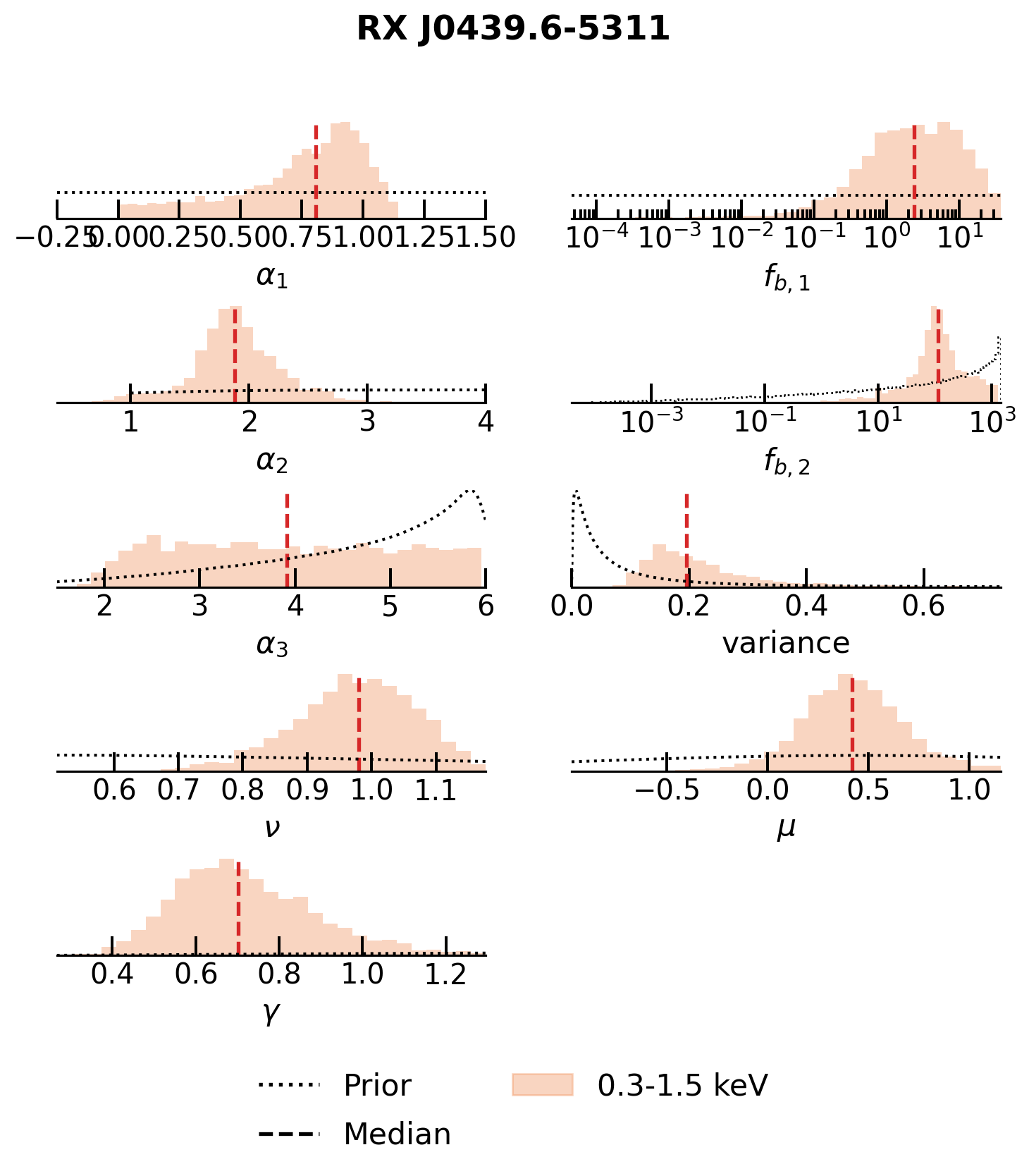

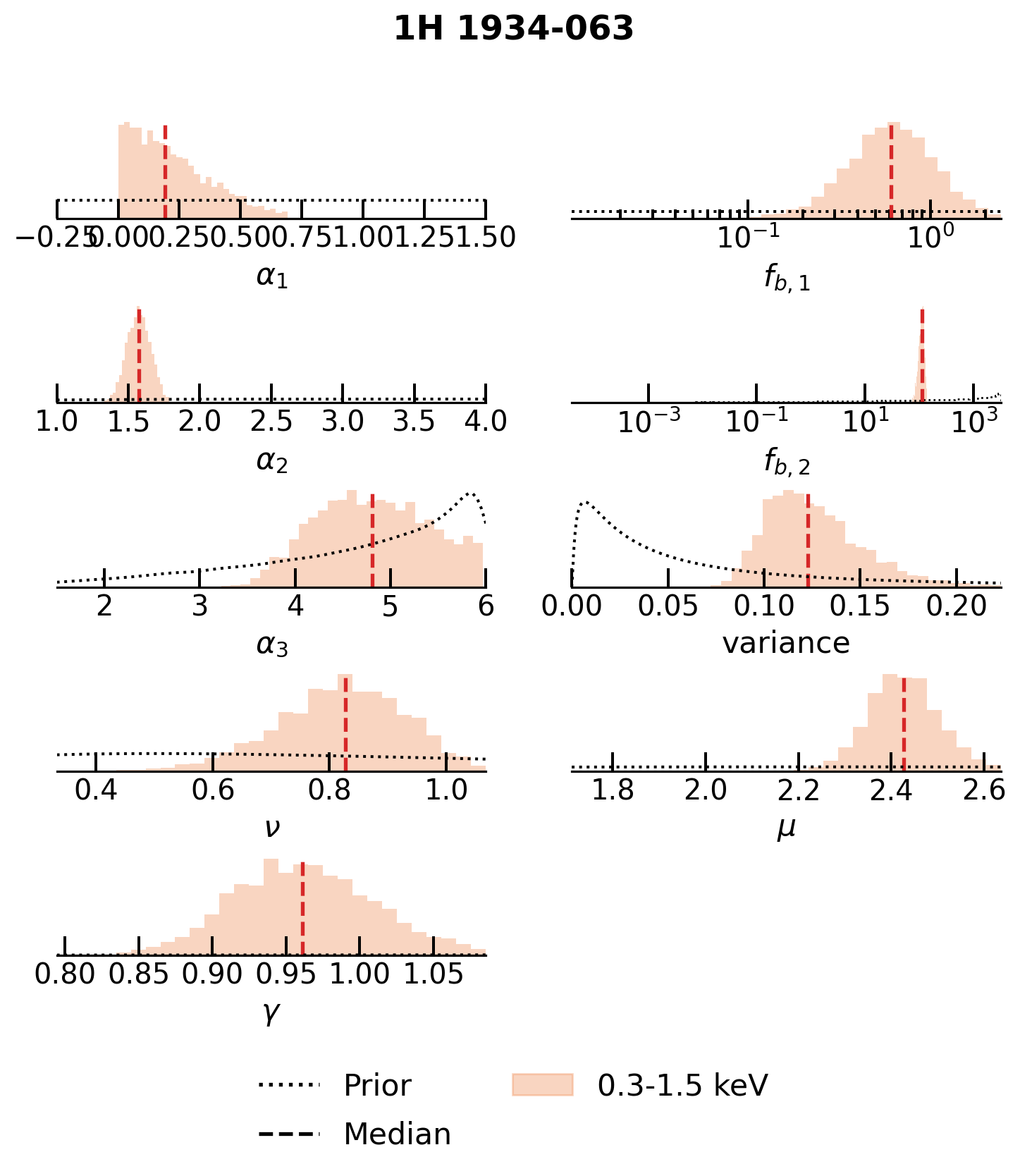

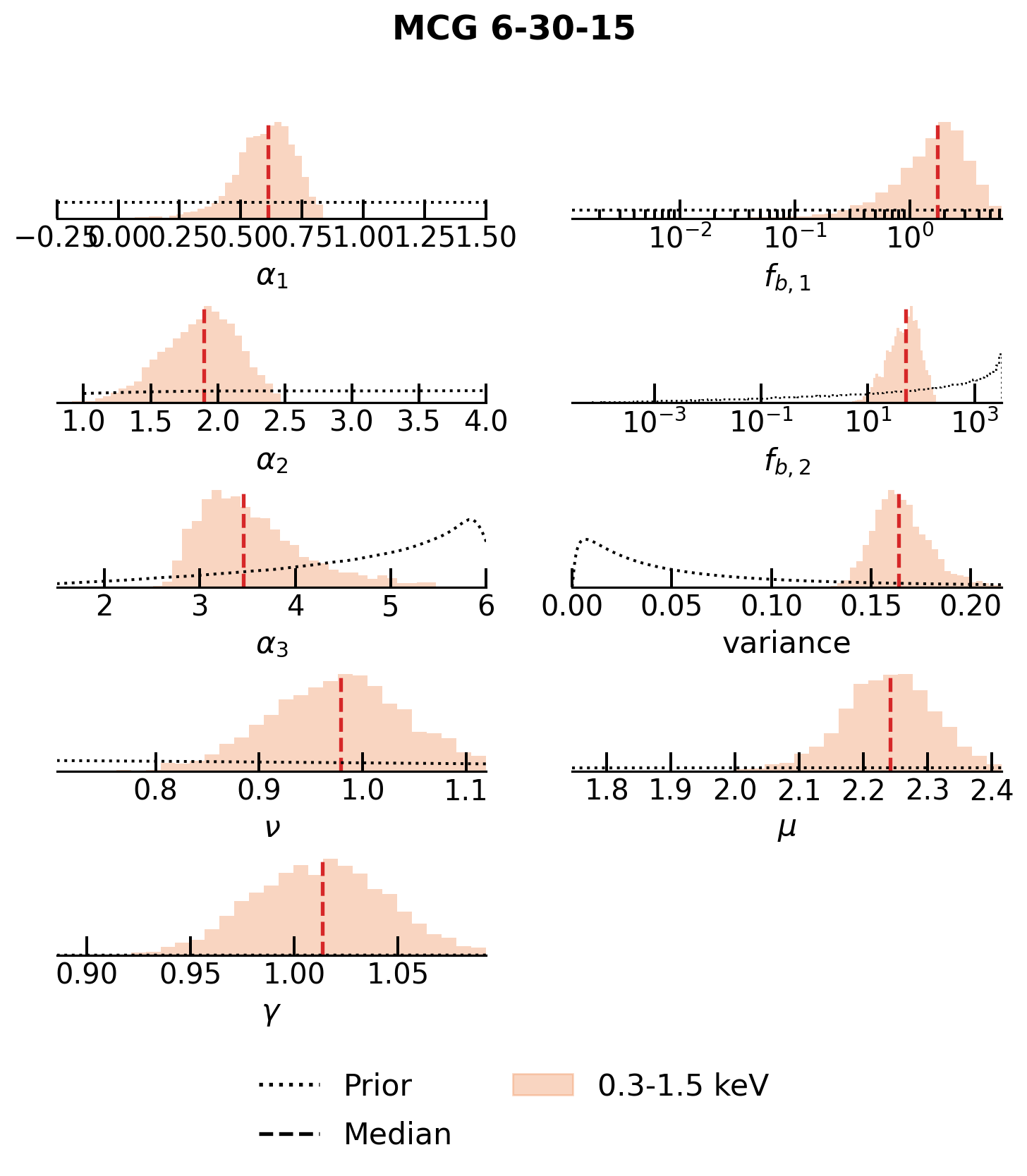

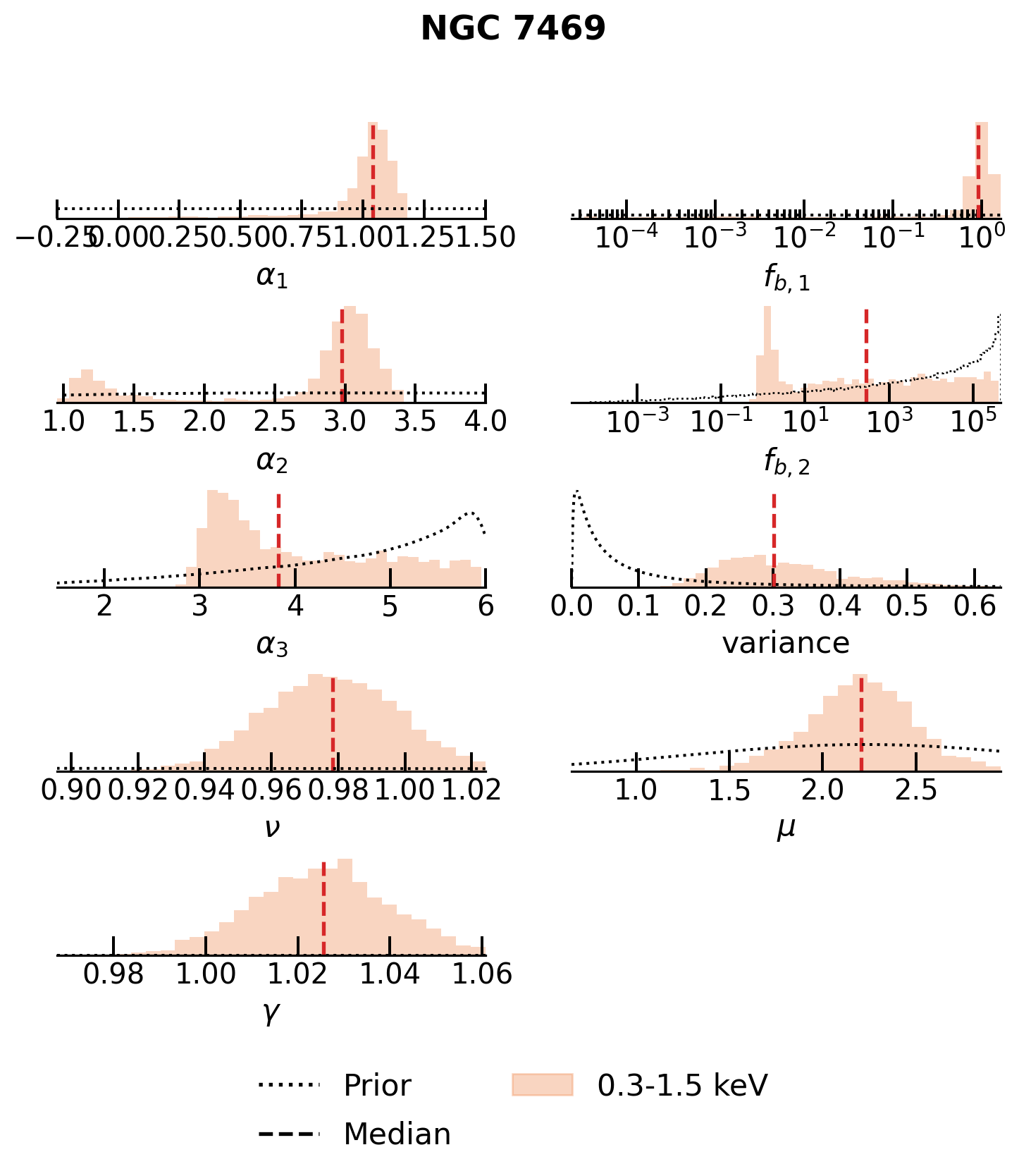

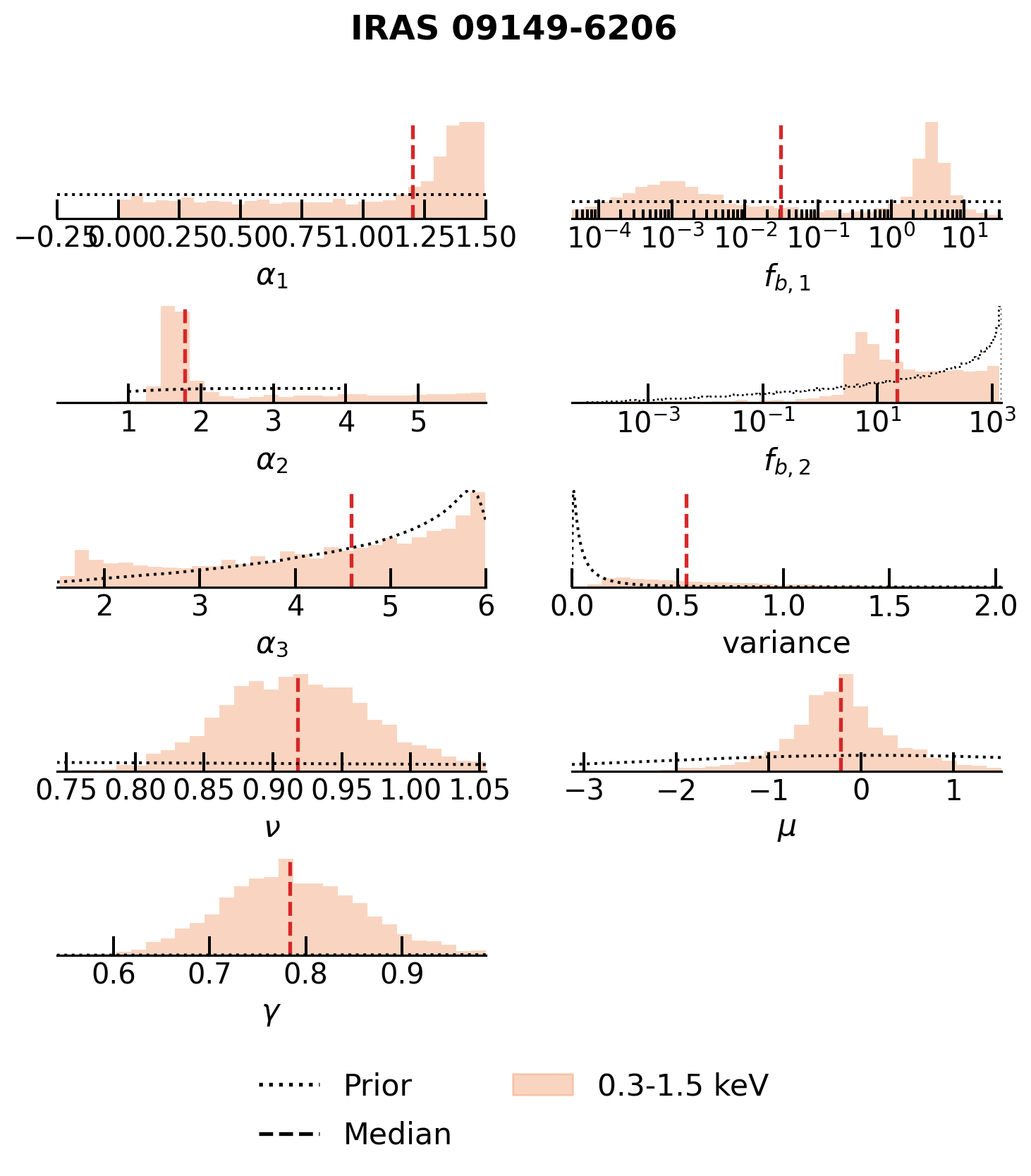

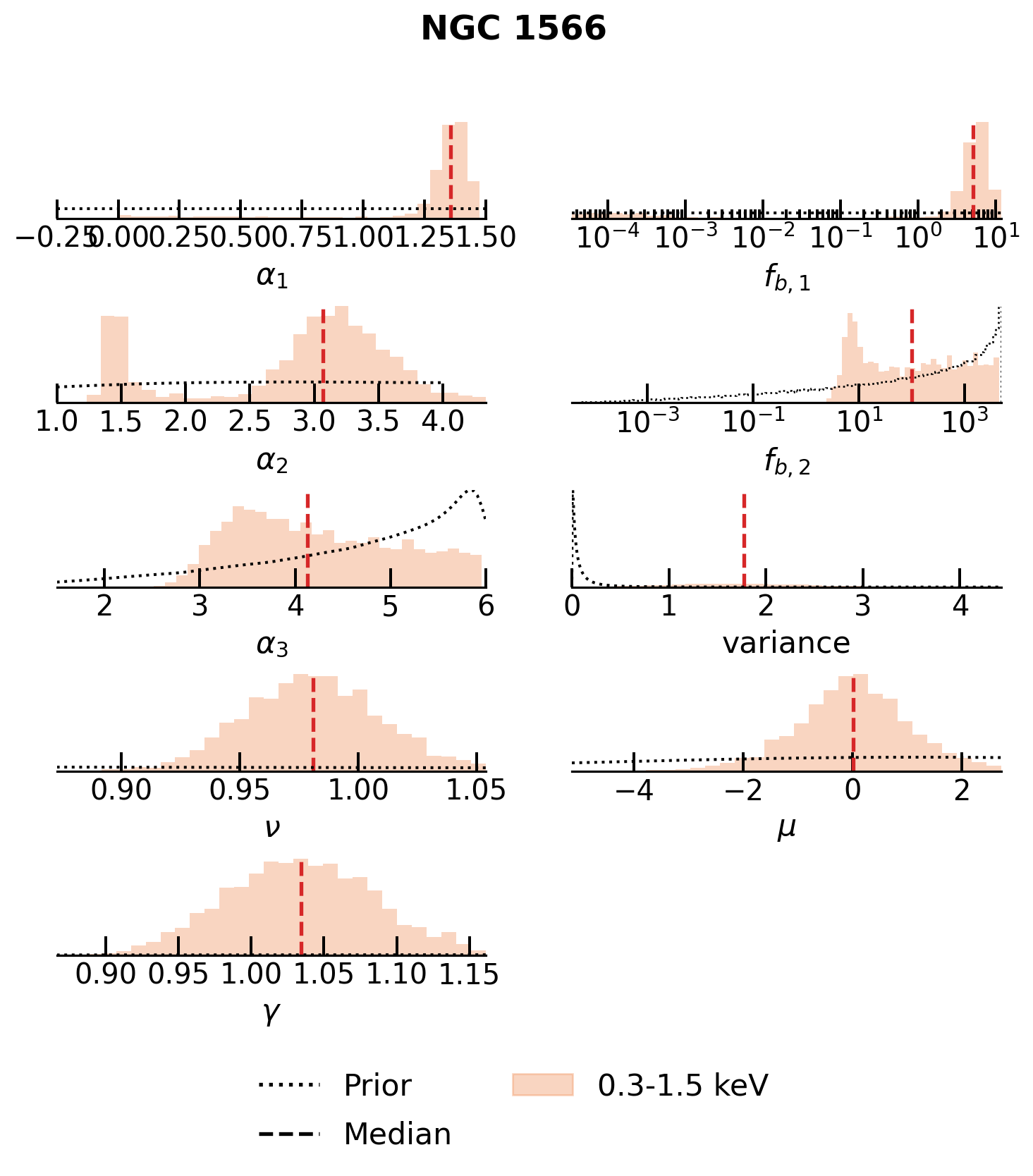

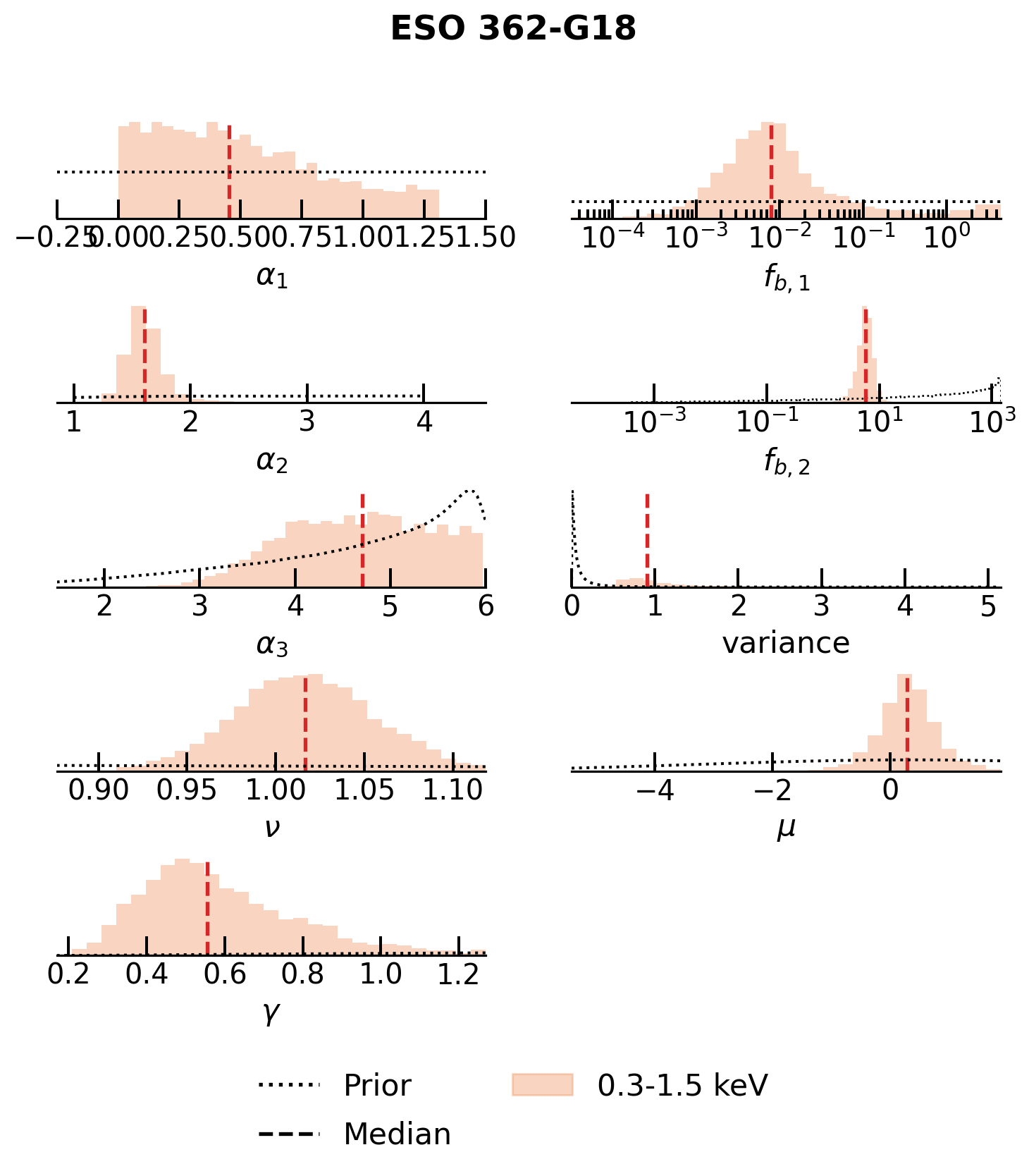

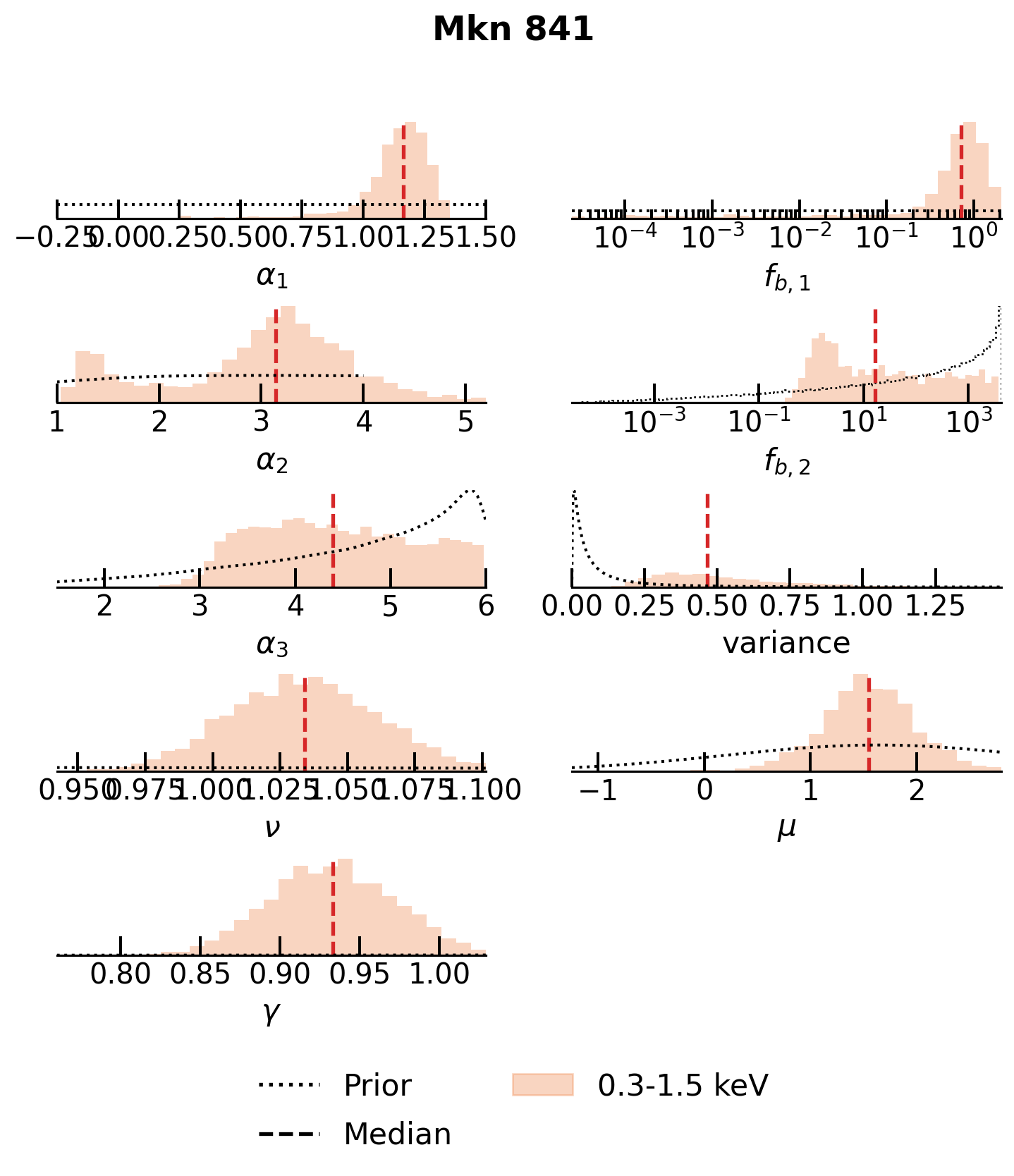

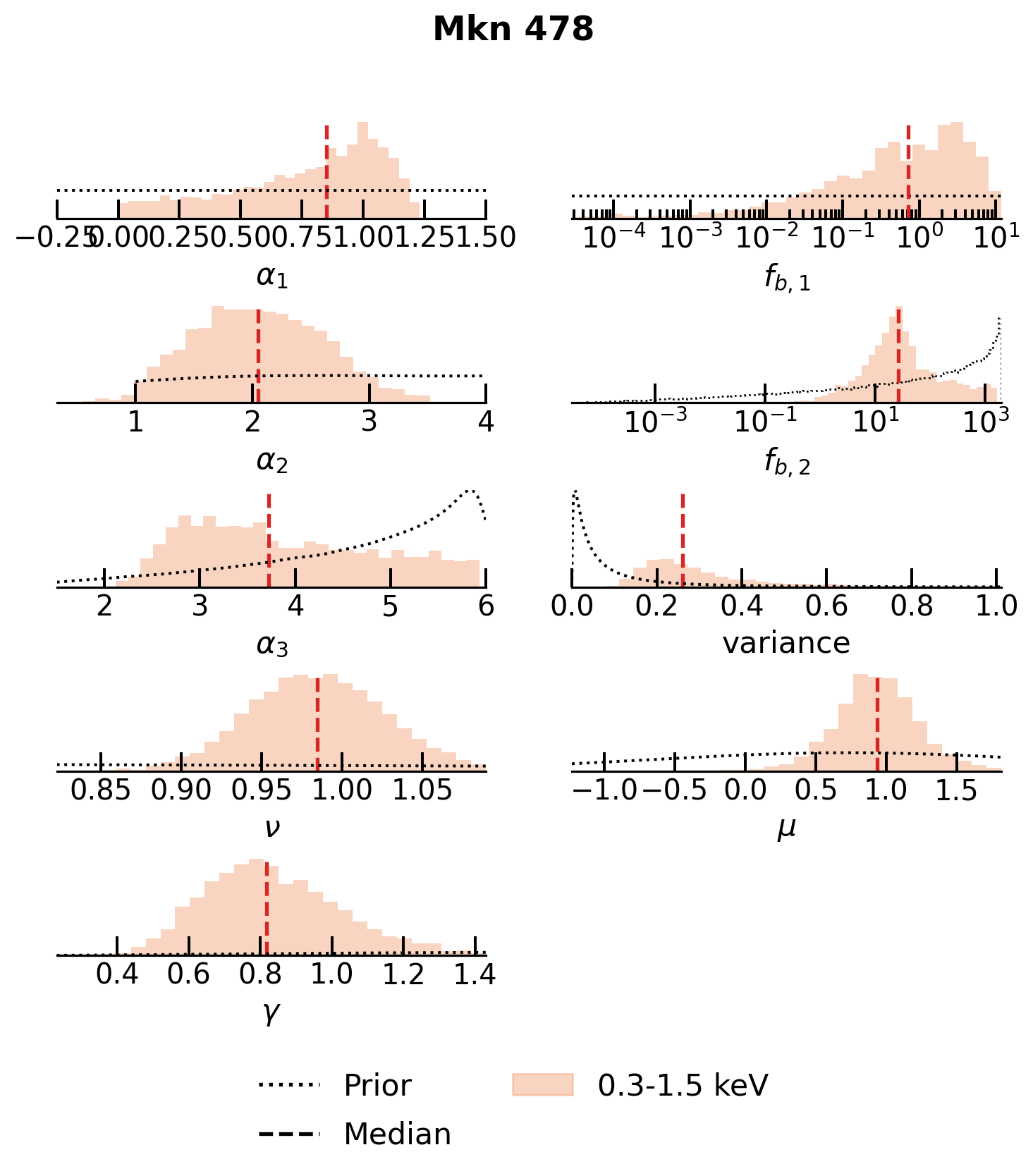

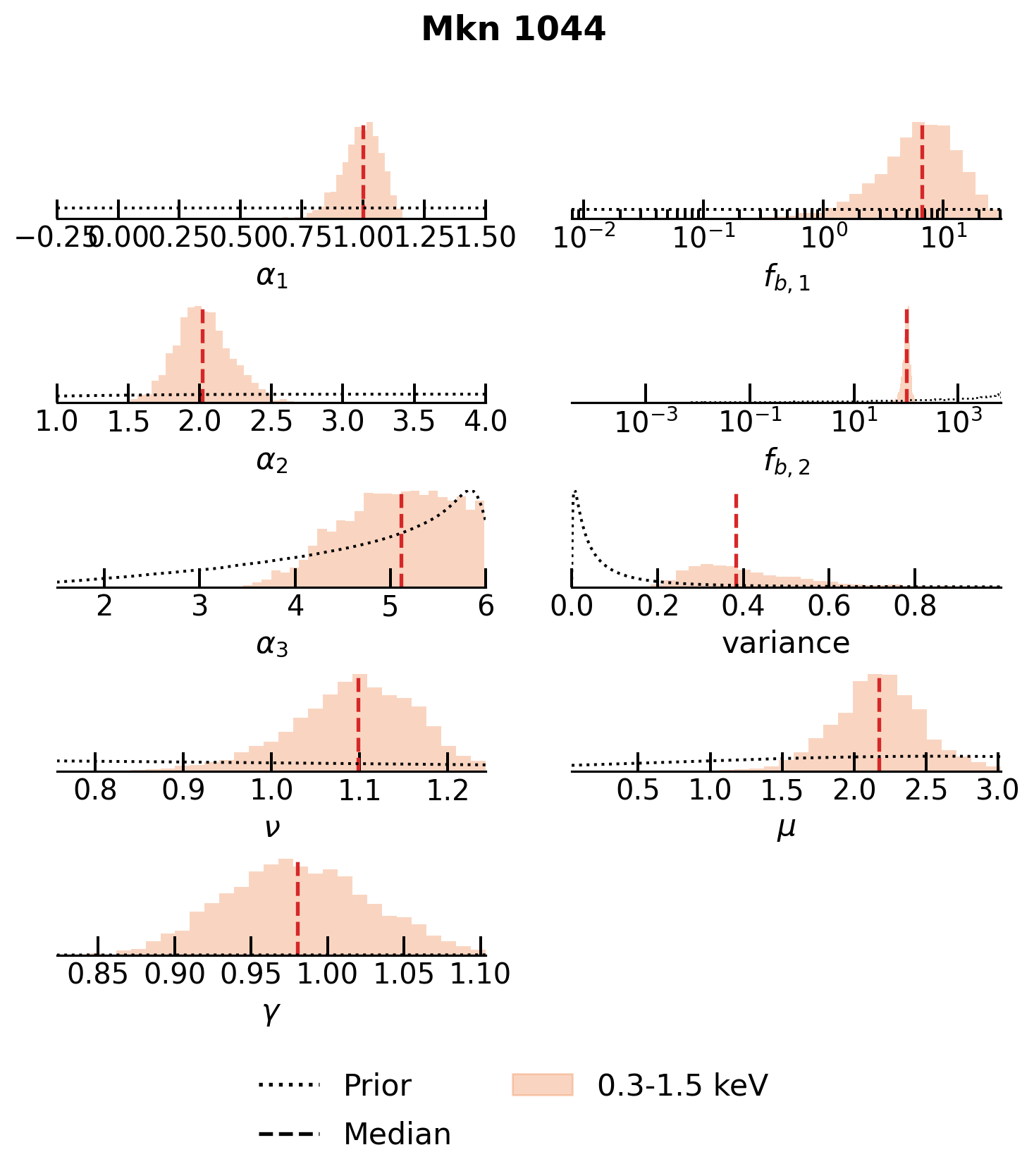

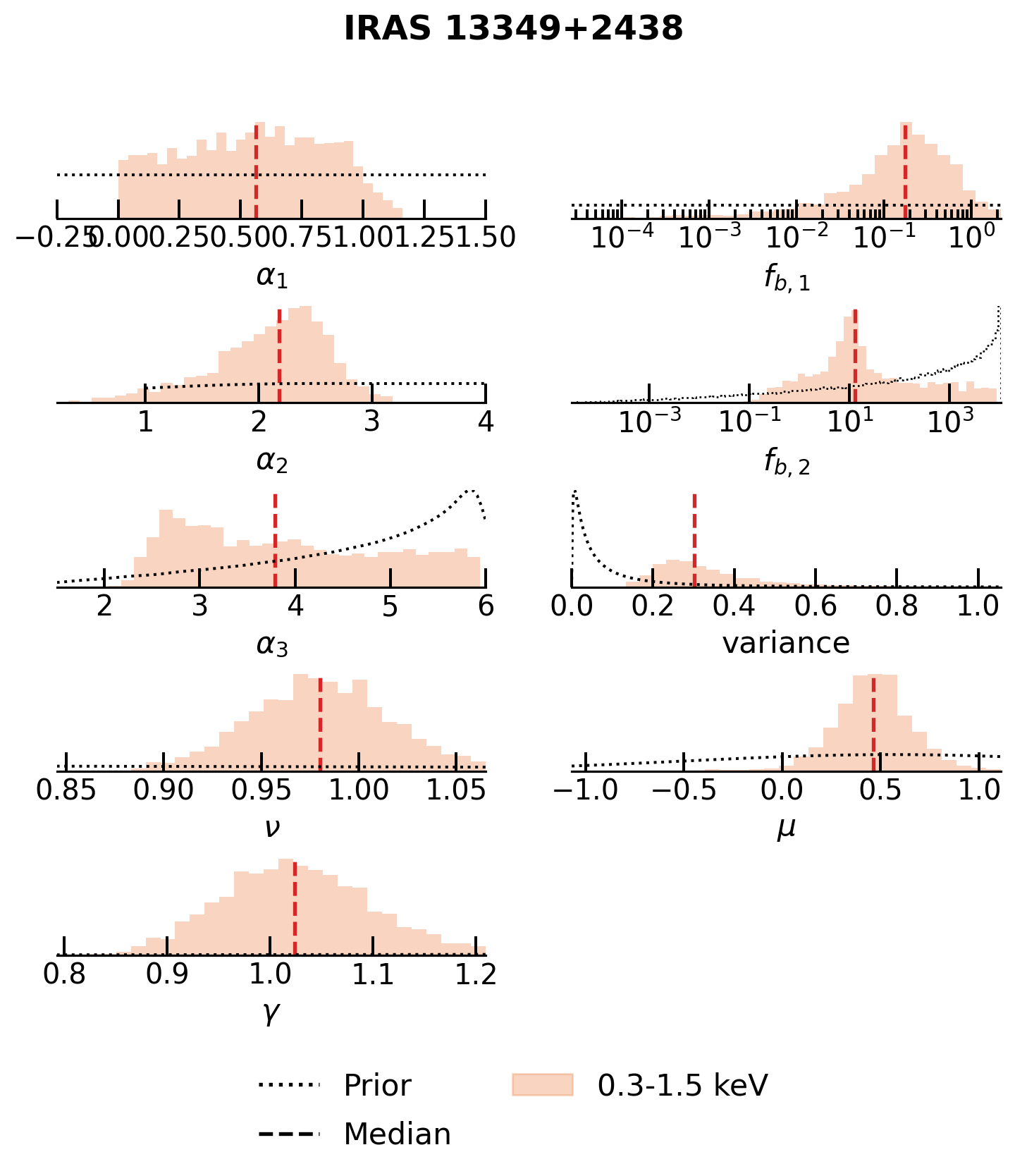

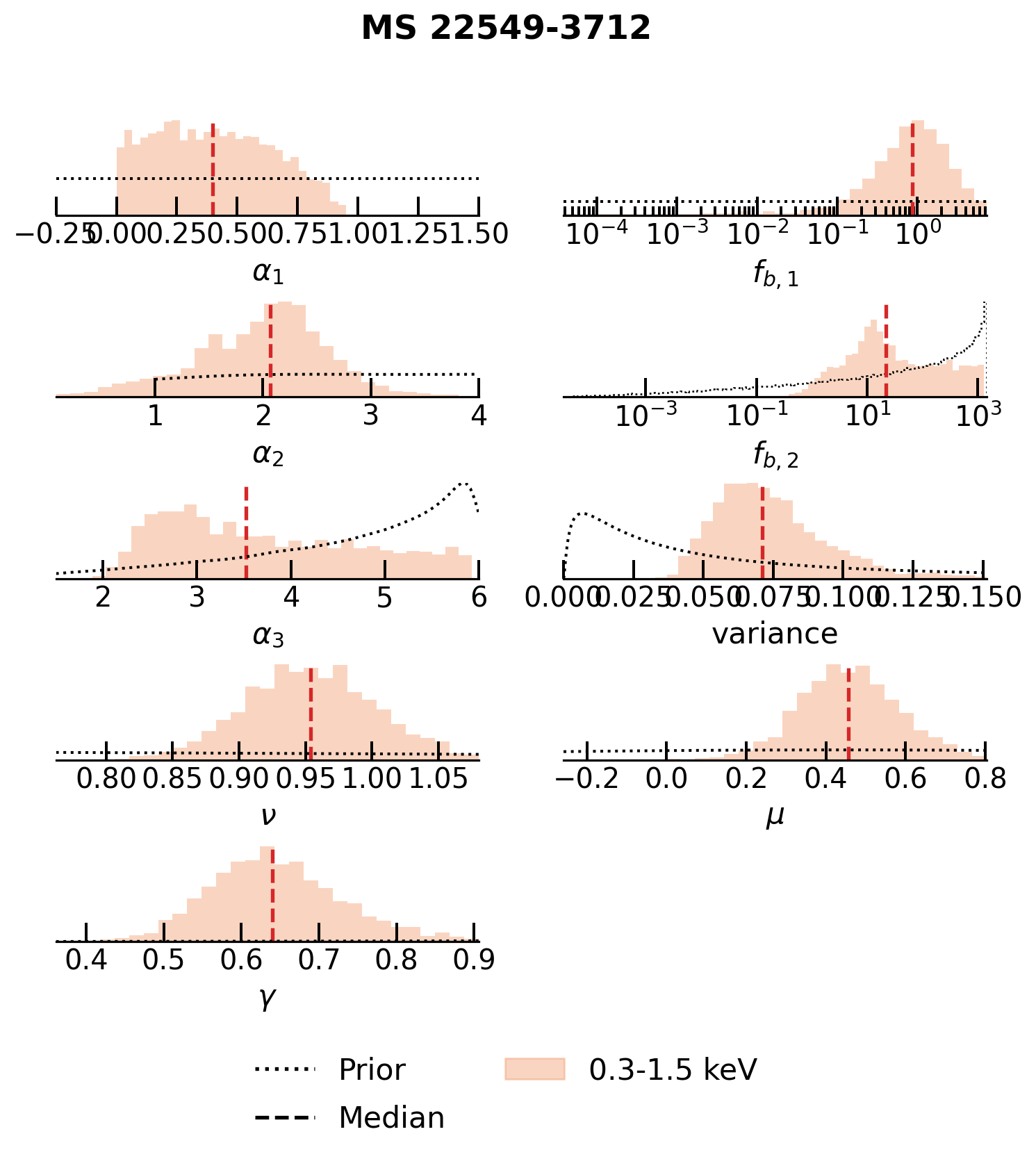

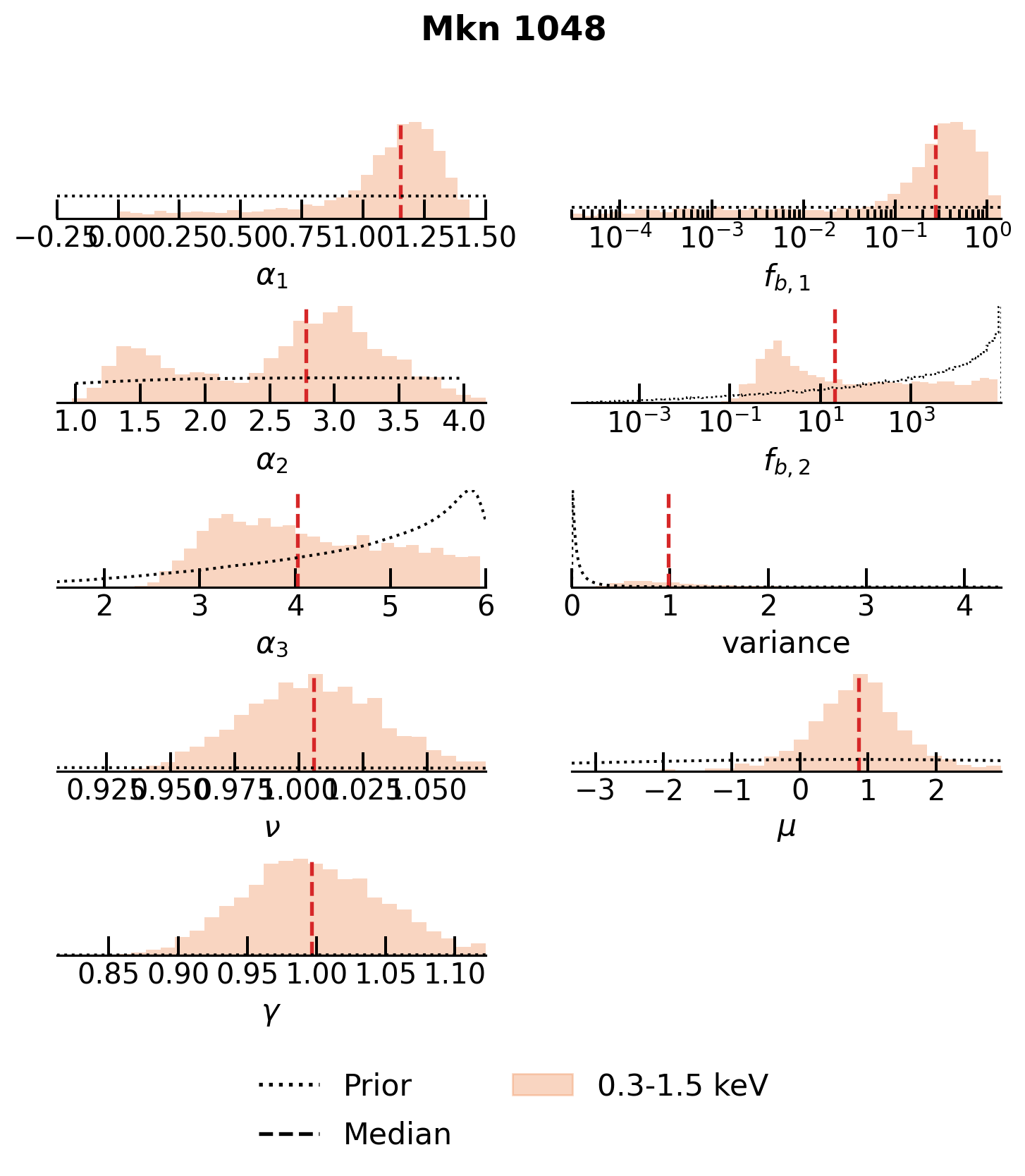

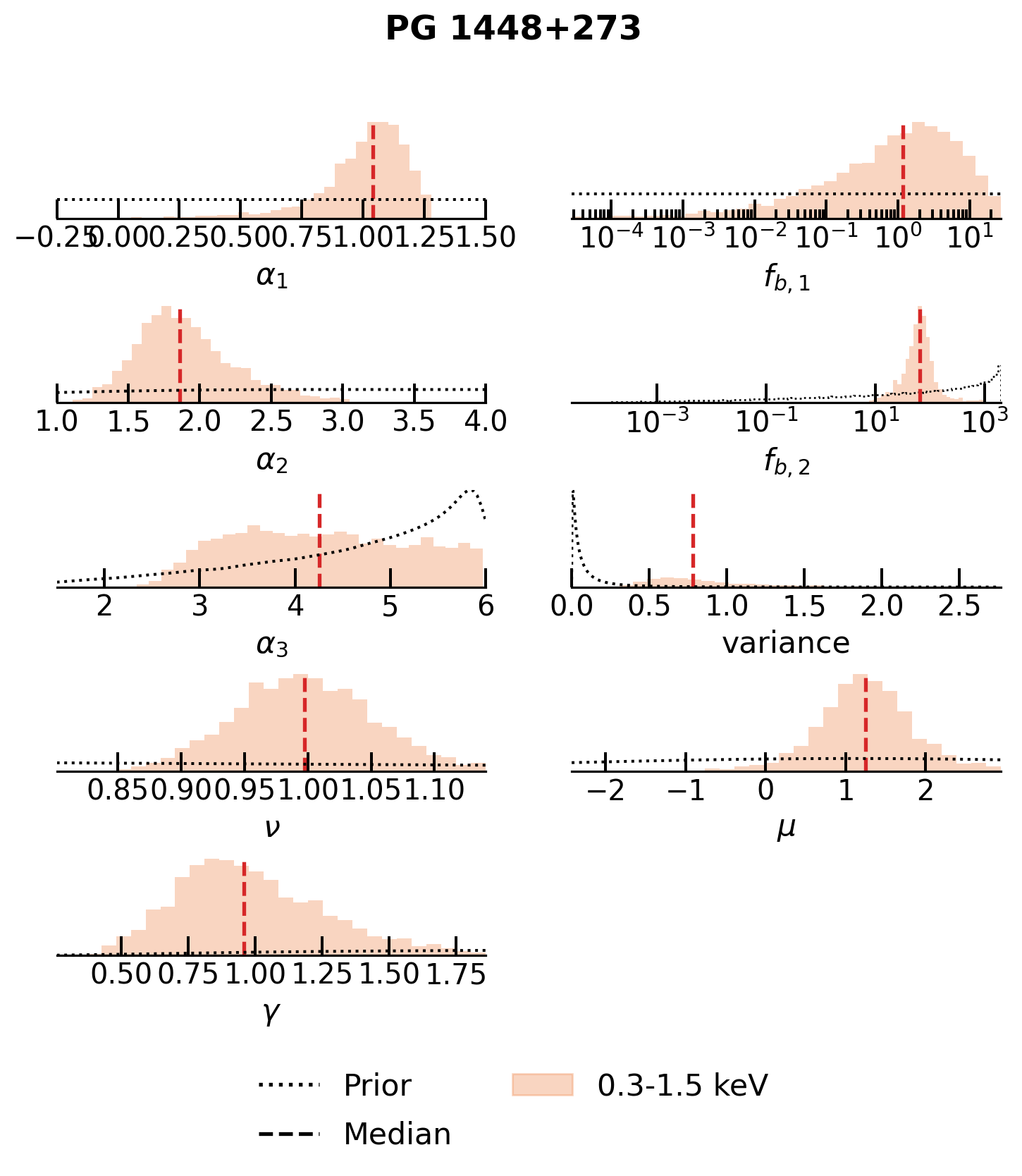

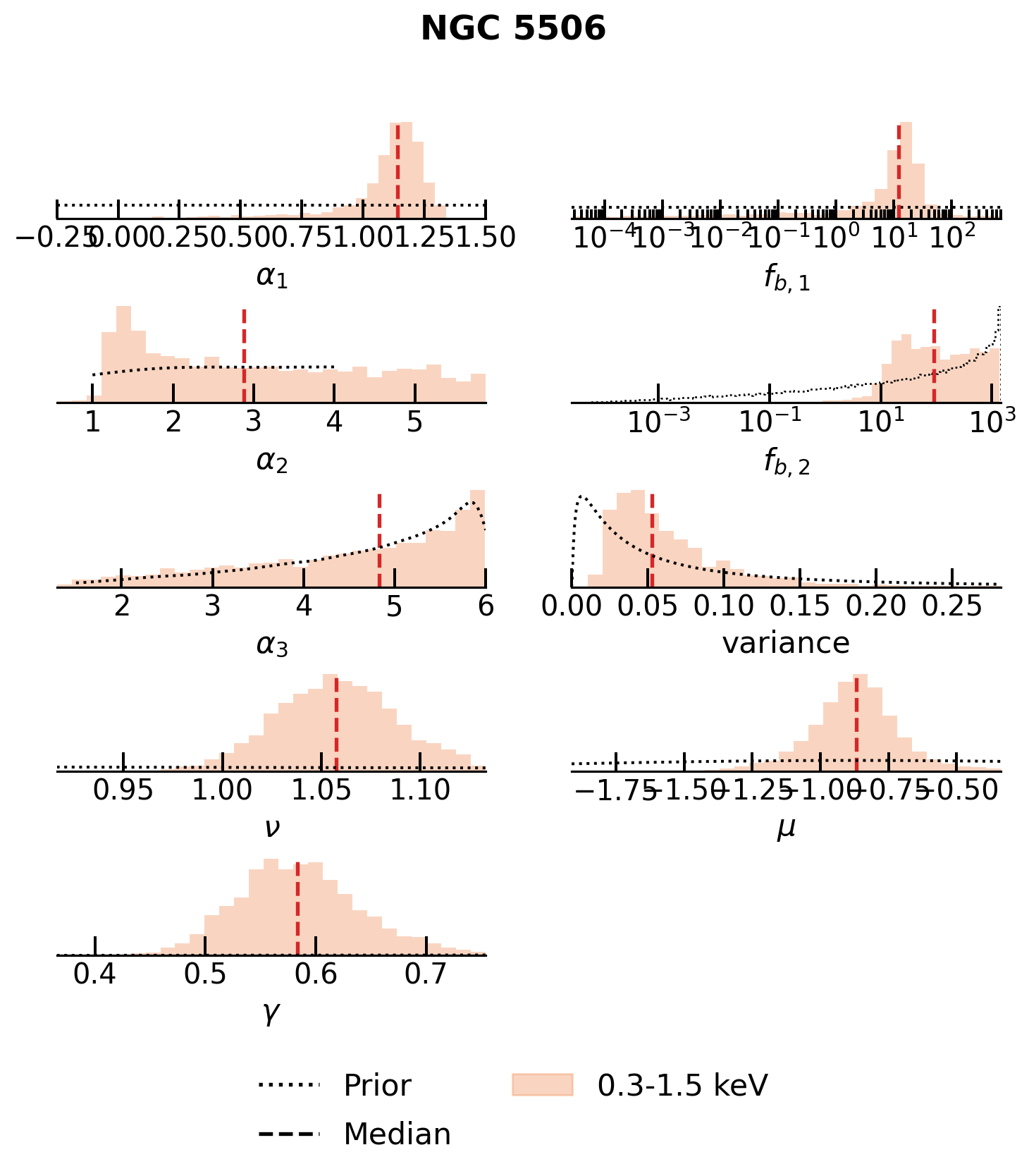

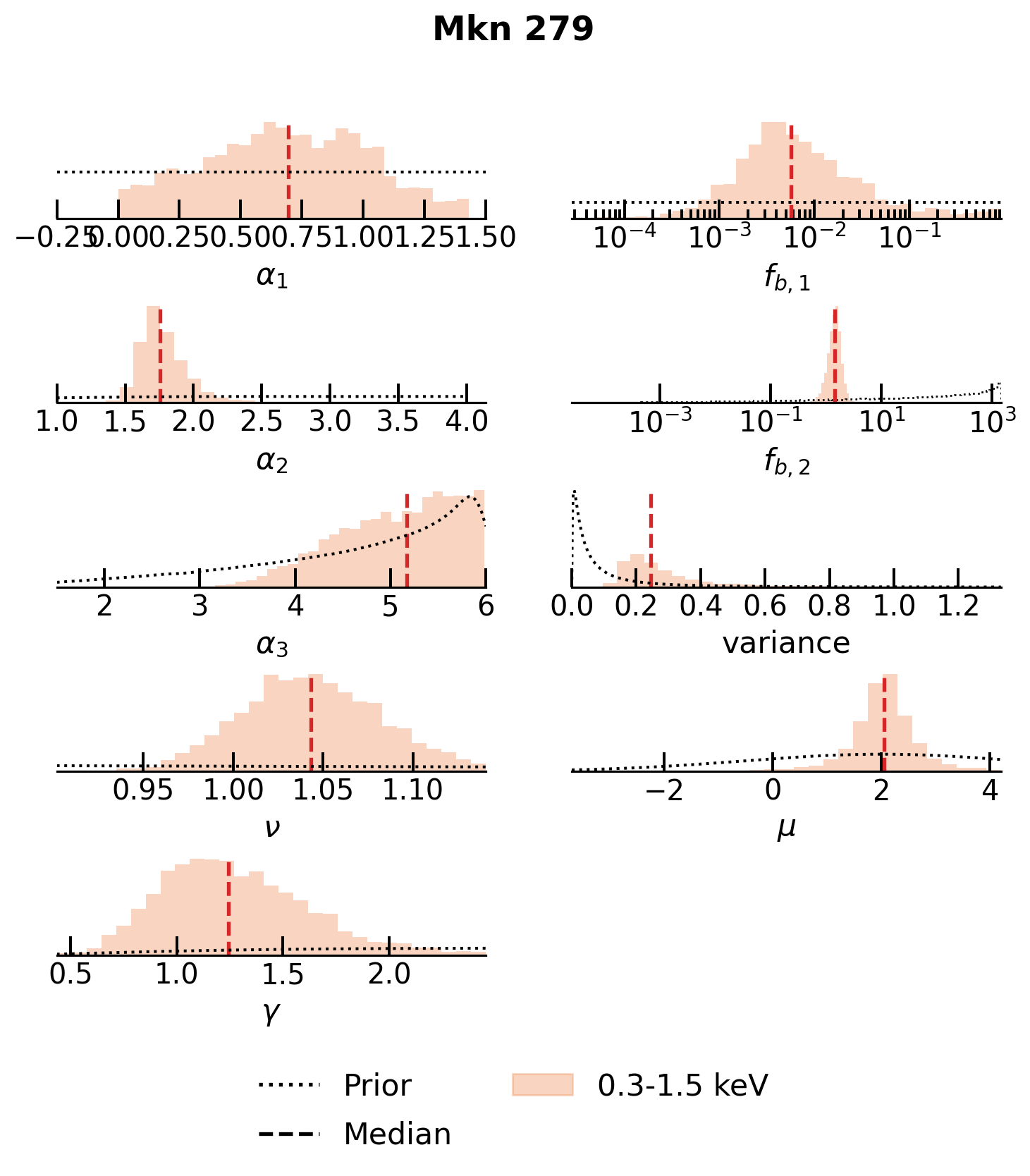

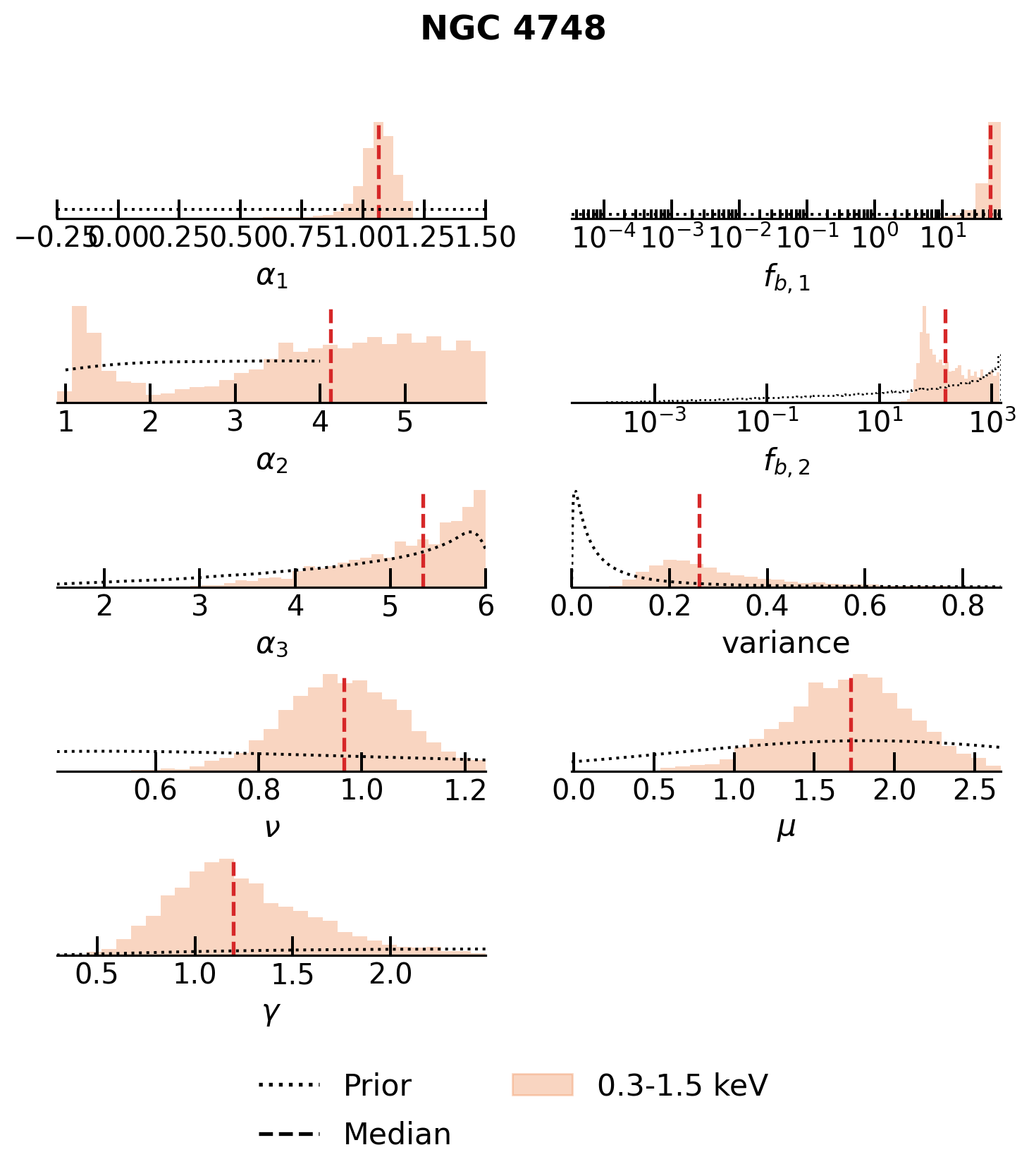

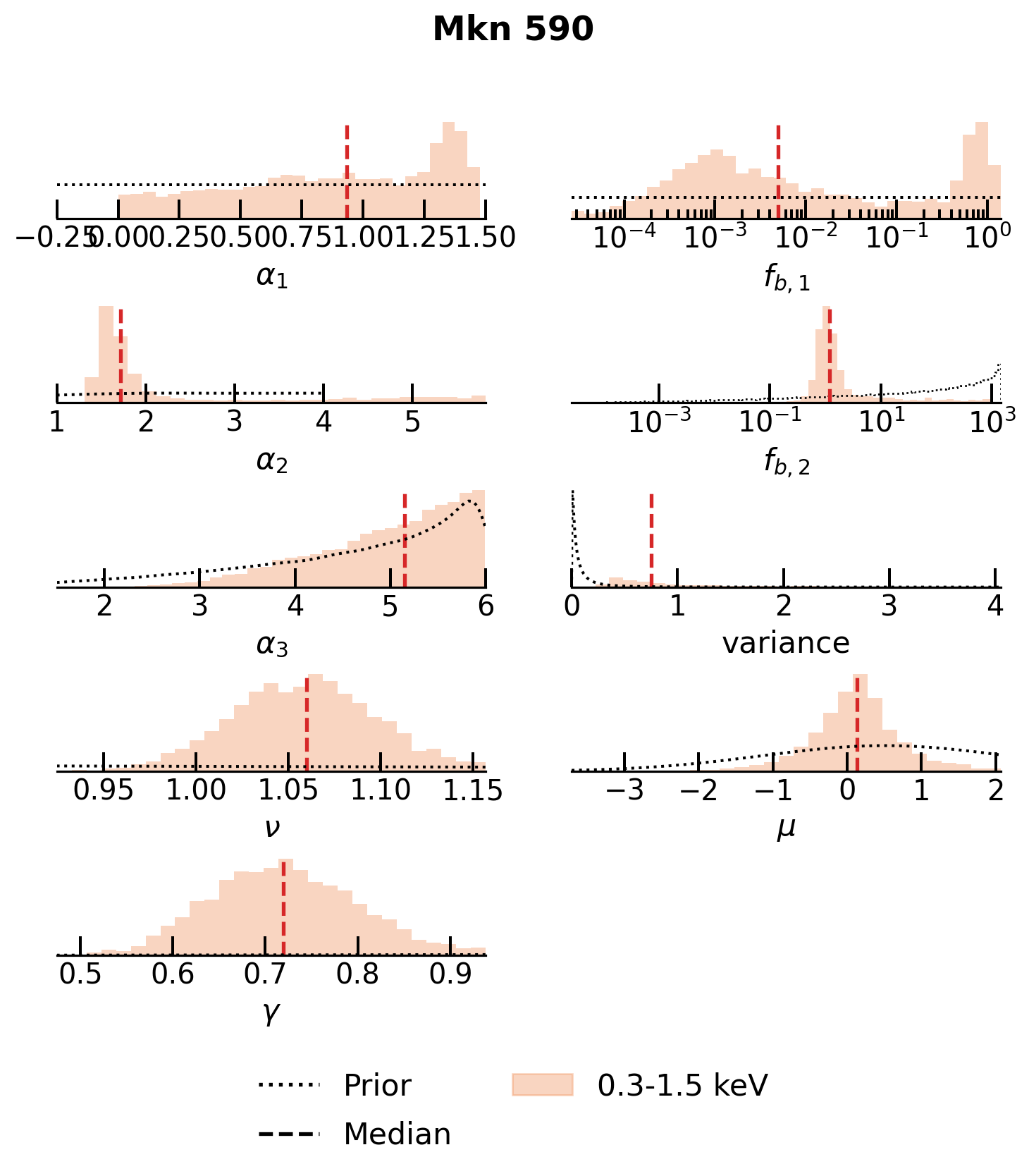

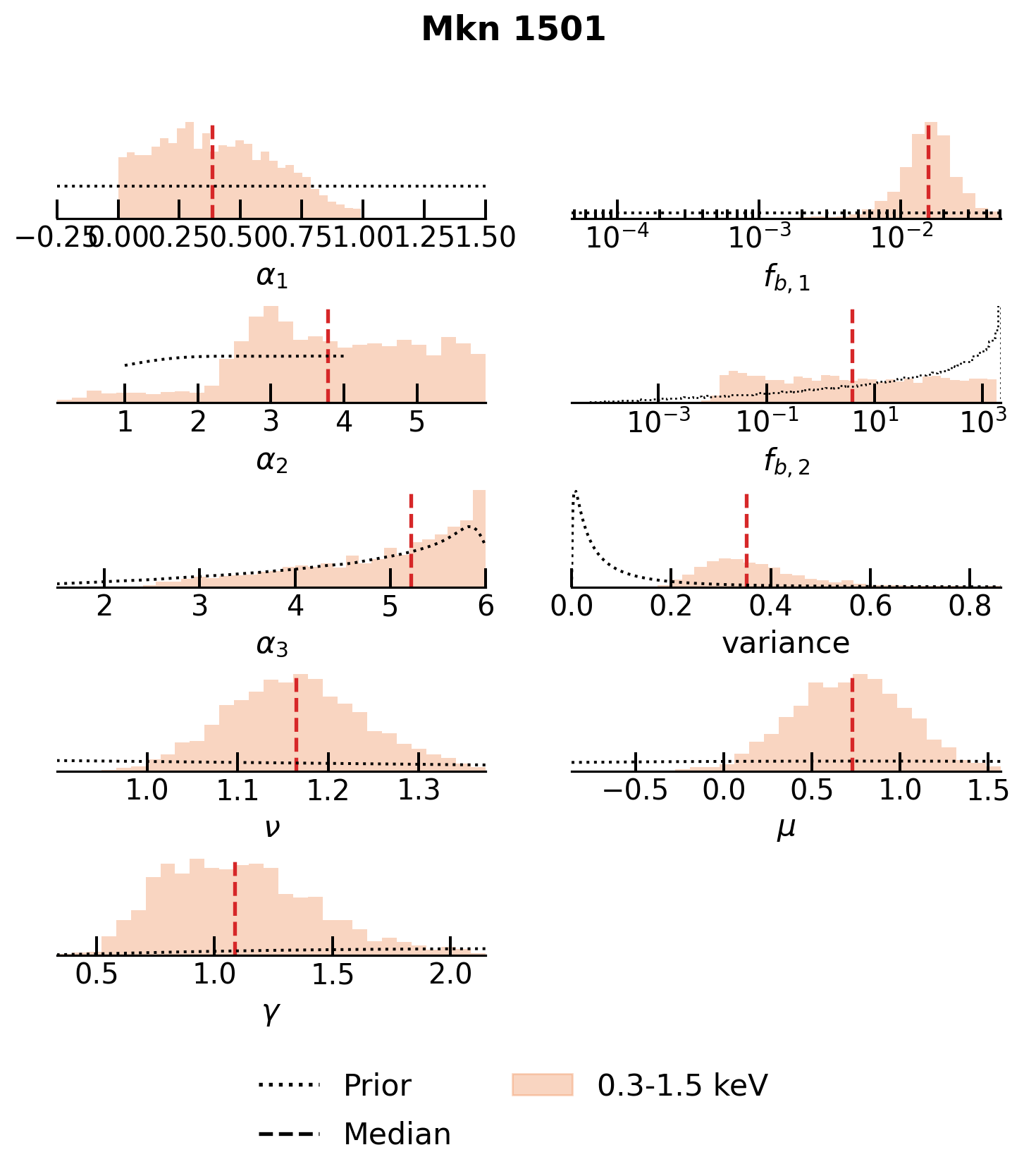

for i,dir in enumerate(double_dirs):
    source = dir_list[i]
    if os.path.exists(dir):
        with plt.style.context("https://github.com/mlefkir/beauxgraphs/raw/main/beautifulgraphs_colblind.mplstyle"):
            fig,ax = plot_posterior_density(f"{path}/{source}_combined_{band}_{short_model}_123_factor/", short_model,source, band)
            fig.suptitle(f"{dirname2prettyname(source)}")

Source Code
---
title: "Posterior densities"
format:
  html:
    code-fold: true
    code-tools: true
    code-line-numbers: true
    page-layout: full
    grid:
      sidebar-width: 50px
      body-width: 1200px
      margin-width: 200px
  pdf: default

jupyter: python3
---

```{python}
import arviz as az
import numpy as np
import glob
import os
import json
import csv
import pandas as pd

import matplotlib.pyplot as plt
import corner
from agnvar import clean_dataframe,prettyname2dirname,dirname2prettyname,find_spectral_str, replot_lsp_ppc,replot_psd_ppc,plot_posterior_density,replot_psd_overplot, get_all_xmm_lightcurves,plot_total_lc,find_simultaneous,get_scales,plot_intercalibrated_lc,plot_flux_distributions,plot_total_lc,plot_full_light_curve,intercalibrate_lc,get_index_label,prettify_names

plt.rcParams.update({'figure.max_open_warning': 0})

sources = pd.read_csv('website_sources_data.csv')

sources_list = sources["Object"].values.tolist()
dir_list = [prettyname2dirname(source) for source in sources_list]
energies = ["0.3-1.5"]
path = "/home/mehdy/github/Paper_II/website/inference/"
band = "0.3-1.5"
```

## Single bending power-law

```{python}
#| layout-ncol: 2

model = "single_steep"
short_model = "single"

names_single = json.load(open(f"{path}/{dir_list[0]}_combined_{band}_single_123_factor/info/results.json"))["paramnames"]
single_dirs = [f"{path}/{source}_combined_{band}_{short_model}_123_factor/chains/equal_weighted_post.txt" for source in dir_list]

inference_data_single = {}

for i,dir in enumerate(single_dirs):
    source = dir_list[i]
    data = az.convert_to_inference_data(dict(zip(names_single,np.genfromtxt(dir,skip_header=1).T)))
    data.posterior["t₁"] = 1/data.posterior["f₁"]
    data.posterior["log t₁"] = np.log10(data.posterior["t₁"])
    inference_data_single[source] = data

    #chain = Chain.from_arviz(inference_data_single[source], dirname2prettyname(source), color="sky")
    #fig = ChainConsumer().add_chain(chain).plotter.plot()
    with plt.style.context("ggplot"):

        fig = corner.corner(inference_data_single[source],  quantiles=[0.16, 0.5, 0.84],
        show_titles=True,title_kwargs={"fontsize": 10},label_kwargs={"fontsize": 10},labelpad=0.5,quiet=True)
        fig.set_size_inches(8., 7.5)
    #fig.tight_layout()
        fig.suptitle(f"{dirname2prettyname(source)}")
```

```{python}
#| layout-ncol: 3
for i,dir in enumerate(single_dirs):
    source = dir_list[i]
    with plt.style.context("https://github.com/mlefkir/beauxgraphs/raw/main/beautifulgraphs_colblind.mplstyle"):
        fig,ax = plot_posterior_density(f"{path}/{source}_combined_{band}_{short_model}_123_factor/", short_model,source, band)
        fig.suptitle(f"{dirname2prettyname(source)}")
```

## Double bending power-law

```{python}
#| layout-ncol: 2

model = "double_steep"
short_model = "double"

double_dirs = [f"{path}/{source}_combined_{band}_{short_model}_123_factor/chains/equal_weighted_post.txt" for source in dir_list]
names_double = json.load(open(f"{path}/{dir_list[0]}_combined_{band}_{short_model}_123_factor/info/results.json"))["paramnames"]

inference_data_double = {}

for i,dir in enumerate(double_dirs):
    source = dir_list[i]
    if os.path.exists(dir):

        data = az.convert_to_inference_data(dict(zip(names_double,np.genfromtxt(dir,skip_header=1).T)))
        data.posterior["t₁"] = 1/data.posterior["f₁"]
        data.posterior["log t₁"] = np.log10(data.posterior["t₁"])
        data.posterior["t₂"] = 1/data.posterior["f₂"]
        data.posterior["log t₂"] = np.log10(data.posterior["f₂"])

        inference_data_double[source] = data

        #chain = Chain.from_arviz(inference_data_double[source], dirname2prettyname(source), color="sky")
        #fig = ChainConsumer().add_chain(chain).plotter.plot()
        with plt.style.context("ggplot"):
            fig = corner.corner(inference_data_double[source],    quantiles=[0.16, 0.5, 0.84], show_titles=True, title_kwargs={"fontsize": 12},label_kwargs={"fontsize": 10},labelpad=0.5,quiet=True)
            fig.set_size_inches(8., 7.5)
            #fig.tight_layout()
            fig.suptitle(f"{dirname2prettyname(source)}")
```

```{python}
#| layout-ncol: 3
for i,dir in enumerate(double_dirs):
    source = dir_list[i]
    if os.path.exists(dir):
        with plt.style.context("https://github.com/mlefkir/beauxgraphs/raw/main/beautifulgraphs_colblind.mplstyle"):
            fig,ax = plot_posterior_density(f"{path}/{source}_combined_{band}_{short_model}_123_factor/", short_model,source, band)
            fig.suptitle(f"{dirname2prettyname(source)}")
```
